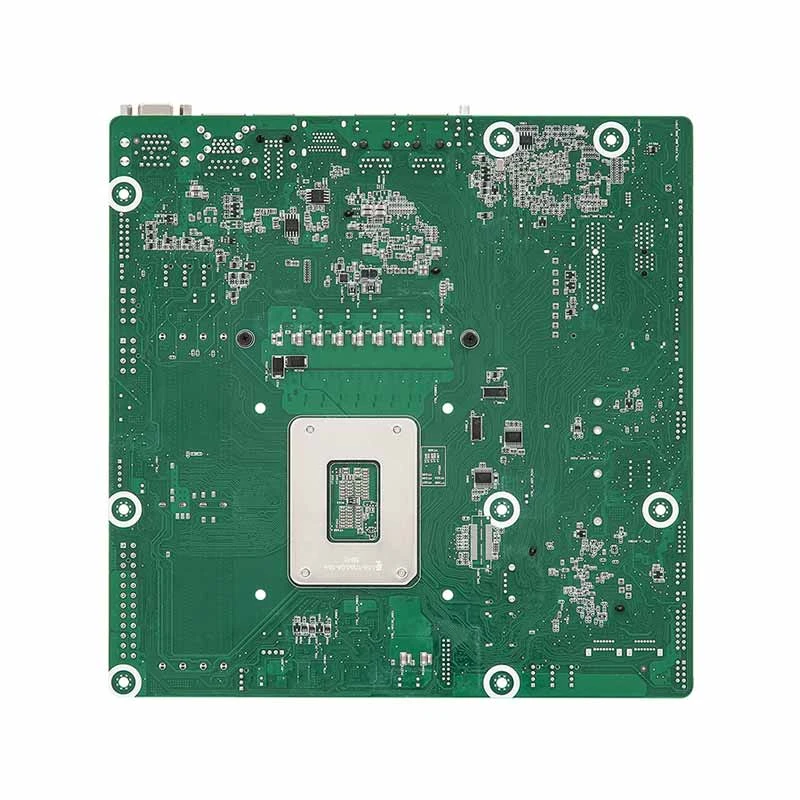

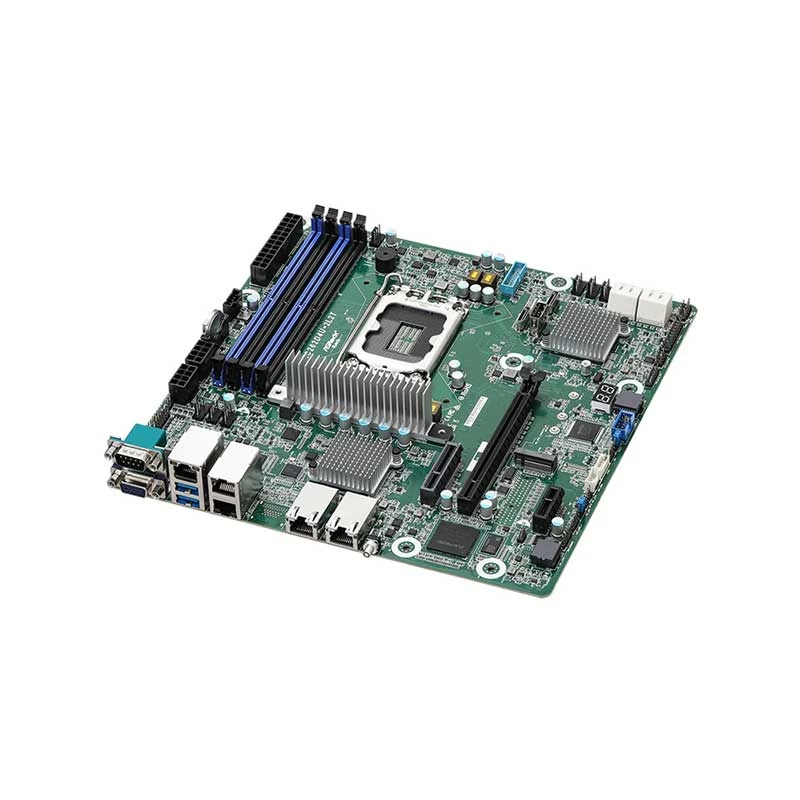

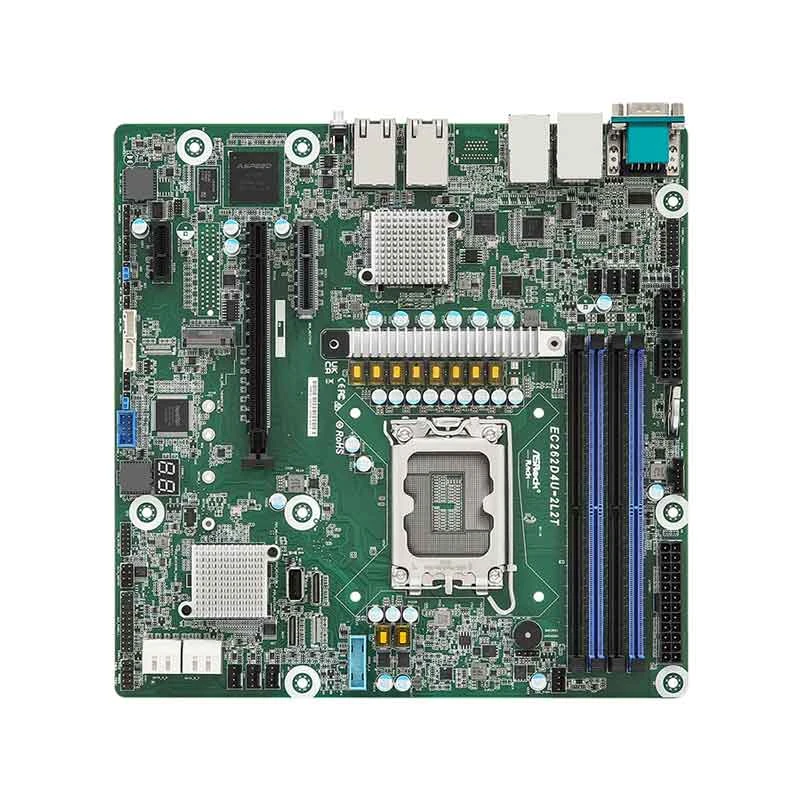

Features of Asrock EC266D4U-2L2T Motherboard In Bangladesh
Brand - Asrock, Model - Asrock EC266D4U-2L2T, Chipset Brand - Intel, Chipset - Intel C266, CPU Sockets - LGA1700, Built-in Processor - No, Supported CPU - Intel Xeon E-2400 Series & Pentium Gold G7400/G7400T Processors, Generation - Not Applicable, Back-Connect Design - No, Cable Management - Front, Memory Type - DDR5, Memory MHz - 4400 / 4000 / 3600MHz, Memory Slot - 4, Memory Slot (Additional Info) - 4 x DIMM slots (2DPC), Memory Max. - 128GB, Optane Memory Support - No, Graphics - Integrated, Graphics Chipset - Integrated With Processor, PCI Express Slot - 1 x PCIe5.0 x16, 1 x PCIe4.0 x4, 1 x PCIe4.0 x1, Storage Interface - 6Gb/s, M.2 Slot - 1 x M.2 (M-key, PCIe4.0 x4, Support 2280/2260/2242/2230), LAN Chipset - Realtek RTL8211F, LAN Speed (Mbps) - 0/100/1000/10000Mbps, Wi-Fi - No, Bluetooth - No, USB Port - 2 x USB3.2 Gen1 Type-A, VGA Port - 1, DVI Port - No, HDMI Port - No, DisplayPort (DP) - No, SATA Port - 4, BIOS Type - 256MB SPI Flash ROM, BIOS Model - AMI BIOS, Heatsink - No, CrossFire Support - No, Sli Support - No, Raid Support - 0/1/5/10, Thunderbolt - No, TPM Port - 1, COM Port - 1, RGB Support - No, Approx. Power Consumption - 95W, Form Factor - Micro-ATX, Supported Operating System - Windows Server 2022, Azure Stack HCI, Linux: RHEL 8.5, SLES 15 SP3, Ubuntu 21.04 LTS. Hypervisor: VMware ESXi 8.0 u1, Linux KVM (Linux OSes), Hyper-V (Windows Server)., Body Color - Green, Others - 4 DIMM slots (2DPC), supports DDR5 ECC UDIMM, 4 OCuLink, Supports 1 M.2 (PCIe4.0 x4), Up to 8 SATA 6Gb/s, 2 RJ45 (10GbE) by Intel X710, 2 RJ45 (1GbE) by Intel i210, Remote Management (IPMI)., Compatible Products - Max. DIMM Frequency: 4400MT/s (2SPC - 1DIMM) / 4000MT/s (2SPC - 2DIMM 1R) / 3600MT/s (2SPC - 2DIMM 2R), Voltage: 1.1V. TPM: 1 (13-pin, SPI). OCuLink: 1 OCuLink (PCIe4.0 x4), 1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s), 2 OCuLink (PCIe4.0 x4). PCH Built-in Storage: Intel C266 (8 SATA 6Gb/s; RAID 0/1/5/10): 4 SATA 7-pin, 1 OCuLink. BMC Controller: ASPEED AST2600: iKVM, vMedia support, IPMI Dedicated GLAN: 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F, Controller: ASPEED AST2600: 1 DB15 (VGA). Rear I/O: 1 UID button w/ LED, VGA Port: 1 DB15 (VGA), Serial Port: 1 DB9 (COM), USB 3.2 Gen1 Port: 2 Type-A (USB3.2 Gen1), RJ45: 2 RJ45 (10GbE), 2 RJ45 (1GbE), 1 dedicated IPMI. Internal Connector/Headers: Power Connector-1 (24-pin, ATX main power), 2 (8-pin, ATX 12V), Auxiliary Panel Header-1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus, System Panel-1 (9-pin): power switch, reset switch, system power LED, HDD activity LED, VGA header-1, Speaker Header-1 (4-pin), Buzzer -1, Fan Header-7 (4-pin), Thermal Sensor Header-1, TPM Header-1 (13-pin, SPI), SGPIO Header-1, SMBus header-1, PMBus header-1, IPMB Header-1, Clear CMOS-1 (contact pads), Front Lan LED Connector -1, USB 3.2 (Gen1) Header-1 header (19-pin, 2 USB3.2 Gen1), USB 2.0 Header-1 header (9-pin, 2 USB2.0), Type A USB 2.0 Port-1 vertical Type-A (USB2.0), NMI Header-1. LED Indicators: Standby PWR LED 5vsb-1 (5VSB), 80 Debug Port LED-1, Fan Fail LED-7, BMC heartbeat LED-1. BIOS Features; Plug and Play, ACPI 6.4 and above compliance wake up events, SMBIOS 2.8 and above, ASRock Rack Instant Flash. CPU, MB, Card side, VR, DDR5, PCH, M.2, X710, TR1 Temperature sensing, Fan Tachometer, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature), Fan Multi-Speed Control, Voltage: 3VSB, 5VSB, CPU_VCORE, VCCIN_AUX,VDD2, 1.05V_PCH, 0V82SB_PCH, 1V8SB, VCCSA, BAT, 3V, 5V, 12V., Warranty - 3 Year, Country of Origin - Taiwan, Made in/ Assemble - China
What is the price of Asrock EC266D4U-2L2T Motherboard In Bangladesh?
The price of Asrock EC266D4U-2L2T Motherboard not mentioned for stock unavailability.
The price may vary due to your customization and product availability.
You can buy Asrock EC266D4U-2L2T Motherboard from our website or visit our showrooms nearby.
