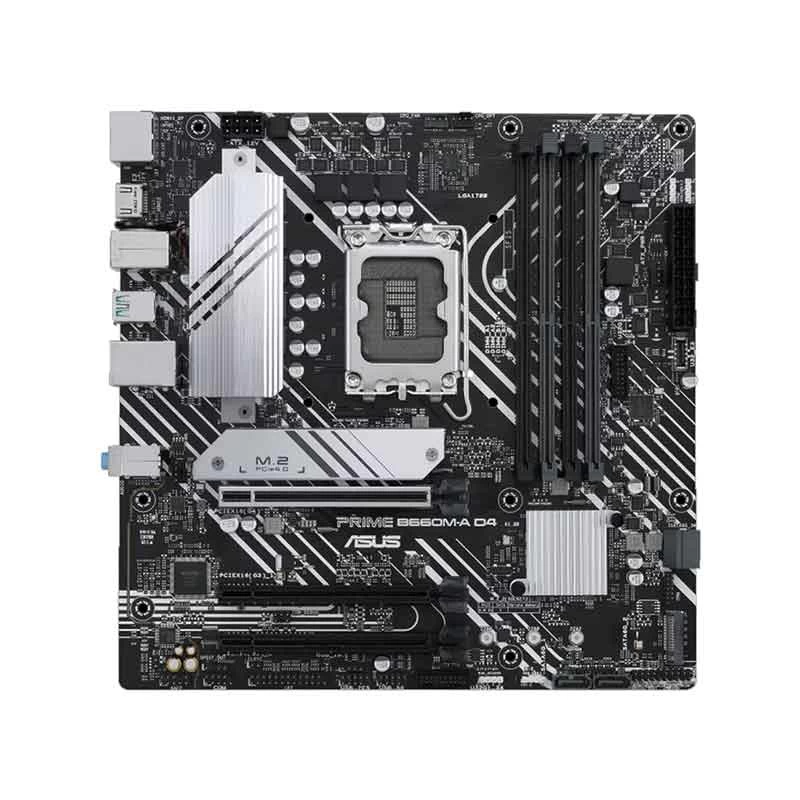

Asus PRIME B660M-A D4 DDR4 12th/13th Gen Intel LGA1700 Socket Motherboard

Item: Asus PRIME B660M-A D4 DDR4 12th/13th Gen Intel LGA1700 Socket Motherboard
Rating: 5
Author: Saddam

1 reviews

Product Id: 02.01.006.407

Regular Price

Tk 0

This item is discontinued.

See similar model

Quick Overview

Chipset - Intel B660
Sockets Supported - LGA1700
Supported CPU - Intel Core, Pentium Gold and Celeron Processors
Generation - 12th/13th
Memory Slot - 4
Memory Max. - 128GB
Back-Connect Design - No

Payment Method Shipping & Charge Order Procedure

Brand

Asus

Model

Asus PRIME B660M-A D4

Chipset

Intel B660

Sockets Supported

LGA1700

Built-in Processor

Generation

12th/13th

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

128GB

Optane Memory Support

Yes

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

Micro-ATX

Supported Operating System

Windows 10/ 11

Body Color

Black

Warranty Details

3 Years Replacement Warranty

General

Brand

Asus

Model

Asus PRIME B660M-A D4

Body Color

Black

CPU

Chipset Brand

Intel

Chipset

Intel B660

Sockets Supported

LGA1700

Built-in Processor

Supported CPU

Intel Core, Pentium Gold and Celeron Processors

Generation

12th/13th

Memory Support

Memory Type

DDR4

Memory MHz

5333(OC)/ 5000 (OC)/ 4800 (OC)/ 4600 (OC)/ 4400 (OC)/ 4266 (OC)/ 4000 (OC)/ 3733 (OC)/ 3600 (OC)/ 3466 (OC)/ 3400 (OC)/ 3333 (OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz

Memory Channel

Dual

Memory Slot

Memory Slot (Additional Info)

4 x DIMM

Memory Max.

128GB

Optane Memory Support

Yes

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

2 x M.2 (1 x M.2 2280, PCIe 4.0 x4 mode), (1 x M.2 2280, PCIe 4.0 x4 mode)

Graphics

Integrated

Graphics Chipset

Integrated With Processor

PCI Express Slot

1 x PCIe 4.0 x16 SafeSlot core+, 2 x PCIe 3.0 x16

Audio & Video

Audio Chipset

7.1 Channel

Network & Connectivity

LAN Chipset

Intel 1Gb Ethernet

LAN Speed (Mbps)

10/ 100/ 1000Mbps

WiFi

Bluetooth

Ports

USB Port

4 x USB 2.0 Type-A, 2 x USB 3.2 Gen 2 Type-A

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

4 x SATA

Thunderbolt

TPM Port

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

CrossFire Support

Sli Support

Raid Support

0,1,5,10

RGB Support

RGB

RGB Connector

1 x AURA RGB header

Approx. Power Consumption

65W

Form Factor

Micro-ATX

Bios Information

BIOS Type

128 Mb Flash ROM

BIOS Model

UEFI AMI BIOS

Compatibility

Supported Operating System

Windows 10/ 11

Warranty

Warranty Details

3 Years Replacement Warranty

Additional Info

Others

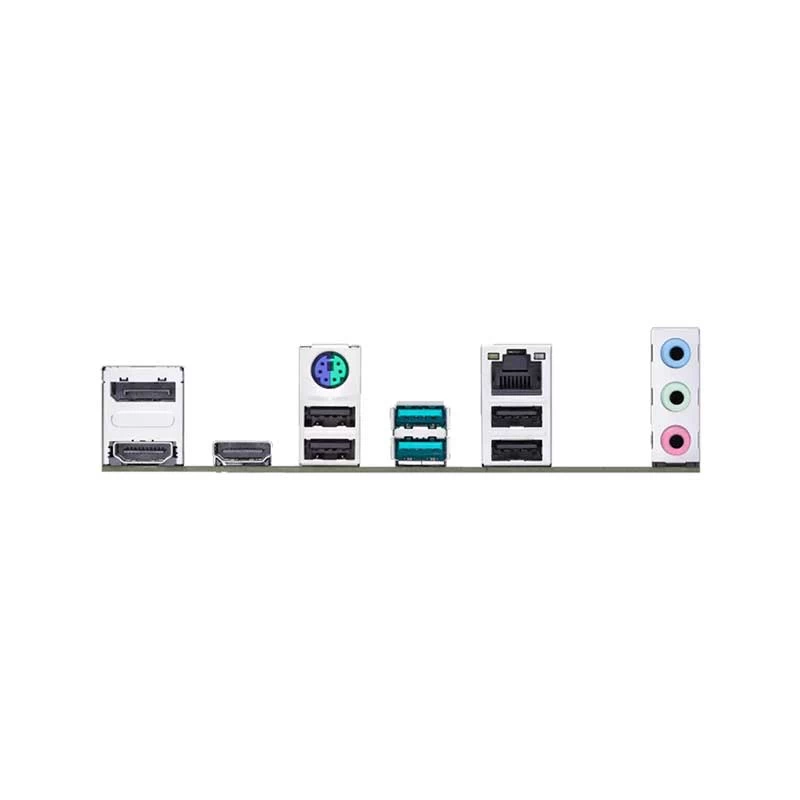

Back Panel Ports: 1 x PS/2 combo port, 3 x Audio Jacks. Internal I/O Connectors: 1 x LPT header, 2 x AURA Addressable Gen 2 headers, 1 x 4-pin CPU header, 1 x 4-pin CPU OPT Fan header, 2 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 1 x 8-pin + 12V Power Connector, 1 x Clear CMOS Header, 1 x Front Panel Audio Header (AAFP), 1 x S/PDIF Out header, 1 x 20-3 pin System Panel Header with chassis intrude function

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Asus PRIME B660M-A D4 Motherboard In Bangladesh

Brand - Asus, Model - Asus PRIME B660M-A D4, Chipset Brand - Intel, Chipset - Intel B660, CPU Sockets - LGA1700, Built-in Processor - No, Supported CPU - Intel Core, Pentium Gold and Celeron Processors, Generation - 12th/13th, Back-Connect Design - No, Cable Management - Front, Memory Type - DDR4, Memory MHz - 5333(OC)/ 5000 (OC)/ 4800 (OC)/ 4600 (OC)/ 4400 (OC)/ 4266 (OC)/ 4000 (OC)/ 3733 (OC)/ 3600 (OC)/ 3466 (OC)/ 3400 (OC)/ 3333 (OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz, Memory Channel - Dual Channel, Memory Slot - 4, Memory Slot (Additional Info) - 4 x DIMM, Memory Max. - 128GB, Optane Memory Support - Yes, Graphics - Integrated, Graphics Chipset - Integrated With Processor, PCI Express Slot - 1 x PCIe 4.0 x16 SafeSlot core+, 2 x PCIe 3.0 x16, Storage Interface - 6Gb/s, M.2 Slot - 2 x M.2 (1 x M.2 2280, PCIe 4.0 x4 mode), (1 x M.2 2280, PCIe 4.0 x4 mode), LAN Chipset - Intel 1Gb Ethernet, LAN Speed (Mbps) - 10/ 100/ 1000Mbps, Audio Channel - 7.1 Channel, Wi-Fi - No, Bluetooth - No, USB Port - 4 x USB 2.0 Type-A, 2 x USB 3.2 Gen 2 Type-A, HDMI Port - 2, DisplayPort (DP) - 1, SATA Port - 4 x SATA, BIOS Type - 128 Mb Flash ROM, BIOS Model - UEFI AMI BIOS, Heatsink - Yes, CrossFire Support - No, Sli Support - No, Raid Support - 0,1,5,10, TPM Port - 1, COM Port - 1, RGB Support - RGB, RGB Connector - 1 x AURA RGB header, Approx. Power Consumption - 65W, Form Factor - Micro-ATX, Supported Operating System - Windows 10/ 11, Body Color - Black, Others - Back Panel Ports: 1 x PS/2 combo port, 3 x Audio Jacks. Internal I/O Connectors: 1 x LPT header, 2 x AURA Addressable Gen 2 headers, 1 x 4-pin CPU header, 1 x 4-pin CPU OPT Fan header, 2 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 1 x 8-pin + 12V Power Connector, 1 x Clear CMOS Header, 1 x Front Panel Audio Header (AAFP), 1 x S/PDIF Out header, 1 x 20-3 pin System Panel Header with chassis intrude function, Warranty - 3 Year Replacement, Country of Origin - Taiwan, Made in/ Assemble - China

What is the price of Asus PRIME B660M-A D4 Motherboard In Bangladesh?

The price of Asus PRIME B660M-A D4 Motherboard not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy Asus PRIME B660M-A D4 Motherboard from our website or visit our showrooms nearby.
