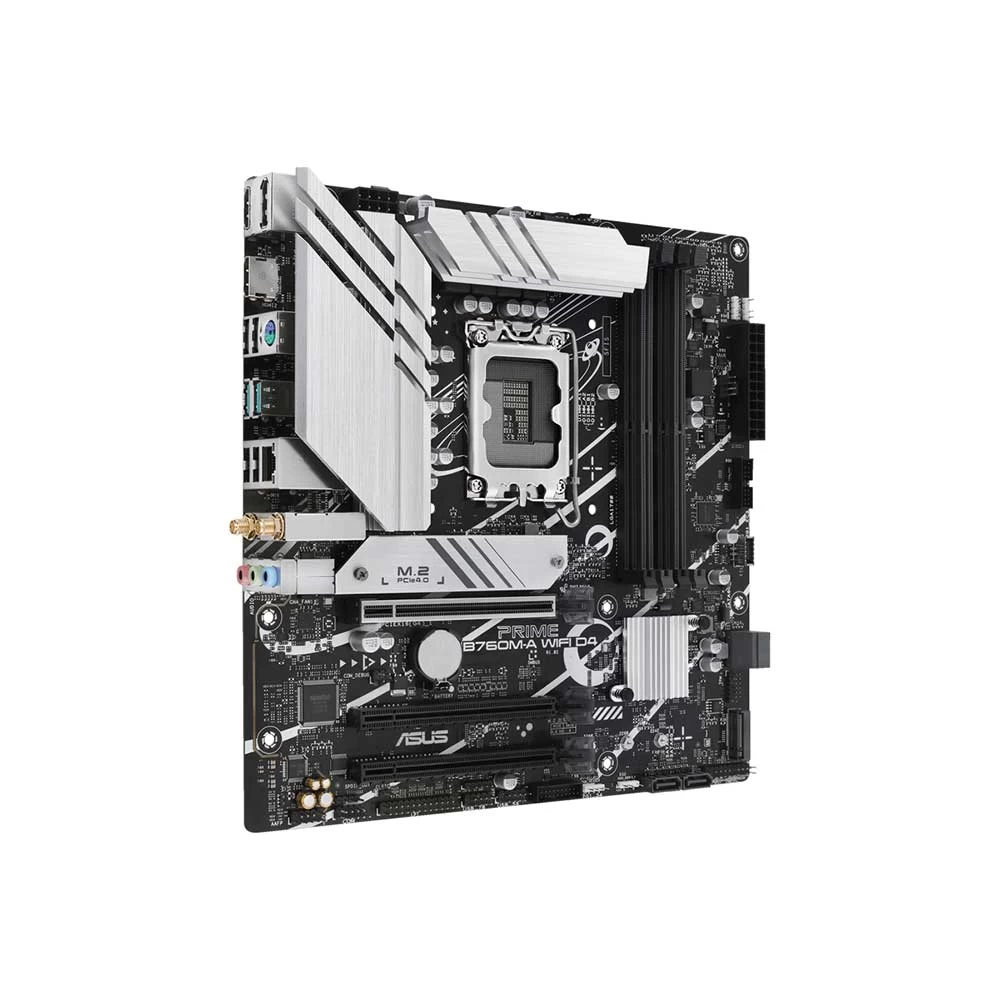

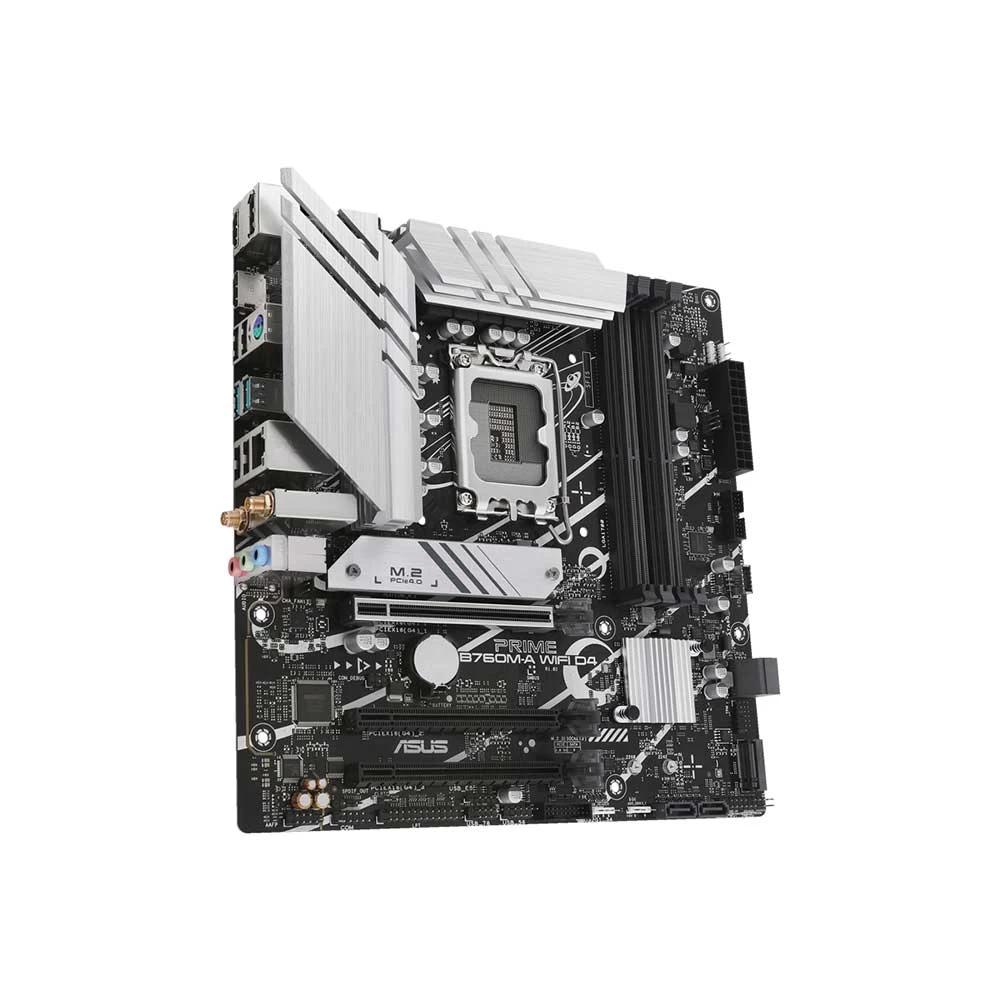

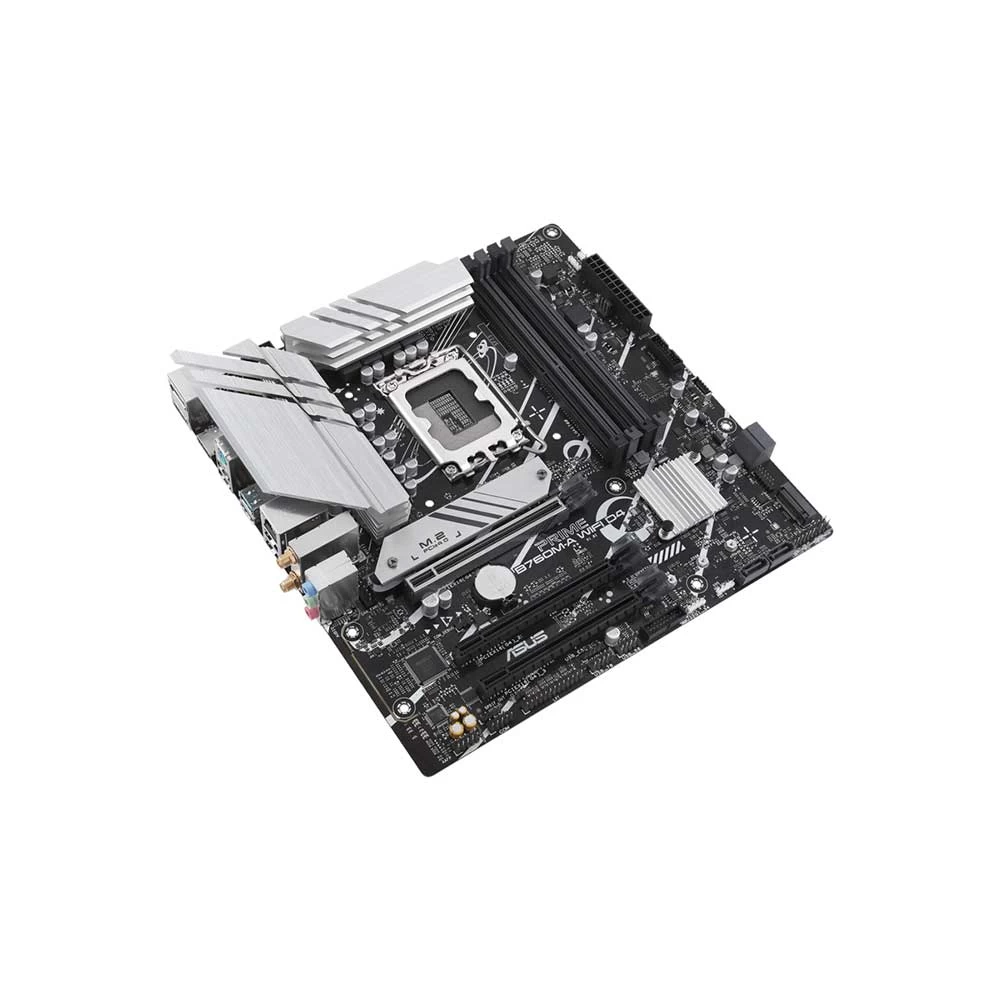

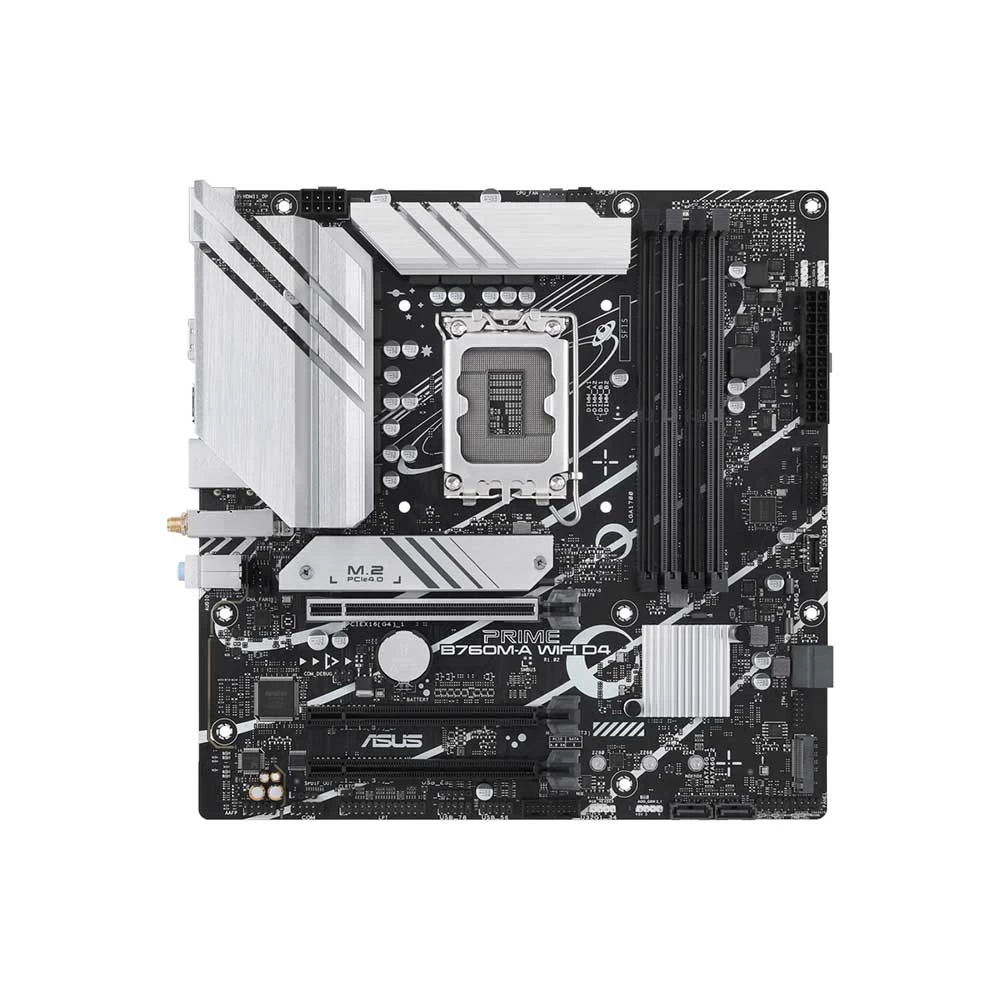

Asus PRIME B760M-A D4 (Wi-Fi 6) DDR4 Motherboard (Bundle with PC)

Item: Asus PRIME B760M-A D4 (Wi-Fi 6) DDR4 Motherboard (Bundle with PC)
Rating: 1
Author: shohan

Product Id: 02.01.006.446

Regular Price

Tk 0

This item is discontinued.

See similar model

Quick Overview

Chipset - Intel B760
Sockets Supported - LGA1700
Supported CPU - 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Generation - 12th/13th
Memory Slot - 4
Memory Max. - 128GB
Back-Connect Design - No

Payment Method Shipping & Charge Order Procedure

Brand

Asus

Model

Asus PRIME B760M-A D4 (Wi-Fi 6)

Chipset

Intel B760

Sockets Supported

LGA1700

Built-in Processor

Generation

12th/13th

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

128GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Bluetooth 5.2

Form Factor

Micro-ATX

Supported Operating System

Windows 11, 10

Body Color

Black

Warranty Details

3 Years Replacement Warranty

General

Brand

Asus

Model

Asus PRIME B760M-A D4 (Wi-Fi 6)

Body Color

Black

CPU

Chipset Brand

Intel

Chipset

Intel B760

Sockets Supported

LGA1700

Built-in Processor

Supported CPU

13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors

Generation

12th/13th

Memory Support

Memory Type

DDR4

Memory MHz

5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory

Memory Channel

Dual

Memory Slot

Memory Slot (Additional Info)

4 x DIMM

Memory Max.

128GB

Memory Max. (Additional Info)

Max. 128GB, DDR4

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

2 x M.2, ((1 x M.2, type 2242/2260/2280 (supports PCIe 4.0 x4 mode), (1 x M.2, type 2242/2260/2280 (supports PCIe 4.0 x4 mode))

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x16 slot

Audio & Video

Audio Chipset

Realtek High Definition Audio CODEC

Audio Channel

7.1

Network & Connectivity

WiFi

Yes

WiFi Technology

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Bluetooth

Bluetooth 5.2

Ports

USB Port

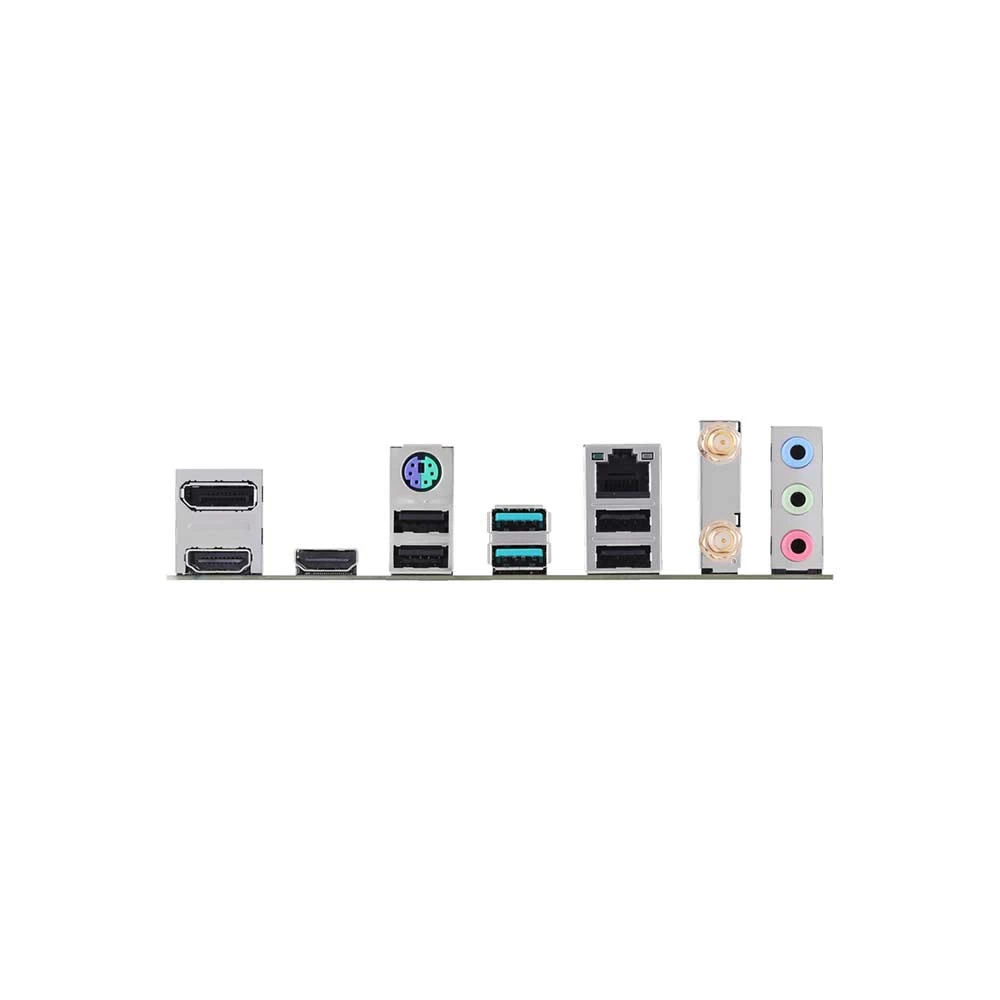

2 x USB 3.2 Gen 2 (2 x Type-A ), 4 x USB 2.0 (4 x Type-A)

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

IDE Port

SATA Port

Thunderbolt

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

FireWire

CrossFire Support

Sli Support

Raid Support

0, 1, 5, 10

RGB Support

RGB

RGB Sync

Aura RGB

RGB Connector

1 x Aura RGB header

Approx. Power Consumption

65W

Form Factor

Micro-ATX

Bios Information

BIOS Type

128 Mb Flash ROM

BIOS Model

UEFI AMI BIOS

Compatibility

Supported Operating System

Windows 11, 10

Compatible Products

Lake Pentium Gold G7400, Core i3 12100F, Core i3 12100, Core i3 13100F , Core i3 13100, Core i5 12400, Core i5 13400F, Core i5 13500

Warranty

Warranty Details

3 Years Replacement Warranty

Additional Info

Feature

Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C, Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+, ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking, Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware,

Others

All-Around Energy Efficiency: The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Asus PRIME B760M-A D4 (Wi-Fi 6) Motherboard In Bangladesh

Intel® B760 (LGA 1700) mATX motherboard, PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, Dual HDMI®, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync

PRIME B760M-A WIFI D4

Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®
Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

PRIME Series provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

What is the price of Asus PRIME B760M-A D4 (Wi-Fi 6) Motherboard In Bangladesh?

The price of Asus PRIME B760M-A D4 (Wi-Fi 6) Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Asus PRIME B760M-A D4 (Wi-Fi 6) Motherboard from our website or visit our showrooms nearby.
