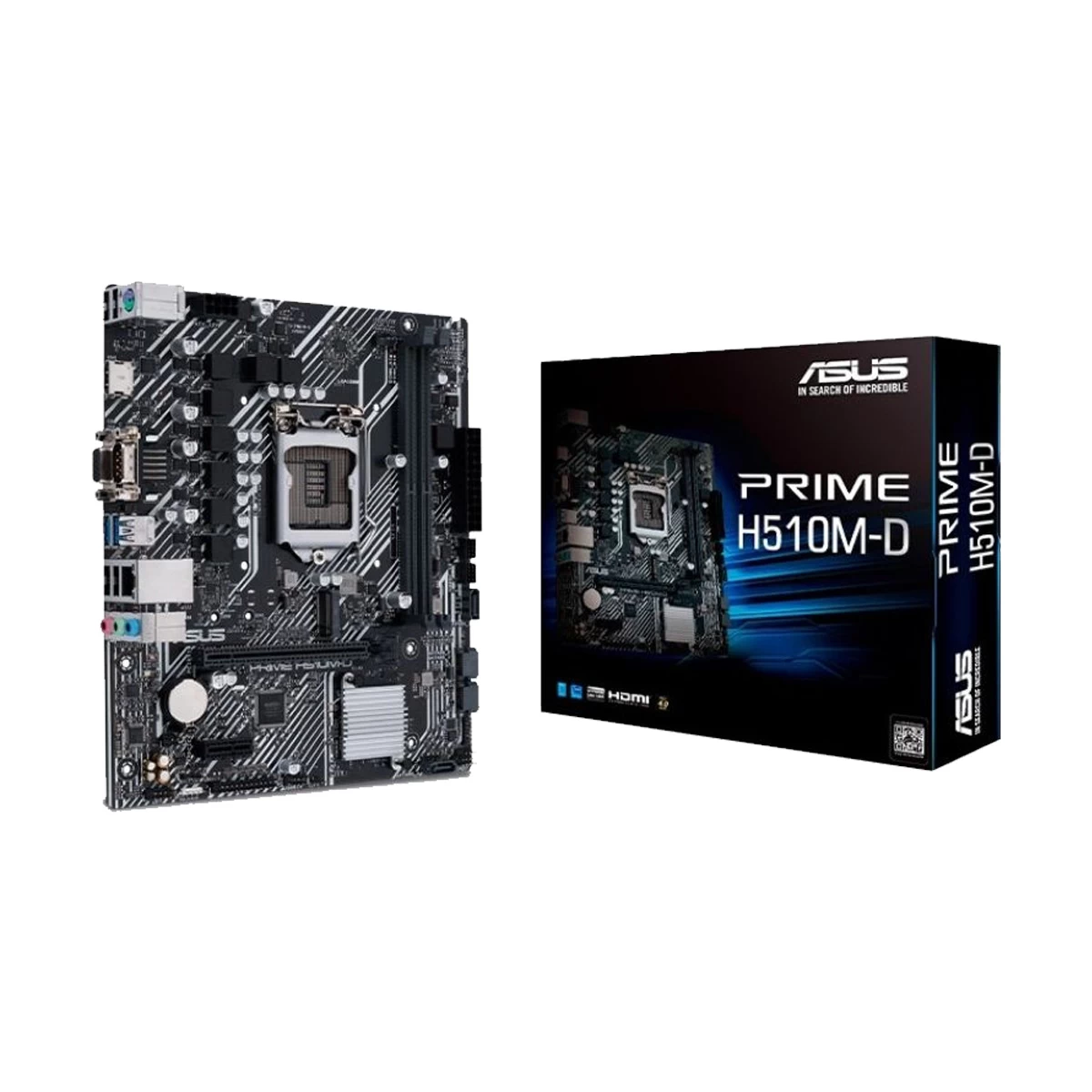

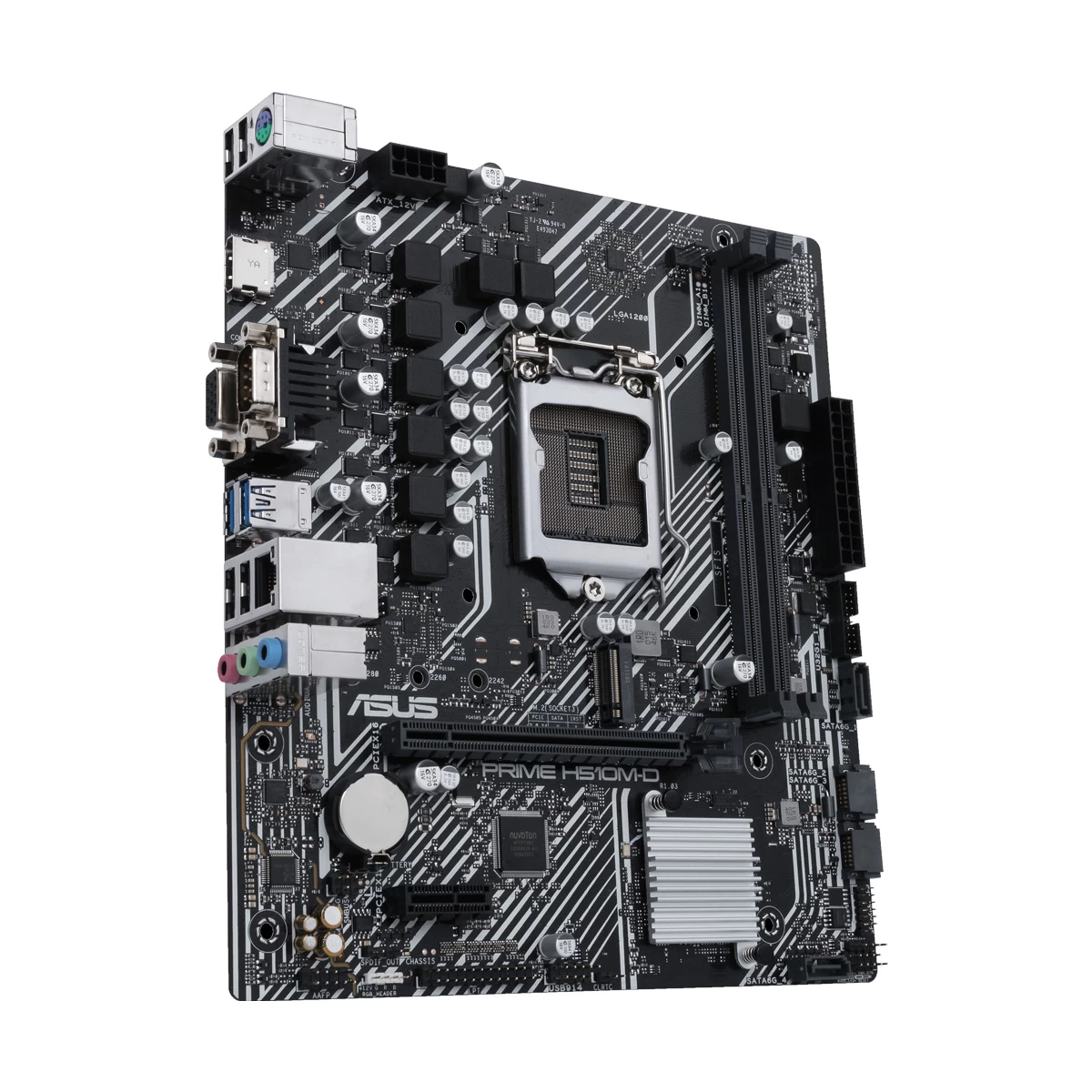

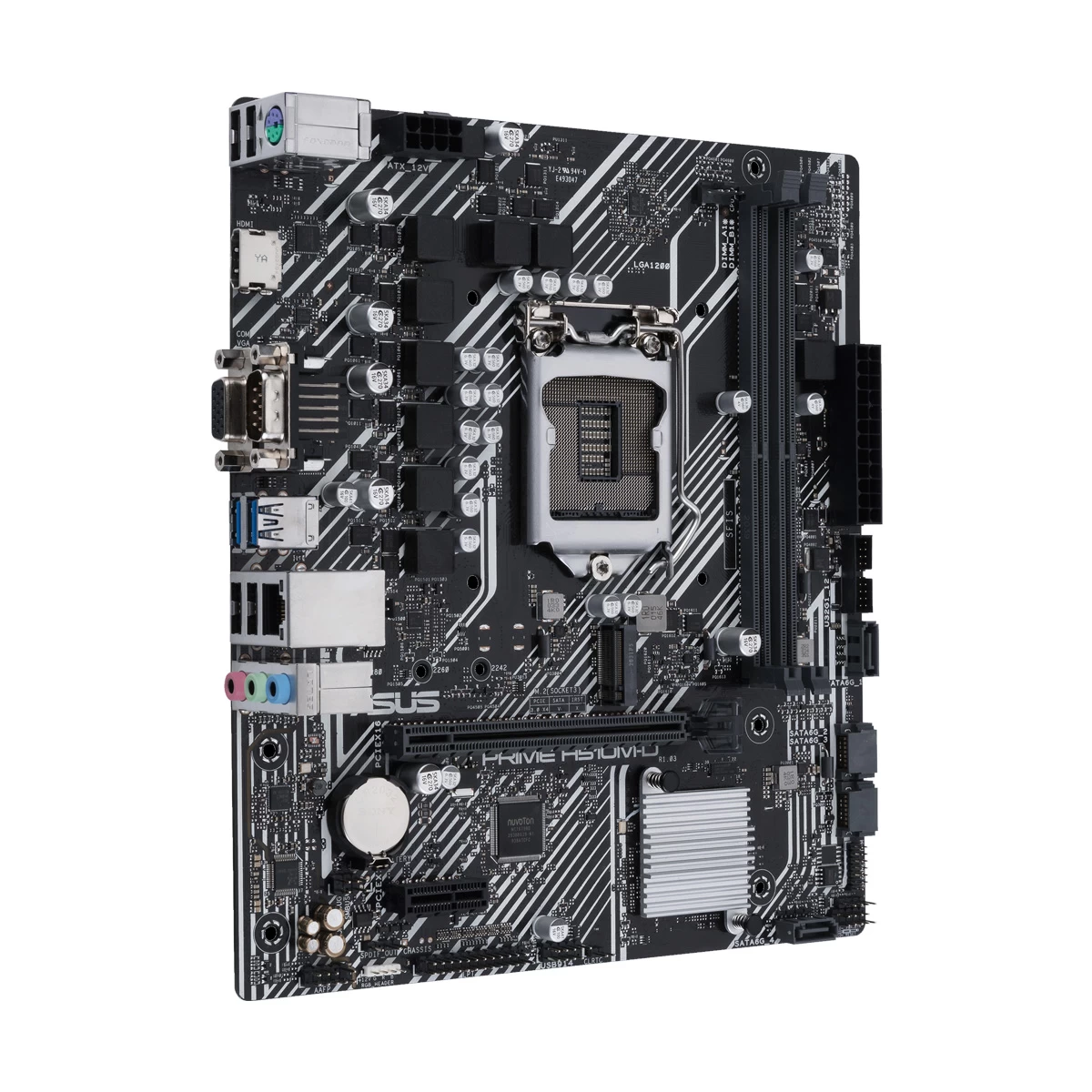

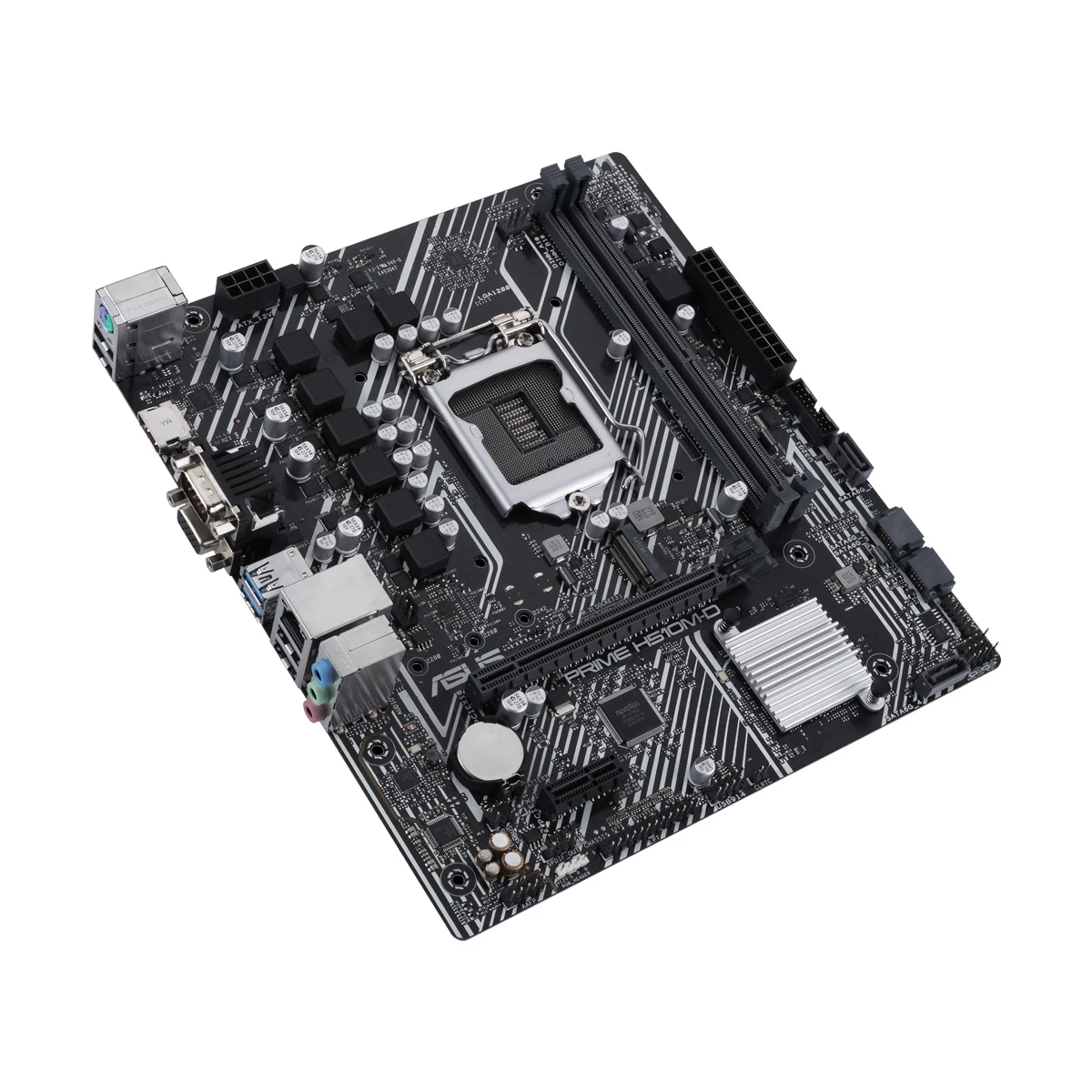

Asus PRIME H510M-D Intel Motherboard

Item: Asus PRIME H510M-D Intel Motherboard
Rating: 5
Author: Mr. Akash

1 reviews

Product Id: 02.01.006.330

Regular Price

Tk 0

Out Of Stock

See similar model

Quick Overview

Chipset - Intel H510
Sockets Supported - LGA1200
Supported CPU - 11th Gen: Intel Core Processors & 10th Gen: Intel Core, Pentium Gold and Celeron Processors
Generation - 10th/11th
Memory Slot - 2
Memory Max. - 64GB
Back-Connect Design - No

Payment Method Shipping & Charge Order Procedure

Brand

Asus

Model

Asus PRIME H510M-D

Chipset

Intel H510

Sockets Supported

LGA1200

Built-in Processor

Generation

10th/11th

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

64GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated with Processor

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

Micro-ATX

Supported Operating System

Windows 10

Body Color

Black

Warranty Details

3 Years Replacement Warranty

General

Brand

Asus

Model

Asus PRIME H510M-D

Body Color

Black

CPU

Chipset Brand

Intel

Chipset

Intel H510

Sockets Supported

LGA1200

Built-in Processor

Supported CPU

11th Gen: Intel Core Processors & 10th Gen: Intel Core, Pentium Gold and Celeron Processors

Generation

10th/11th

Memory Support

Memory Type

DDR4

Memory MHz

3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz

Memory Channel

Dual

Memory Slot

Memory Max.

64GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

1 x M.2 slot, type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

Graphics

Integrated

Graphics Chipset

Integrated with Processor

PCI Express Slot

1 x PCIe 4.0/3.0 x16, 1 x PCIe 3.0 x1

Audio & Video

Audio Chipset

Realtek ALC897/887

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Intel I219-V

LAN Speed (Mbps)

10/100/1000 Mbps

WiFi

Bluetooth

Ports

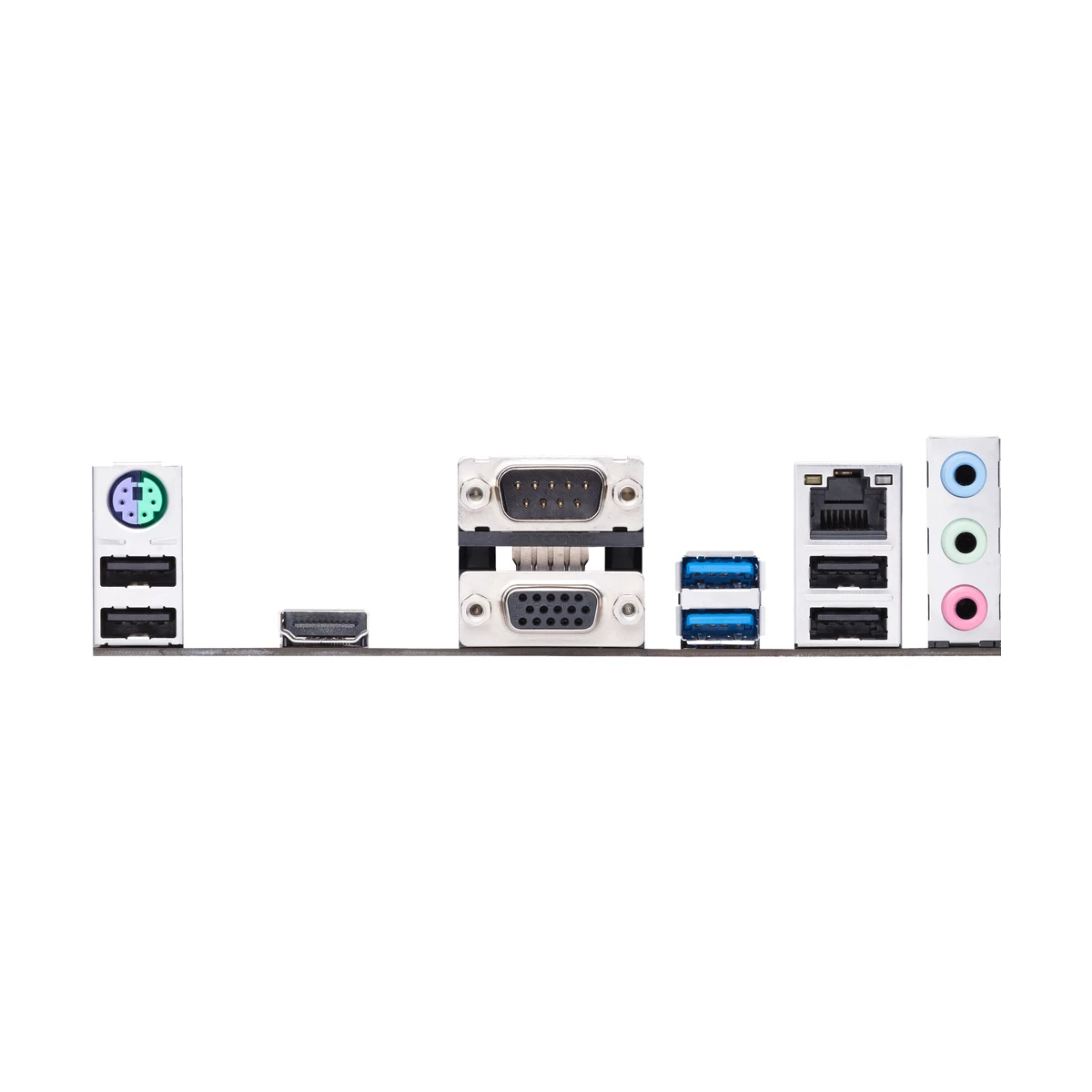

USB Port

3 x USB 3.2 Gen 1 Type-A, 5 x USB 2.0 Type-A

VGA Port

DVI Port

HDMI Port

SATA Port

Thunderbolt

TPM Port

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

CrossFire Support

Sli Support

RGB Support

RGB

RGB Connector

1 x RGB header

Approx. Power Consumption

65W

Form Factor

Micro-ATX

Bios Information

BIOS Type

128 Mb Flash ROM

BIOS Model

UEFI AMI BIOS

Compatibility

Supported Operating System

Windows 10

Warranty

Warranty Details

3 Years Replacement Warranty

Additional Info

Feature

Intel H510 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, Intel 1 Gb Ethernet, HDMI, D-Sub, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, COM port, LPT header, and RGB header Intel LGA 1200 socket: Ready for 11th and 10th Gen Intel Processors Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, Intel 1 Gb Ethernet and USB 3.2 Gen 1 Comprehensive cooling: PCH heatsink and Fan Xpert 5X Protection III: Multiple hardware safeguards for all-round protection

Others

1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header, 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector, 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x Speaker header, 1 x PS/2 Keyboard/Mouse combo port

Details

Features of Asus PRIME H510M-D Motherboard In Bangladesh

Asus PRIME H510M-D Intel Motherboard Motherboard in Bangladesh

Asus PRIME H510M-D motherboard is a renowned motherboard in Bangladesh. The Asus PRIME H510M-D Intel Motherboard is an Intel mainboard. The motherboard used an Intel H510 chipset. LGA1200 Sockets Supported. In this motherboard, you can use an 11th Gen: Intel Core Processors & 10th Gen: Intel Core, Pentium Gold and Celeron Processors. The Asus PRIME H510M-D mainboard has a Dual memory channel and 2 memory slot. It supports DDR4 3200(OC), 2933, 2800, 2666, 2400, 2133 MHz ram. Maximum ram supports 64GB Also, you can use 1 M.2/SSD Expansion Slot. Storage Interface is 6.0Gb/s. Asus PRIME H510M-D Intel Motherboard comes with Graphics. PCI Express Slot are One PCIe 4.0/3.0 x16, One PCIe 3.0 x1. The here audio chipset used Realtek ALC897/887. Audio Channel available are 7.1, so you can enjoy crystal clear sound. For Network and Connectivity purposes the Asus motherboard offers Intel I219-V lan chipset and it’s speeds 10/100/1000 Mbps (Mbps). USB port available3 x USB 3.2 Gen 1 Type-A, 5 x USB 2.0 Type-A. Also, you will get VGA Port, DVI Port,HDMI Port, SATA Port and TPM Port. . It’s a microATX motherboard. Yes it’s a RGB support motherboard, also you can 1 x RGB header RGB connector. The Asus PRIME H510M-D Intel Motherboard supported operating system is Windows 10. You will get a 3 Years Replacement Warranty brand warranty.

What is the Asus PRIME H510M-D motherboard Price in Bangladesh?

The Asus PRIME H510M-D motherboard Price in Bangladesh is given upper. Ryans computers offer Asus PRIME H510M-D Intel Motherboard is the competitive price in BD. You can purchase it from our website or computer shop.

What is the price of Asus PRIME H510M-D Motherboard In Bangladesh?

The price of Asus PRIME H510M-D Motherboard not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy Asus PRIME H510M-D Motherboard from our website or visit our showrooms nearby.
