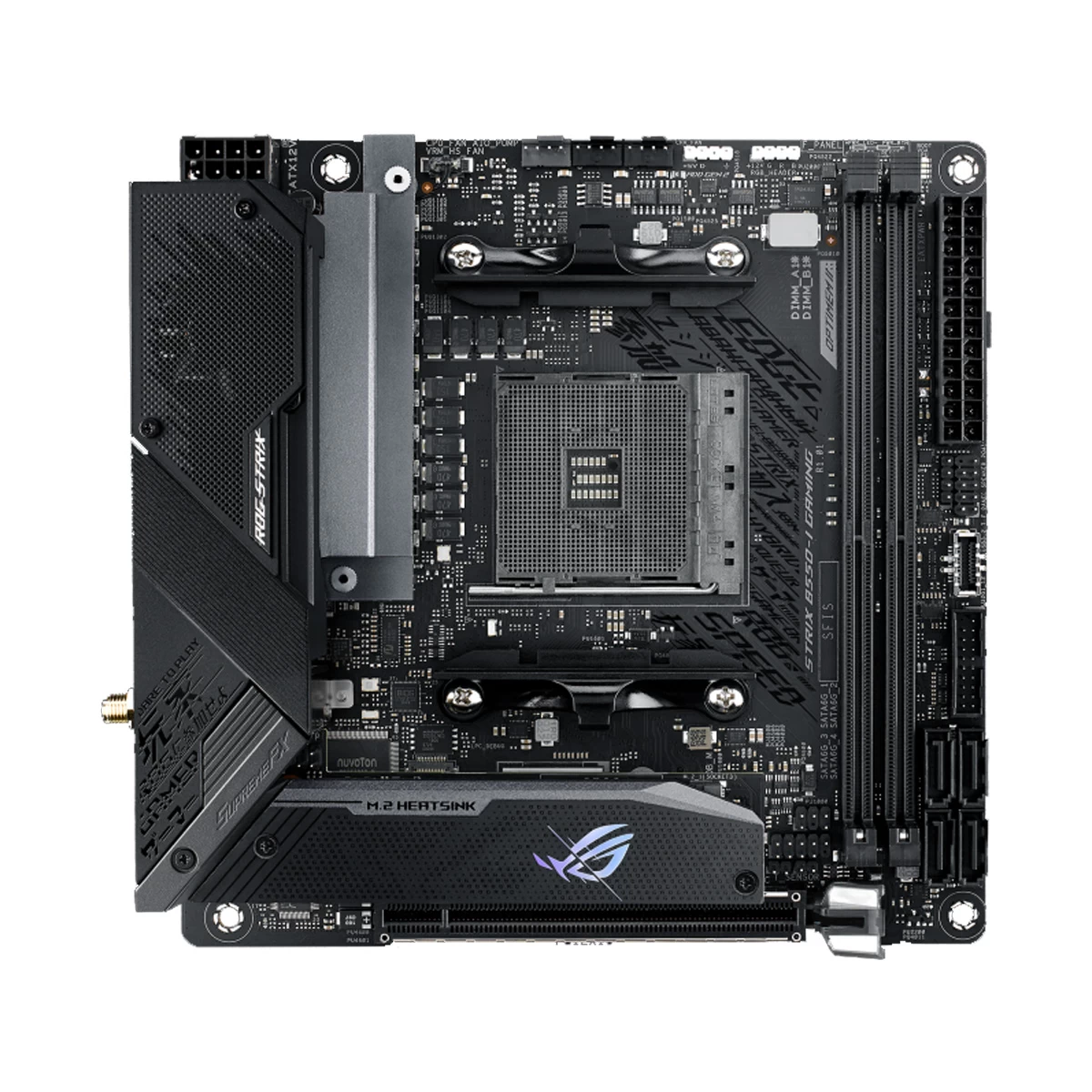

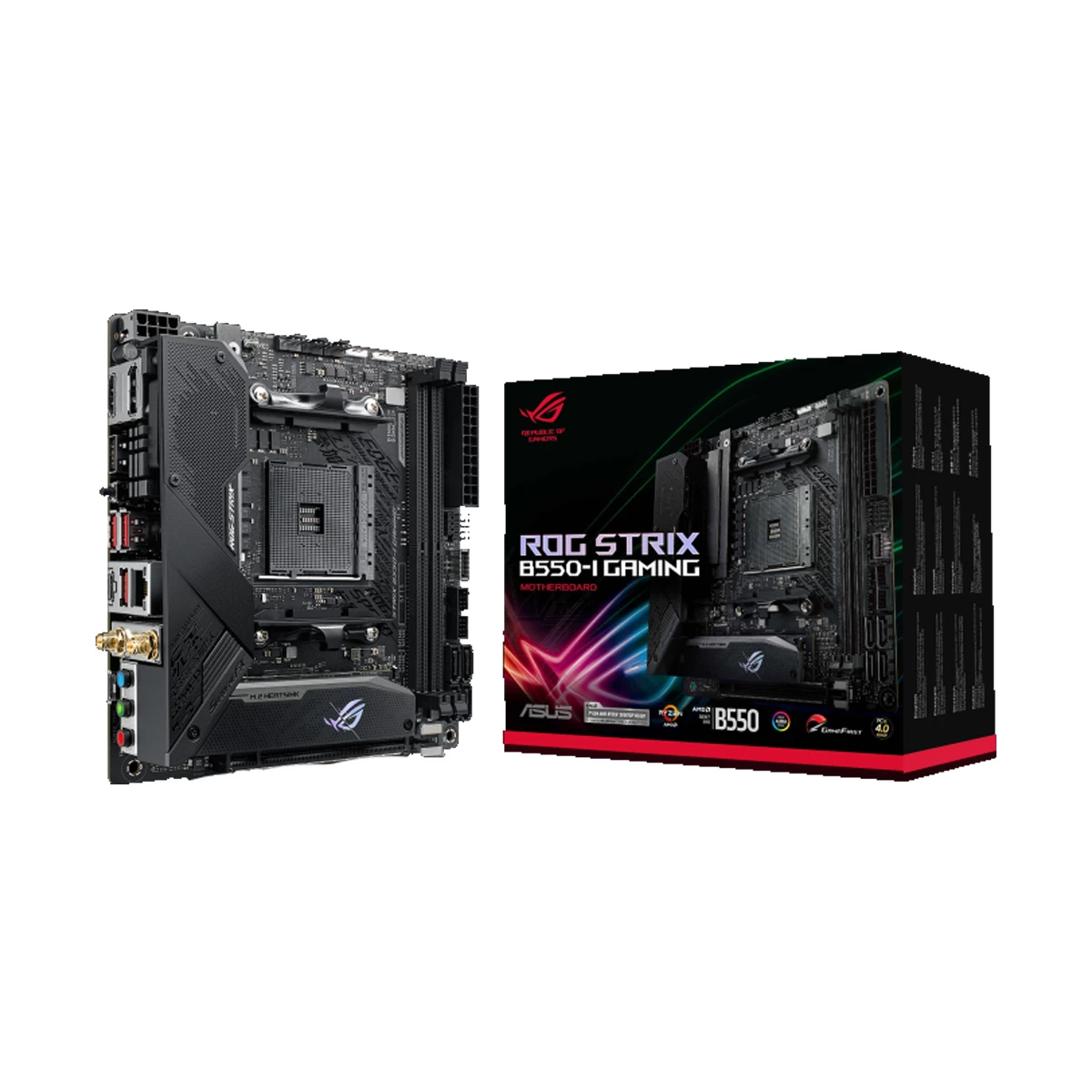

Asus ROG STRIX B550-I GAMING Wi-Fi AMD Motherboard

Item: Asus ROG STRIX B550-I GAMING Wi-Fi AMD Motherboard
Rating: 5
Author: Shahadat

1 reviews

Product Id: 02.02.006.360

Regular Price

Tk 0

This item is discontinued.

See similar model

Quick Overview

Chipset - AMD B550
Sockets Supported - AM4
Supported CPU - AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Generation - Not Applicable
Memory Slot - 2
Memory Max. - 64GB
Back-Connect Design - No

Payment Method Shipping & Charge Order Procedure

Brand

Asus

Model

Asus ROG STRIX B550-I GAMING

Chipset

AMD B550

Sockets Supported

AM4

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

64GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Bluetooth 5.1

Form Factor

Mini-ITX

Supported Operating System

Windows 10

Body Color

Black

Warranty Details

3 year

General

Brand

Asus

Model

Asus ROG STRIX B550-I GAMING

Body Color

Black

CPU

Chipset Brand

AMD

Chipset

AMD B550

Sockets Supported

AM4

Built-in Processor

Supported CPU

AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

Generation

Not Applicable

Memory Support

Memory Type

DDR4

Memory MHz

5100(O.C)/ 4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 3000/ 2933 MHz

Memory Channel

Dual

Memory Slot

Memory Max.

64GB

Optane Memory Support

Storage

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

2 x M.2 Slots ((1 x M.2 socket 3 M key, type 2242/2260/2280 PCIE 4.0 x4 and SATA modes),(1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes)), (1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 PCIE 3.0 x4 and SATA modes)

Graphics

Integrated

Graphics Chipset

Integrated With Processor

PCI Express Slot

1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16

Audio & Video

Audio Chipset

ROG SupremeFX Audio CODEC S1220A

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Intel I225-V

LAN Speed (Mbps)

10/100/1000/2500Mb/s

WiFi

Yes

WiFi Technology

Intel Wi-Fi 6 AX200, Supports dual band frequency 2.4/5 GHz, Supports channel bandwidth: HT20/HT40/HT80/HT160

Bluetooth

Bluetooth 5.1

Ports

USB Port

1 x USB 3.2 Gen 2 Type-C, 3 x USB 3.2 Gen 2 Type-A ,2 x USB 2.0 ( 1 x USB BIOS FlashBack, 1 x Audio USB Type-C)

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

4 x SATA 6Gb/s

Thunderbolt

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

CrossFire Support

Sli Support

Raid Support

0, 1, 10

RGB Support

ARGB

RGB Sync

Aura Sync

RGB Connector

1 x 4-pin Aura RGB Header 1 x 3-pin Addressable Gen 2 RGB Header

Approx. Power Consumption

65W

Form Factor

Mini-ITX

Bios Information

BIOS Type

256 Mb Flash ROM

BIOS Model

UEFI AMI BIOS

Compatibility

Supported Operating System

Windows 10

Warranty

Warranty Details

3 year

Additional Info

Feature

Active VRM Heatsink, CPU Fan Header, AIO Pump Header, Chassis Fan header, M.2 Heatsink, Sonic Studio III, Sonic Studio Virtual Mixer, Sonic Radar III, DTS Sound Unbound, Audio Feature (Dual OP Amplifiers, Impedance sense for front and rear headphone, Jack-detection, Multi-streaming, Front Panel, Jack-retasking, High quality120dBSNR stereo playback, outputand113dBSNR recording input, Supports up to 32-Bit/192kHz playback, Premium Japanese audio capacitors), Software Features (ROG Exclusive Software, RAMCache III, ROG CPU-Z, GameFirst VI, Sonic Studio III + Sonic Studio Virtual Mixer, Sonic Radar III, DTS Sound Unbound, Overwolf, Anti-virus software, ASUS Exclusive Software Features, Armoury Crate, Aura Creator, Aura Sync, AI Noise Cancelling Microphone, AI Suite 3, 5-way Optimization, TPU, EPU, DIGI+ VRM, Fan Xpert 4, Turbo APP, EZ update, WinRAR, UEFI BIOS, ASUS EZ DIY, ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, FlexKey), ASUS Special Features (Standard RGB header(s), Addressable Gen 2 RGB header(s), ASUS Q-Design, ASUS Q-CODE, ASUS Q-DIMM, ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green), ASUS Q-Slot, ASUS Thermal Solution, Aluminum M.2 heatsink, ASUS EZ DIY, BIOS Flashback button, BIOS FlashBack LED, Clear CMOS header, Procool, Pre-mounted I/O shield, SafeSlot)

Others

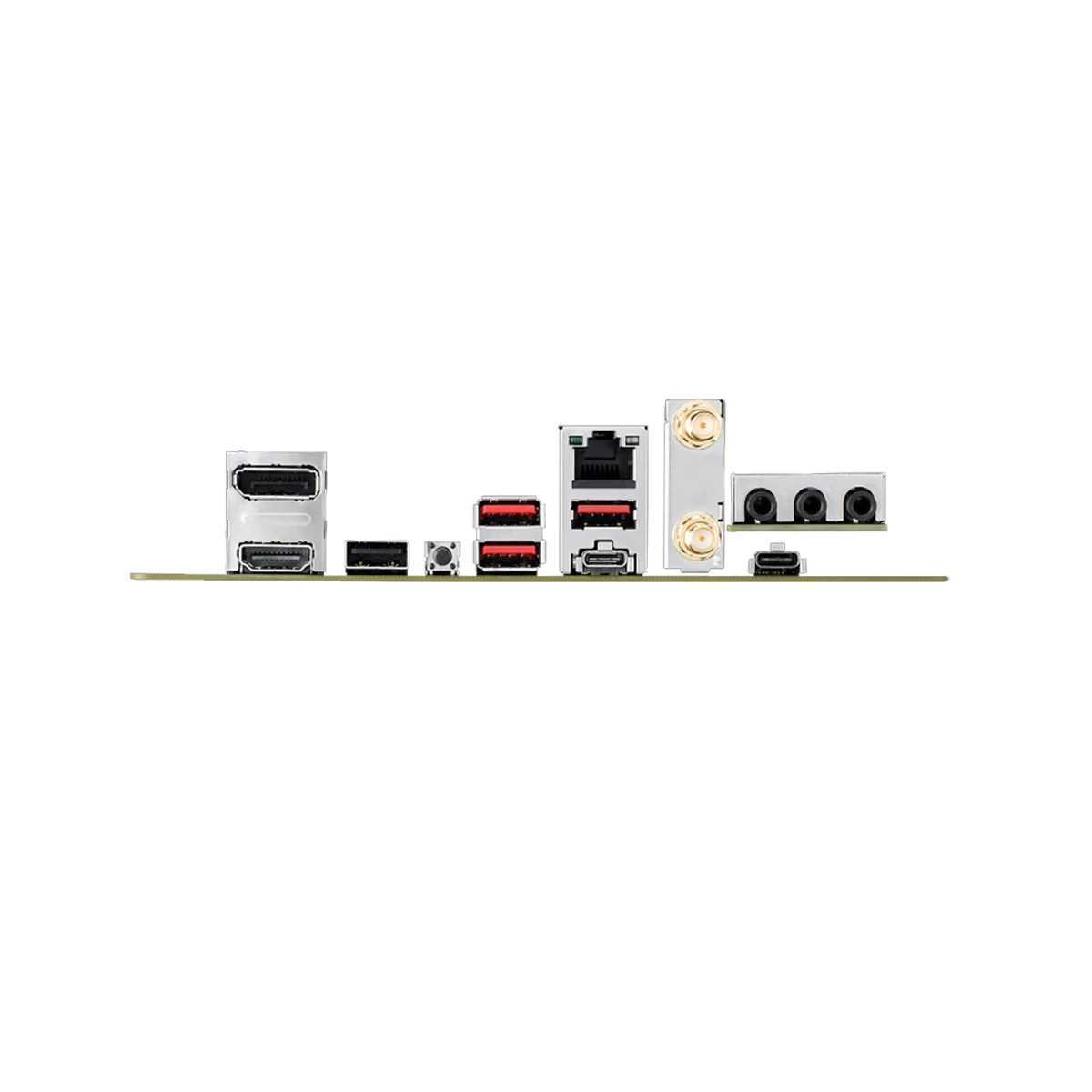

Back I/O Ports: 1 x BIOS FlashBack Buttons, 1 x Intel I225-V 2.5Gb Ethernet, 3 x LED-illuminated audio jacks, 1 x ASUS Wi-Fi Module, Internal I/O Ports: 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C), 1 x VRM_HS_FAN Header, 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s), 2 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD), 1 x CPU Fan connector(s), 1 x Chassis Fan connector(s), 1 x AIO_PUMP connector, 1 x Aura RGB Strip Header(s), 1 x Addressable Gen 2 header(s), 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s), 4 x SATA 6Gb/s connector(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x Thermal sensor connector, 1 x Clear CMOS jumpers, 1 x System panel connector, 1 x Speaker connector, Manageability: WOL by PME, PXE

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Asus ROG STRIX B550-I GAMING Motherboard In Bangladesh

Asus ROG STRIX B550-I GAMING AMD Motherboard in Bangladesh

Asus ROG STRIX B550-I GAMING motherboard is a renowned motherboard in Bangladesh. The Asus ROG STRIX B550-I GAMING AMD Motherboard is an AMD mainboard. The motherboard used an AMD B550 chipset. AM4 Sockets Supported. In this motherboard, you can use an AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors. The Asus ROG STRIX B550-I GAMING mainboard has a Dual memory channel and 2 memory slot. It supports DDR4 5100(O.C), 4800(O.C.), 4600(O.C), 4400(O.C), 4133(O.C.), 4000(O.C.), 3866(O.C.), 3600(O.C.), 3466(O.C.), 3200, 3000, 2933 MHz ram. Maximum ram supports 64GB Also, you can use 2 M.2/SSD Expansion Slot. Storage Interface is Storage Interface. Asus ROG STRIX B550-I GAMING AMD Motherboard comes with Integrate PCI Express Slot are 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16. The here audio chipset used ROG SupremeFX Audio CODEC S1220A. Audio Channel available are 7.1 so you can enjoy crystal clear sound. For Network and Connectivity purposes the Asus motherboard offers Intel I225-V lan chipset and it’s speeds 10/100/1000/2500Mb/s. USB port available One USB 3.2 Gen 2 Type-C, Three USB 3.2 Gen 2 Type-A , Two USB 2.0 ( 1 x USB BIOS FlashBack, 1 x Audio USB Type-C). Also, you will get VGA Port, DVI Port,HDMI Port, SATA Port and TPM Port. . It’s a Mini-ITX motherboard. Yes it’s a RGB support motherboard, also you can 1 x 4-pin Aura RGB Header 1 x 3-pin Addressable Gen 2 RGB Header RGB connector. The Asus ROG STRIX B550-I GAMING AMD Motherboard supported operating system is Windows 10. You will get a 3 year brand warranty.

What is the Asus ROG STRIX B550-I GAMING motherboard Price in Bangladesh?

The Asus ROG STRIX B550-I GAMING motherboard Price in Bangladesh is given upper. Ryans computers offer Asus ROG STRIX B550-I GAMING AMD Motherboard is the competitive price in BD. You can purchase it from our website or computer shop.

What is the price of Asus ROG STRIX B550-I GAMING Motherboard In Bangladesh?

The price of Asus ROG STRIX B550-I GAMING Motherboard not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy Asus ROG STRIX B550-I GAMING Motherboard from our website or visit our showrooms nearby.
