Aver VC520 Pro3 & Expansion Speaker-Mic Combo FHD Medium-Large Room USB Conference System (40 Person Room)
1920 x 1080, 1280 x720 at 60, 30, 15fps; 1600 x 900, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x240, 320 x 180 at 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 30,15fps.
Interface(s)
USB, LAN, HDMI, RS-232, Speakerphone
USB Type
USB Type-B 3.1 Gen 1
Microphone
Yes
Cable Length (Meter)
5 Meter (USB2.0 type-B to type-A cable), 10 Meter (Camera to Speakerphone Cable), 0.9 Meter (3.5 mm aux Cable)
Plug & Play Operation
Yes
Color
Black
Dimensions (WxHxD)
150 x 153 x 182mm (Camera), 220 x 181.5 x 49.5mm (Speakerphone), 200 x 50 x 21mm (Remote control)
Weight (gm)
1.83 kg (Camera), 0.85 kg (Speakerphone), 0.09 kg (Remote control)
Warranty Details
3 year
General
Brand
Aver
Model
Aver VC520 Pro3 & Expansion Speaker-Mic Combo
Item Category
Video Conference
Sensor
Sensors
Sony WDR
Sensor Resolution (MP)
8MP
Video Resolution (Pixel)
1920 x 1080, 1280 x720 at 60, 30, 15fps; 1600 x 900, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x240, 320 x 180 at 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 30,15fps.
Frame Rate
60FPS
Diagonal Field of View
80.5 Degree
Zoom Capability
12x (Optical), 18x(Total)
Performance
Interface(s)
USB, LAN, HDMI, RS-232, Speakerphone
USB Type
USB Type-B 3.1 Gen 1
Microphone
Yes
Autofocus
No
Focus Range
1 Meter
Video Encoding Format
YUV, YUY2, MJPEG
Audio Encoding Format
AAC - LC
Technical Info
Power Supply
AC 100V - 240V, 50/60 Hz
Plug & Play Operation
Yes
Supported Operating System
Windows 7/10/11, Mac OS X 10.4 or later, Google Chromebox 3 version 94.0.4606.114 or later
Physical Description
Cable Length (Meter)
5 Meter (USB2.0 type-B to type-A cable), 10 Meter (Camera to Speakerphone Cable), 0.9 Meter (3.5 mm aux Cable)
Color
Black
Dimensions (WxHxD)
150 x 153 x 182mm (Camera), 220 x 181.5 x 49.5mm (Speakerphone), 200 x 50 x 21mm (Remote control)
Weight (gm)
1.83 kg (Camera), 0.85 kg (Speakerphone), 0.09 kg (Remote control)
Package Content
VC520 Pro Camera, VC520 Pro Speakerphone, Remote control, Power adapter, Power cord (6 ft/1.8 m) USB 3.1 Type-B to Type-A cable (10 ft/3 m), CATE6 speakerphone cable (33 ft/10 m), 3.5 mm aux cable (3 ft/0.9 m), Quick-start guide, Warranty card, Wall-mount bracket, 1/4 inch tripod screw
Warranty
Warranty Details
3 year
Additional Info
Specialty
Aver VC520 Pro3 & Expansion Speaker-Mic Combo for 30-40 Person Room. VC520 Pro3 Conference System with 2 Speakerphone and Remote control. Full HD Resolution 1080p/Frame Rate : 60fps, View Angle: Pan (340 Degree (+-170 ), Tilt 120 Degree, Preset Minimum 10 on Remote (128 Via RS232), Perfect audio for professional conferencing up to 3 Speakerphone or 4 Microphone Supported, Speakerphone I/O: Phone in /Line Out, Expansion speakerphones/ microphones Coverage (up to 40 m), Auto Smart Frame and Preset Framing must Support, Follow Presenter with Preset Framing, Professional clarity via 12X optical zoom and total 18X Zoom Capacity, Hold meetings anywhere with True WDR, IP Streaming Via RTSP/RTMP, IP access for remote camera control and live, IP video streaming, Supports third party SIP video conferencing platforms.
Others
Field of view(D/H/V): 80.5/72.8/44.1 Degree, Lens focal length: 3.9mm(wide) - 46.8mm(tele), Lens F#: 1.6(wide) - 2.8(tele), Mirror, flip, white balance: Auto/manual override via PTZApp 2, Standard tripod screw holes and Kensington slot. People-counting API: Enterprises and third-party software providers can obtain people-counting data for a better understanding of meeting space usage. Speakerphone: Echo cancellation, Advanced noise suppression, Dual-omnidirectional microphone. 3.5 mm phone-in jack. 3.5 mm line out. Speaker: 6W, Adjustable to 90dB SPL at 0.5 m, Touch controls for volume down/up, mute, phone input, call, hang-up. Bridge phone-in and USB into one call. Security: Kensington slot. Motorized Pan & Tilt Movement: Pan: -+170, Tilt: +90 Degree(up) -30 Degree (down), 10 camera presets (via remote control). Fast and quiet pan/tilt movement. Connectivity: 12V/5A power adaptor, Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain), USB 3.1 Type-B connector, IP (RJ45), HDMI out. Control: IR remote control, VISCA/Pelco-P/Pelco-D via RS232 (128 preset points via VISCA command), Remote side: VISCA over IP, IP (RJ45), UVC/UAC plug-and-play, WebUI: Browser IP access via Chrome (does not support Internet Explorer), PTZApp 2. Free Applications for Meeting Collaboration: EZManager 2: Camera Central Management Software, PTZApp 2. EZLive.
Country Of Origin
Taiwan
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Video

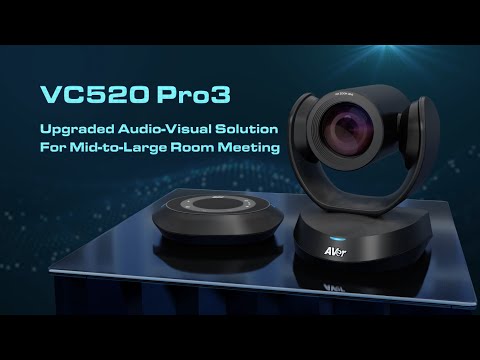

AVer VC520 Pro3
