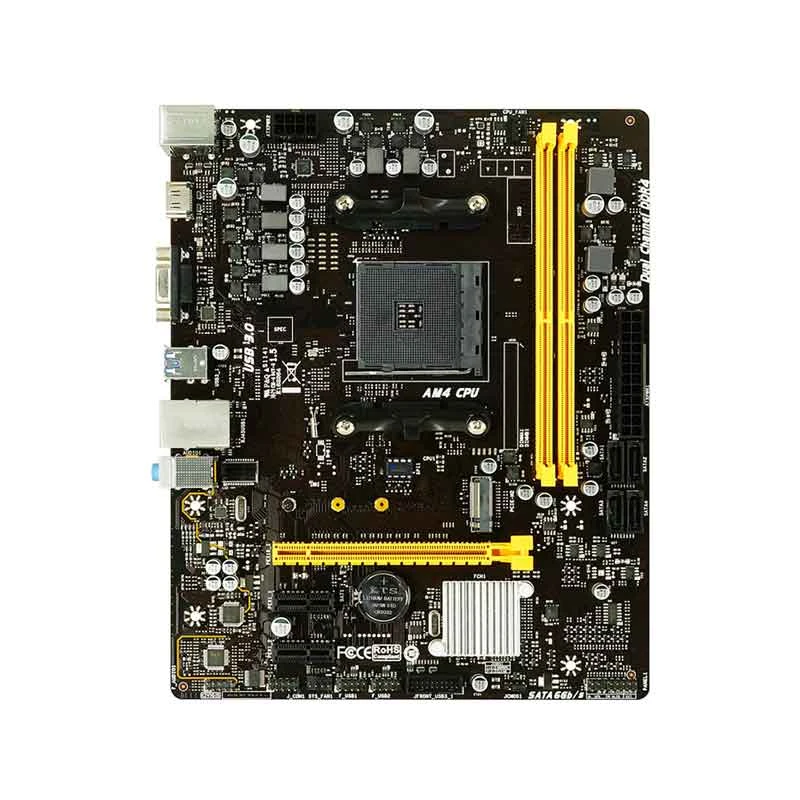

Biostar B450MH DDR4 AMD Motherboard

Item: Biostar B450MH DDR4 AMD Motherboard
Rating: 5
Author: Mr. Asaduzzaman

9 reviews

Product Id: 02.02.059.19

Regular Price

Tk 0

Out Of Stock

See similar model

Quick Overview

Chipset - AMD B450
Sockets Supported - AM4
Supported CPU - AM4 Socket for 3rd, 2nd and 1st Gen Ryzen/2nd and 1st Gen Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics Processors
Generation - Not Applicable
Memory Slot - 2
Memory Max. - 32GB
Back-Connect Design - No

Payment Method Shipping & Charge Order Procedure

Brand

Biostar

Model

Biostar B450MH

Chipset

AMD B450

Sockets Supported

AM4

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

32GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

Micro-ATX

Supported Operating System

Windows 10/11

Body Color

Black

Warranty Details

3 year

General

Brand

Biostar

Model

Biostar B450MH

Body Color

Black

CPU

Chipset Brand

AMD

Chipset

AMD B450

Sockets Supported

AM4

Built-in Processor

Supported CPU

AM4 Socket for 3rd, 2nd and 1st Gen Ryzen/2nd and 1st Gen Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics Processors

Generation

Not Applicable

Memory Support

Memory Type

DDR4

Memory MHz

3200(OC)/ 2933/ 2667/ 2400/ 2133/ 1866MHz Non-ECC Memory

Memory Channel

Dual

Memory Slot

Memory Max.

32GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

1 x M.2 (M Key) Supports PCI-E (32Gb/s) & SATA (6Gb/s) SSD

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

2 x PCIe 2.0 x1 Slots, 1 x PCIe 3.0 x16 Slot

Audio & Video

Audio Chipset

Realtek ALC887

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Realtek RTL8111H

LAN Speed (Mbps)

10/100/1000Mbps

WiFi

WiFi Technology

Not Applicable

Bluetooth

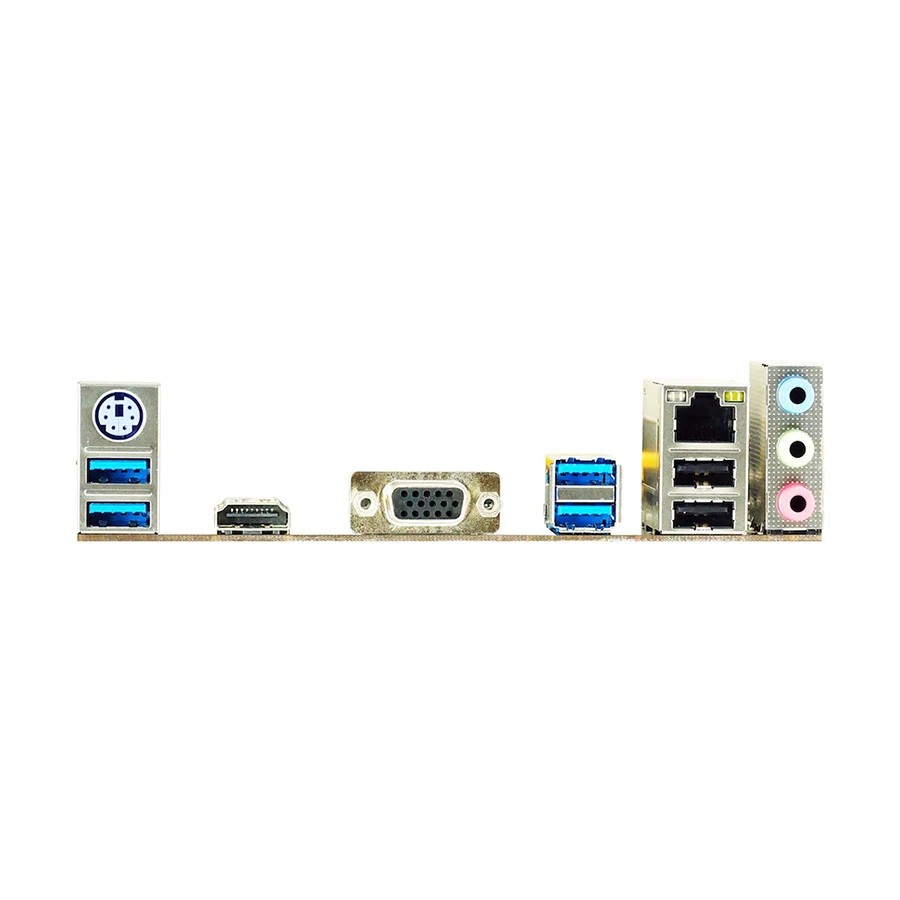

Ports

USB Port

6 x USB3.1 Gen 1, 6 x USB2.0

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

IDE Port

SATA Port

4 x SATA

Thunderbolt

TPM Port

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

DirectX Support

Heatsink

FireWire

CrossFire Support

Sli Support

Raid Support

0,1,10

RGB Support

RGB Sync

RGB Connector

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Compatibility

Supported Operating System

Windows 10/11

Compatible Products

Compatible with AM4 Sockets Ryzen, Athlon Proccessor.

Warranty

Warranty Details

3 year

Additional Info

Feature

H/W MONITORING (CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control CPU/DDR Voltage Monitoring)

Others

INTERNAL I/O: (1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Connector 1 x System Fan Connector 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x Clear CMOS Header 1 x COM Port Header)

Details

Features of Biostar B450MH Motherboard In Bangladesh

Supports AMD Ryzen CPU / APU
AMD B450 single chip architecture
Supports 2-DIMM DDR4-1866/ 2133/ 2400/ 2667/ 2933/ 3200(OC)
Supports Realtek Gigabit LAN
Supports USB 3.2 Gen1
Supports PCIe M.2
Supports HDMI

What is the price of Biostar B450MH Motherboard In Bangladesh?

The price of Biostar B450MH Motherboard not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy Biostar B450MH Motherboard from our website or visit our showrooms nearby.
