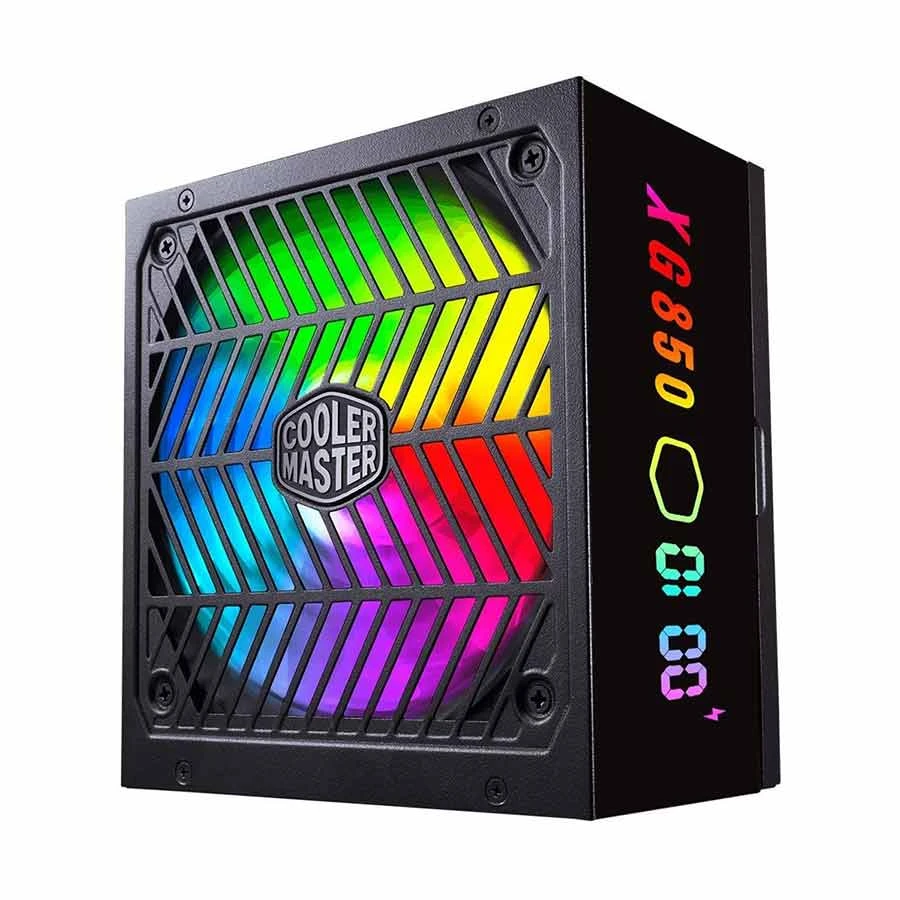

Cooler Master XG850 Plus 850W Fully Modular 80 Plus Platinum Certified Power Supply #MPG-8501-AFBAP-XUK

Item: Cooler Master XG850 Plus 850W Fully Modular 80 Plus Platinum Certified Power Supply #MPG-8501-AFBAP-XUK
Rating: 5
Author: Faysal Sheikh

8 reviews

Product Id: 55.01.460.171

Regular Price

Tk 0

Out Of Stock

See similar model

Quick Overview

PSU Category - Full Modular
Type - Intel ATX 12V Ver. 2.53
Maximum Power - 850 Watt
Fan Speed - 1800 RPM
Efficiency - 92% Efficiency
Efficiency Rating - 80 Plus Platinum
Protection - OPP, OVP, OCP, UVP, SCP, OTP
Warranty - 10 Year

Payment Method Shipping & Charge Order Procedure

Brand

Cooler Master

Model

Cooler Master XG850 Plus

Series

PSU Category

Full Modular

Type

Intel ATX 12V Ver. 2.53

Maximum Power

850 Watt

Fan Size

135mm

Lighting Effect

Yes

Zero RPM Fan Mode

Yes

Efficiency Rating

80 Plus Platinum

MTBF

>100,000 Hours

Form Factor

ATX

Weight (Kg)

3.1 kg

Color

Black

Warranty Details

10 year

General

Brand

Cooler Master

Model

Cooler Master XG850 Plus

Series

PSU Category

Full Modular

Type

Intel ATX 12V Ver. 2.53

Part No

MPG-8501-AFBAP-XUK

Cooling & Lighting

Fan Size

135mm

Lighting Effect

Yes

Lighting Type

ARGB

Zero RPM Fan Mode

Yes

Fan Bearing

Unmentioned

Fan Speed

1800 RPM

Noise Level

<25 dBA

Performance

Efficiency

92% Efficiency

Efficiency Rating

80 Plus Platinum

PFC (Power Factor Correction)

Active PFC

Power Good Signal

100 - 150 ms

Hold Up Time

>16ms

Protection

OPP, OVP, OCP, UVP, SCP, OTP

Over Voltage Protection (OVP)

Yes

Over Power Protection (OPP)

Yes

Over Current Protection (OCP)

Yes

Over Temperature Protection (OTP)

Yes

Short Circuit Protection (SCP)

Yes

Under Voltage Protection (UVP)

Yes

Connectors

ATX Main Connectors

EPS Connectors

PCIe Connectors

SATA Power Connectors

4-Pin Peripheral Connectors

Power

Min. Power (Approx.)

680W

Maximum Power

850 Watt

Input AC

100-240V

Input Voltage

100-240V

Input Frequency Range

50-60Hz

Input Current

12-6A

Operating Temperature

0 - 50 Degree C

Physical Description

Cable Type

Flat Black Cables

MTBF

>100,000 Hours

Form Factor

ATX

Dimensions

160 x 150 x 86 mm

Weight (Kg)

3.1 kg

Color

Black

Warranty

Warranty Details

10 year

Additional Info

Regulatory / Safety Approval

TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, UKCA

Others

ErP 2014 Lot 3: Yes EPS 4+4 Pin Connectors: 1 EPS 8 Pin Connector: 1 Noise Level @ 100%: < 25 dBA

Specialty

Intel ATX 12V Version 2.53. 80 PLUS Platinum Certified, Quiet ARGB 135mm silent Fan, Built-in Information Display Panel. Full-Modular Cabling with 100% Japanese In-Line Capacitors. The XG Plus Platinum ARGB fan with digital display panel can monitor real time performance data, showing fan speed, temperature, power load, and customized ARGB lighting. The XG Plus Platinum is created and designed for performance, stability, reliability, lifespan, and so much more. That quality starts with the technology used on the inside. The full-bridge LLC resonant converter and DC-DC technology, made with 100% Japanese capacitors, work together to create a PSU that offers reliable and stable voltage outputs for safer, more reliable performance and higher efficiency while creating minimal noise pollution.

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Cooler Master XG850 Plus Power Supply In Bangladesh

Cooler Master XG850 Plus

In-House Platform Design: This is Cooler Master's first in-house designed PSU platform, built for high-end performance with reduced temperature requirements.
ARGB Fans with Digital Side Panel: The XG Plus Platinum ARGB fan with digital display panel can monitor real time performance data, showing fan speed, temperature, power load, and customized ARGB lighting.
80 PLUS Platinum Certified: This certification guarantees a minimum typical efficiency of 92% under normal operating conditions.

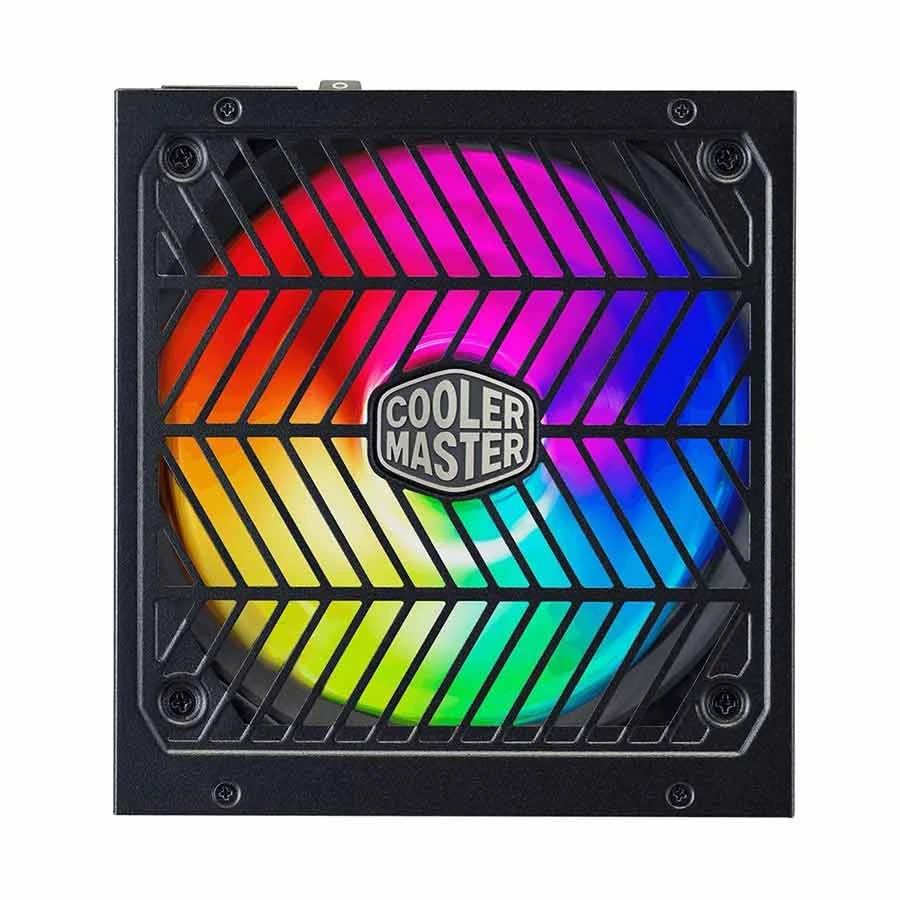

Quiet 135mm Fan: The fluid dynamic fan bearing creates less friction, making it great for low RPM operations while delivering quiet cooling performance.
Smart Thermal Control Mode : The fan will remain inactive until the unit has reached 50% load, delivering silent operation during normal use.
