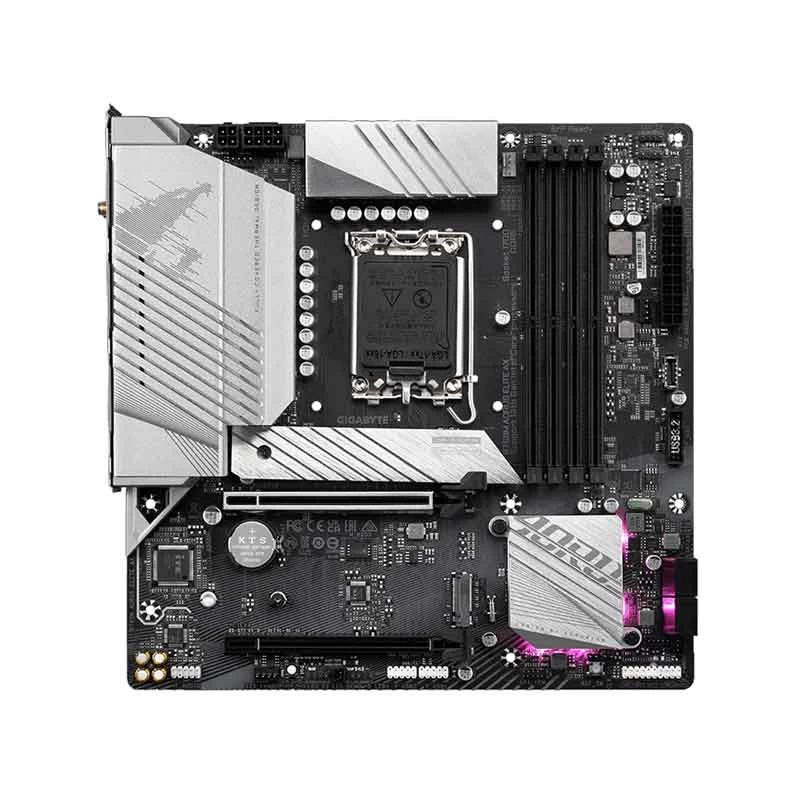

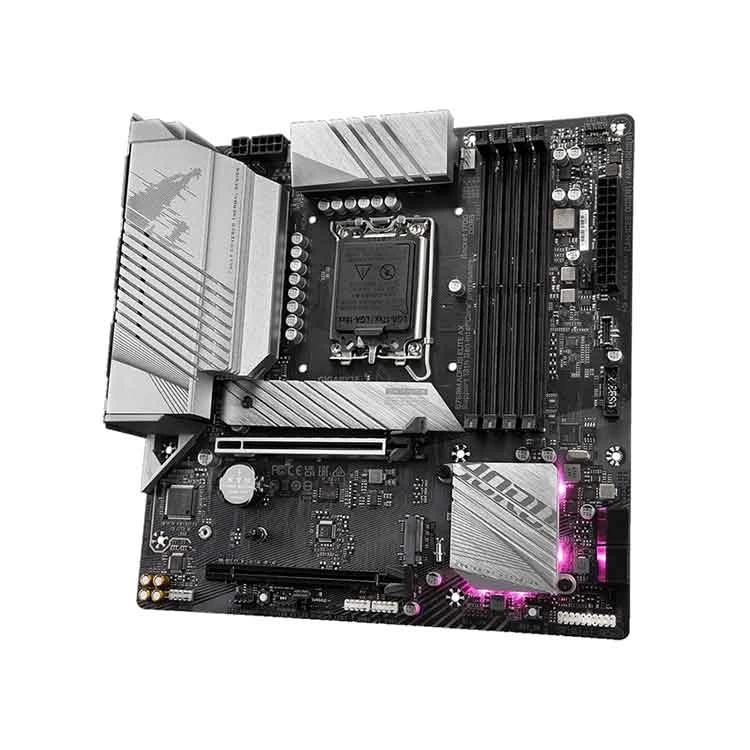

Features of Gigabyte B760M AORUS ELITE AX (Wi-Fi 6E) Motherboard In Bangladesh
Brand - Gigabyte, Model - Gigabyte B760M AORUS ELITE AX (Wi-Fi 6E), Chipset Brand - Intel, Chipset - Intel B760, CPU Sockets - LGA1700, Built-in Processor - No, Supported CPU - 12th/13th/14th Generation Intel Core, Pentium Gold and Celeron Processors., Generation - 12th/13th/14th, Back-Connect Design - No, Cable Management - Front, Memory Type - DDR5, Memory MHz - 7600(O.C.)/ 7400(O.C.)/ 7200(O.C.)/ 7000(O.C.)/ 6800(O.C.)/ 6600(O.C.)/ 6400(O.C.)/ 6200(O.C.)/ 6000(O.C.)/ 5800(O.C.)/ 5600(O.C.)/ 5400(O.C.)/ 5200(O.C.)/ 4800/ 4000MHz non-ECC Un-buffered DIMM memory, Memory Channel - Dual, Memory Slot - 4, Memory Slot (Additional Info) - 4 x DDR DIMM, Memory Max. - 128GB, Optane Memory Support - No, Graphics - Integrated, Graphics Chipset - Intel HD Graphics support, PCI Express Slot - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16), Storage Interface - 6Gb/s, M.2 Slot - 2 x M.2 slots (support M key, type 2280PCIe 4.0 x4), 1 x M.2 support M key, type 22110/2280 PCIe 4.0 x4), LAN Chipset - Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps), LAN Speed (Mbps) - 10/100/1000/2500 Mbps, Audio Chipset - Realtek Audio CODEC, Audio Channel - 2/4/5.1/7.1-channel, Wi-Fi - Yes, Wi-Fi Technology - Intel Wi-Fi 6E AX211, Bluetooth - Bluetooth 5.3, USB Port - 1 x USB Type-C, 4 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A, VGA Port - No, DVI Port - No, HDMI Port - 1, DisplayPort (DP) - 1, SATA Port - 4 x SATA 6Gb/s connectors, DirectX Support - Not Specified, BIOS Type - 1 x 256 Mbit flash, BIOS Model - AMI UEFI BIOS, BIOS Version - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0, Heatsink - No, CrossFire Support - Yes, Sli Support - No, Raid Support - Yes, Thunderbolt - Yes, TPM Port - 1, RGB Support - RGB, RGB Sync - RGB Fusion, RGB Connector - 2 x RGB LED strip headers, Approx. Power Consumption - 60W, Form Factor - Micro-ATX, Supported Operating System - Windows 11 / 10 64-bit, Body Color - Black, Special Features - Unparalleled Performance Twin 12*+1+1 Phases Digital VRM Solution, Dual Channel DDR5 4*SMD DIMMs with XMP 3.0 Memory Module Support, Next Generation Storage 2*PCIe 4.0 x4 M.2 Connectors, Advanced Thermal Design & M.2 Thermal Guard To Ensure VRM Power Stability & M.2 SSD Performance, EZ-Latch Plus M.2 Connectors with Quick Release & Screwless Design, Fast Networks 2.5GbE LAN & Intel Wi-Fi 6E 802.11ax, DP, HDMI, Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, Q-Flash Plus Update BIOS Without Installing the CPU, Memory and Graphics Card., Others - 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin ATX 12V power connector, 1 x CPU fan header, 3 x system fan headers, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C header, with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 2 x Thunderbolt add-in card connectors, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1 x Q-Flash Plus button, 1 x reset button, 1 x reset jumper, 1 x Clear CMOS jumper., Compatible Products - Intel Core i3 12100F, i3 12100, i5 12400, i5 12600K, i7 12700, i7 12700K, i9 12900, i9 12900K, i5 13600K, i7 13700, i9 13900F., Warranty - 3 Year, Country of Origin - Taiwan, Made in/ Assemble - China
What is the price of Gigabyte B760M AORUS ELITE AX (Wi-Fi 6E) Motherboard In Bangladesh?
The price of Gigabyte B760M AORUS ELITE AX (Wi-Fi 6E) Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability.
You can buy Gigabyte B760M AORUS ELITE AX (Wi-Fi 6E) Motherboard from our website or visit our showrooms nearby.
Looking to purchase office, corporate, or institutional equipment? Ryans Computers is here to help. We provide customized solutions tailored to your needs, backed by fast delivery and dependable after-sales service. Our expert Ryans Care team is always ready to support you with troubleshooting, technical assistance, and configuration services—so you can focus on what matters most.
