Product Id: 14.01.018.273
This item is discontinued.
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
1815 MHz (Reference card: 1650 MHz)

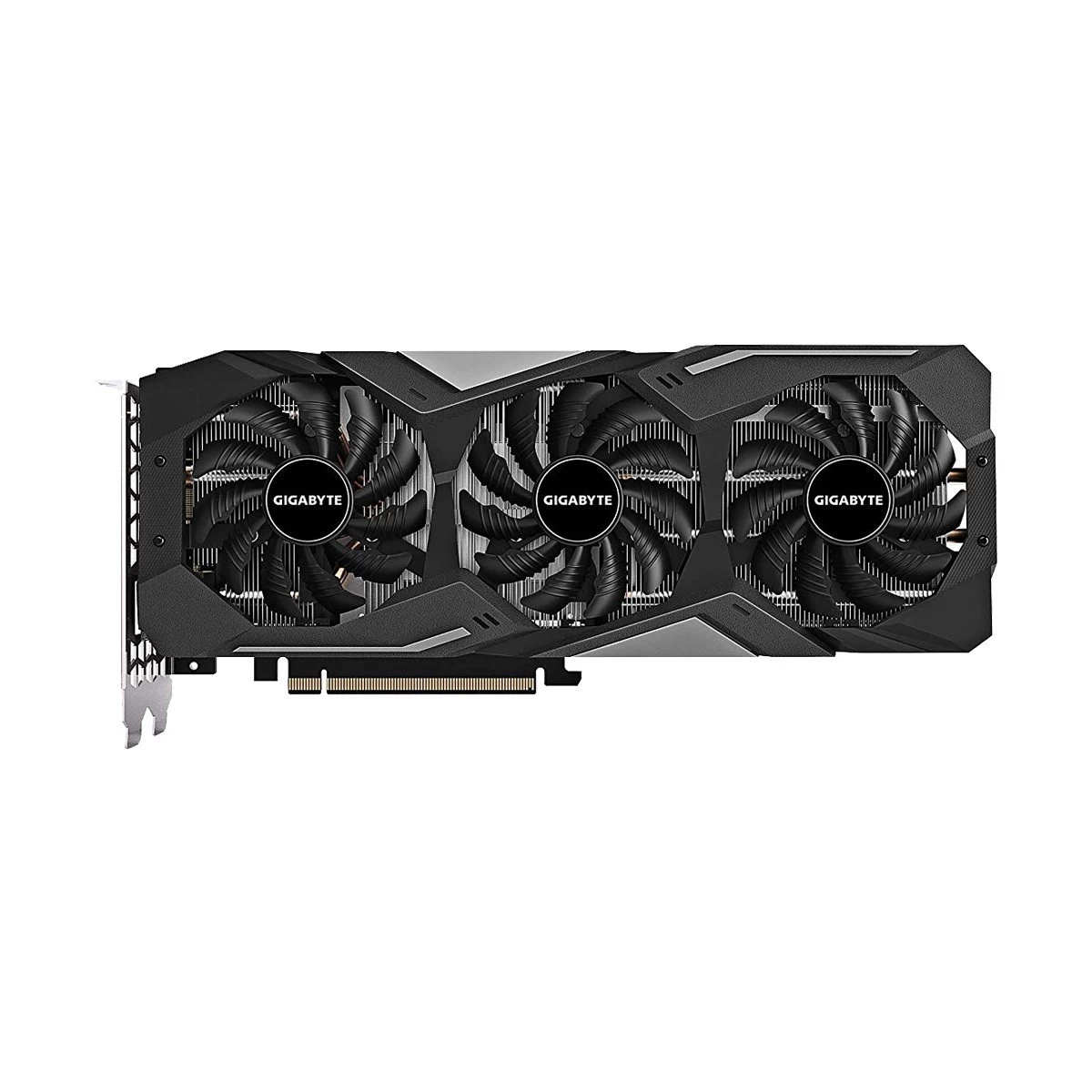

The WINDFORCE 3X cooling system features 3x 82mm unique blade fans, alternate spinning fan, 6 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of three fans. The biggest problem with the three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
The shape of the pure copper heat pipes maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal plate contact to ensure proper cooling.
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.
The graphics card uses the 8+2 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life. (Reference card is 7+2 power phases)
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
The smart power LED indicator alerts the player when any PCI-E power supply is abnormal.
Support for NVIDIA NVLinkTM (NVIDIA SLI) technology, which combines 2 identical GPUs with an GeForce RTX NVLink Bridge to deliver the ultimate experience in 4K gaming or VR gaming. You can also adjust the light effect on the bridge with the AORUS Engine.
The interface and functionality of the software is subject to each model.

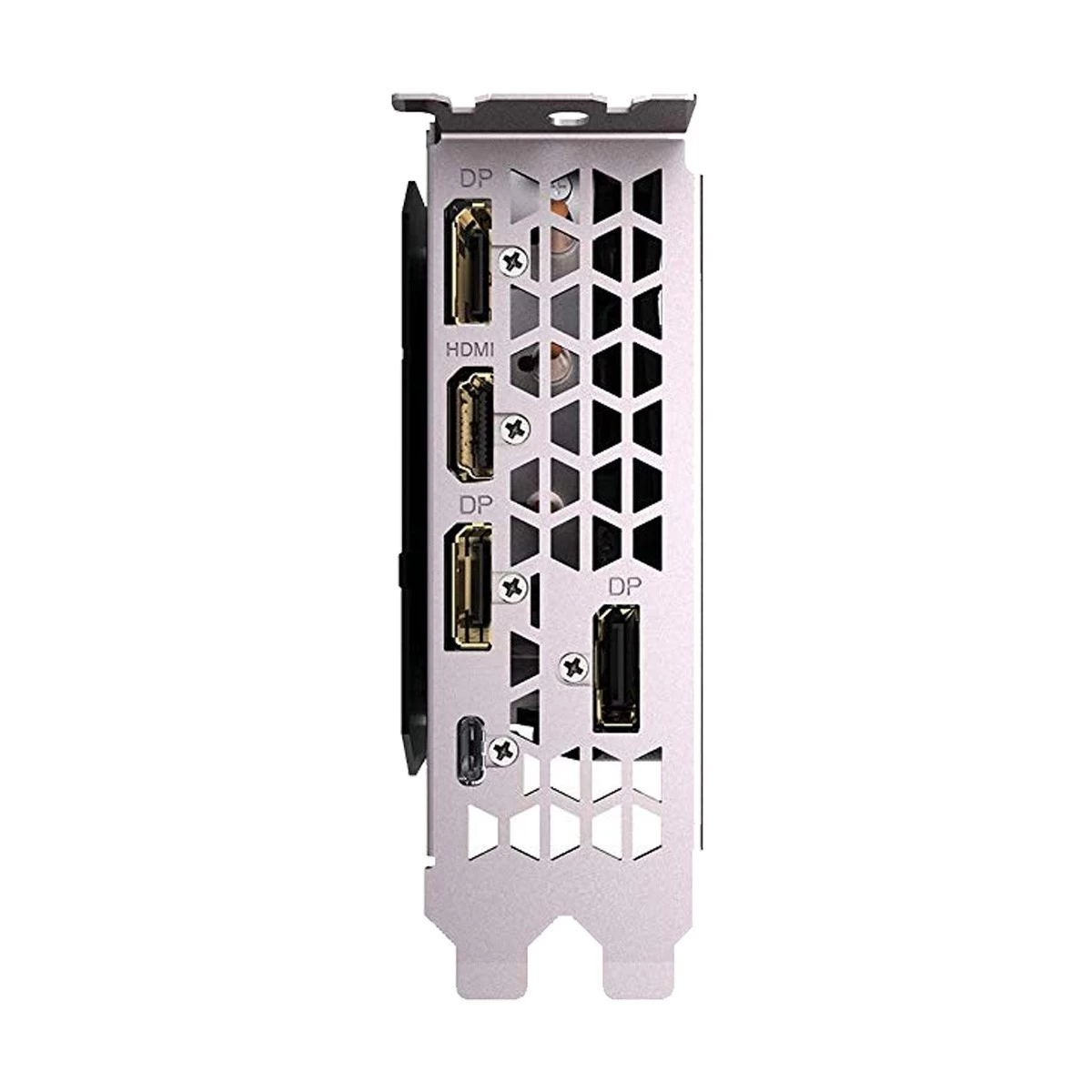

Brand - Gigabyte, Chipset Vendor - NVIDIA GeForce, Series - RTX 2000, Chipset Model - GeForce RTX 2060, Model - Gigabyte GeForce RTX 2060 SUPER GAMING OC 8G, Engine Clock - Boost-1815MHz (Reference Card: 1650 MHz), Memory Clock - 14000 MHz, Memory Size - 8GB, Memory Bus - 256-bit, Memory Type - GDDR6, Interface - PCI Express 3.0, Digital Max Resolution - 7680x4320, DirectX - 12, OpenGL - 4.5, HDMI Port - 1, Displayport - 3, Approx. Power Consumption - 175W, Recommended PSU - 550W, Power Connectors - 6-pin x 1, 8-pin x 1, Multi Display Capability - Quad Display, Cooling Fan - Triple, PCB Form - ATX, Body Color - Black & Grey, Others - USB: 1 x USB Type-C, RTX-OPS: 45, CUDA Cores: 2176, Memory Bandwidth (GB/sec): 448 GB/s, Specialty - Integrated with 8GB GDDR6 256-bit memory interface, WINDFORCE 3X Cooling System with alternate spinning fans, 4 Copper Heat Pipes direct touch GPU, RGB Fusion 2.0 - synchronize with other AORUS devices, Metal Back Plate, UNIQUE BLADE FAN, 3D ACTIVE FAN, HEAT PIPES DIRECT TOUCH, COMPOSITE HEAT-PIPE, Part No - GV-N206SGAMING OC-8GC, Warranty - 2 Year
The price of Gigabyte GeForce RTX 2060 SUPER GAMING OC 8G Graphics Card not mentioned for stock unavailability.The price may vary due to your customization and product availability.
You can buy Gigabyte GeForce RTX 2060 SUPER GAMING OC 8G Graphics Card from our website or visit our showrooms nearby.
