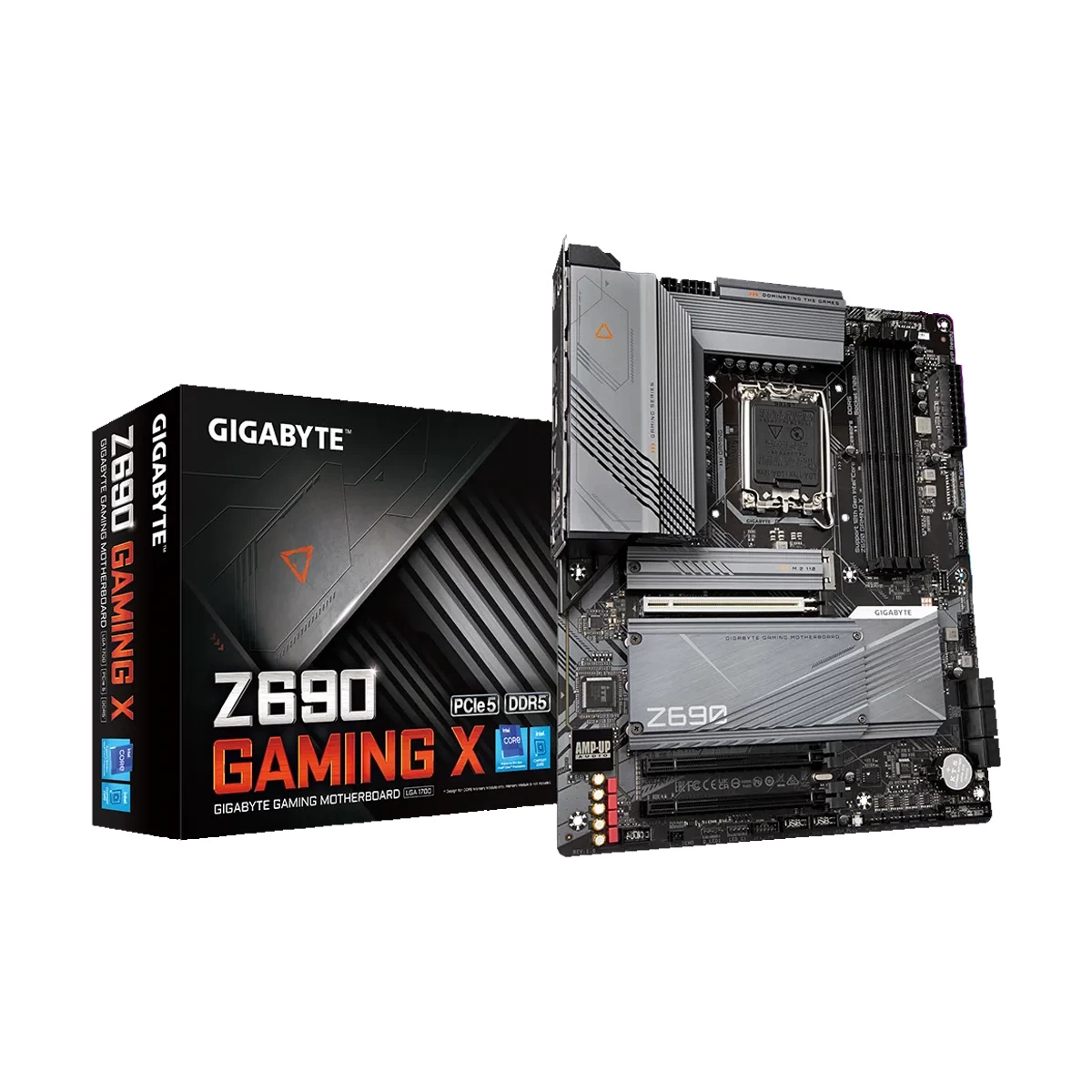

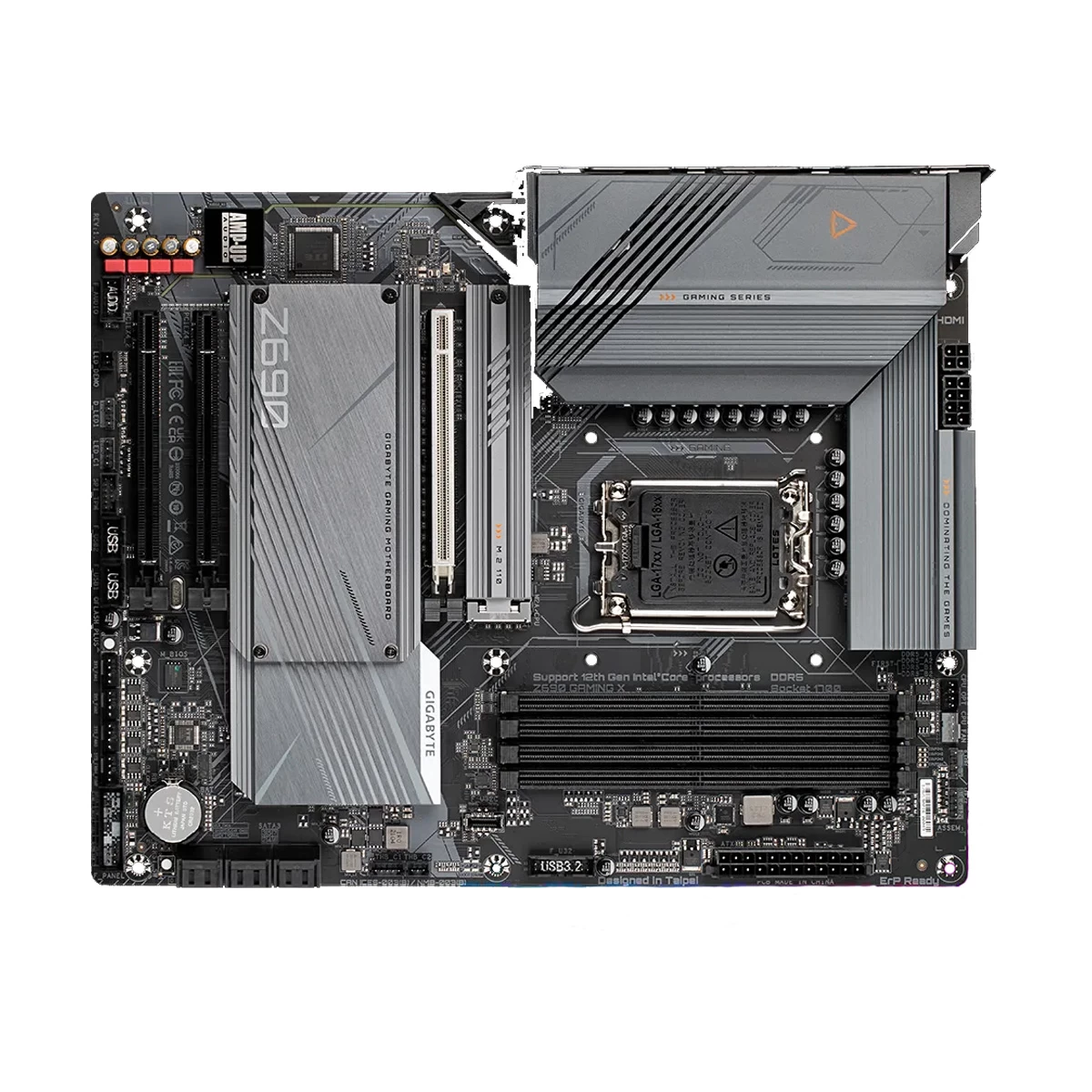

Gigabyte Z690 GAMING X DDR5 12th/13th Gen Intel LGA1700 Socket Motherboard

Item: Gigabyte Z690 GAMING X DDR5 12th/13th Gen Intel LGA1700 Socket Motherboard
Rating: 5
Author: Md. Armaan-Ul-Islam

1 reviews

Product Id: 02.01.018.376

Regular Price

Tk 0

This item is discontinued.

See similar model

Quick Overview

Chipset - Intel Z690
Sockets Supported - LGA1700
Supported CPU - 12th/13th Gen Intel Core i5, i7, i9 Processors
Generation - 12th/13th
Memory Slot - 4
Memory Max. - 128GB
Back-Connect Design - No

Payment Method Shipping & Charge Order Procedure

Brand

Gigabyte

Model

Gigabyte Z690 GAMING X

Chipset

Intel Z690

Sockets Supported

LGA1700

Built-in Processor

Generation

12th/13th

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

128GB

Optane Memory Support

Yes

Graphics

Integrated

Graphics Chipset

Intel HD Graphics support

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

ATX

Supported Operating System

Windows 10 / 11

Body Color

Black

Warranty Details

3 year

General

Brand

Gigabyte

Model

Gigabyte Z690 GAMING X

Body Color

Black

CPU

Chipset Brand

Intel

Chipset

Intel Z690

Sockets Supported

LGA1700

Built-in Processor

Supported CPU

12th/13th Gen Intel Core i5, i7, i9 Processors

Generation

12th/13th

Memory Support

Memory Type

DDR5

Memory MHz

6000(O.C.)/ 5800(O.C.)/ 5600(O.C.)/ 5400(O.C.)/ 5200(O.C.)/ 4800/ 4000MHz ECC, non-ECC & Un-buffered Memory.

Memory Channel

Dual

Memory Slot

Memory Slot (Additional Info)

4 x DIMM

Memory Max.

128GB

Optane Memory Support

Yes

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

3 x M.2 (2 x M.2, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support), (1 x M.2, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support)

Graphics

Integrated

Graphics Chipset

Intel HD Graphics support

Multi-GPU Support

AMD Quad-GPU CrossFire and 2-Way AMD CrossFire

PCI Express Slot

1 x PCI Express x16 slot running at x16, 2 x PCI Express x16 slots running at x4

Audio & Video

Audio Chipset

Realtek ALC1220-VB CODEC

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Realtek 2.5GbE LAN chip

LAN Speed (Mbps)

10/100/1000/2500 Mb/s

WiFi

WiFi Technology

Not Applicable

Bluetooth

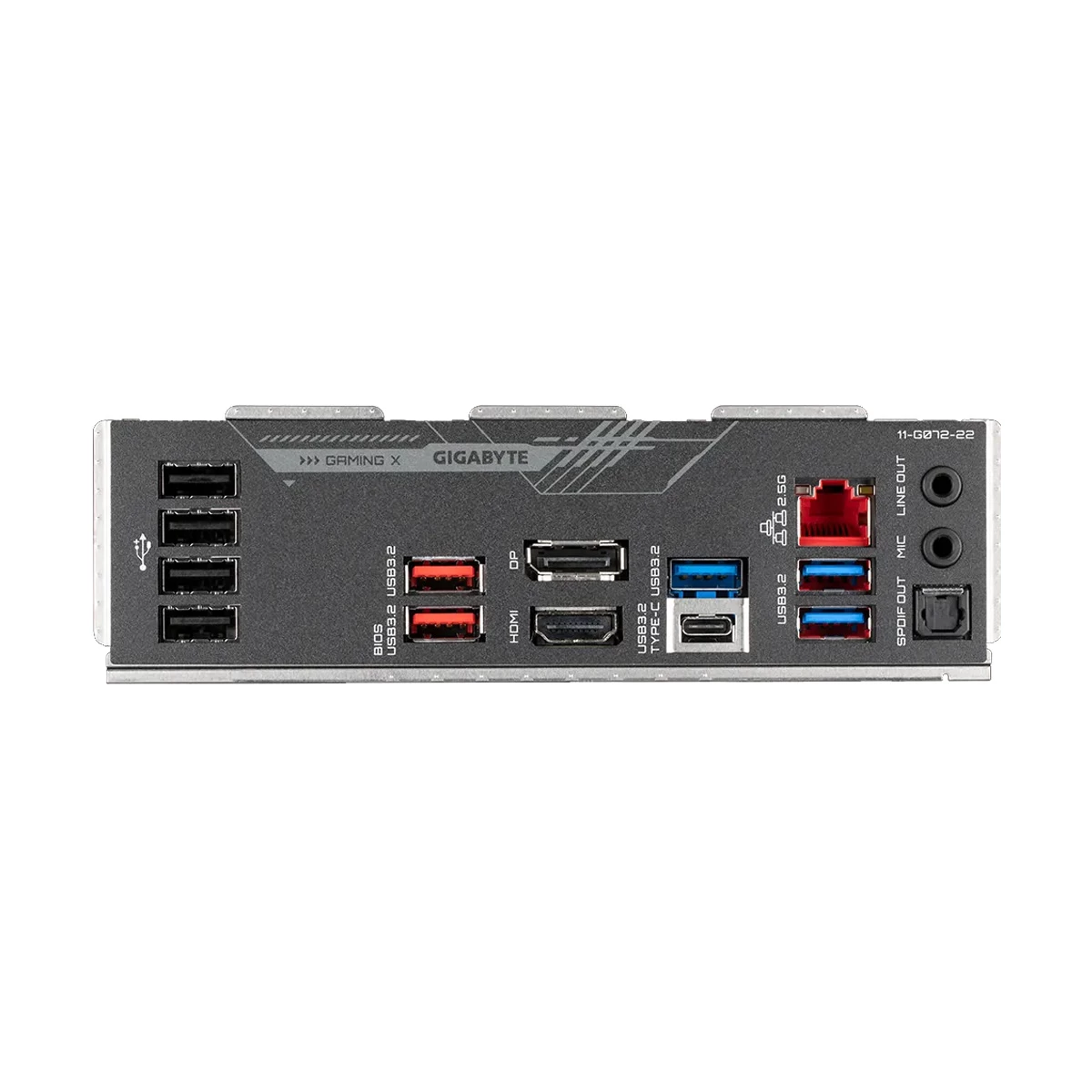

Ports

USB Port

1 x USB Type-C port with USB 3.2 Gen 2x2, 2 x USB 3.2 Gen 2 Type-A (red), 3 x USB 3.2 Gen 1, 4 x USB 2.0

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

IDE Port

SATA Port

Thunderbolt

TPM Port

Yes

COM Port

Yes

Technical Info

Back-Connect Design

Cable Management

Front

DirectX Support

Heatsink

Yes

FireWire

CrossFire Support

Yes

Sli Support

Raid Support

Yes

RGB Support

RGB

RGB Sync

RGB FUSION

RGB Connector

2 x RGB LED strip headers

Approx. Power Consumption

90W

Form Factor

ATX

Bios Information

BIOS Type

1 x 256 Mbit flash

BIOS Model

AMI UEFI BIOS

BIOS Version

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Compatibility

Supported Operating System

Windows 10 / 11

Compatible Products

LGA1700 Socket 12th & 13th Gen Intel Processor

Warranty

Warranty Details

3 year

Additional Info

Feature

Norton Internet Security (OEM version), Realtek Gaming LAN Bandwidth Control Utility, EasyTune, Fast Boot, Game Boost, ON/OFF Charge, Smart Backup, System Information Viewer, Support for Q-Flash, Plus Support for Q-Flash, Support for Xpress Install, iTE I/O Controller Chip, UNPARALLELED PERFORMANCE, XTREME MEMORY, Fully Covered Thermal Design, 5 W/mK Thermal Pad, M.2 Thermal Guard, Enlarged Thermal Guard, 2X Copper PCB, NEXT GENERATION CONNECTIVITY, DEFINITIVE AESTHETICS, ULTRA DURABLE

Others

H/W Monitoring: (Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control), Internal I/O Connectors: (1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin ATX 12V power connector1 x CPU fan header, 1 x water cooling CPU fan header, 3 x system fan headers, 1 x system fan/water cooling pump header, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 4 x M.2 Socket 3 connectors, 6 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C header, with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 2 x Thunderbolt add-in card connectors, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1 x reset button, 1 x reset jumper, 1 x Q-Flash Plus button, 1 x Clear CMOS jumper),

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Gigabyte Z690 GAMING X Motherboard In Bangladesh

Gigabyte Z690 GAMING X DDR5 12th Gen Intel Motherboard in Bangladesh

Gigabyte Z690 GAMING Xmotherboard is a renowned motherboard in Bangladesh. The Gigabyte Z690 GAMING X DDR5 12th Gen Intel Motherboardis an Intel mainboard. The motherboard used an Intel Z690 Express chipset. LGA1700 Sockets Supported. In this motherboard, you can use an 12th Gen Intel Core i5, i7, i9 Processors. The Gigabyte Z690 GAMING Xmainboard has a Dual memory channel and 4 memory slot. It supports DDR5 6400(OC), 6200(OC), 6000(OC), 5800(OC), 5600(OC), 5400(OC), 5200(OC), 5000(OC), 4800(OC), 4000MHz ram. Maximum ram supports 128GB. Also, you can use 3 M.2/SSD Expansion Slot. Storage Interface is 6.0Gb/s. Gigabyte Z690 GAMING X DDR5 12th Gen Intel Motherboardcomes with Intel HD Graphics. PCI Express Slot are 1 x PCI Express x16 slot running at x16, 2 x PCI Express x16 slots running at x4. The here audio chipset used Realtek ALC1220-VB CODEC. Audio Channel available are 7.1, so you can enjoy crystal clear sound. For Network and Connectivity purposes the Gigabyte motherboard offers Realtek 2.5GbE LAN chip lan chipset and it’s speeds 10/100/1000/2500 Mb/s. USB port available One USB Type-C port with USB 3.2 Gen 2x2, Two USB 3.2 Gen 2 Type-A (red), Three USB 3.2 Gen 1, Four USB 2.0. Also, you will get VGA Port, DVI Port,HDMI Port, SATA Port and TPM Port. . It’s a ATX motherboard. Yes it’s a RGB support motherboard, also you can 2 x RGB LED strip headers RGB connector. The Gigabyte Z690 GAMING X DDR5 12th Gen Intel Motherboardsupported operating system is Windows 10 / 11. You will get a 3 year brand warranty.

What is the Gigabyte Z690 GAMING Xmotherboard Price in Bangladesh?

The Gigabyte Z690 GAMING Xmotherboard Price in Bangladesh is given upper. Ryans computers offer Gigabyte Z690 GAMING X DDR5 12th Gen Intel Motherboardis the competitive price in BD. You can purchase it from our website or computer shop.

What is the price of Gigabyte Z690 GAMING X Motherboard In Bangladesh?

The price of Gigabyte Z690 GAMING X Motherboard not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy Gigabyte Z690 GAMING X Motherboard from our website or visit our showrooms nearby.
