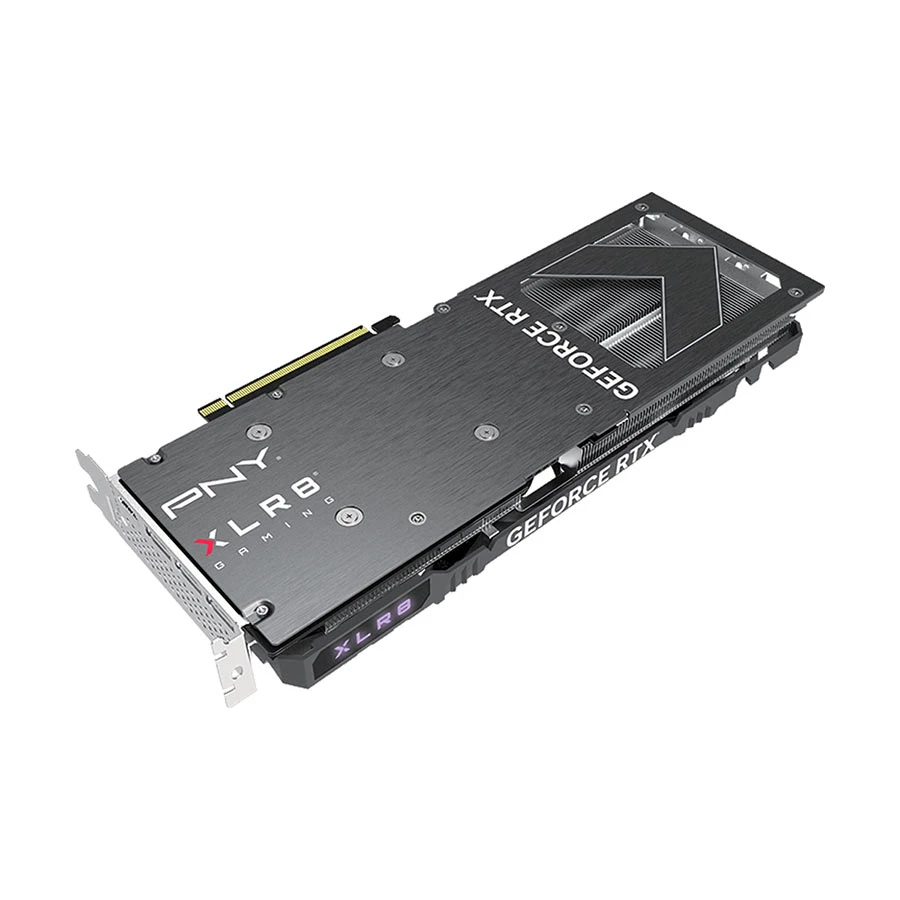

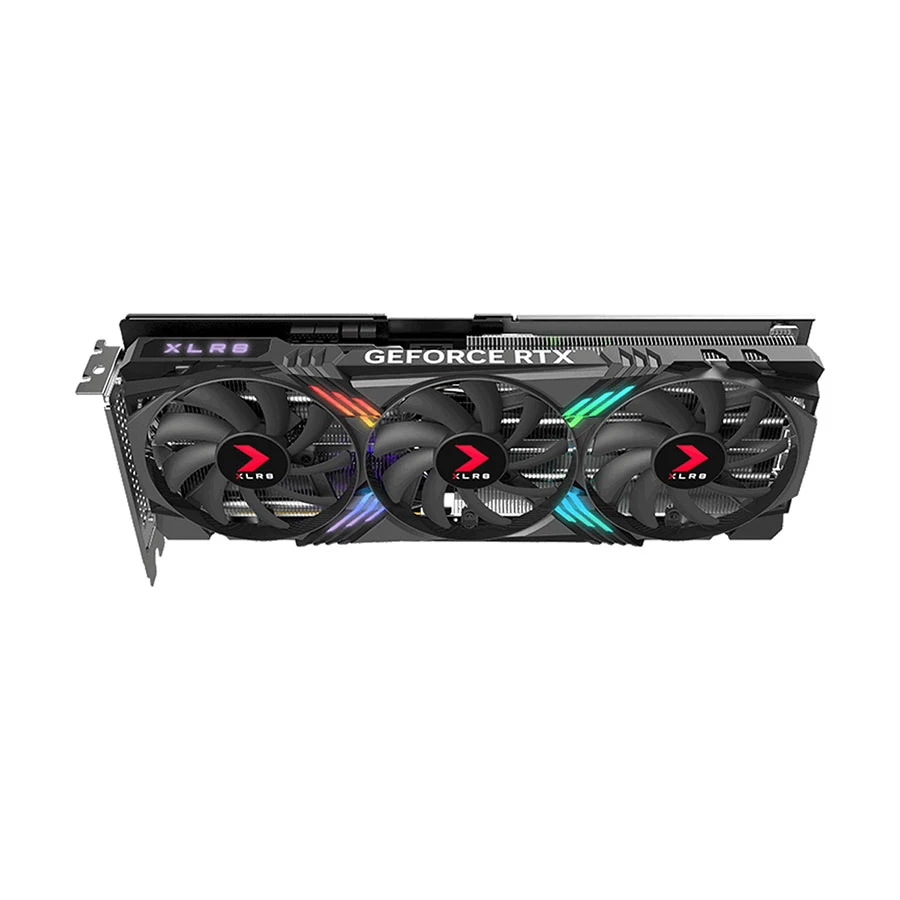

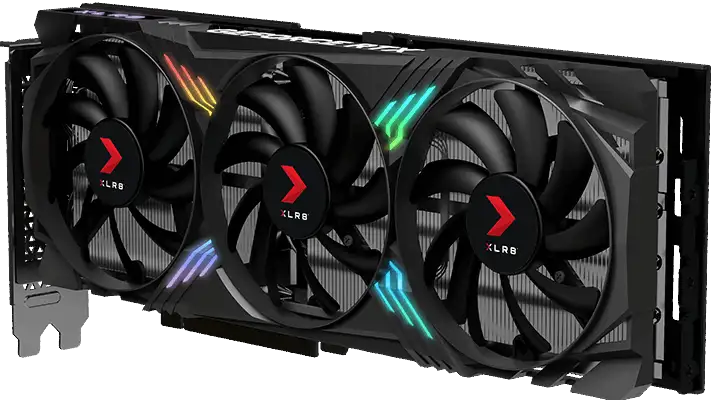

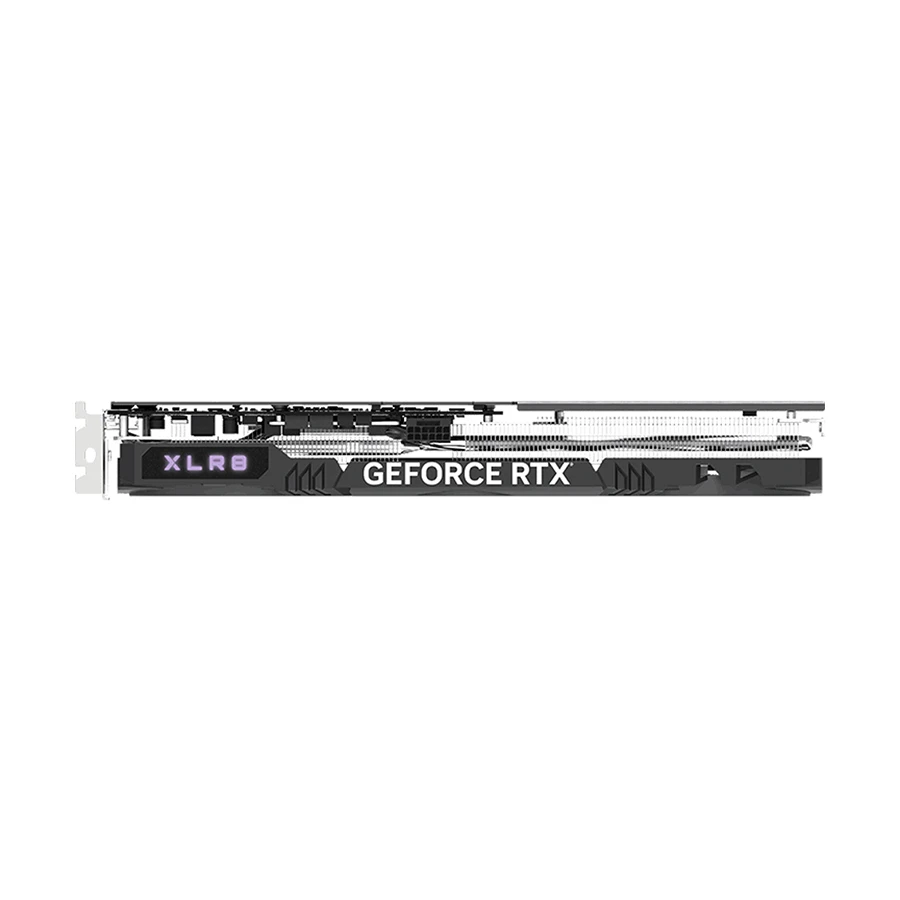

PNY GeForce RTX 4070 SUPER XLR8 Gaming Verto EPIC-X RGB Triple Fan DLSS 3 OC 12GB GDDR6X Graphics Card #VCG4070S12TFXXPB1-O
PNY GeForce RTX 4070 SUPER XLR8 Gaming Verto EPIC-X RGB Triple Fan DLSS 3 OC 12GB
Base Engine Clock Speed
1980MHz
Boost Engine Clock Speed
2505MHz
Memory Clock
21 Gbps
Capacity (GB/TB)
12GB
Memory Type
GDDR6X
Interface(s)
PCI-Express 4.0 x16
Graphics Resolution Max.
7680 x 4320
DirectX Support
12 Ultimate
OpenGL Support
OpenGL 4.6
Approx. Power Consumption
220W
Recommended PSU
700W
Power Connectors
16-pin (One 16-pin to Two 8-pin)
Multi Display Capability
Quad Display
Cooler Type
Fan
Lighting
RGB
Body Color
Black
Warranty Details
3 Year (No Warranty for Mining)
General
Brand
PNY
Chipset
NVIDIA GeForce
Series
RTX 4000
Chipset Model
GeForce RTX 4070
Model
PNY GeForce RTX 4070 SUPER XLR8 Gaming Verto EPIC-X RGB Triple Fan DLSS 3 OC 12GB
Part No
VCG4070S12TFXXPB1-O
Technical Info
CUDA Core / Stream Processors
7168 (CUDA)
Engine Clock
1980MHz (Base), 2505MHz (Boost)
Base Engine Clock Speed
1980MHz
Boost Engine Clock Speed
2505MHz
Memory Clock
21 Gbps
Capacity (GB/TB)
12GB
Memory Bus
192-bit
Memory Bandwidth
504 Gbps
Memory Type
GDDR6X
Interface(s)
PCI-Express 4.0 x16
DirectX Support
12 Ultimate
OpenGL Support
OpenGL 4.6
HDCP Support
Yes, 2.3
Supported Operating System
Windows 11 64-bit, 10 (November 2018 or later) 64-bit, Linux 64-bit.
Display & Resolution
Graphics Resolution Max.
7680 x 4320
Multi Display Capability
Quad Display
Ports
VGA Port
No
DVI Port
No
HDMI Port
1
Display Port
3
Power
Approx. Power Consumption
220W
Recommended PSU
700W
Power Connectors
16-pin (One 16-pin to Two 8-pin)
Physical Description
Card Dimension
305.05 x 119.38 x 39.87mm, 2 Slot
Cooler Type
Fan
Cooling Fan
Triple
Lighting
RGB
RGB Effects
EPIC-X RGB
Body Color
Black
Warranty
Warranty Details
3 Year (No Warranty for Mining)
Additional Info
Others
Outputs: DisplayPort 1.4a (x3), HDMI 2.1. Resolution: 7680 x 4320 120Hz (Digital). REQUIREMENTS: PCI Express-compliant motherboard with one dual-width x16 graphics slot, Two 8-pin supplementary power connectors.
Specialty
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing, Dedicated Ray Tracing Cores, Dedicated Tensor Cores, NVIDIA DLSS 3, SFF-Ready Enthusiast GeForce Card, Game Ready and NVIDIA Studio Drivers, NVIDIA GeForce Experience, NVIDIA Broadcast, NVIDIA G-SYNC, NVIDIA GPU Boost, PCI Express Gen 4, Microsoft DirectX 12 Ultimate, Vulkan RT APIs, Vulkan 1.3, OpenGL 4.6, HDCP 2.3, DisplayPort 1.4a, up to 4K at 240Hz or 8K at 60Hz with DSC, HDR, As specified in HDMI 2.1a: up to 4K 240Hz or 8K 60Hz with DSC, Gaming VRR, HDR, One 16-pin to Two 8-pin Power Cable Included.
