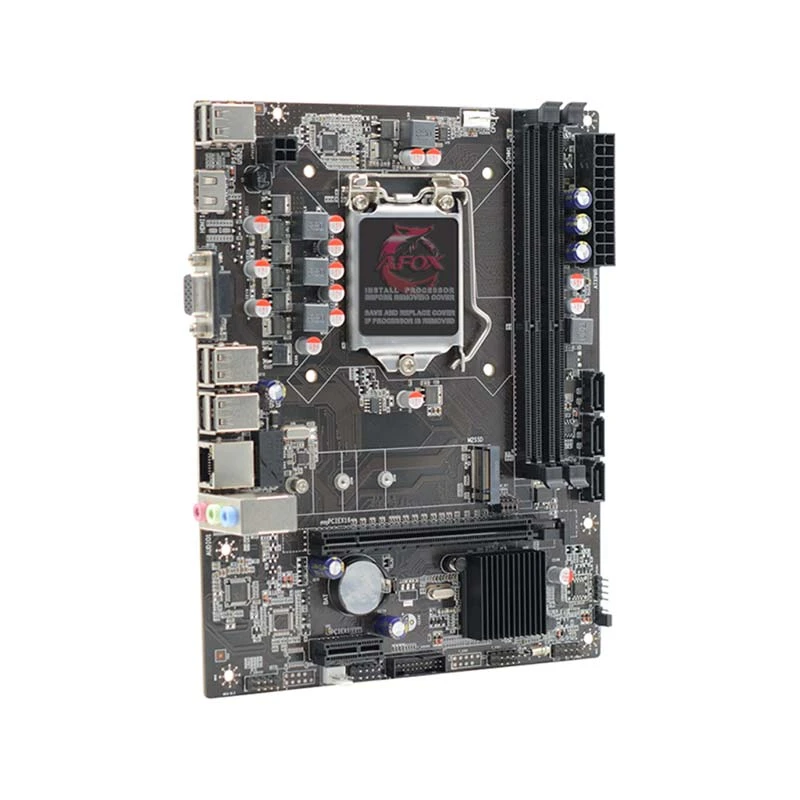

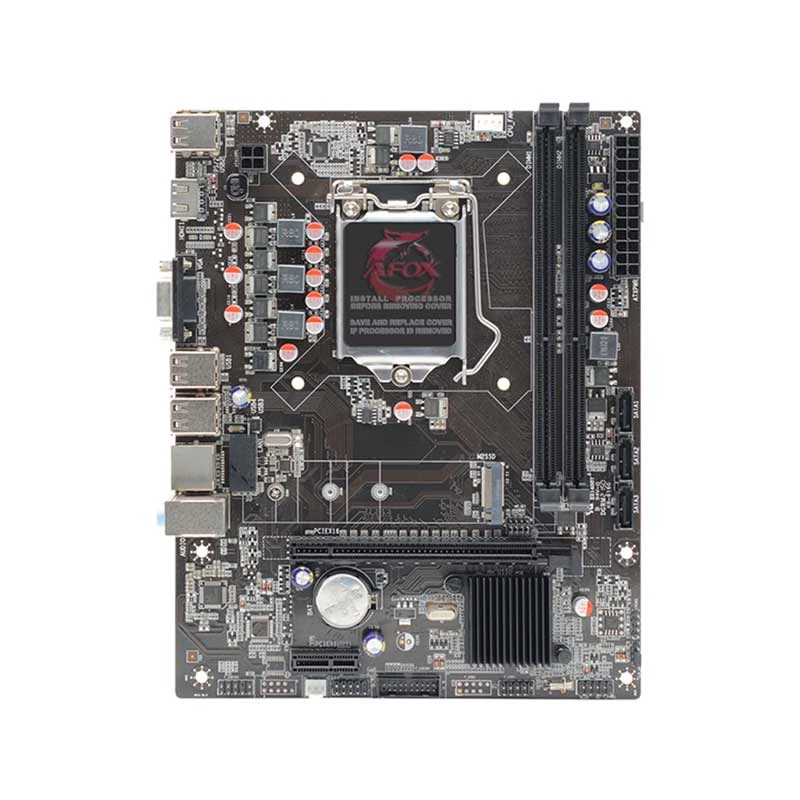

AFOX IH61-MA5-V6 DDR3 2nd/3rd Gen Intel LGA1155 Socket Motherboard

Item: AFOX IH61-MA5-V6 DDR3 2nd/3rd Gen Intel LGA1155 Socket Motherboard
Rating: 5
Author: Verified Buyer

27 reviews

Product Id: 02.01.743.22

Out Of Stock

See similar model

Quick Overview

Form Factor - Micro-ATX
Chipset - Intel H61
Sockets Supported - LGA1155
Supported CPU - Intel Core i7 / Core i5 / Core i3 / Pentium / Celeron Processors.
Generation - Not Applicable
Memory Slot - 2
Memory Max. - 16GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Afox

Model

Afox IH61-MA5-V6

Chipset

Intel H61

Sockets Supported

LGA1155

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR3

Memory Slot

Memory Max.

16GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

Micro-ATX

Supported Operating System

Window 8, 10

Body Color

Black

Warranty

3 year

General

Brand

Afox

Model

Afox IH61-MA5-V6

Body Color

Black

CPU

Chipset Brand

Intel

Chipset

Intel H61

Sockets Supported

LGA1155

Built-in Processor

Supported CPU

Intel Core i7 / Core i5 / Core i3 / Pentium / Celeron Processors.

Generation

Not Applicable

Memory Support

Memory Type

DDR3

Memory MHz

1066 / 1333 / 1600MHz

Memory Channel

Dual

Memory Slot

Memory Max.

16GB

Optane Memory Support

Storage

Storage Interface

3Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

1 x M.2 (PCIe NVMe Gen3 x4 & SATA3)

M.2/SSD Slot Gen

Up to Gen 4

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

1 x PCI Express x16 slot, 1 x PCI Express x1 slot

Audio & Video

Audio Chipset

Realtek 662 On Board

Audio Channel

Network & Connectivity

LAN Chipset

Realtek RTL8111 Gigabit Ethernet On Board

LAN Speed (Mbps)

0/100/1000 Mbps

WiFi

Bluetooth

Ports

USB Port

6 x USB 2.0

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

3 x SATA3

Thunderbolt

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

CrossFire Support

Sli Support

RGB Support

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Bios Information

BIOS Type

UEFI BIOS

Compatibility

Supported Operating System

Window 8, 10

Compatible Products

Intel Core i7 / Core i5 / Core i3 / Pentium / Celeron Processors.

Warranty

3 year

Additional Info

Feature

CPU up to 95 watts. High speed USB interface. High quality audio special capacitor+independent audio block LED isolation line. Design of Gigabit high-speed network card. Excellent in multitasking, a wise choice for gaming players. Stable power supply, smooth game performance.

Others

Back Panel I/Os: 1 x HDMI Port, 1 x D-Sub (VGA) Port, 6 x USB 2.0 Ports, 1 x RJ-45 LAN Port, 3 x HD Audio Jacks (Line in / Front Speaker / Microphone). ON-Board Pinheaders/Connectors: 1 x USB 2.0 pinheader (supports additional 2 USB 2.0s), 1 x USB 3.0 pinheader (supports additional 2 USB 2.0s), 1 x Front Panel Audio pinheader, 1 x LPC DEBUG. Form Factor: Micro-ATX (17*21.5cm). Mounting: 4 mounting holes. Accessories: 1 x SATA II cable, 1 x I/O Rear Panel, 1 x User Manual, 1 x Driver CD.

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Afox IH61-MA5-V6 Motherboard In Bangladesh

The Afox IH61-MA5-V6 motherboard is a solid option for users who want reliable performance at a great price. It’s built on the Intel H61 chipset and supports Intel Core i7, i5, i3, Pentium, and Celeron processors with the LGA1155 socket. This makes it a good fit for both home and office use. With support for DDR3 memory up to 16GB, it handles multitasking well.

What Makes The Afox IH61-MA5-V6 Motherboard Special?

Afox IH61-MA5-V6 is special because of its smart design. It includes both HDMI and VGA outputs, so you can connect modern and older displays easily. The board also has one M.2 slot, giving you a boost in speed with SSD storage. It features Gigabit Ethernet, powered by the Realtek RTL8111 chip, which ensures fast and stable network performance. Audio quality is impressive too, with a 6-channel output and high-grade audio capacitors.

Who Should Buy The Afox IH61-MA5-V6 Motherboard?

This motherboard is ideal for budget PC builders, students, and casual gamers. If you're upgrading an older PC or building a system for daily tasks, it's a great match. It offers good performance for everyday work, web browsing, streaming, and even light gaming. The micro-ATX form factor fits in most cases, making it easy to install.

Is the Afox IH61-MA5-V6 Motherboard Worth Buying?

Yes, especially if you’re looking for a dependable board with all the basics. It may not support the latest hardware, but it covers what most users need. You get HDMI, USB ports, M.2 support, and stable performance in a compact and affordable package. If you're looking to buy the Afox IH61-MA5-V6 Motherboard in Bangladesh, Ryans Computers offers the best price in the market.

What is the price of Afox IH61-MA5-V6 Motherboard In Bangladesh?

The price of Afox IH61-MA5-V6 Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Afox IH61-MA5-V6 Motherboard from our website or visit our showrooms nearby.
Looking to purchase office, corporate, or institutional equipment? Ryans Computers is here to help. We provide customized solutions tailored to your needs, backed by fast delivery and dependable after-sales service. Our expert Ryans Care team is always ready to support you with troubleshooting, technical assistance, and configuration services—so you can focus on what matters most.

QUESTION & ANSWER

Customer Questions

2.5 inch SATA ssd সাপোর্ট করবে?

Asked By Md Habibur Rahman

প্রিয় গ্রাহক,
হ্যাঁ, আপনি Afox IH61-MA5-V6 মাদারবোর্ডে 2.5-inch SATA SSD ব্যবহার করতে পারবেন।বিস্তারিত জানতে আমাদের হেল্প লাইন নাম্বারে কল করুন ,
16 810
,
09609016810
ধন্যবাদ।

Answered By Ryans Computers Ltd. , 15 Aug 2025

এই মাদারবোর্ডে RGB লাইট সকেট আছে?

Asked By

প্রিয় গ্রাহক ,
RGB Support - No
ধন্যবাদ ।

Answered By Ryans Computers Ltd. , 10 Aug 2025

Ei Motherboard a ki Windows 10 Cholbe Kindly Janaben

Asked By Arman

প্রিয় গ্রাহক,
জি , Windows 10 সাপোর্ট করবে ।
ধন্যবাদ ।

Answered By Ryans Computers Ltd. , 02 Aug 2025

Can I use pentium gold or core 2 duo processor in this?

Asked By Shuvo

Dear Customer, Not Compatible, Supported CPU - 2nd & 3rd Gen Intel Core i7 / Core i5 / Core i3 / Pentium / Celeron Processors. ,Thank you
