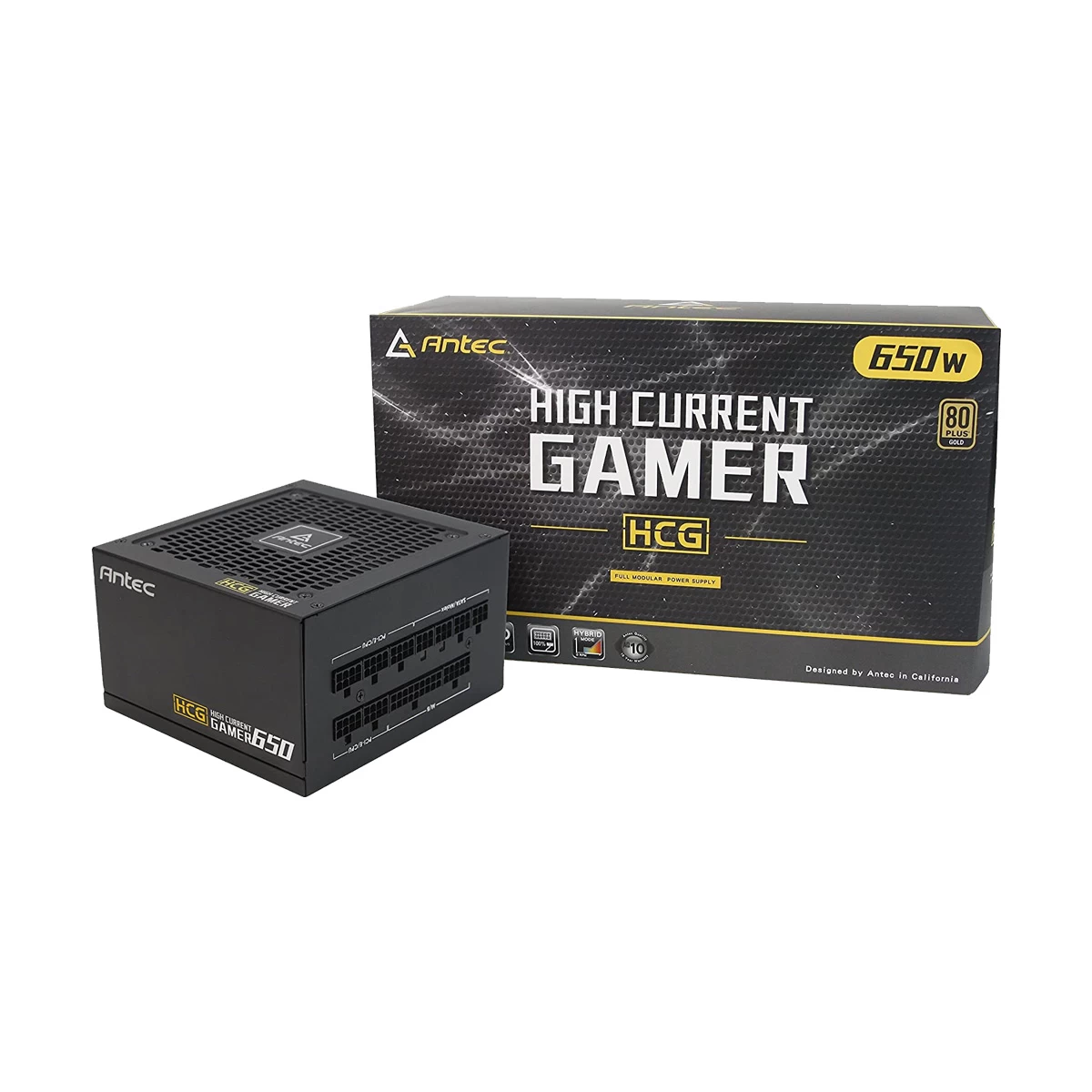

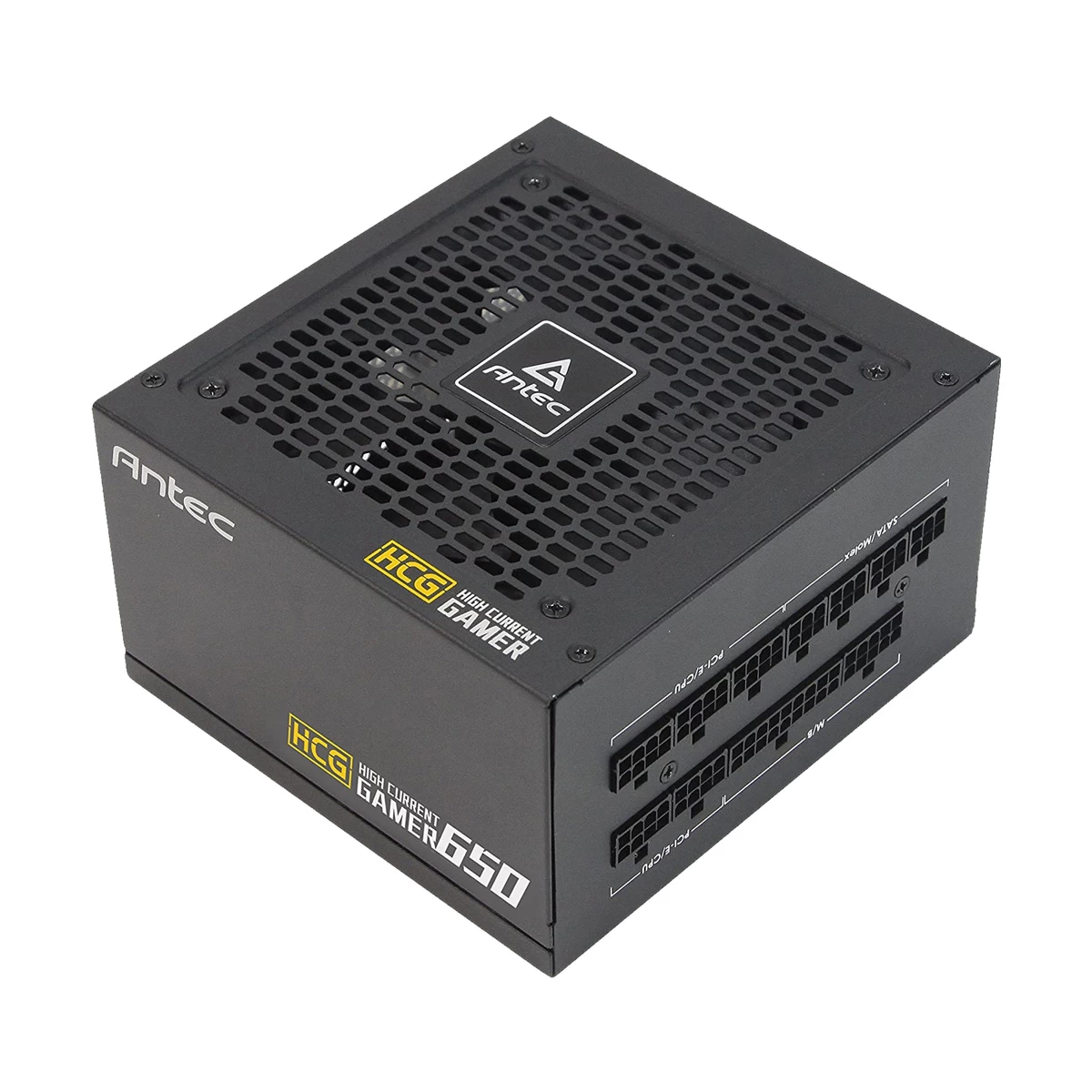

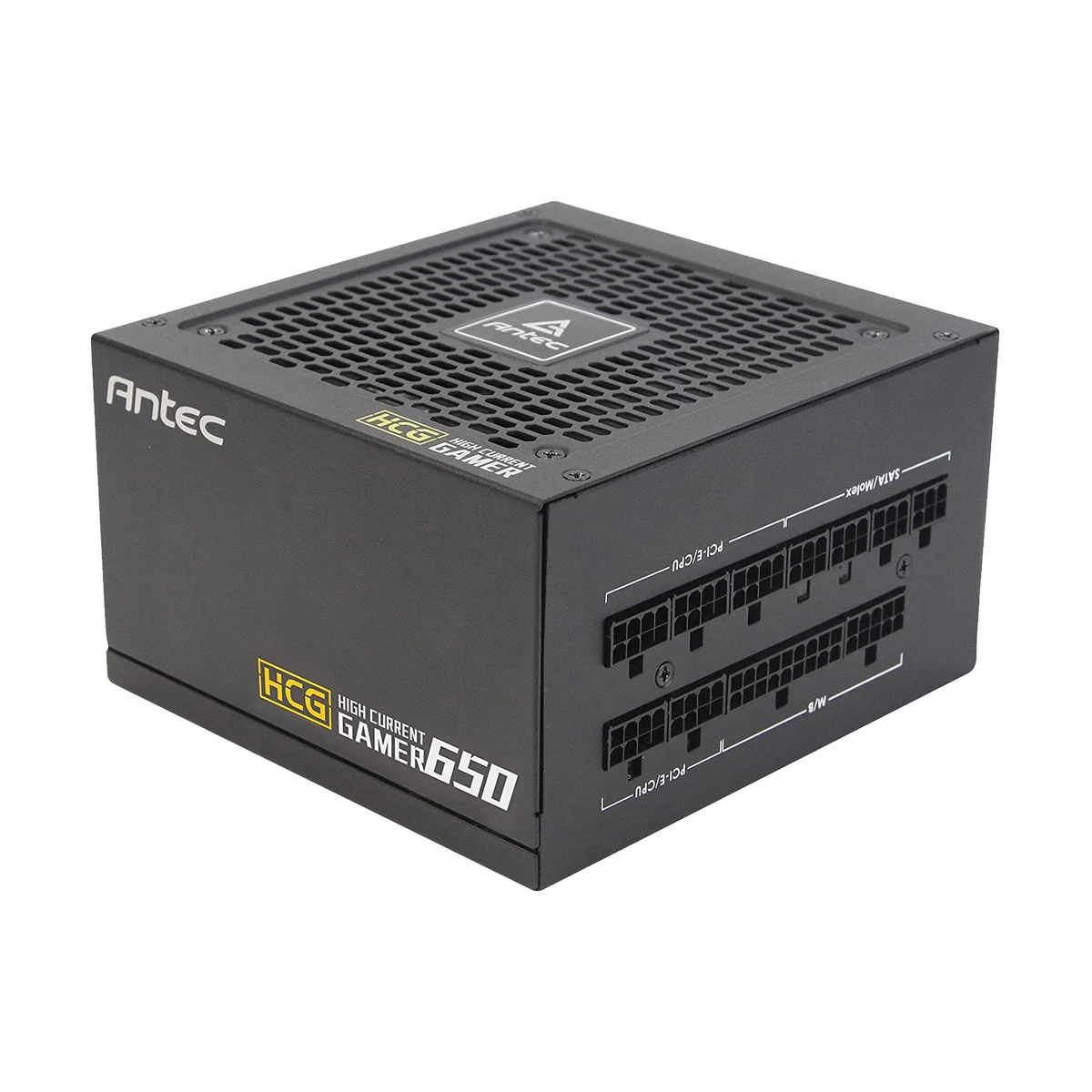

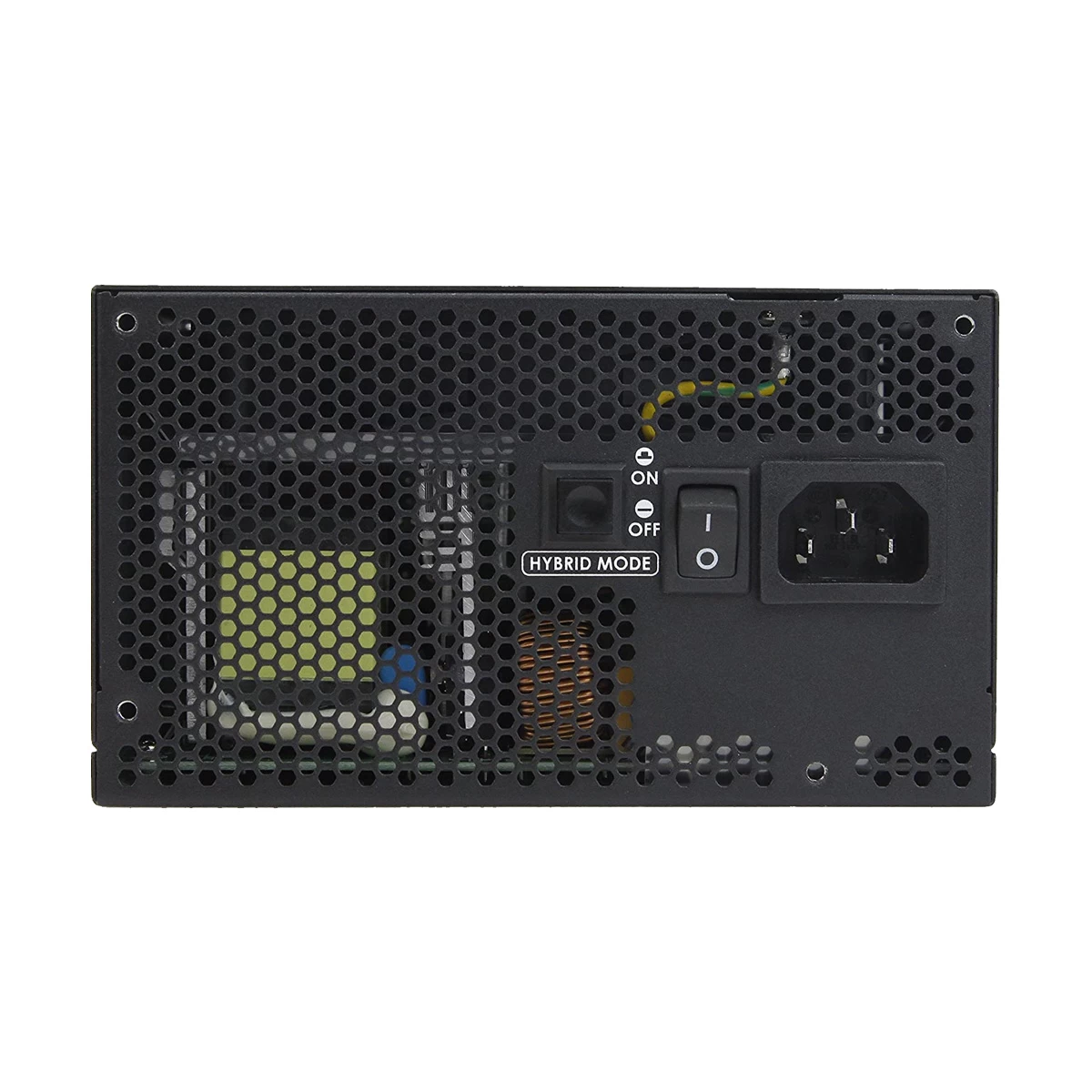

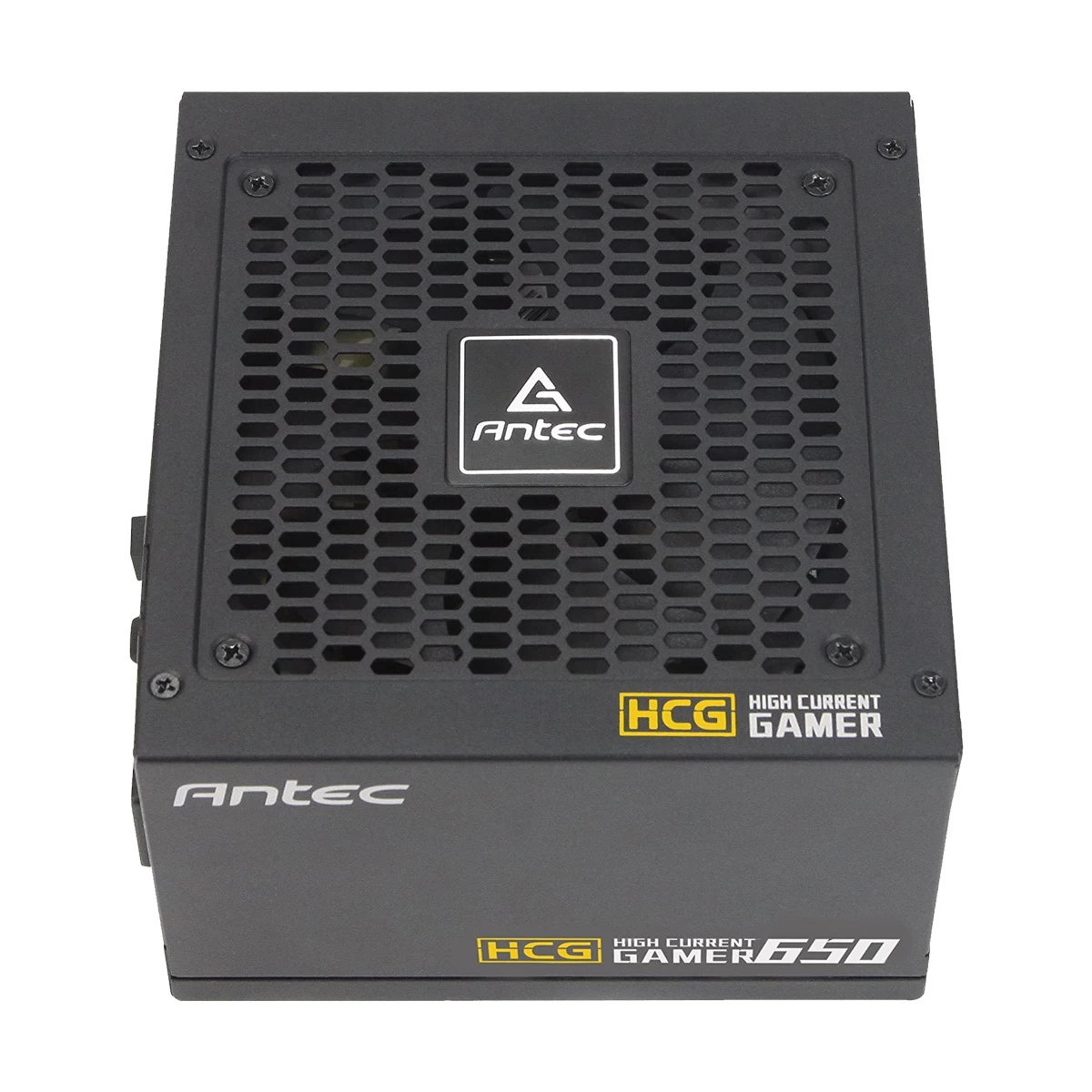

Antec High Current Gamer Gold Series 650W Full Modular Power Supply

Product Id: 55.01.457.18

Brand Antec

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • PSU Category - Full Modular
  • Type - ATX 12V 2.4
  • Maximum Power - 650 Watt
  • Efficiency - 92% Efficiency
  • Efficiency Rating - 80 plus Gold
  • Protection - OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
General
Brand
Antec

Model
HCG650 Gold

Series
Gamer Gold Series

PSU Category
Full Modular

Type
ATX 12V 2.4


Cooling & Lighting
Fan Size
120mm

Lighting Effect
No

Lighting Type
Not Applicable

Zero RPM Fan Mode
Yes

Fan Bearing
Fluid Dynamic Bearing


Performance
Efficiency
92% Efficiency

Efficiency Rating
80 plus Gold

PFC (Power Factor Correction)
Active PFC (>0.9 typical)

Power Good Signal
100 - 500ms


Protection
Protection
OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO

Over Voltage Protection (OVP)
Yes

Over Power Protection (OPP)
Yes

Over Current Protection (OCP)
Yes

Over Temperature Protection (OTP)
Yes

Short Circuit Protection (SCP)
Yes

Under Voltage Protection (UVP)
Yes


Connectors
ATX Main Connectors
1 x ATX 24

EPS Connectors
1 x 8(4+4) Pin EPS 12V

PCIe Connectors
4 x 8(6+2) Pin PCI-E

SATA Power Connectors
8 x SATA

4-Pin Peripheral Connectors
No

Floppy Connectors
No


Power
Min. Power (Approx.)
595W

Maximum Power
650 Watt

Input AC
100-240V, 9A-4.5A, 50-60 Hz

Input Voltage
100-240V

Input Frequency Range
50-60 Hz

Input Current
9A-4.5A

Peak Output Capacity
650W

Operating Temperature
0 - 40 degree C


Physical Description
Form Factor
ATX

Dimensions
140 x 150 x 86mm

Weight (Kg)
2.04Kg

Color
Black


Warranty
Warranty Details
10 year


Additional Info
Regulatory / Safety Approval
cTUVus/TUV/CB [IEC62368 Compliant] /RCM/CE/EAC/CCC/BSMI/FCC/KR

Others
Connector: 3 x Molex, 1 x FDD, Gross Weight: 3.36Kg, PFC: Active PFC (>0.9 typical), Zero RPM Manager: An advanced low voltage fan control with fan-off mode at low loads for absolute silence,

Specialty
Compact size 140mm depth power supply is the best choice for compact ATX chassis, 28(18+10) pin MBU socket - For possible future MBU connectors, 100% Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your systems performance, 120mm FDB Silence Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime

Country Of Origin
USA

Made in/ Assemble
China
