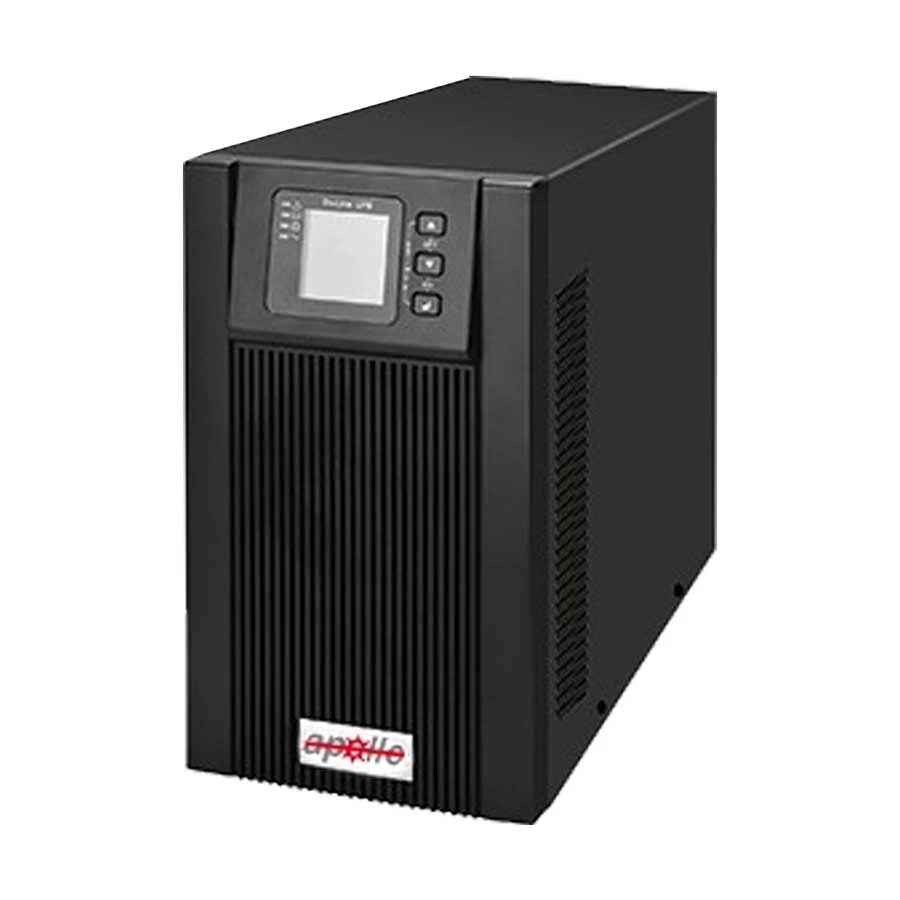

Features of Apollo 3P80K 80000VA UPS In Bangladesh
Brand - Apollo, Model - Apollo 3P80K 80000VA, Type - Online UPS, Volt Ampere (VA) - 80000V, Input Voltage (V) - 208Vac - 478Vac, Output Voltage (V) - 380/ 400/ 415Vac, (3Ph+N+PE), Frequency (Hz) - 40 - 70Hz (Input), 50/60 + -0.2% Hz (Output Battery Mode), Transfer Rate (ms) - 0ms, LED Display - Yes, Battery(Qty with V & A) - 2 pc with 12V & 38Ah (Battery Not Included), Overload Protection - Yes, Short Circuit Protection - Yes, Power factor - >-0.99, Crest Factor - 3:01, Dimension - 780 x 600 x 1200mm, Others - Input: Power factor: >-0.99, Harmonic distortion (THD): 2% (100% nonlinear load), Bypass voltage range: Max. Voltage: 220V +25% (optional +10%, +15%, +20%) 230V 20% (optional +10%, +15%), 240V 15% (optional +10%), Min voltage: -45% (optional -20%, -30%), Frequency protection rage: + - 10%. Generator input: Support. Output - Voltage regulation: + -1%, Power factor: 0.8/0.9 (Customized), Crest factor: 3:01, Harmonic distortion (THDv): <-2% with linear load, <-5% with non linear load, Efficiency: 95%, Battery voltage: Standard unit: + - 216Vdc; Long run unit Optional voltage: + - 192V\+ - 204V\+ - 216V\+ - 228V\+ - 240Vdc. Battery type: 12V/38Ah (standard unit). Charge Current (A): 18A (Max.). Overload - Line Mode: Load <-110%: last 60min, <-125%: last 1min, >-150% turn to bypass mode immediately. Short circuit: Hold Whole System. Low battery voltage: Alarm and Switch off, Self-diagnostics: Upon Power On and Software Control, Battery: Advanced Battery Management, Nose Suppression: Complies with EN62040-2, Audible & Visual: Line Failure, Battery Low, Overload System Fault, Status LED & LCD display: Line Mode, Bypass Mode, Battery Low, Battery Bad, Overload & UPS Fault, Reading on the LCD display: Input Voltage, Input Frequency, Output Voltage, Output Frequency, Load Percentage, Battery Voltage & Inner Temperature. Communication interface: RS232, RS485, Parallel, Intelligent slot., Warranty - 1 Year (Box Mandatory While Claiming), Country of Origin - Taiwan, Made in/ Assemble - China
What is the price of Apollo 3P80K 80000VA UPS In Bangladesh?
The price of Apollo 3P80K 80000VA UPS not mentioned for stock unavailability.
The price may vary due to your customization and product availability.
You can buy Apollo 3P80K 80000VA UPS from our website or visit our showrooms nearby.
