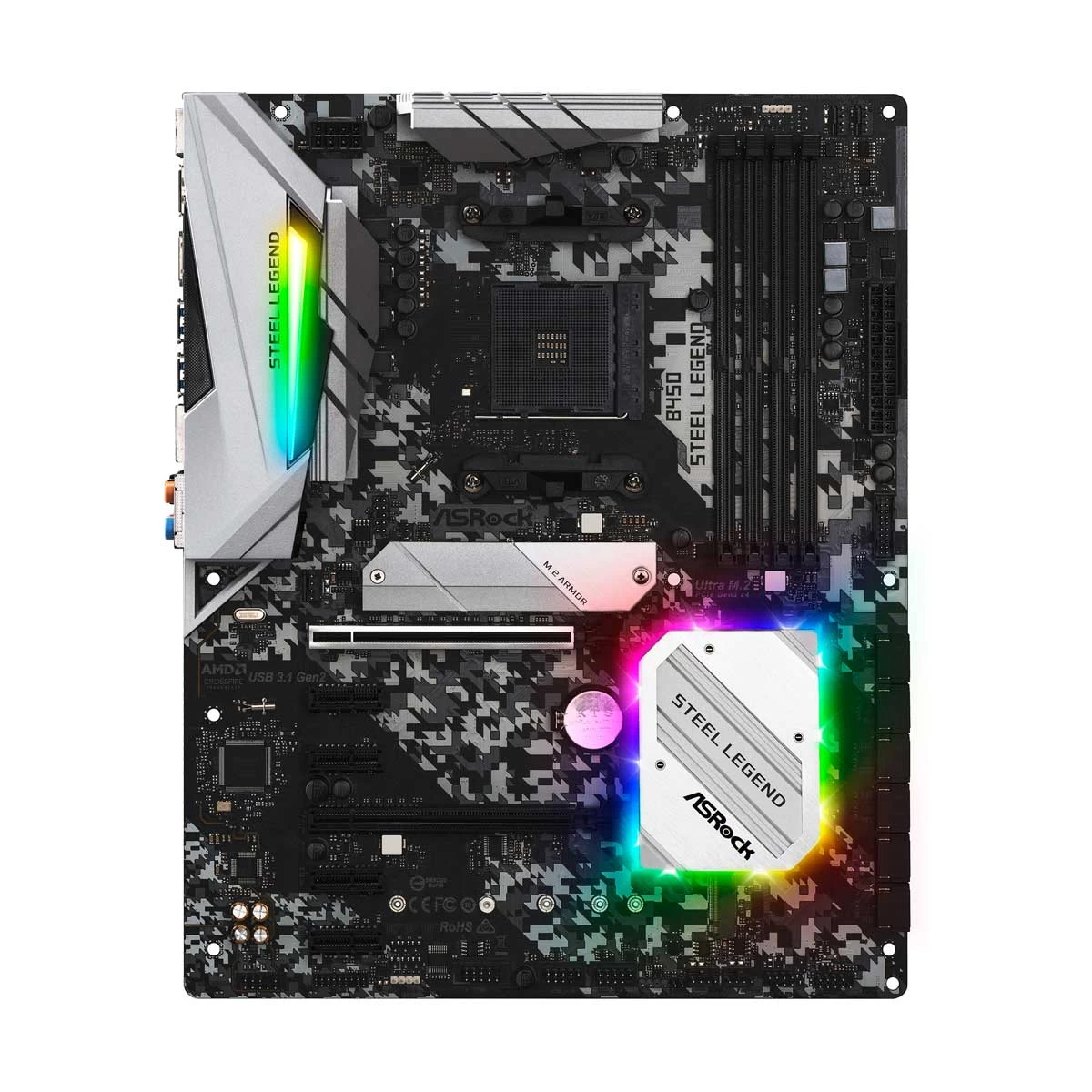

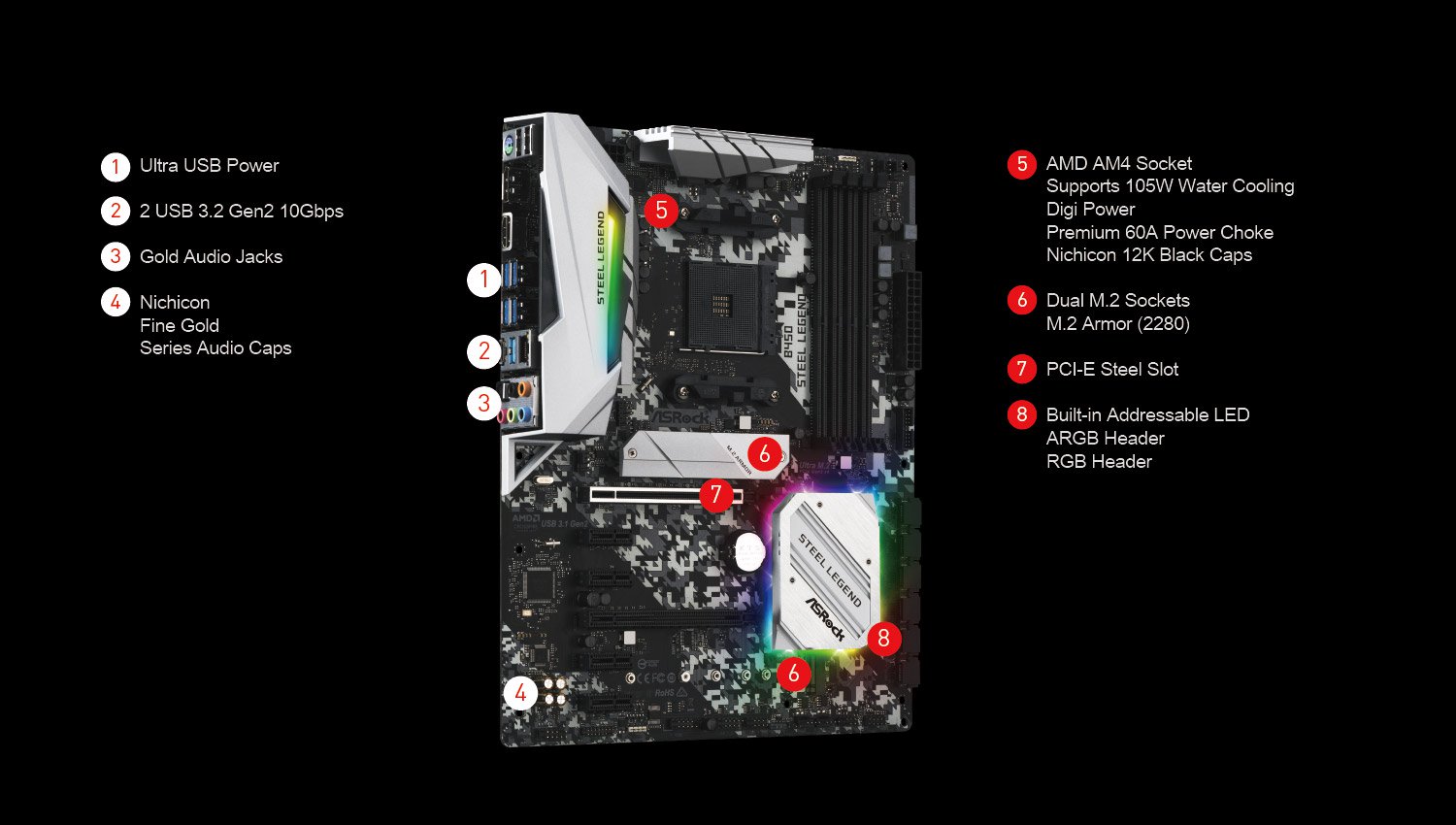

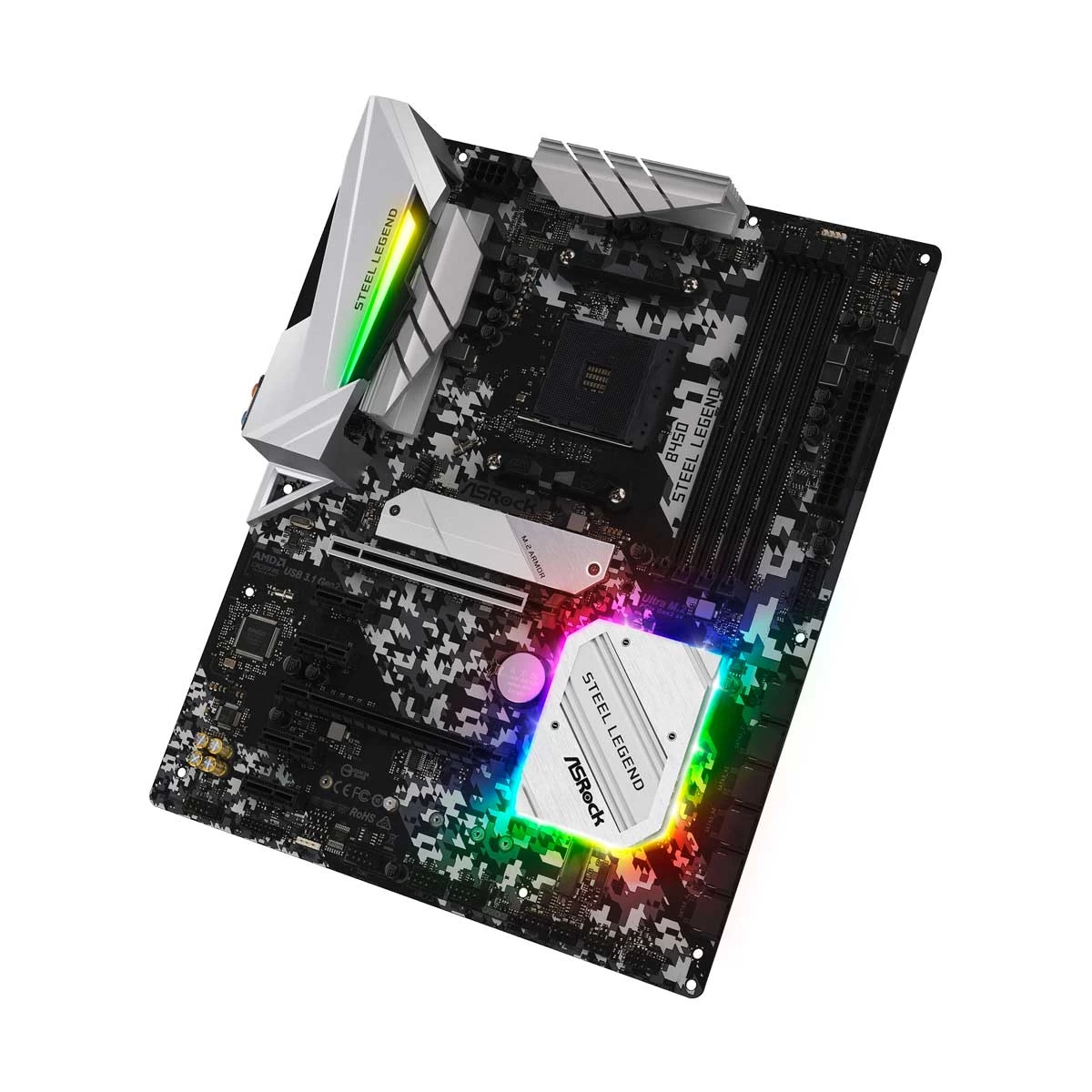

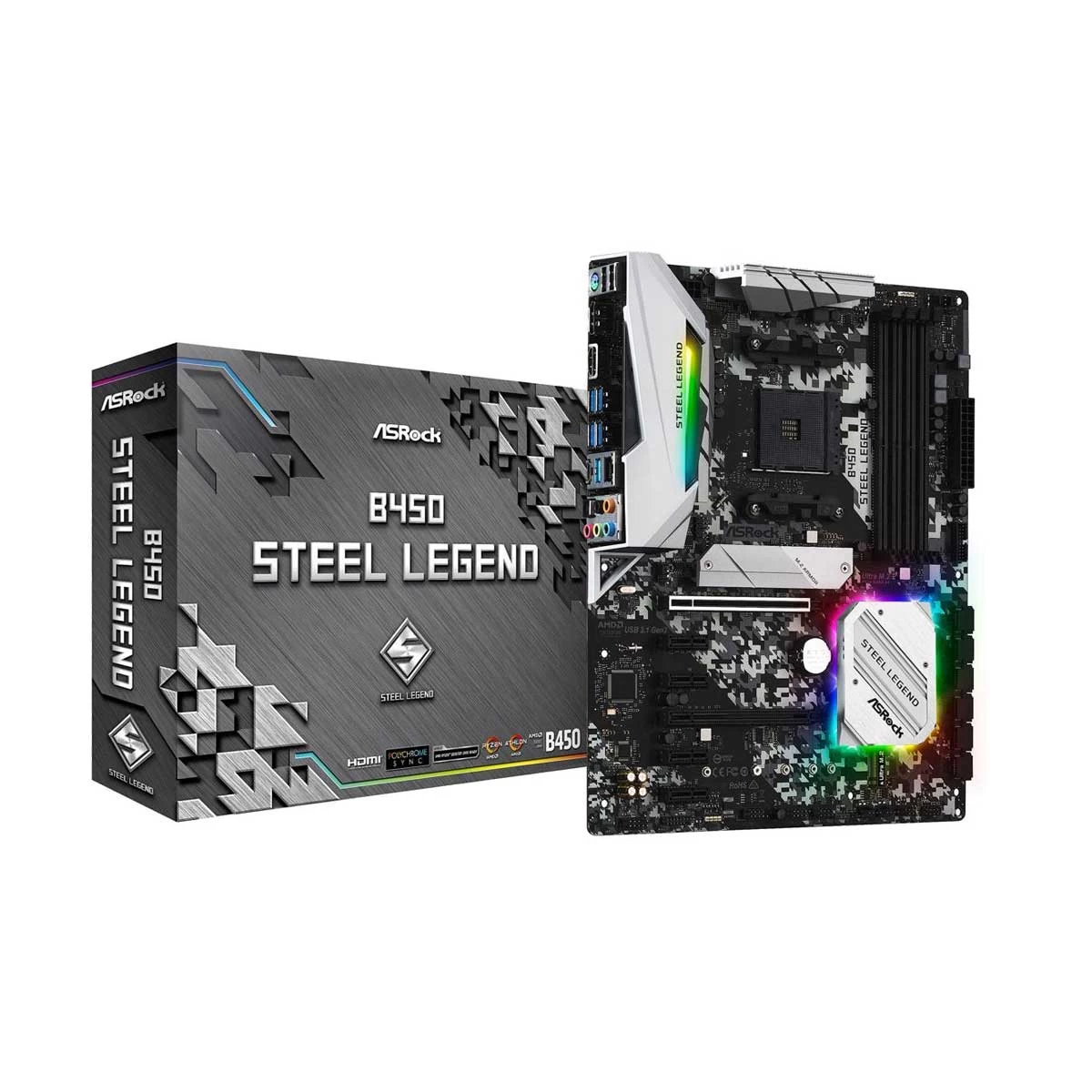

Asrock B450 Steel Legend DDR4 AMD Motherboard

Product Id: 02.02.504.68

Brand Asrock

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Chipset - AMD B450
  • Sockets Supported - AM4
  • Supported CPU - Ryzen 2000, 3000 and 5000 Series Processors
  • Generation - Not Applicable
  • Memory Slot - 4
  • Memory Max. - 128GB
General
Brand
Asrock

Model
ASRock B450 Steel Legend

Body Color
Black


CPU
Chipset Brand
AMD

Chipset
AMD B450

Sockets Supported
AM4

Built-in Processor
No

Supported CPU
Ryzen 2000, 3000 and 5000 Series Processors

Generation
Not Applicable


Memory Support
Memory Type
DDR4

Memory MHz
3200/ 2933/ 2667/ 2400/ 2133MHz (AMD Ryzen series CPUs: Matisse), 3533+(OC)/ 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133MHz (AMD Ryzen series CPUs: Pinnacle Ridge), 2933/ 2667/ 2400/ 2133MHz (AMD Ryzen series CPUs: Picasso), 3466+(OC)/ 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133MHz (AMD Ryzen series CPUs: Summit Ridge & Raven Ridge)

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DIMM

Memory Max.
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

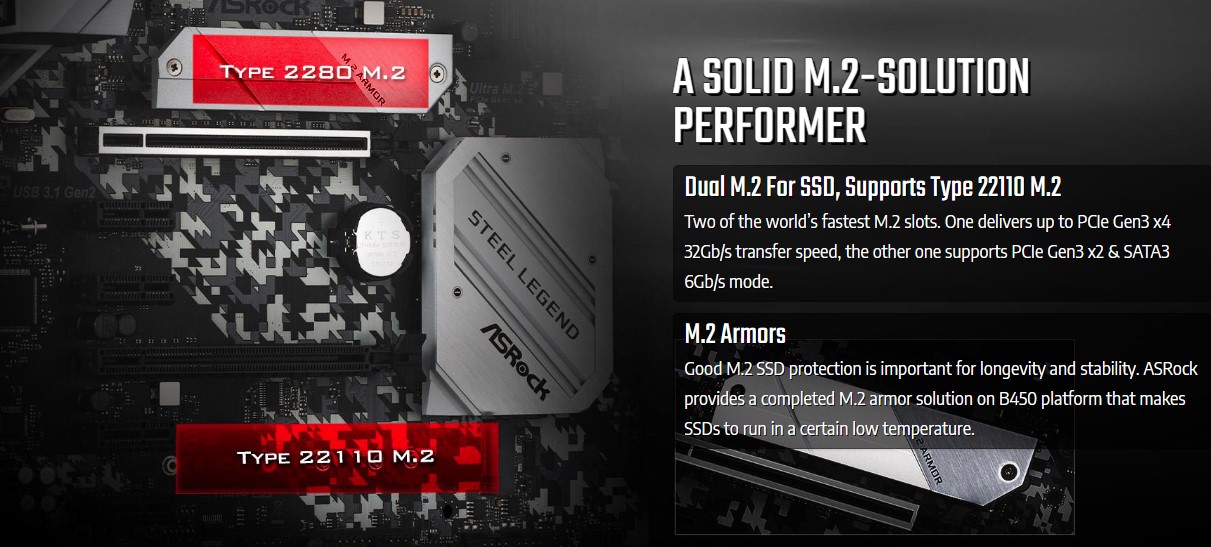

M.2/SSD Expansion Slot
2

M.2/SSD Expansion Slot Details
2 x M.2 (1 x Ultra M.2, type 2230/2242/2260/2280 M.2 PCI Express Gen3 x4), (1 x M.2, type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s and M.2 PCI Express Gen3 x2))


Graphics
Graphics
Intregrated

Graphics Chipset
AMD Vega Graphics support

Multi-GPU Support
Yes Supports AMD Quad CrossFireX and CrossFireX

PCI Express Slot
2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE4: x4 mode), 2 x PCI Express 3.0 x16 Slots (PCIE1: x4 mode; PCIE4: x2 mode)


Audio & Video
Audio Chipset
Realtek ALC892/897 Audio Codec

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek RTL8111H

LAN Speed (Mbps)
10/100/1000 Mb/s

WiFi
No

WiFi Technology
No

Bluetooth
No

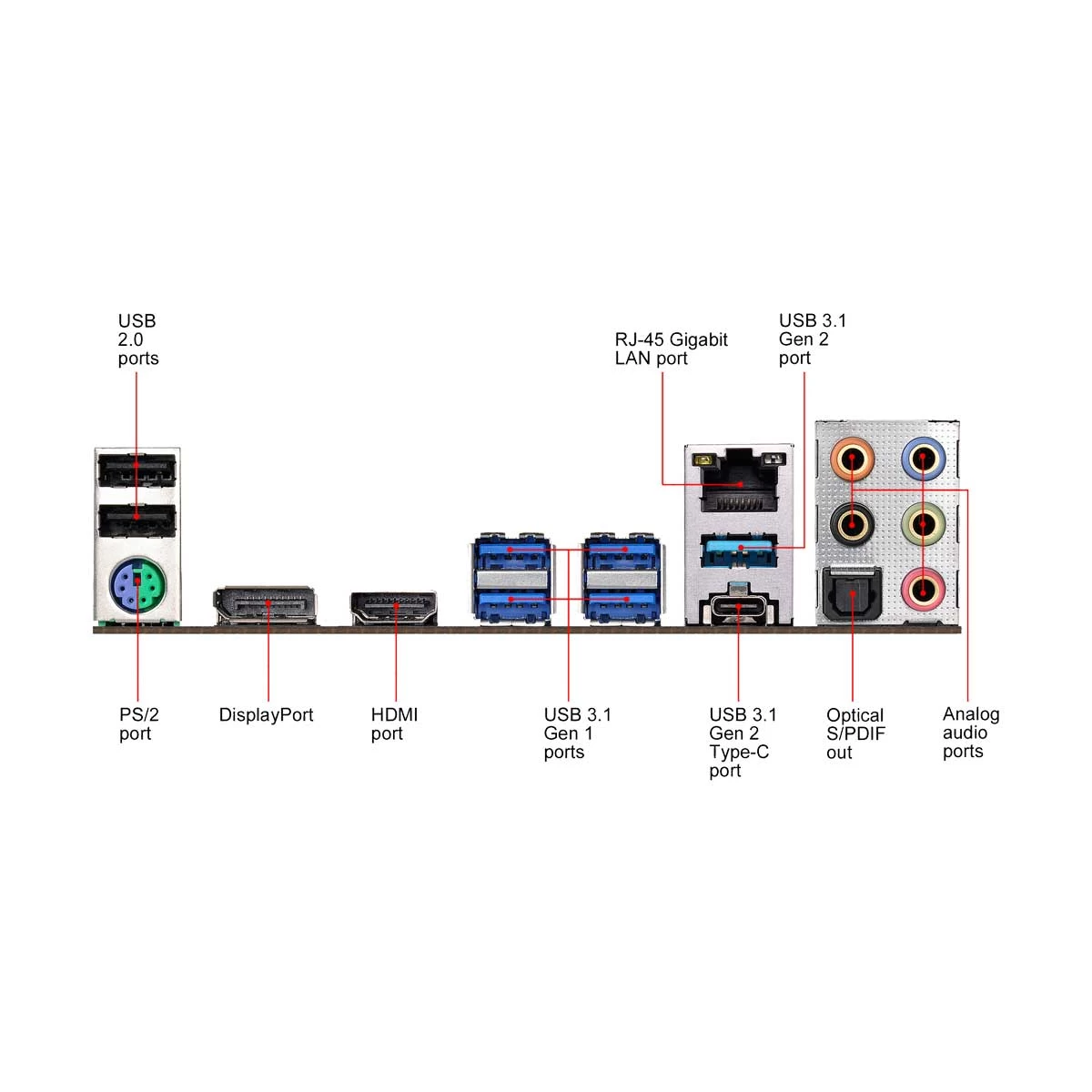

Ports
USB Port

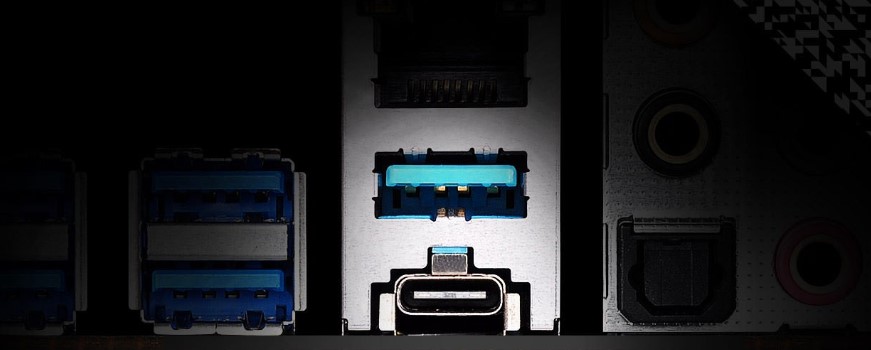

4 x USB 2.0, 5 x USB 3.1 Gen 1, 1 x USB 3.1 Gen 2 Type-A, 1 x USB 3.1 Gen 2 Type-C

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
4

Thunderbolt
No

TPM Port
1

COM Port
1


Technical Info
DirectX Support
12

FireWire
No

CrossFire Support
Yes

Sli Support
No

Raid Support
0, 1, 10

RGB Support
RGB

RGB Sync
Polychrome SYNC

RGB Connector
1 x RGB LED Header

Approx. Power Consumption
70W

Form Factor
ATX


Bios Information
BIOS Type
128Mb AMI UEFI Legal BIOS

BIOS Model
AMI UEFI Legal BIOS

BIOS Version
ACPI 5.1, SMBIOS 2.3


Compatibility
Supported Operating System
Windows 10

Compatible Products
Supports AM4 Sockets Ryzen 2000, 3000 and 5000 Series Processors


Warranty
Warranty Details
3 year


Additional Info
Feature
ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way. ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

Others
AMD Quad CrossFireX and CrossFireX, 1 x Power LED and Speaker Header, 1 x Addressable LED Header, 1 x AMD Fan LED Header, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin), 3 x Chassis/Water Pump Fan Connectors (4-pin), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector, 1 x RJ-45 LAN, Certifications: FCC, CE, ErP/EuP

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.

Details

Video

ASRock B450 Steel Legend Series Motherboards
