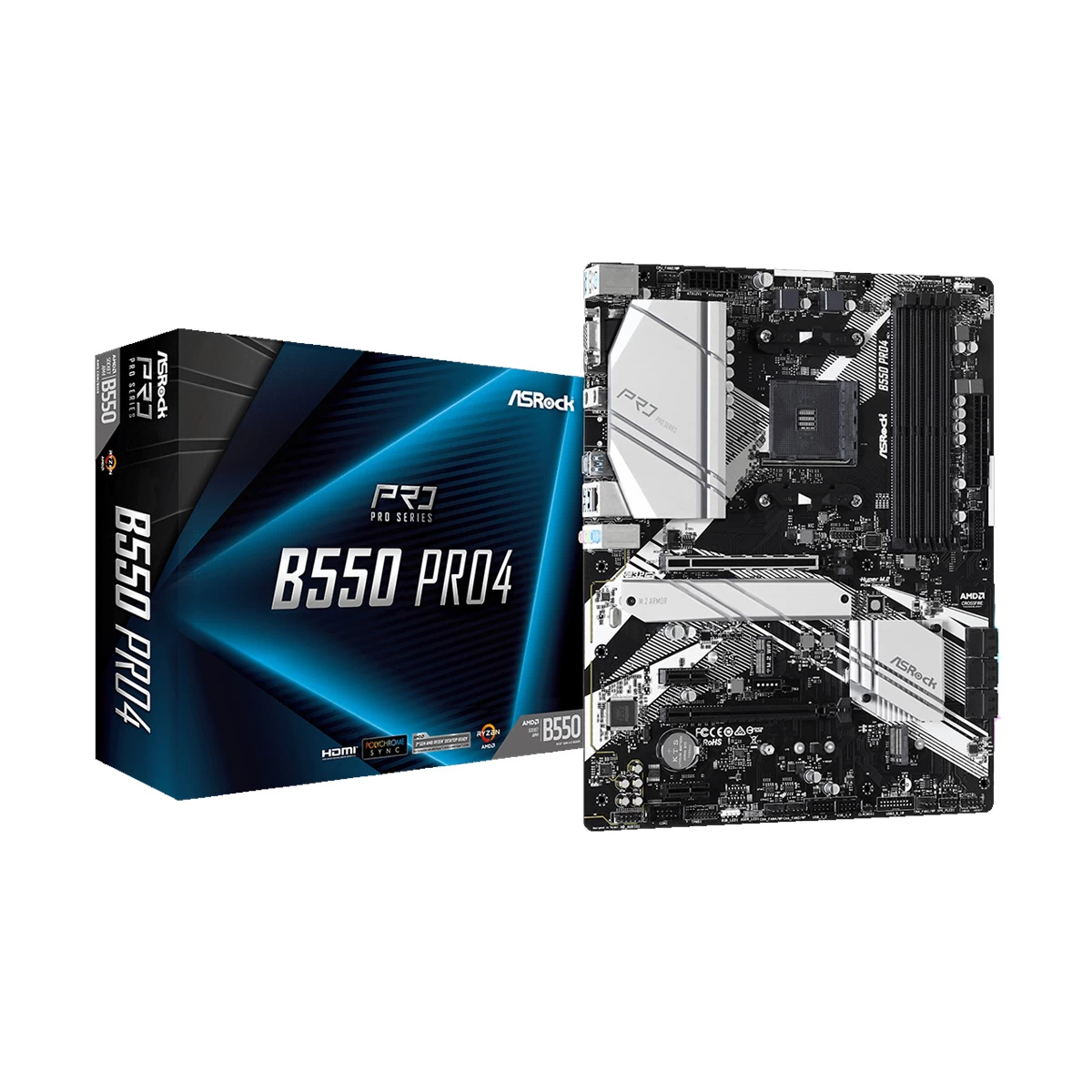

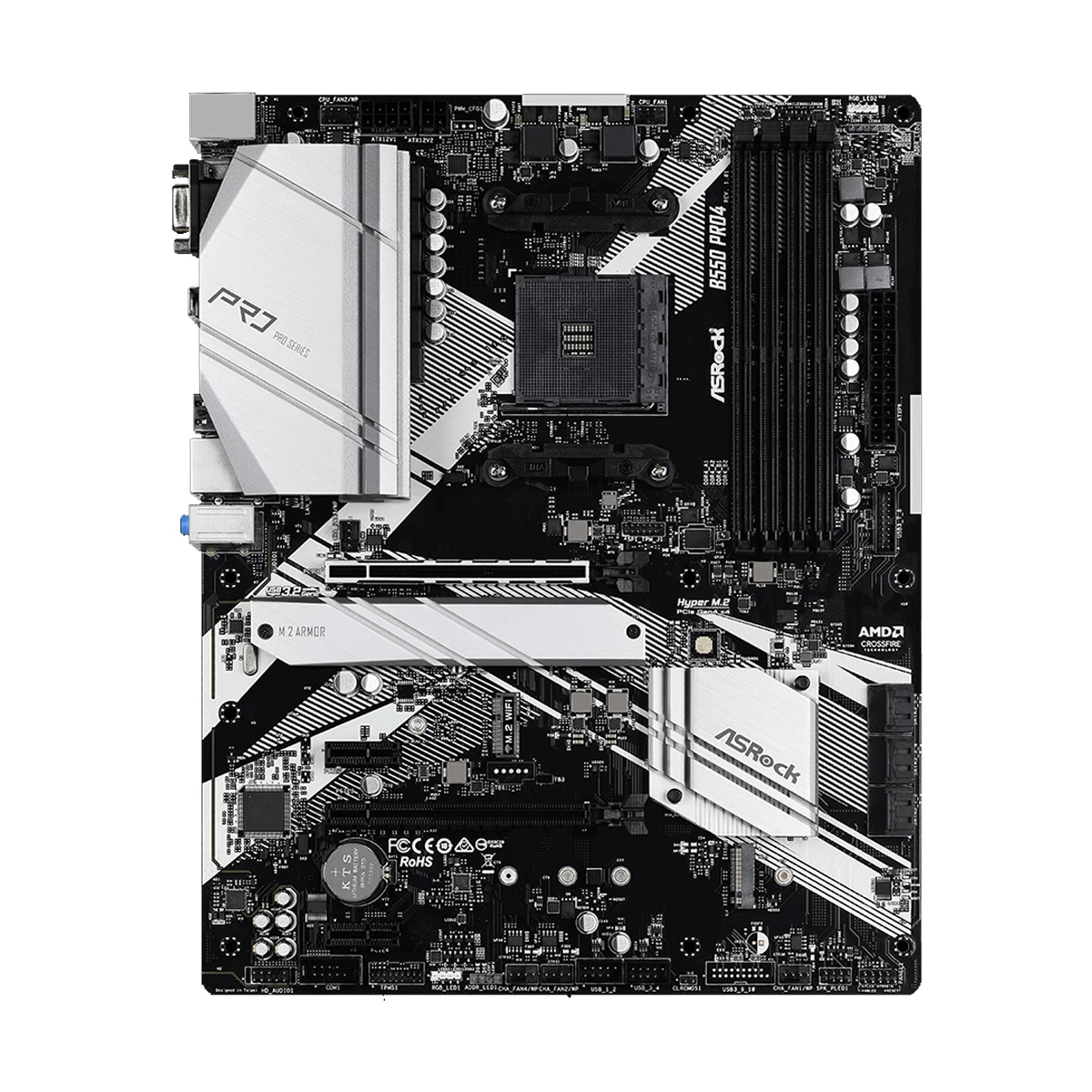

Asrock B550 Pro4 DDR4 AMD Motherboard

Product Id: 02.02.504.75

Brand Asrock

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Chipset - AMD B550
  • Sockets Supported - AM4
  • Supported CPU - Ryzen 3000, 4000 G-Series and 5000 Series Processors
  • Generation - Not Applicable
  • Memory Slot - 4
  • Memory Max. - 128GB
General
Brand
Asrock

Model
Asrock B550 Pro4

Body Color
Black


CPU
Chipset Brand
AMD

Chipset
AMD B550

Sockets Supported
AM4

Built-in Processor
No

Supported CPU
Ryzen 3000, 4000 G-Series and 5000 Series Processors

Generation
Not Applicable


Memory Support
Memory Type
DDR4

Memory MHz
4533+(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133, Renoir: 4733+(OC)/ 4666(OC)/ 4600(OC)/ 4533(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133MHz (AMD Ryzen series CPUs Matisse) ECC & non-ECC, un-buffered memory

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DIMM

Memory Max.
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
2

M.2/SSD Expansion Slot Details
2 x M.2 (1 x Hyper M.2, type 2280 M.2 PCI Express Gen4x4), (1 x M.2, type 2280 M.2 SATA3 and M.2 PCI Express Gen3 x2))


Graphics
Graphics
Integrated

Graphics Chipset
AMD Vega Graphics support

Multi-GPU Support
AMD Quad CrossFireX and CrossFireX

PCI Express Slot
2 x PCI Express x16 Slots, 1 x PCI Express 3.0 x1 Slot


Audio & Video
Audio Chipset
Realtek ALC1200

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek RTL8111H

LAN Speed (Mbps)
10/100/1000 Mb/s

WiFi
No

WiFi Technology
No

Bluetooth
No

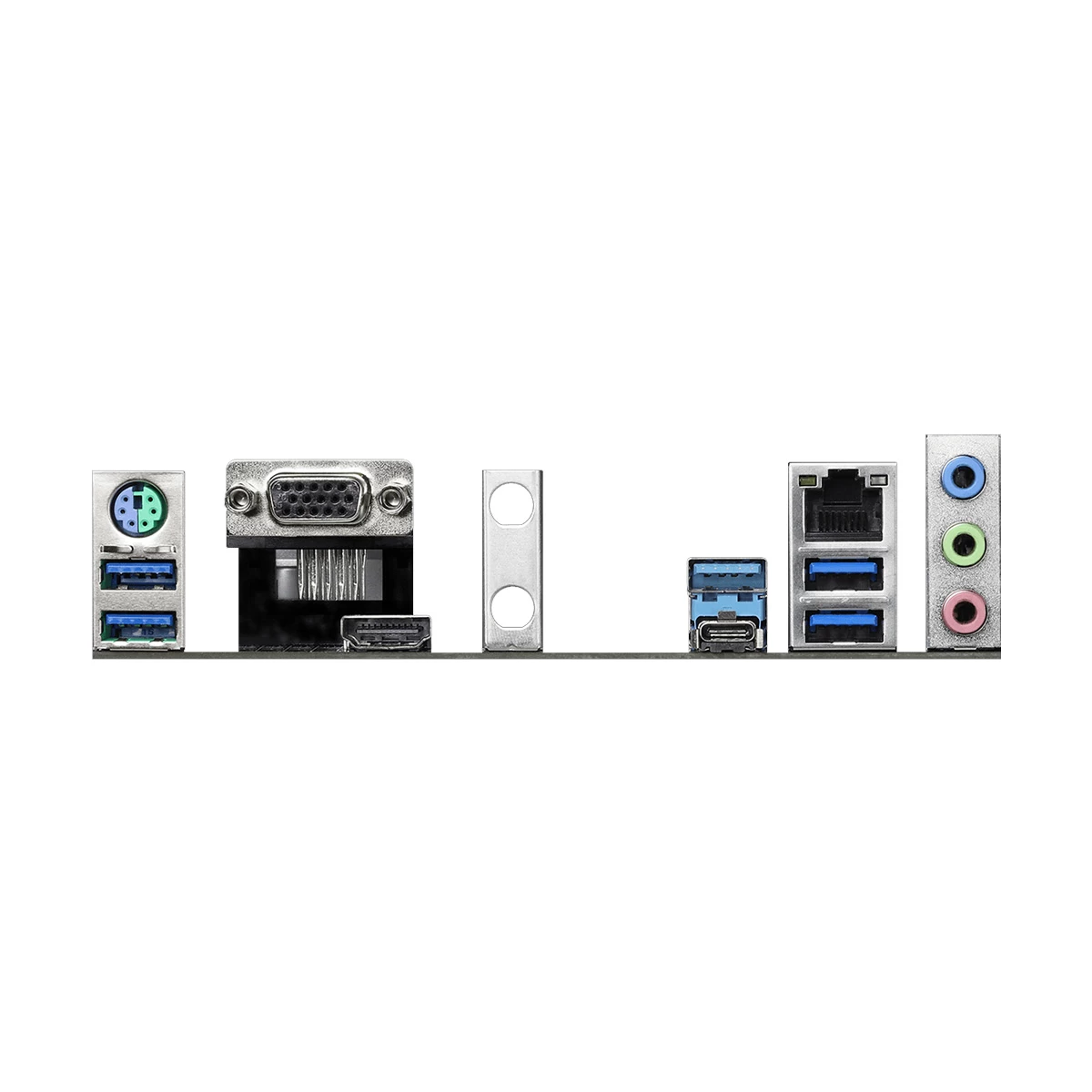

Ports
USB Port
2 x USB 2.0, 5 x USB 3.2 Gen1, 1 x USB 3.2 Gen2 Type-A, 1 x USB 3.2 Gen2 Type-C

VGA Port
1

DVI Port
No

HDMI Port
1

DisplayPort (DP)
No

IDE Port
No

SATA Port
6 x SATA

Thunderbolt
No

TPM Port
1

COM Port
1


Technical Info
DirectX Support
12

FireWire
No

CrossFire Support
Yes

Sli Support
No

Raid Support
0,1,10

RGB Support
RGB

RGB Connector
2 x RGB LED Headers

Approx. Power Consumption
70W

Form Factor
ATX


Bios Information
BIOS Type
256Mb AMI UEFI Legal BIOS

BIOS Model
AMI UEFI Legal BIOS

BIOS Version
ACPI 5.1 compliance, SMBIOS 2.3


Compatibility
Supported Operating System
Windows 10

Compatible Products
Compatible with AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors


Warranty
Warranty Details
3 year


Additional Info
Feature
XXL Aluminum Alloy Heatsink, Premium 50A Power Choke, Sapphire Black PCB, High Density Glass Fabric PCB, 2oz Copper PCB, ASRock Steel Slot Gen4, ASRock Live Update & APP Shop

Others
Shared memory default 2GB. Max Shared memory supports up to 16GB, HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) 60Hz, 1 x Power LED and Speaker Header, 2 x Addressable LED Headers, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin), 4 x Chassis/Water Pump Fan Connectors (4-pin), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x 4 pin 12V Power Connector, 1 x Front Panel Audio Connector

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.

Details

QUESTION & ANSWER

Customer Questions
Q:
Does this Motherboard support Windows 11.
By Doesn't Matter
A:
Dear Sir, Supported Operating System - Windows 10, Thanks for your query!
