Feature

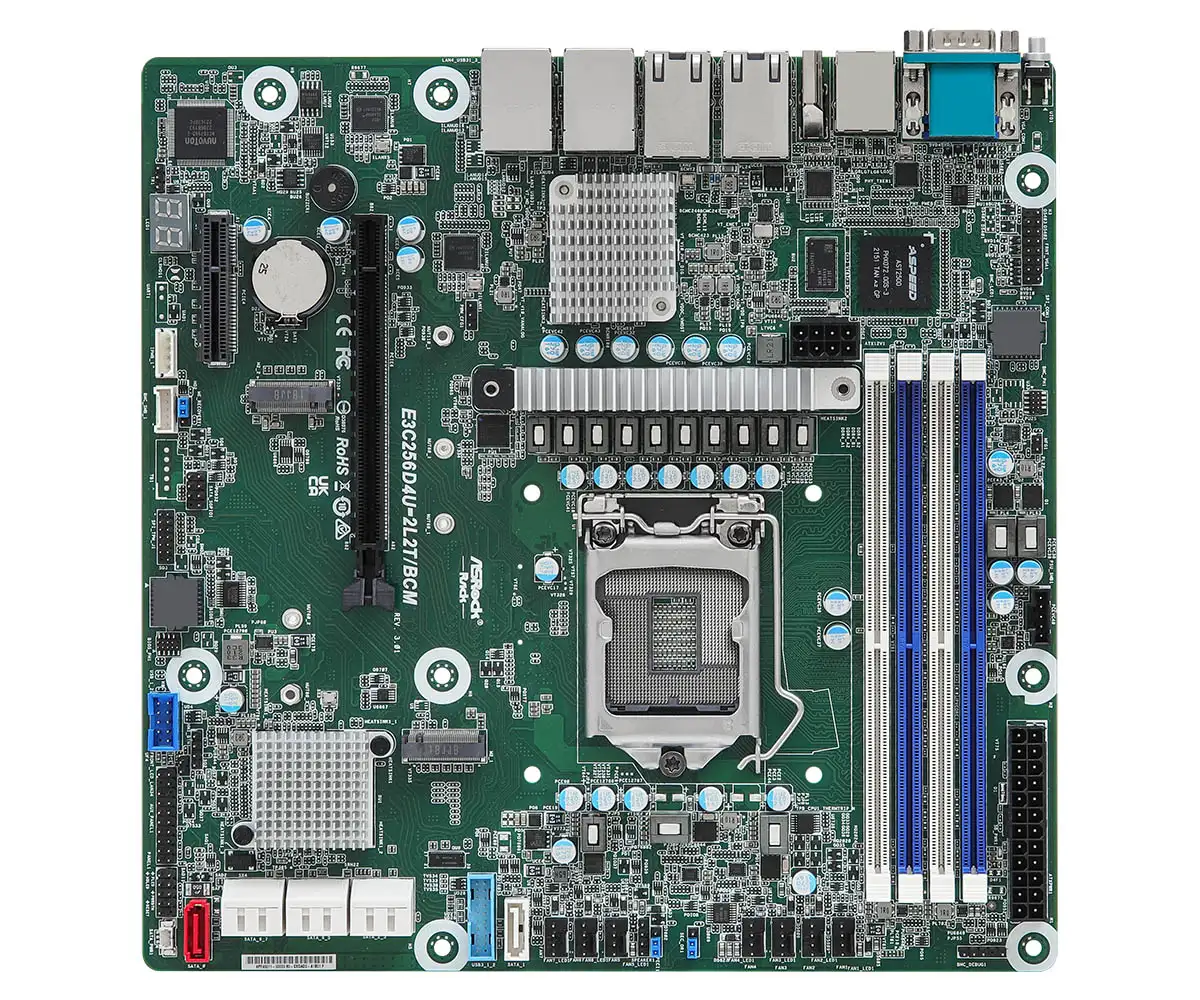

Micro-ATX (9.6`` x 9.6``), Supports Intel Xeon E-2300 and 10th Gen Intel Pentium series processors, 4 DIMM slots (2DPC), supports DDR4 ECC/non-ECC UDIMM, 1 PCIe4.0 x16, 1 PCIe4.0 x4, Supports 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s), 1 M.2 (PCIe3.0 x4), 8 SATA 6Gb/s, 2 RJ45 (10GbE) by Broadcom BCM57416, 2 RJ45 (1GbE) by Intel i210, VGA, HDMI, Remote Management (IPMI).
Others
Thermal Design Power - 95W, M.2 slot - 1 M-key* (PCIe3.0 x4 or SATA 6Gb/s); support 22110/2280/2260 form factor [PCH], 1 M-key (PCIe3.0 x4); support 2280/2260 form factor [PCH], SATA0 will be disabled when M2_1 populated with SATA device, Additional GbE Controller - 2 RJ45 (10GbE) by Broadcom BCM57416, 2 RJ45 (1GbE) by Intel i210, 1 (24-pin, ATX main power), 1 (8-pin, ATX 12V), 1 (3-pin SATA DOM Power), 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus, 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED, 1 x VGA header, 1x Speaker Header, 1 x Buzzer, 7 (4-pin) x Fan Header, 1 x Thermal Sensor Header, 1 x (13-pin, SPI), 1 x SGPIO Header, 1 x SMBus header, 1 x PMBus header, 1 x IPMB Header, 1 (contact pads) x Clear CMOS, 1 x ME/SPS Recovery, 1 x Front Lan LED Connector, 1 (19-pin, 2 USB3.2 Gen1) x USB 3.2 (Gen1) Header, 1 (9-pin, 2 USB2.0) x USB 2.0 Header, 1 x NMI Header.
