ASRock SPC621D8-2L2T DDR4 C621A Chipset 3rd Gen Xeon Intel LGA4189 Socket Motherboard for Server Board

Item: ASRock SPC621D8-2L2T DDR4 C621A Chipset 3rd Gen Xeon Intel LGA4189 Socket Motherboard for Server Board
Rating: 5
Author: Verified Buyer

Product Id: 02.03.504.148

Coming Soon

Quick Overview

Form Factor - ATX
Chipset - Intel C621A
Sockets Supported - LGA4189 - Server
Supported CPU - Supports 3rd Gen Intel Xeon Scalable Processors
Generation - 3rd
Memory Slot - 8
Memory Max. - 256GB
Back-Connect Design - No
Body Color - Green

Payment Method Shipping & Charge Order Procedure

Brand

Asrock

Model

Asrock SPC621D8-2L2T

Chipset

Intel C621A

Sockets Supported

LGA4189 - Server

Built-in Processor

Generation

3rd

Back-Connect Design

Memory Type

DDR4 Server RAM

Memory Slot

Memory Max.

256GB

Optane Memory Support

Yes

Graphics

Integrated

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

ATX

Supported Operating System

Microsoft Windows: Server 2016 (64 bit), Server 2019 (64 bit). Linux: Red Hat Enterprise Linux Server 7.9 (64 bit) / 8.3 (64 bit), CentOs 7.9 (64 bit) / 8.3 (64 bit), SUSE Enterprise Linux Server 12 SP5 (64 bit) / 15 SP2 (64 bit), Ubuntu 20.04.1 (64 bit) / 20.10 (64 bit). Hypervisor: VMWare ESXi 6.7 U3 / vSphere 6.7 U3, VMWare ESXi 7.0.U1c / vSphere 7.0.U1c, Hyper-V Windows Server 2016, Hyper-V Windows Server 2019.

Body Color

Green

Warranty

3 year

General

Brand

Asrock

Model

Asrock SPC621D8-2L2T

Body Color

Green

CPU

Chipset Brand

Intel

Chipset

Intel C621A

Sockets Supported

LGA4189 - Server

Built-in Processor

Supported CPU

Supports 3rd Gen Intel Xeon Scalable Processors

Generation

3rd

Memory Support

Memory Type

DDR4 Server RAM

Memory MHz

3200MHz

Memory Slot

Memory Slot (Additional Info)

8 x DIMM Slots (1DPC)

Memory Max.

256GB

Memory Max. (Additional Info)

RDIMM: up to 64GB, RDIMM-3DS: up to 256GB, LRDIMM: up to 128GB, LRDIMM-3DS: up to 256GB.

Optane Memory Support

Yes

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

2 (1 M-key (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280/2242 form factor + 1 M-key (PCIe3.0 x1 or SATA 6Gb/s), supports 22110/2280/2242 form factor)

M.2/SSD Slot Gen

Up to Gen 3

Graphics

Integrated

PCI Express Slot

4 PCIe 4.0 x16, 3 PCIe 4.0 x8

Network & Connectivity

LAN Chipset

Intel X710-AT2: 2 RJ45 (10 GbE), Intel i210: 2 RJ45 (1GbE)

LAN Speed (Mbps)

10Gbps

WiFi

Bluetooth

Ports

USB Port

4 x Type-A (USB3.2 Gen1)

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

IDE Port

SATA Port

Thunderbolt

TPM Port

1 x (17-pin, LPC) Header, 1 x (13-pin, SPI) Header

COM Port

1 x Header

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

CrossFire Support

Sli Support

Raid Support

RAID 0/1/5/10

RGB Support

Form Factor

ATX

Bios Information

BIOS Type

256Mb SPI Flash ROM

BIOS Model

AMI UEFI BIOS

Compatibility

Supported Operating System

Compatible Products

Supports 3rd Gen Intel Xeon Scalable Processors.

Warranty

3 year

Additional Info

Feature

Supports 3rd Gen Intel Xeon Scalable Processors, 8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, and Intel Optane Persistent Memory, 4 PCIe4.0 x16, 3 PCIe4.0 x8, Supports 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s), 1 M.2 (PCIe3.0 x1 or SATA 6Gb/s), 8 SATA 6Gb/s (including 2 ports from M.2), 2 RJ45 (10GbE) by Intel X710-AT2, 2 RJ45 (1GbE) by Intel i210, Remote management (IPMI).

Others

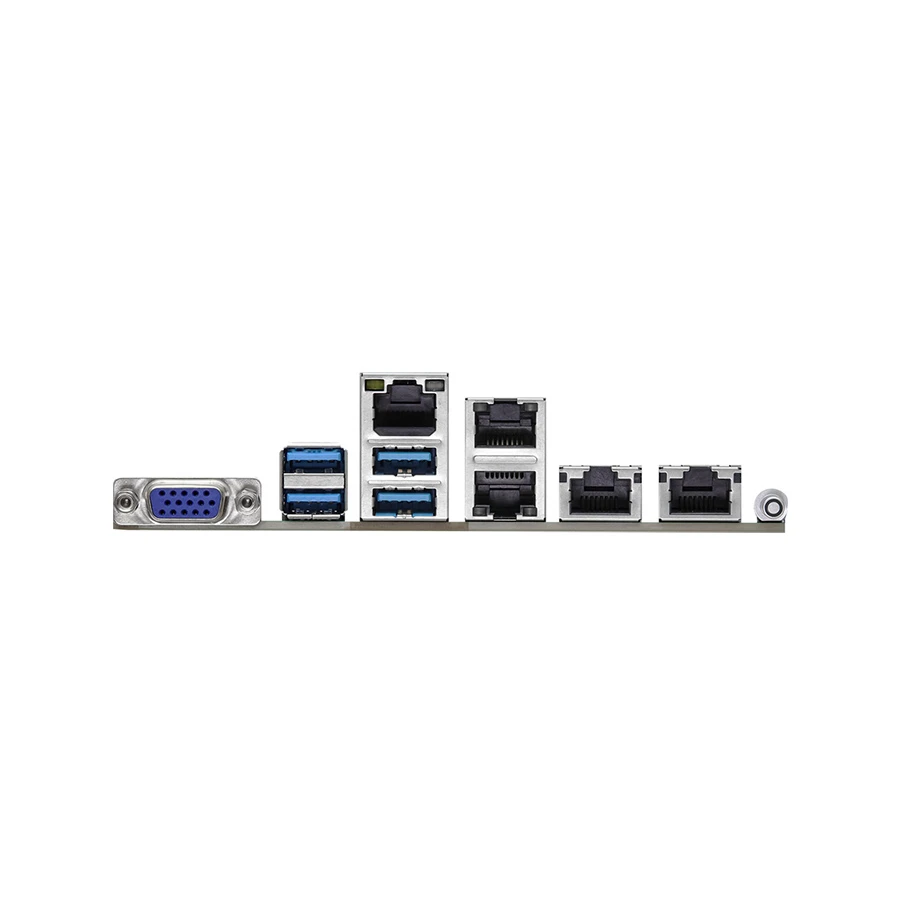

Dimensions: 12 x 9.6 Inch, System Memory: Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, Intel Optane Persistent Memory 200 series. Voltage: 1.2V. PCH Built-in Storage: Intel C621A (8 SATA 6Gb/s; RAID 0/1/5/10): 1 Mini-SAS HD, 2 SATA DOM, 2 M.2. BMC Controller: ASPEED AST2500, IPMI Dedicated GLAN: 1 x Realtek RTL8211E for dedicated management GLAN. Graphics Controller: ASPEED AST2500, VRAM: DDR4 16MB. Rear I/O:- UID Button/LED: 1, VGA Port: 1 DB15, USB 3.2 Gen1 Port: 4 Type-A (USB3.2 Gen1), RJ45: 2 RJ45 (10GbE), 2 RJ45 (1GbE). Dedicate LAN: 1 dedicated IPMI. Internal Connector/Headers: Power Connector-1 (24-pin, ATX main power), 1 (8-pin, ATX 12V), 1 (4-pin, ATX 12V), 1 (3-pin, SATA power), Auxiliary Panel Header- 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus, System Panel-1 (9-pin): power switch, reset switch, system power LED, HDD activity LED, COM Header-1, VGA header-1, Speaker Header-1, Buzzer- 1, Fan Header-5 (6-pin), Thermal Sensor Header-1, TPM Header-1 (17-pin, LPC), 1 (13-pin, SPI), VROC header-1, SGPIO Header-1, SMBus header-1, PMBus header-1, IPMB Header-1, Clear CMOS-1 (contact pads), ME/SPS Recovery-1, USB 3.2 (Gen1) Header-1 (19-pin, 2 USB3.2 Gen1), USB 3.2 (Gen2) Header-2 (Type-C, 2 USB3.2 Gen2), USB 2.0 Header-1 (9-pin, 2 USB2.0), Type A USB 2.0 Port-1 (Type-A, 1 USB2.0), NMI Header-1, NC-SI-1. LED Indicators: Standby PWR LED -1. 80 Debug Port LED -1. Fan Fail LED - 5.

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Asrock SPC621D8-2L2T Motherboard In Bangladesh

The Asrock SPC621D8-2L2T is a powerful server motherboard built for high-performance computing. It supports 3rd Gen Intel Xeon Scalable Processors with LGA4189 sockets. This board uses the Intel C621A chipset and is designed to handle heavy workloads and enterprise-level applications. With eight DIMM slots, it supports DDR4 RDIMM, LRDIMM, and Intel Optane Memory up to 256GB. It also includes dual 10GbE and 1GbE LAN ports, giving it robust networking capabilities. It's integrated ASPEED AST2500 graphics and management features make it a solid choice for data centers and high-end servers.

What Makes The Asrock SPC621D8-2L2T Server Motherboard Special?

This Asrock SPC621D8-2L2T Server Motherboard stands out for its exceptional memory support and expansion options. It includes two M.2 slots for high-speed SSDs and eight SATA 6Gb/s ports for storage flexibility. The board offers advanced RAID support (0/1/5/10), ensuring secure and optimized storage management. With 4 PCIe 4.0 x16 and 3 PCIe 4.0 x8 slots, it provides excellent expandability for GPUs or additional controllers. The onboard Intel X710-AT2 and i210 chipsets deliver fast and reliable network connectivity. It’s also equipped with IPMI for remote management, making server maintenance easier.

Who Should Buy The Asrock SPC621D8-2L2T Server Motherboard?

This Asrock SPC621D8-2L2T Server Motherboard is perfect for system integrators, server builders, and IT professionals. It suits businesses running virtualization, cloud storage, or high-traffic web services. Developers and engineers who require a stable and scalable server platform will also benefit. Enterprises needing robust network speed and remote manageability will find this board ideal. It is also well-suited for use in data centers or enterprise-grade NAS systems. If your work demands high reliability, memory bandwidth, and multiple PCIe devices, this board is a great investment.

Is the Asrock SPC621D8-2L2T Server Motherboard Worth Buying?

Yes,Asrock SPC621D8-2L2T Server Motherboard worth buying for its unmatched performance and enterprise-grade features. The support for Xeon processors, Optane Memory, and extensive I/O makes it highly future-proof. Dual 10GbE LAN ensures fast data transmission, while IPMI simplifies remote server control. The board delivers excellent value for businesses needing performance, reliability, and expansion in one package. If you're looking to buy any motherboard in Bangladesh, Ryans Computers offers the best price in the market.

What is the price of Asrock SPC621D8-2L2T Motherboard In Bangladesh?

The price of Asrock SPC621D8-2L2T Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Asrock SPC621D8-2L2T Motherboard from our website or visit our showrooms nearby.
