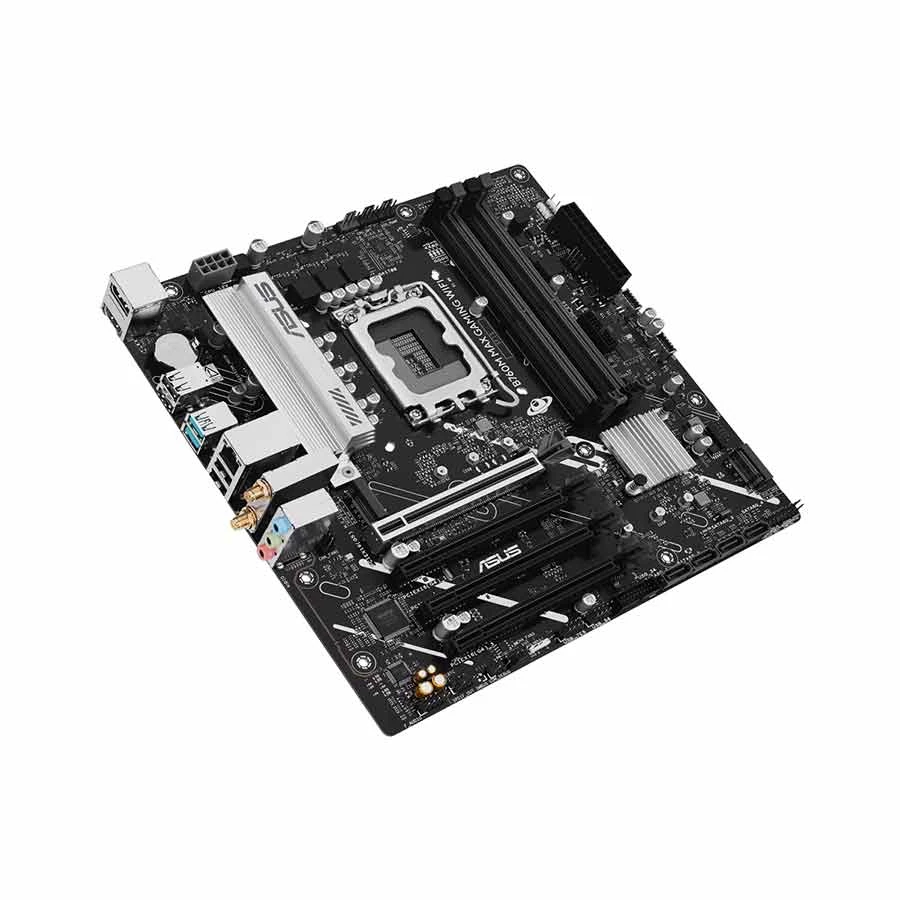

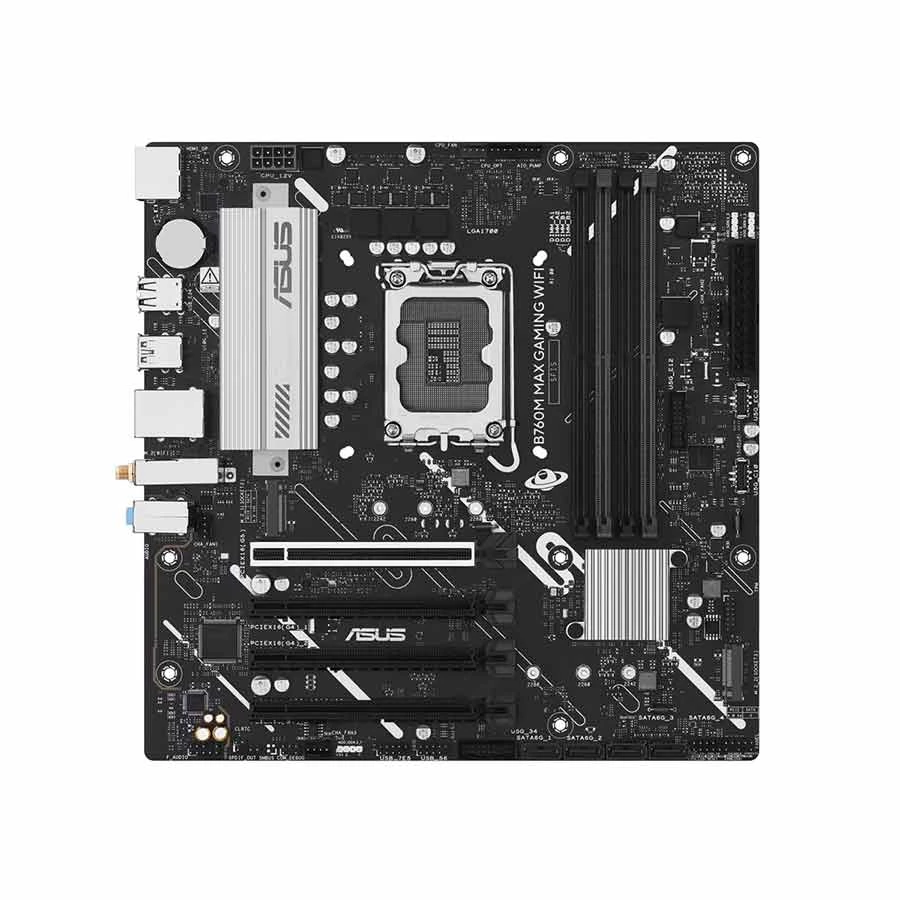

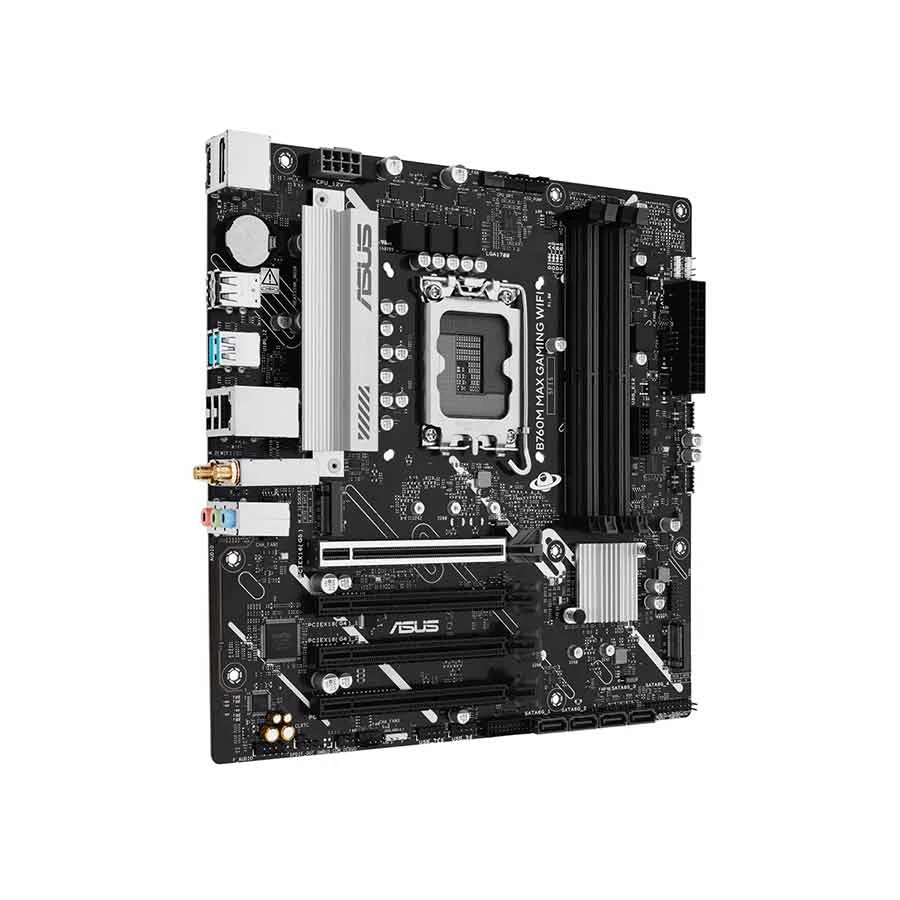

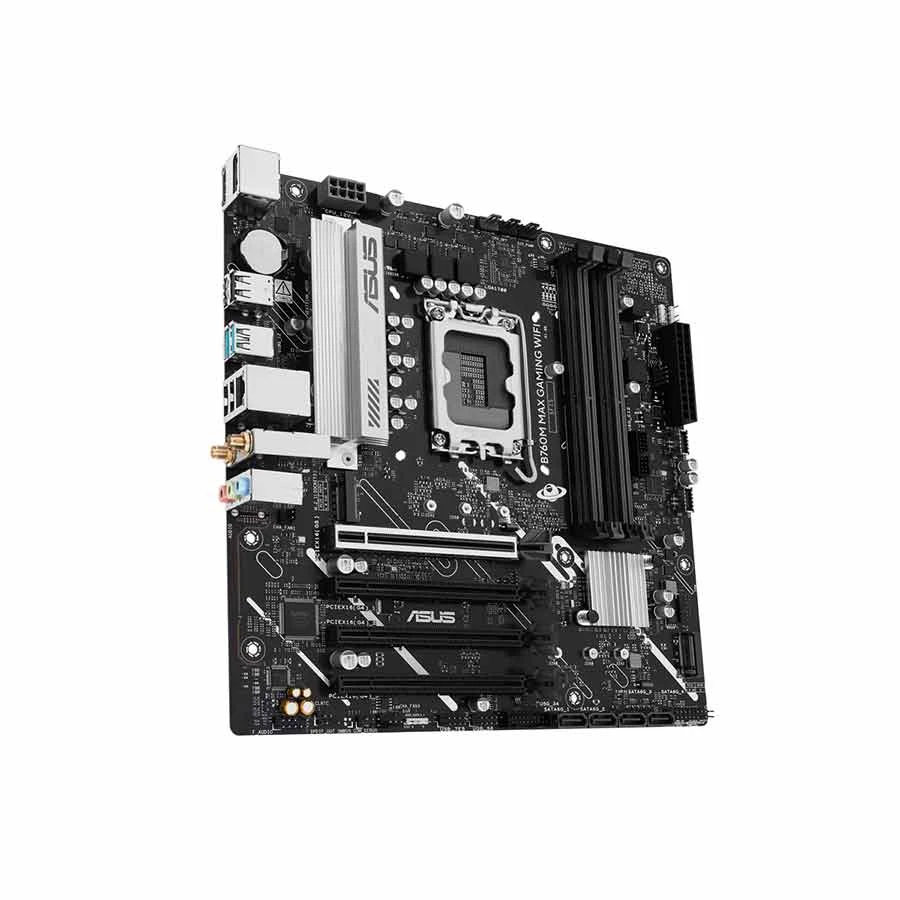

Asus B760M MAX GAMING (Wi-Fi 6) DDR5 Intel LGA1700 Socket Motherboard #B760M MAX GAMING WIFI

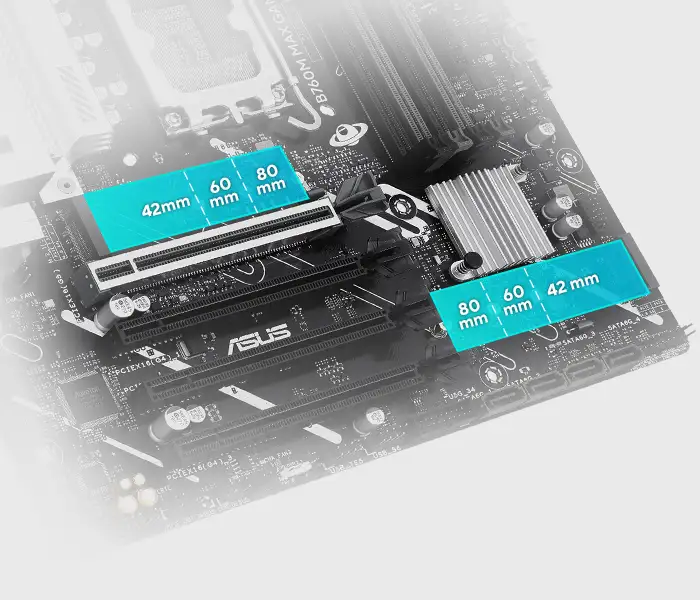

3 x M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
M.2/SSD Slot Gen
Up to Gen 4
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot, 2 x PCIe 4.0 x16 slot
Audio & Video
Audio Chipset
Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio Channel
7.1
Network & Connectivity
LAN Chipset
1 x Realtek 1Gb Ethernet
LAN Speed (Mbps)
10/100/1000Mbps
WiFi
Yes
WiFi Technology
Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Bluetooth
Bluetooth 5.3
Ports
USB Port
Rear: 2 x USB 10Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), Front: 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports, 2 x USB 5Gbps port (support USB Type-C), 2 x USB 2.0 headers support 4 additional USB 2.0 ports
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
IDE Port
No
SATA Port
4 x SATA
Thunderbolt
No
TPM Port
1
COM Port
No
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
CrossFire Support
No
Sli Support
No
Raid Support
0 , 1 , 5, 10
RGB Support
ARGB
RGB Sync
Aura Sync
RGB Connector
3 x Aura Addressable Gen 2 headers
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
128 Mb Flash ROM
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 11, 10 64-bit
Compatible Products
Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Warranty
Warranty
3 Year Replacement
Additional Info
Feature
ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot, Stainless-Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-LED Core, Q-Slot, ASUS EZ DIY, ProCool
Others
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ), Back Panel I/O Ports: 1 x Wi-Fi Module, 1 x Realtek 1Gb Ethernet, 3 x Audio jacks, Internal I/O Connectors: Fan and Cooling related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers, Power related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, Miscellaneous: 1 x Front Panel Audio header (AAFP), 1 x S/PDIF Out header, 1 x 20-3 pin System Panel header with Chassis intrude function
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
