OC mode (GPU Tweak III): up to 3250 MHz (Boost Clock), Default mode: up to 3230 MHz (Boost Clock)
Memory Clock
20Gbps
Capacity (GB/TB)
16GB
Memory Type
GDDR6
Interface(s)
PCI Express 5.0
Graphics Resolution Max.
7680 x 4320
OpenGL Support
4.6
Approx. Power Consumption
160W
Recommended PSU
550W
Power Connectors
1 x 8-pin
Multi Display Capability
Triple Display
Cooler Type
Axial-Tech
Lighting
No
Body Color
Black
Warranty Details
3 Year Replacement (No Warranty For Mining)
General
Brand
Asus
Chipset
AMD Radeon
Series
RX 9000
Chipset Model
Radeon RX 9060 XT
Model

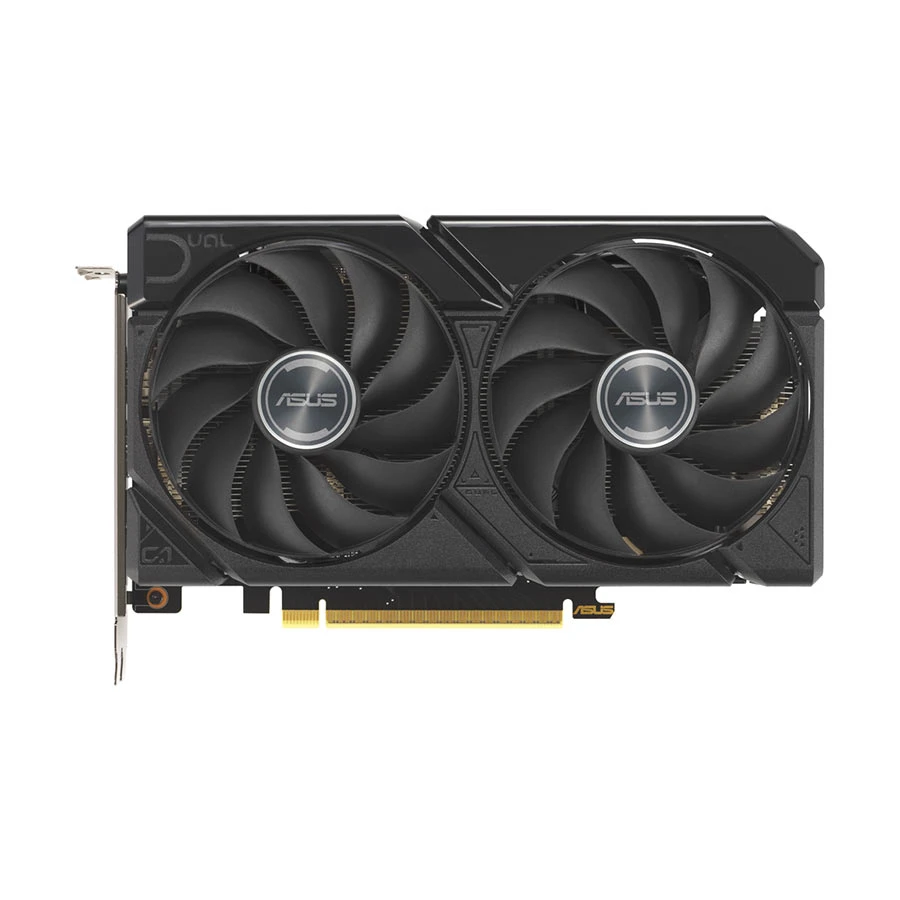

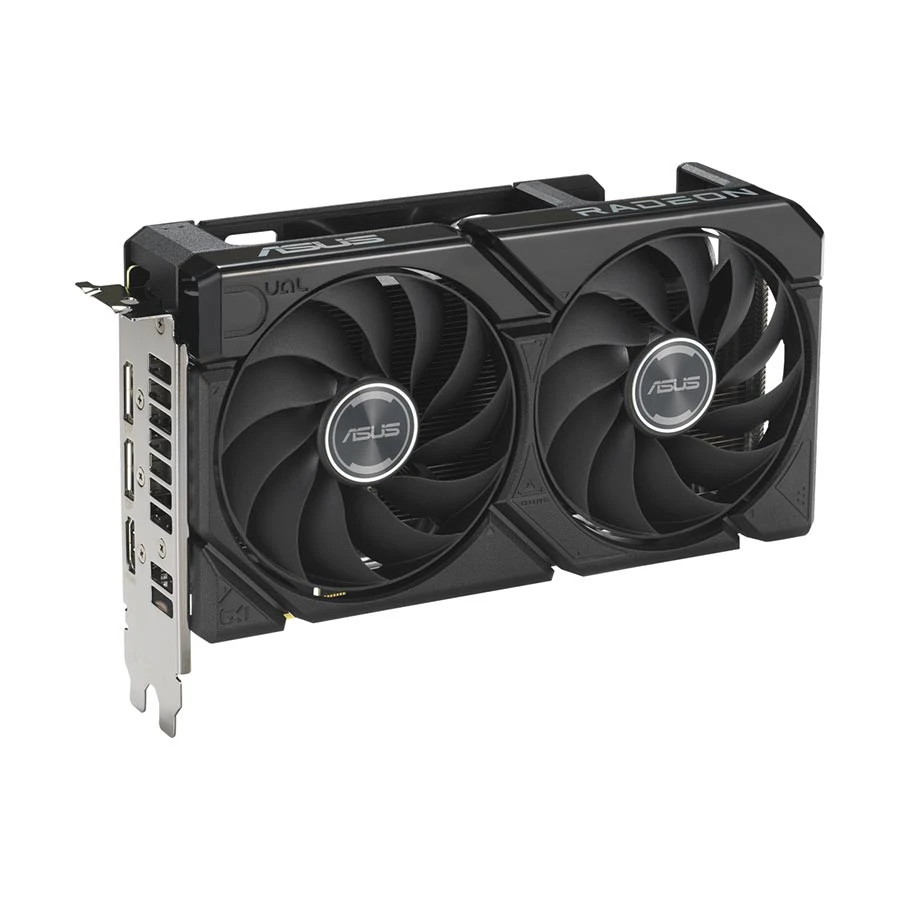

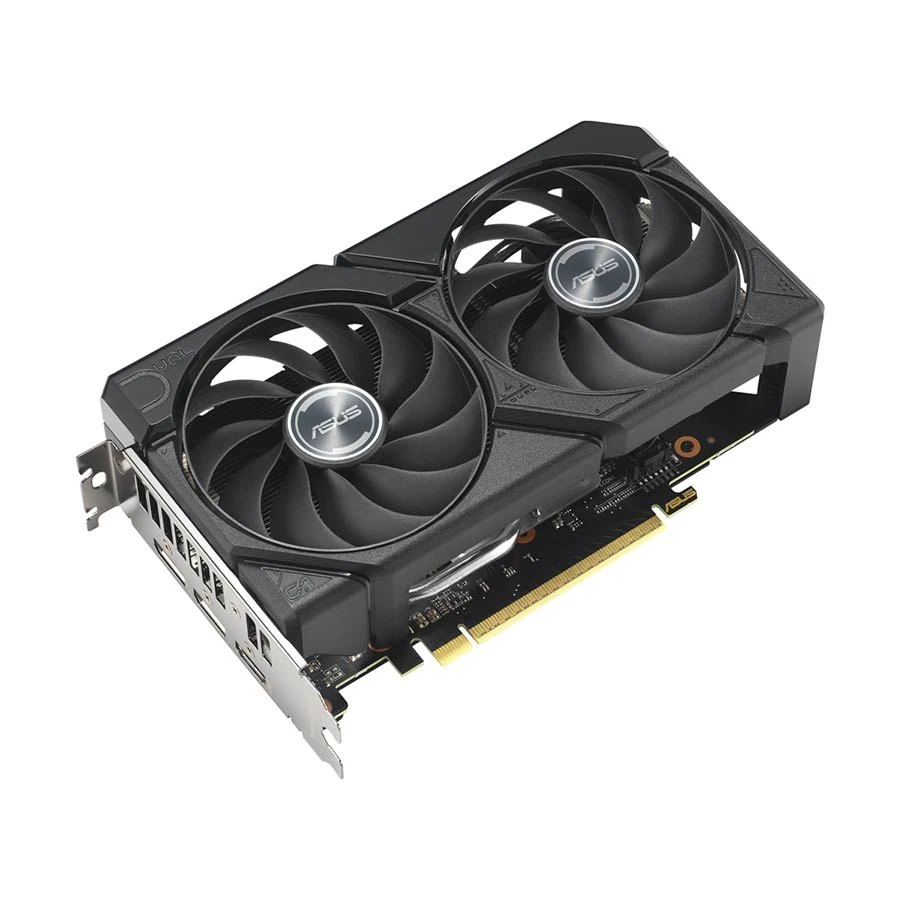

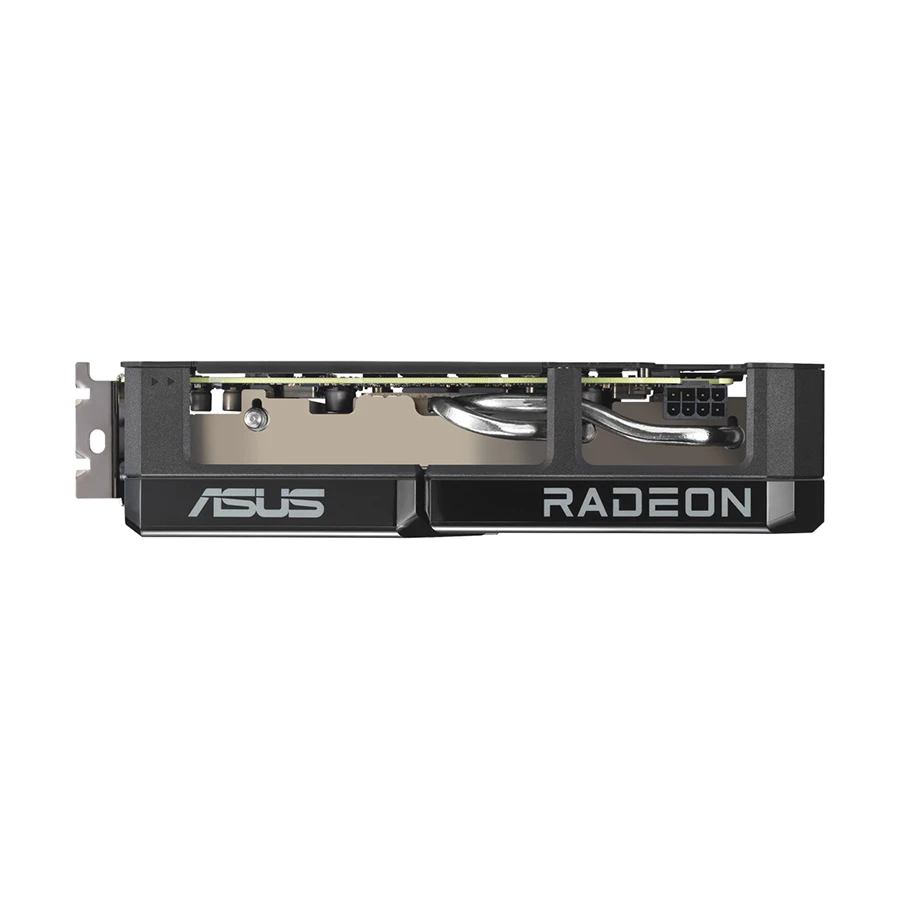

Asus Dual Radeon RX 9060 XT
Part No
DUAL-RX9060XT-16G
Technical Info
CUDA Core / Stream Processors
2048 (Stream)
Engine Clock
OC mode (GPU Tweak III): up to 3250 MHz (Boost Clock)/up to 2640 MHz (Game Clock) Default mode: up to 3230 MHz (Boost Clock)/up to 2620 MHz (Game Clock)
Base Engine Clock Speed
OC mode (GPU Tweak III): up to 3250 MHz (Boost Clock), Default mode: up to 3230 MHz (Boost Clock)
Memory Clock
20Gbps
Capacity (GB/TB)
16GB
Memory Bus
128-bit
Memory Type
GDDR6
Interface(s)
PCI Express 5.0
OpenGL Support
4.6
HDCP Support
Yes, 2.3
Supported Operating System
Windows 10/11
Display & Resolution
Graphics Resolution Max.
7680 x 4320
Multi Display Capability
Triple Display
Ports
VGA Port
No
DVI Port
No

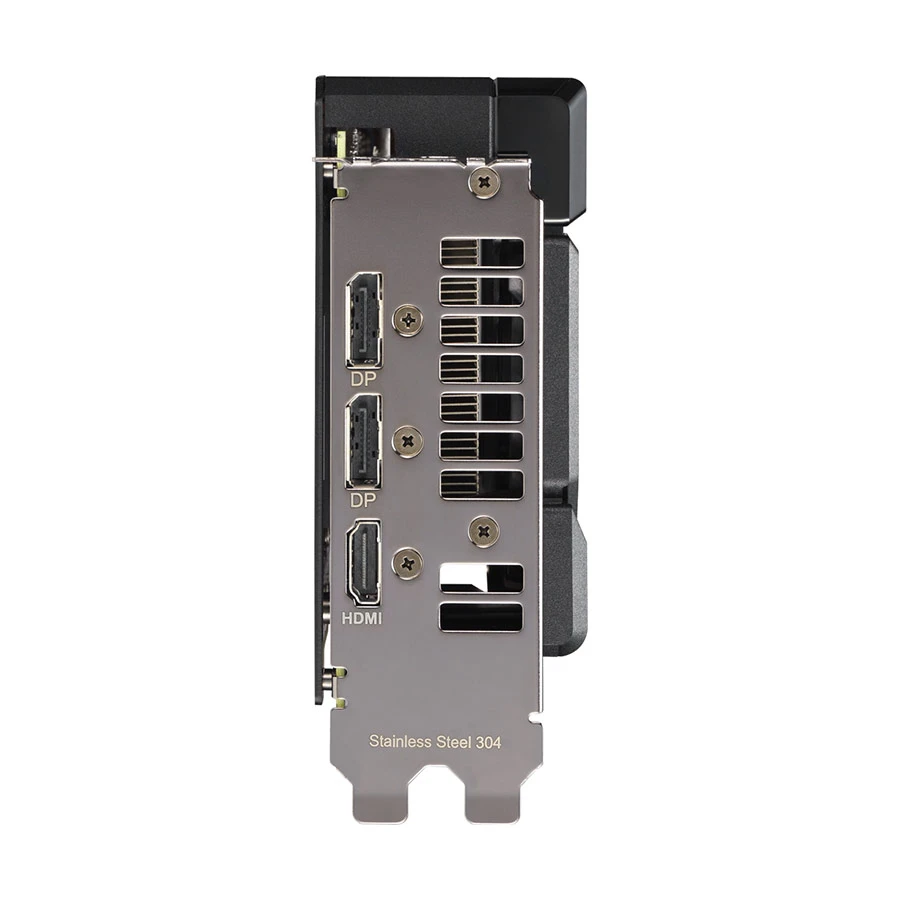

HDMI Port
1
Display Port
2
Power
Approx. Power Consumption
160W
Recommended PSU
550W
Power Connectors
1 x 8-pin
Physical Description
Card Dimension
202 x 120 x 49mm
Cooler Type
Axial-Tech
Cooling Fan
Dual
PCB Form
ATX
Lighting
No
Body Color
Black
Package Contents
1 x Thank you card, 1 x Speedsetup Manual
Warranty
Warranty Details
3 Year Replacement (No Warranty For Mining)
Additional Info
Others
Slot: 2.5 Slot.
Specialty

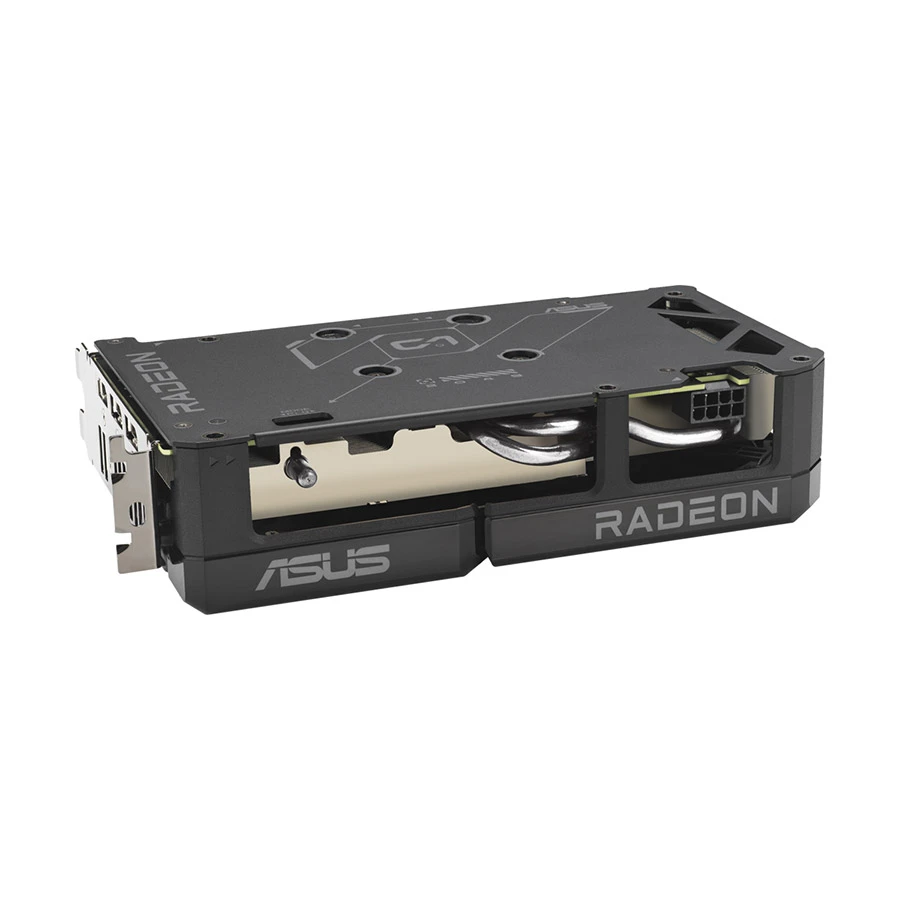

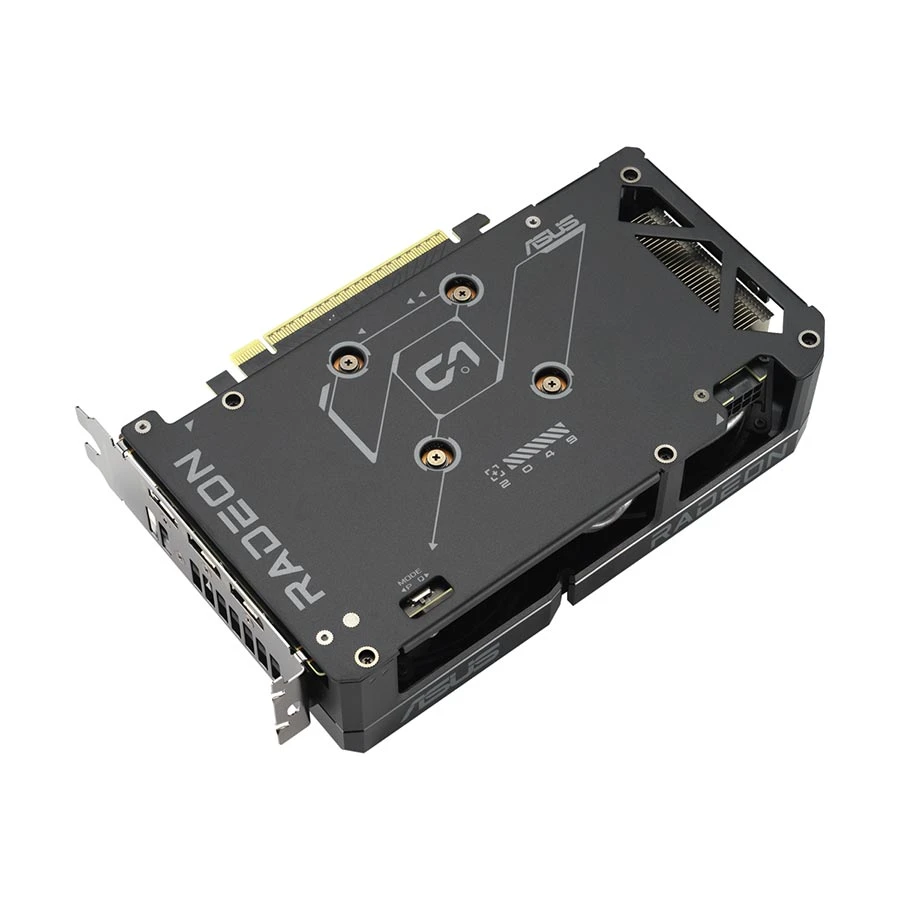

2.5 Slot Design Compatible with small-form-factor builds. Axial-Tech Fans Longer blades improve airflow and dispersion. Vented Backplate Enhanced cooling for optimal performance. Dual-Ball Fan Bearings Up to twice the lifespan of sleeve bearings. Dual BIOS Toggle between Performance or Quiet modes. GPU Tweak III Ultimate GPU tuning utility. 0dB Technology. To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 55 Degree C and power consumption is low. Dual Ball Fan Bearings. Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs. Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing completing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting and minimizes in less environmental impact. The result is lower power consumption during manufacturing and a more reliable, high-quality product.lower manufacturing power consumption, and a more reliable product overall.
Country Of Origin
Taiwan
Made in/ Assemble
China
