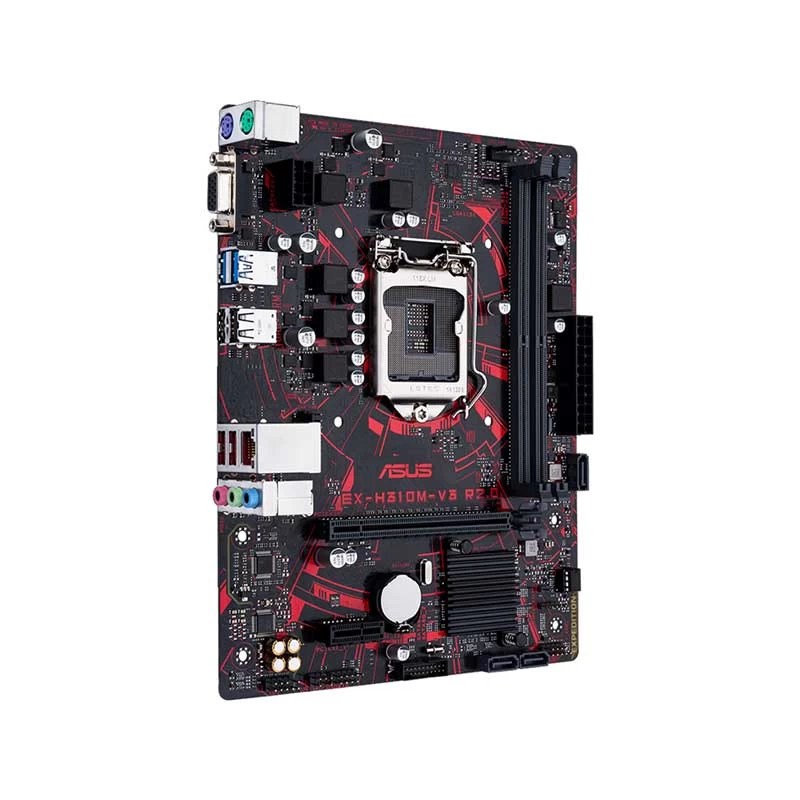

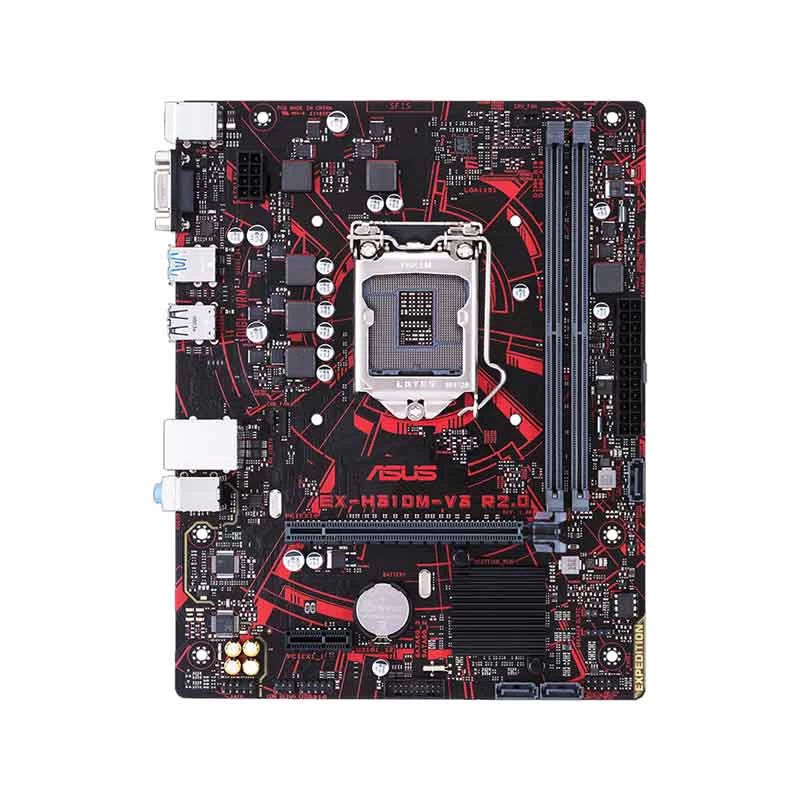

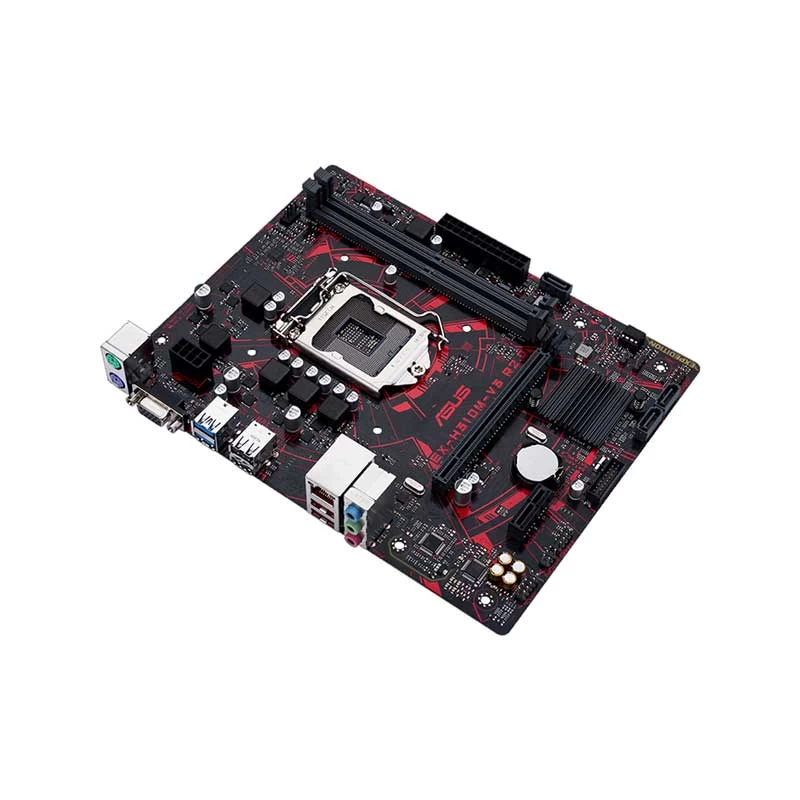

Asus EX-H310M-V3 R2.0 DDR4 Motherboard

Product Id: 02.01.006.459

Brand Asus

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

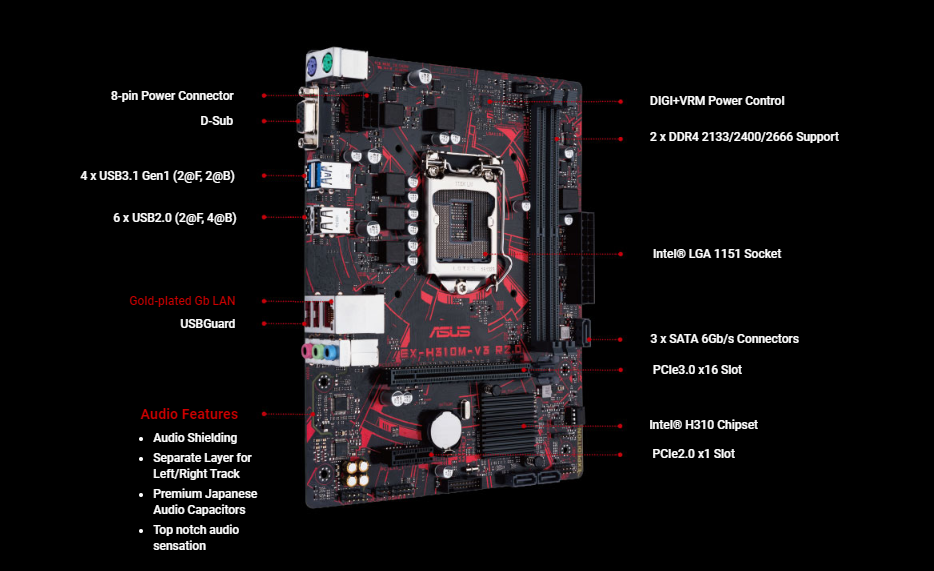

  • Chipset - Intel H310
  • Sockets Supported - LGA1151
  • Supported CPU - 9th/ 8th Gen Intel Core, Pentium Gold and Celeron Processors
  • Generation - 8th/9th
  • Memory Slot - 2
  • Memory Max. - 32GB
General
Brand
Asus

Model
Asus EX-H310M-V3 R2.0

Body Color
Black & Red


CPU
Chipset Brand
Intel

Chipset
Intel H310

Sockets Supported
LGA1151

Built-in Processor
No

Supported CPU
9th/ 8th Gen Intel Core, Pentium Gold and Celeron Processors

Generation
8th/9th


Memory Support
Memory Type
DDR4

Memory MHz
2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory

Memory Slot
2

Memory Max.
32GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
No


Graphics
Graphics
Integrated

Graphics Chipset
Intel HD Graphics support

Multi-GPU Support
No

PCI Express Slot
1 x PCIe 3.0/ 2.0 x 16, 1 x PCIe 2.0 x 1


Audio & Video
Audio Chipset
Realtek ALC887 High Definition Audio CODEC

Audio Channel
8


Network & Connectivity
LAN Chipset
Realtek RTL8111H

LAN Speed (Mbps)
10/ 100/ 1000Mbps

WiFi
No

WiFi Technology
No

Bluetooth
No


Ports
USB Port
4 x USB 2.0, 2 x USB 3.1 Gen 1

VGA Port
1

DVI Port
No

HDMI Port
No

DisplayPort (DP)
No

IDE Port
No

SATA Port
3 x SATA

Thunderbolt
No

TPM Port
No

COM Port
1


Technical Info
CrossFire Support
No

Sli Support
No

RGB Support
No

RGB Connector
No

Approx. Power Consumption
60W

Form Factor
U-ATX


Compatibility
Supported Operating System
Windows 10

Compatible Products
Core i3, Core i5 ,Core i7, Pentium Gold (8th Gen & 9th Gen)


Warranty
Warranty Details
3 Years Replacement Warranty


Additional Info
Feature

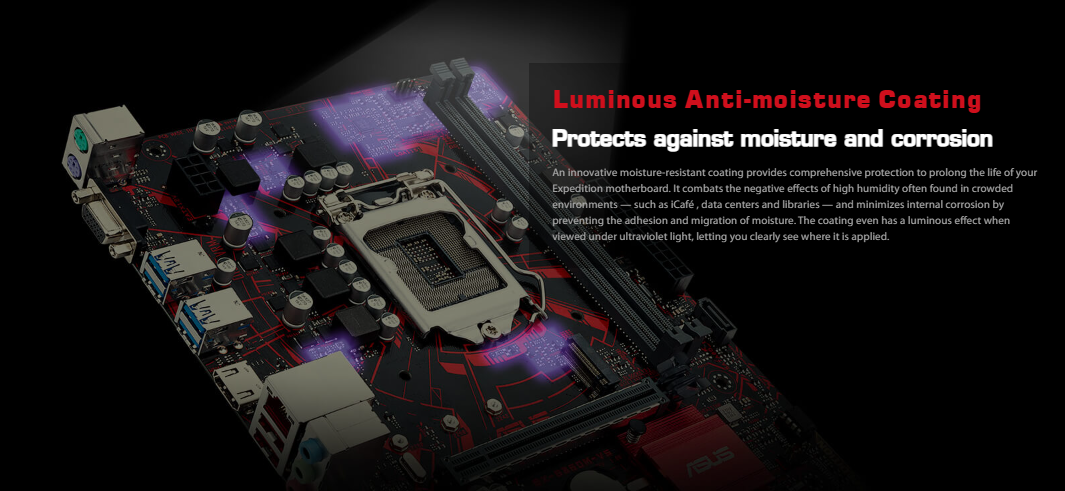

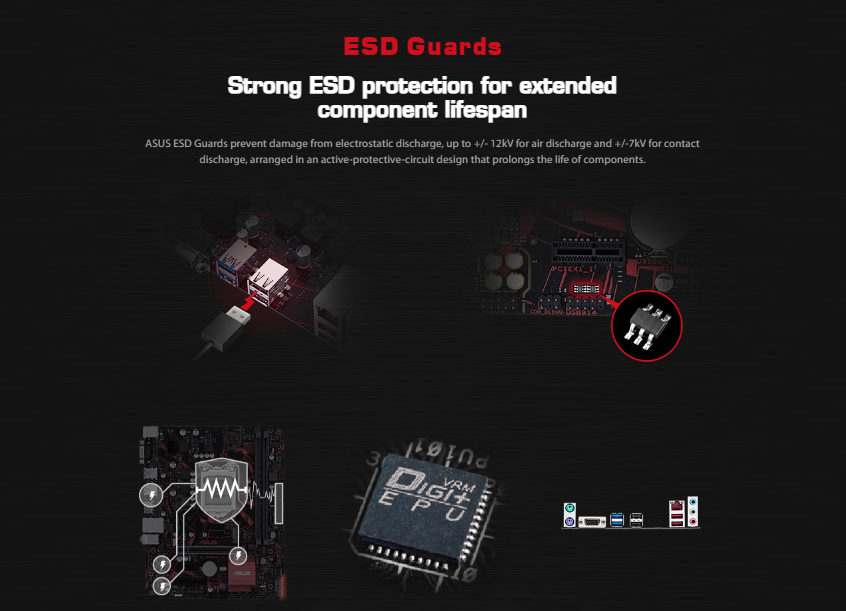

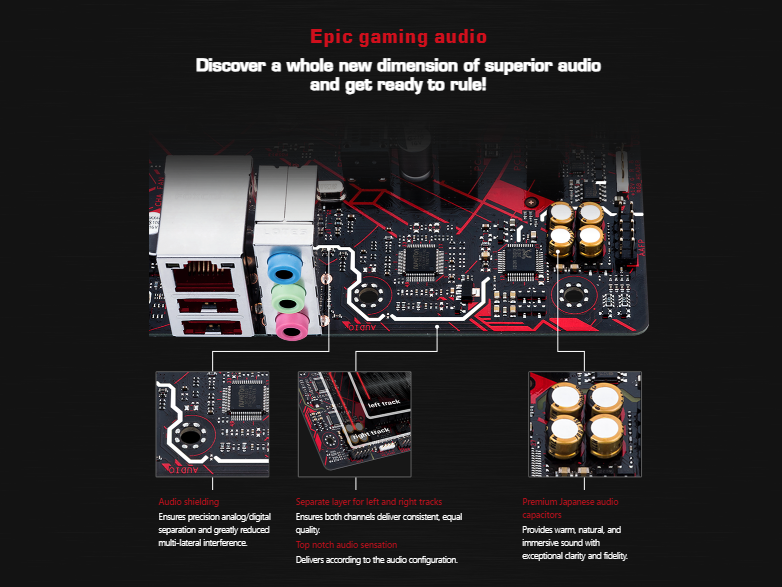

ASUS 5X Protection III: ASUS SafeSlot Core: Fortified PCIe Slot prevents damage, ASUS Overvoltage Protection: World-class circuit-protecting power design, ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability, ASUS DIGI+ VRM: 5 Phase digital power design, ASUS ESD Guards - Enhanced ESD protection, Non-stop Durability: Anti-moisture coating - Outstanding protection against moisture and corrosion, USBGuard- 120% higher voltage tolerance, Non-stop Gaming: Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals, Top notch audio sensation delivers according to the audio configuration, Seperated layers for left and right tracks to ensures both channels delivering the consistent and equal quality.

Others

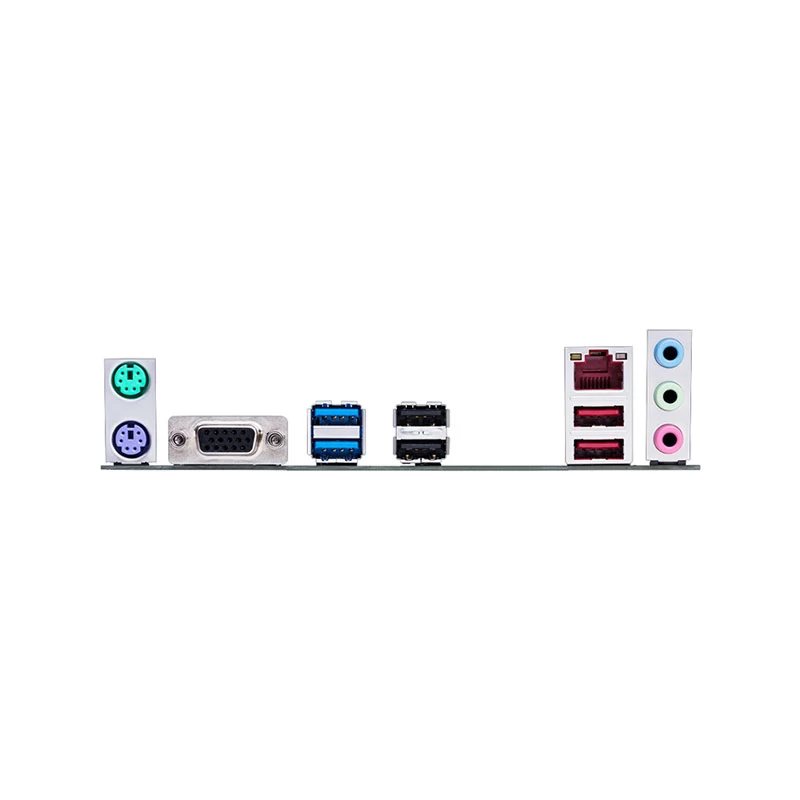

Internal I/O Ports: 1 x AAFP connector, 1 x CPU Fan connector(s), 1 x Chassis Fan connector(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x Internal speaker connector(s), 1 x System panel(s), 1 x Clear CMOS jumper(s), Back I/O Ports: 1 x PS/2 keyboard (purple), Back I/O Ports: 1 x PS/2 keyboard (purple), 1 x PS/2 mouse (green), 1 x D-Sub, 1 x LAN (RJ45) port(s).

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
