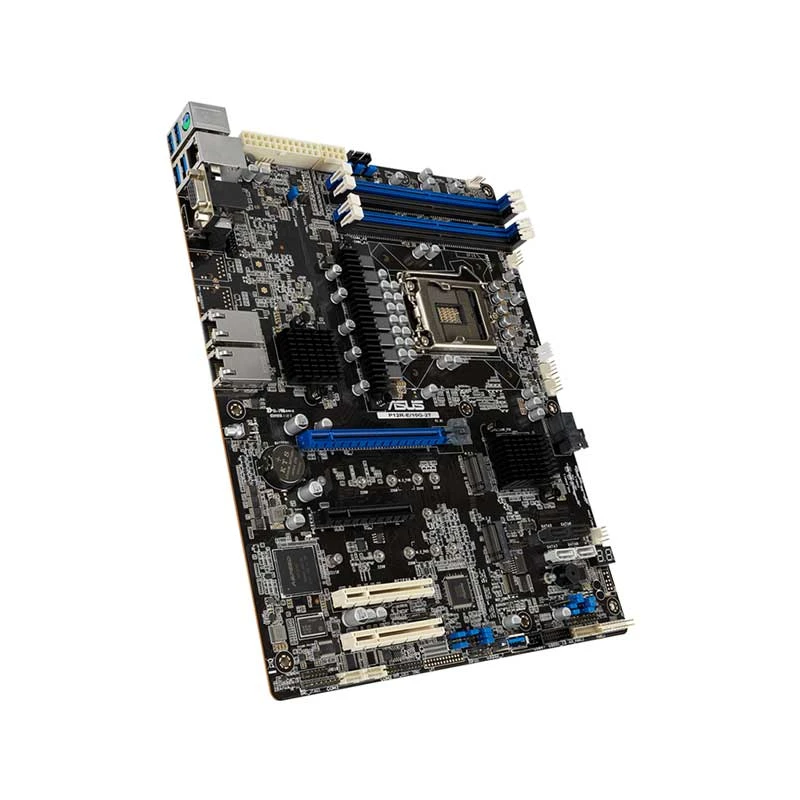

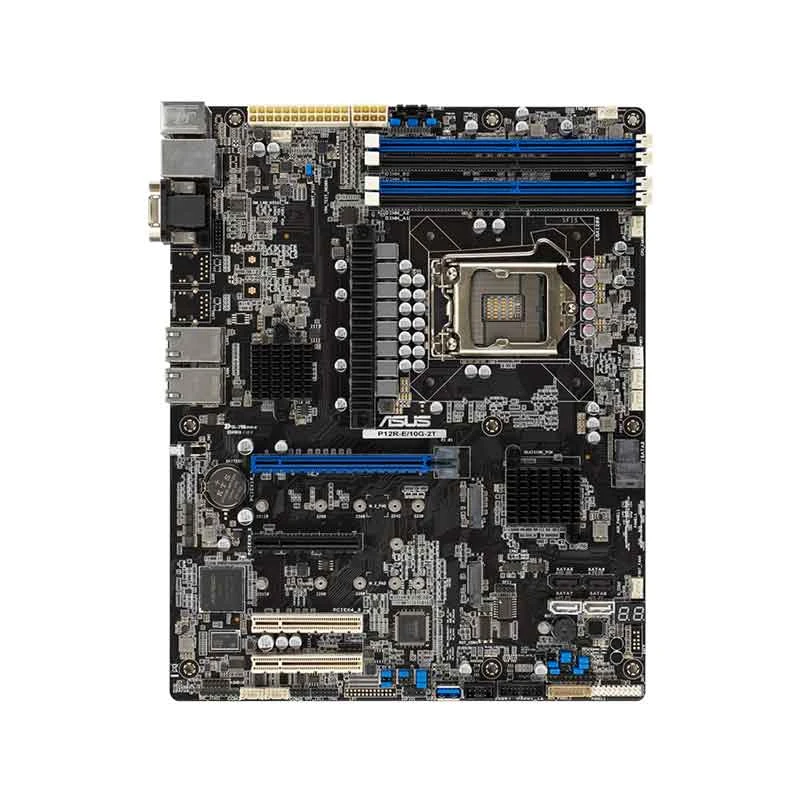

ASUS P12R-E/10G-2T DDR4 C256 Chipset Intel Xeon E 2300 Motherboard for Server Board
Aspeed AST2600 with 64MB VRAM(VGA from BMC) Support
M.2/SSD Expansion Slot
2
WiFi
No
Bluetooth
No
Form Factor
ATX
Supported Operating System
Windows Server 2019 64 bit, Windows Server 2022 64 bit
Body Color
Gray & Blue
Warranty
3 Year Replacement
General
Brand
Asus
Model
Asus P12R-E/10G-2T
Body Color
Gray & Blue
CPU
Chipset Brand
Intel
Chipset
Intel C256
Sockets Supported
LGA1200 - Server
Built-in Processor
No
Supported CPU
Intel Pentium Processors, Intel Xeon E processors
Generation
Not Applicable
Memory Support
Memory Type
DDR4 Server RAM
Memory MHz
3200/ 2933/ 2666 UDIMM
Memory Channel
Dual
Memory Slot
4
Memory Max.
128GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
2
M.2/SSD Expansion Slot Details
2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode
M.2/SSD Slot Gen
Up to Gen 4
Graphics
Graphics
Integrated
Graphics Chipset
Aspeed AST2600 with 64MB VRAM(VGA from BMC) Support
Multi-GPU Support
No
PCI Express Slot
1 x PCI-E x8 (Gen3 X4 Link), 1 x PCI-E x8 (Gen3 X4 Link), 1 x PCI-E x8 (Gen4 X8 Link), 1 x PCI-E x16 (Gen4 X16 Link), Auto switch to x8 link if slot 4 is occupied
Network & Connectivity
LAN Chipset
1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller + 1 x Mgmt LAN
LAN Speed (Mbps)
0/100/1000/10000Mbps
WiFi
No
Bluetooth
No

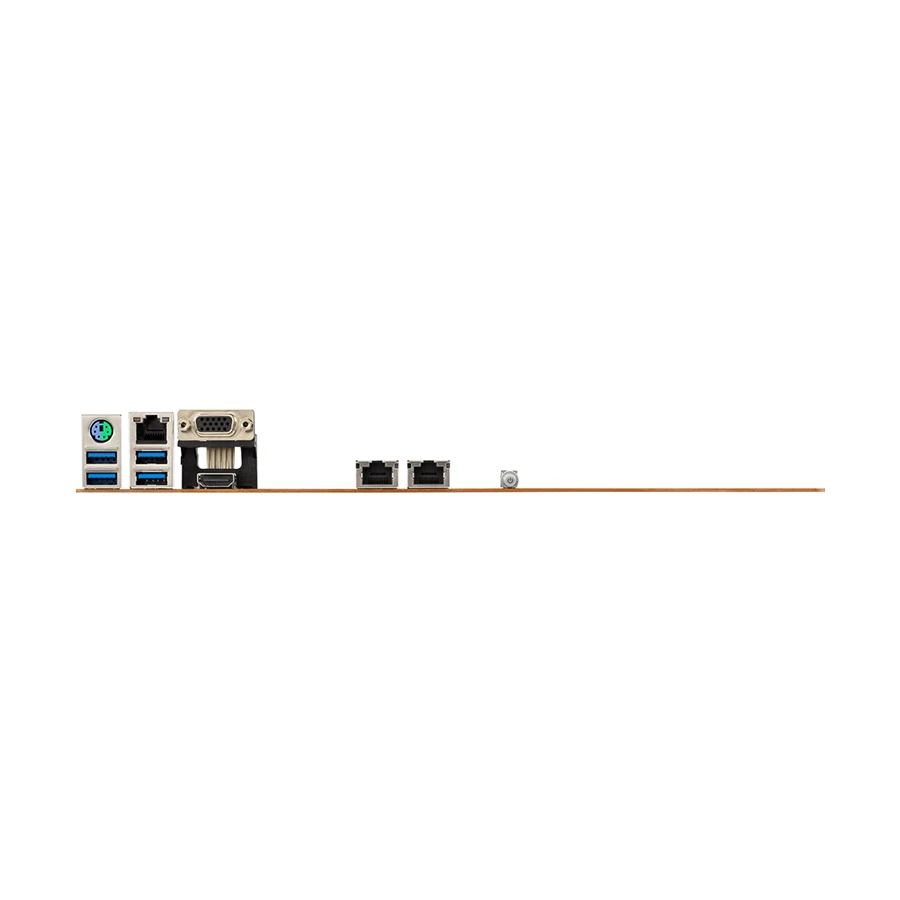

Ports
USB Port
2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1
VGA Port
1
DVI Port
No
HDMI Port
1
DisplayPort (DP)
No
SATA Port
4
Thunderbolt
No
TPM Port
1
COM Port
1
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
No
FireWire
No
CrossFire Support
No
Sli Support
No
RGB Support
No
Approx. Power Consumption
70W
Form Factor
ATX
Compatibility
Supported Operating System
Windows Server 2019 64 bit, Windows Server 2022 64 bit
Warranty
Warranty
3 Year Replacement
Additional Info
Feature
Ideal for remote office/branch office (ROBO) use and everyday business environments, Powered by eight-core Intel Xeon E-2300-series processor with support for up to 95 W TDP, Flexible expandability with eight native SATA HDDs and two PCIe Gen4 slots, Dual Intel X710AT 10GbE Ethernet with teaming support, Dual M.2 support up to 22110 PCIe Gen4 x4 Link and PCIe Gen3 x2 Link, HDMI 1.4 support for high-resolution display maintenance and monitoring, Optional ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management, Optional PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
Others

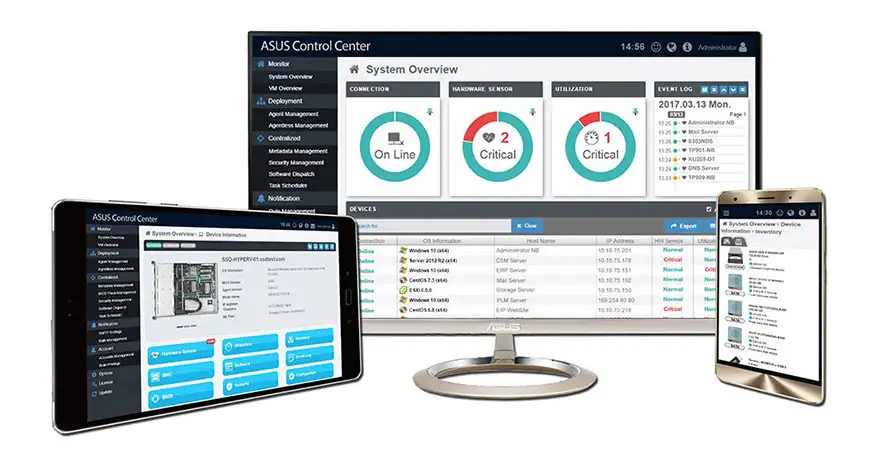

ASUS Features: FAN speed control, Rack Ready (Rack and Pedestal dual use), ASUS Control Center, Net Weight : 0.76 KG, Environment: Operation temperature: 10 Degree C to 50 Degree C, Non operation temperature: -40 Degree C to 70 Degree C, Non operation humidity: 20% ~ 90% ( Non condensing), Monitoring: CPU Temperature, Fan RPM
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
