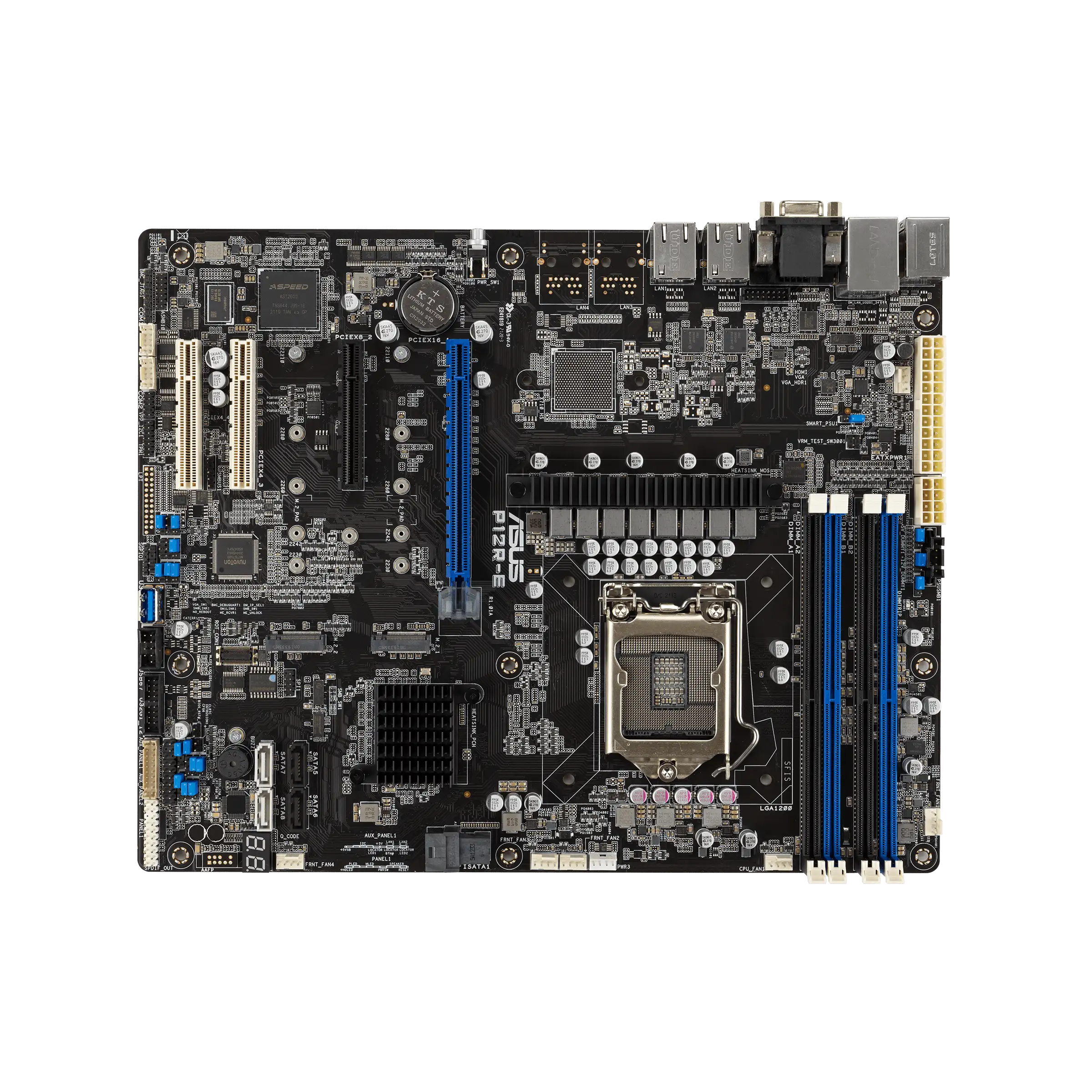

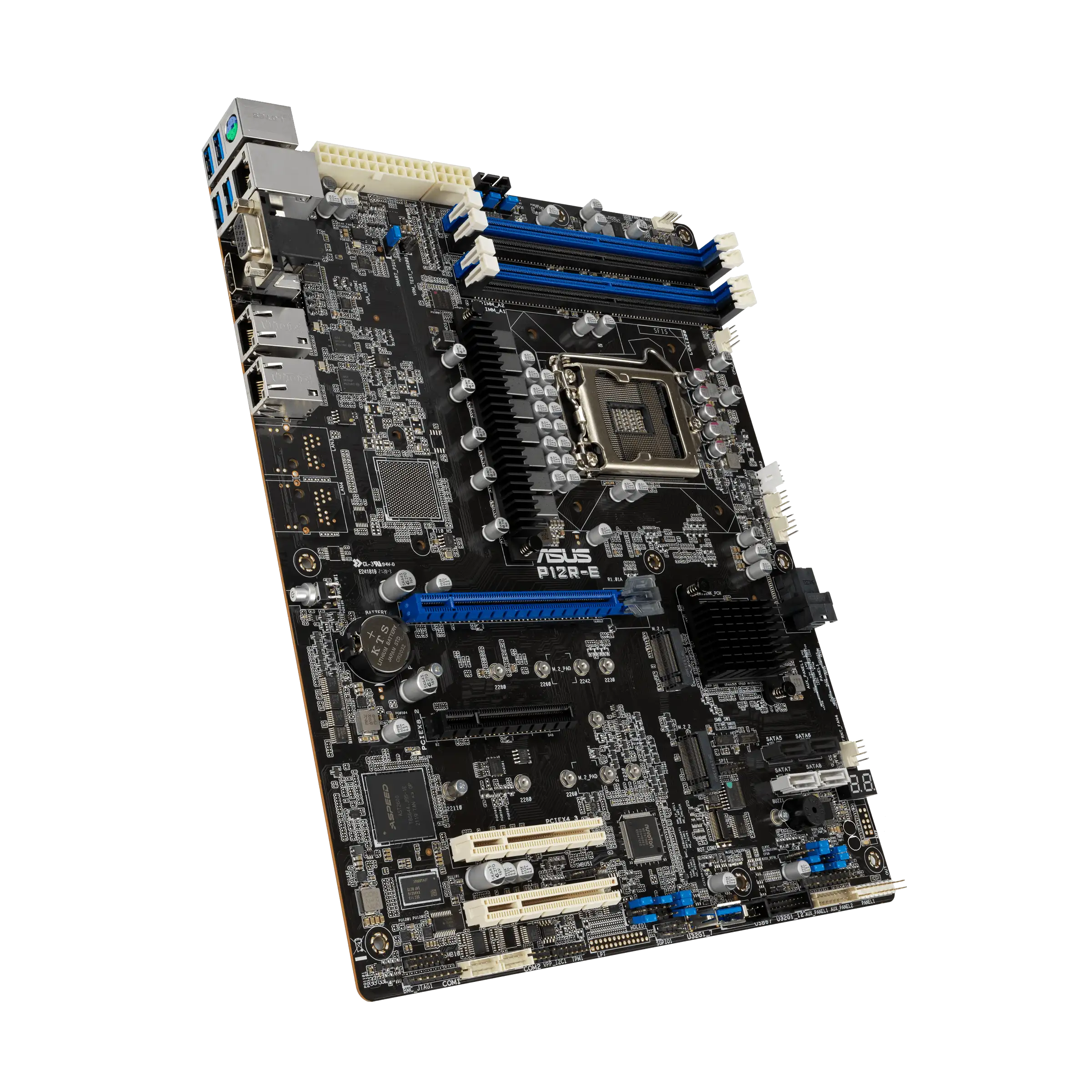

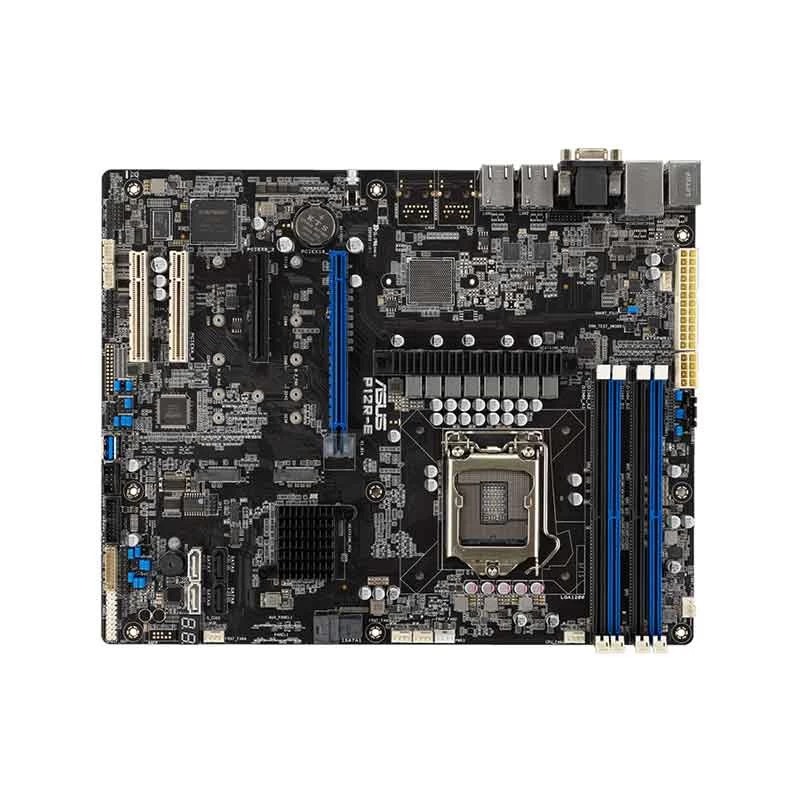

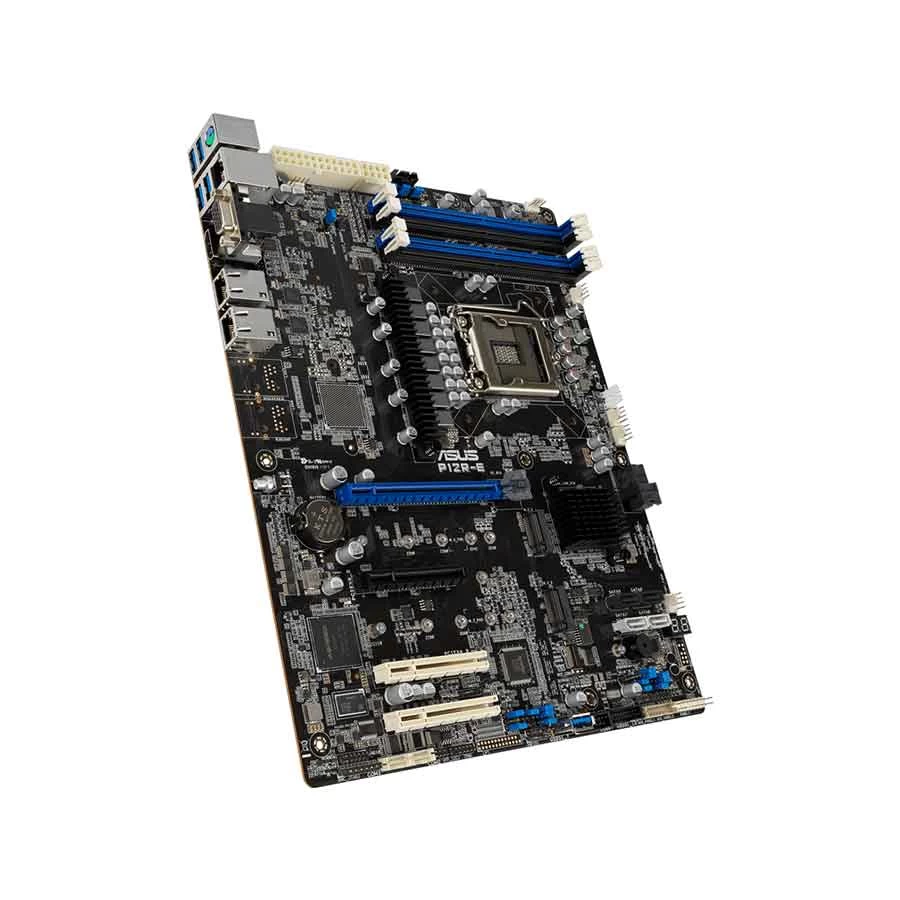

ASUS P12R-E DDR4 C256 Chipset Motherboard for Server Board

Item: ASUS P12R-E DDR4 C256 Chipset Motherboard for Server Board
Rating: 5
Author: Verified Buyer

9 reviews

Product Id: 02.03.006.448

Out Of Stock

See similar model

Quick Overview

Form Factor - ATX
Chipset - Intel C256
Sockets Supported - LGA1200 - Server
Supported CPU - 10th/11th Gen Intel Xeon E processor product family (95W), Intel Pentium processors
Generation - 10th/11th
Memory Slot - 4
Memory Max. - 128GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Asus

Model

Asus P12R-E

Chipset

Intel C256

Sockets Supported

LGA1200 - Server

Built-in Processor

Generation

10th/11th

Back-Connect Design

Memory Type

DDR4 Server RAM

Memory Slot

Memory Max.

128GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Aspeed AST2600 with 64MB VRAM Support

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

ATX

Supported Operating System

Windows Server 2022, Windows Server 2019, Linux, Dos.

Body Color

Black

Warranty

3 Years Replacement Warranty

General

Brand

Asus

Model

Asus P12R-E

Body Color

Black

CPU

Chipset Brand

Intel

Chipset

Intel C256

Sockets Supported

LGA1200 - Server

Built-in Processor

Supported CPU

10th/11th Gen Intel Xeon E processor product family (95W), Intel Pentium processors

Generation

10th/11th

Memory Support

Memory Type

DDR4 Server RAM

Memory MHz

3200/2933/2666 MHz ECC UDIMM

Memory Channel

Dual

Memory Slot

Memory Slot (Additional Info)

4 x DDR4

Memory Max.

128GB

Memory Max. (Additional Info)

Up to 128GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

2 x M.2 NGFF 22110/2280/2260/2242 (Gen4 x4 Link and Gen3 x2 Link)

M.2/SSD Slot Gen

Up to Gen 4

Graphics

Integrated

Graphics Chipset

Aspeed AST2600 with 64MB VRAM Support

PCI Express Slot

1 x PCI-E x16 (Gen4 x16 link), 1 x PCI-E x8 (Gen4 x8 link), 2 x PCI-E x8 (Gen3 x4 link)

Network & Connectivity

LAN Chipset

2 x Intel I210 Gigabit LAN Controller, 1 x Management Port

WiFi

WiFi Technology

Bluetooth

Ports

USB Port

2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1,

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

IDE Port

SATA Port

Thunderbolt

TPM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

CrossFire Support

Sli Support

Raid Support

0 , 1 , 10

RGB Support

Approx. Power Consumption

70W

Form Factor

ATX

Compatibility

Supported Operating System

Windows Server 2022, Windows Server 2019, Linux, Dos.

Compatible Products

Intel Comet Lake Pentium Gold G6405, Intel Rocket Lake Xeon E-2336, Intel Rocket Lake Xeon E-2324G , Intel Rocket Lake Xeon E-2324G, Intel Rocket Lake Xeon E-2334, Intel Rocket Lake Xeon E-2356G, Intel Rocket Lake Xeon E-2314, Intel Rocket Lake Xeon E-2374G, Intel Rocket Lake Xeon E-2378, Intel Rocket Lake Xeon E-2378G

Warranty

3 Years Replacement Warranty

Additional Info

Feature

Intel Tatlow platform ATX server board, Single LGA1200 socket, PCI-E x16 Gen4 supported for graphic card, Dual M.2 support, up to 22110 ,Gen4 x4 Link and Gen3 x2 Link, 2 x PCIe Gen4 slots, Rack-optimized Design,

Others

ASUS P12R-E series is an Intel Tatlow platform ATX server board based on Intel C256 chipset. With the CPU and memory configured in a front parallel design that enables efficient airflow for excellent thermal performance, P12R-E series is optimized for rack placement.P12R-E series provide versatile expandability with dual Intel 1210AT server LAN or Intel NIC X710AT, 8 SATA 3.0, dual M.2 sockets, 2 PCIe Gen4 slots, 2 PCIe Gen3 slots which suitable for data center frond-end server, firewall, gateway server, storage server, SMB print/file/mail/exchange server etc.

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Asus P12R-E Motherboard In Bangladesh

Ideal for remote office/branch office (ROBO) use and everyday business environments
Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP
Flexible expandability with eight native SATA HDDs and two PCIe Gen4 slots
Dual Intel I210AT Gigabit Ethernet with teaming support
Dual M.2 support up to 22110 PCIe Gen4 x4 Link and PCIe Gen3 x2 Link
HDMI 1.4 support for high-resolution display maintenance and monitoring
Optional ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
Optional PFR FPGA as the platform Root-of-Trust solution for firmware resiliency

What is the price of Asus P12R-E Motherboard In Bangladesh?

The price of Asus P12R-E Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Asus P12R-E Motherboard from our website or visit our showrooms nearby.
