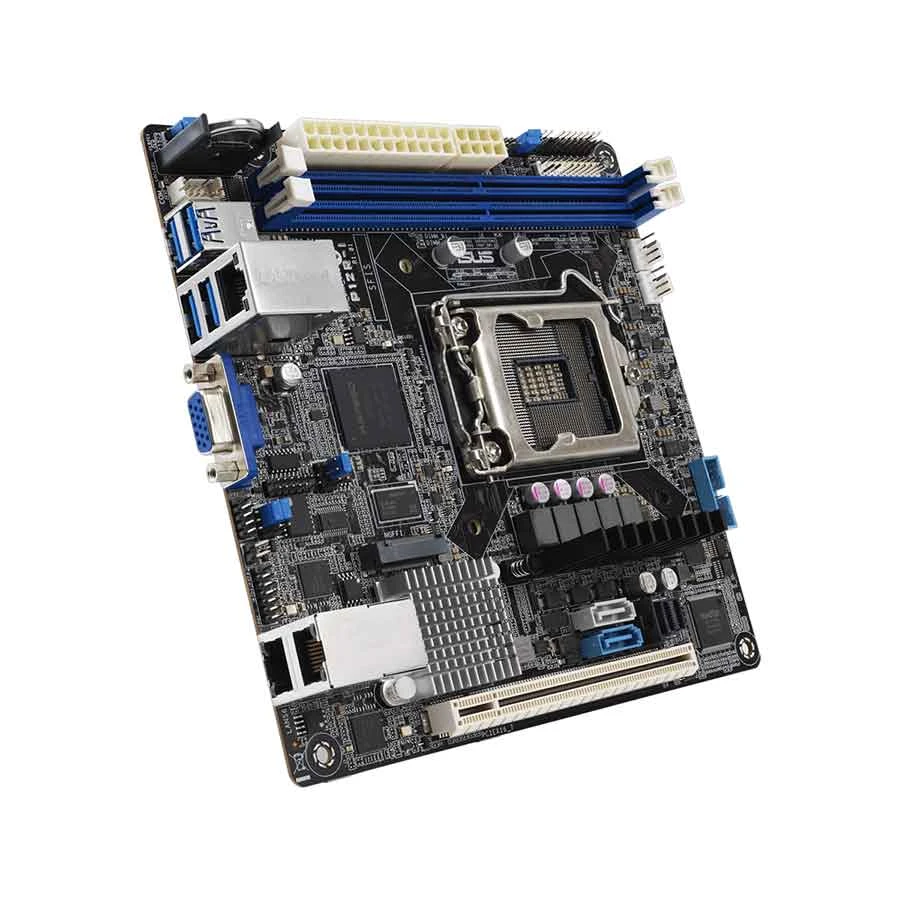

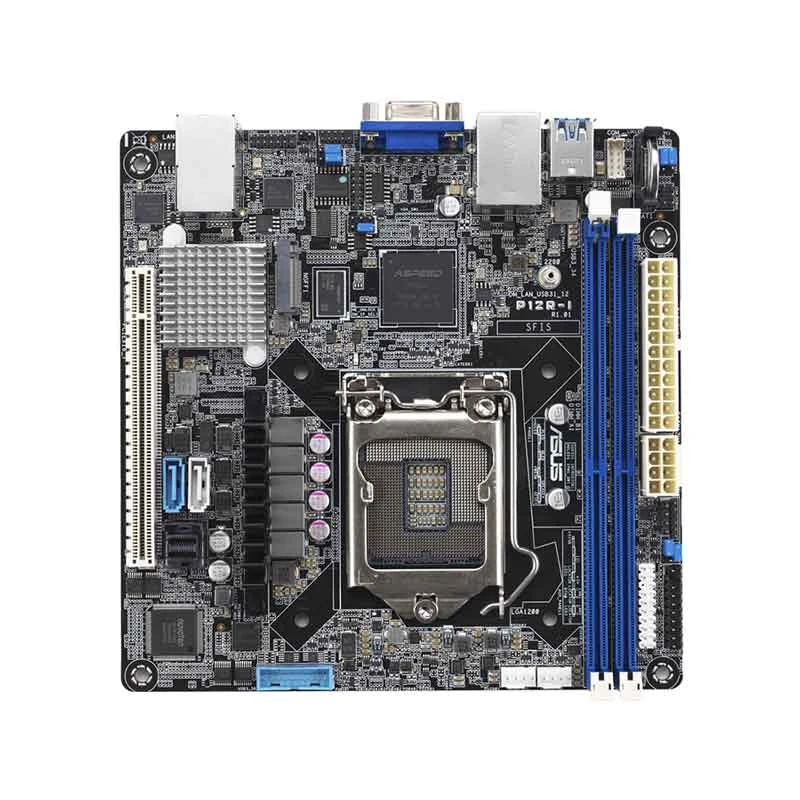

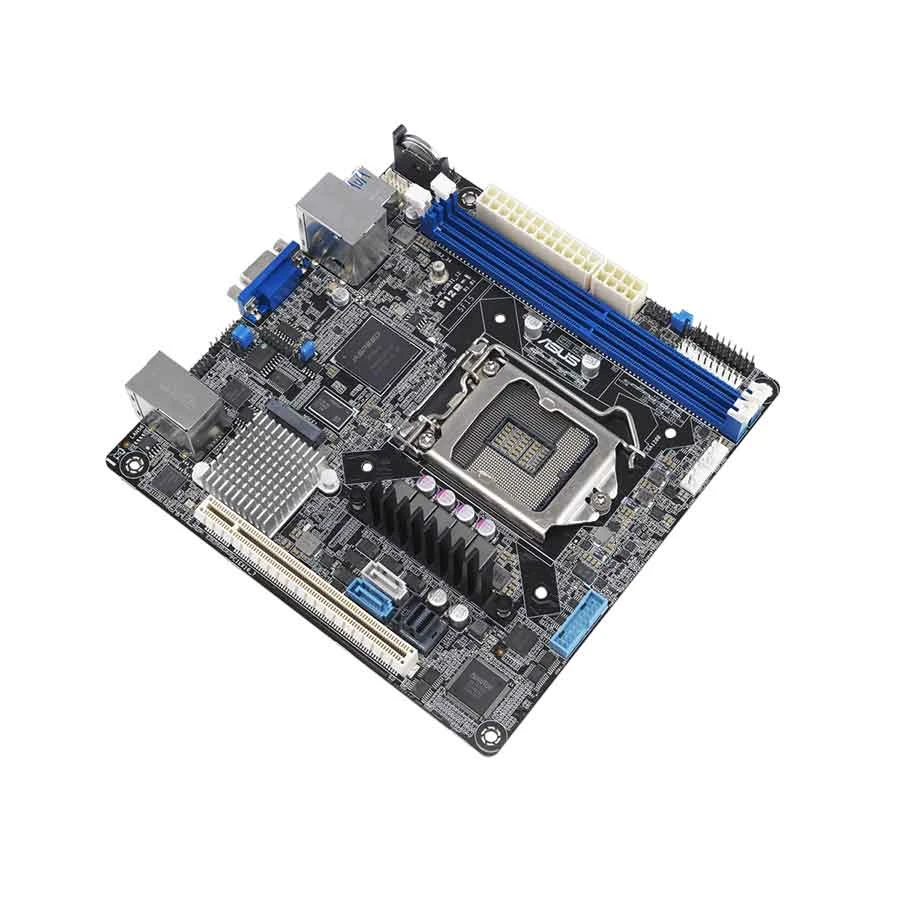

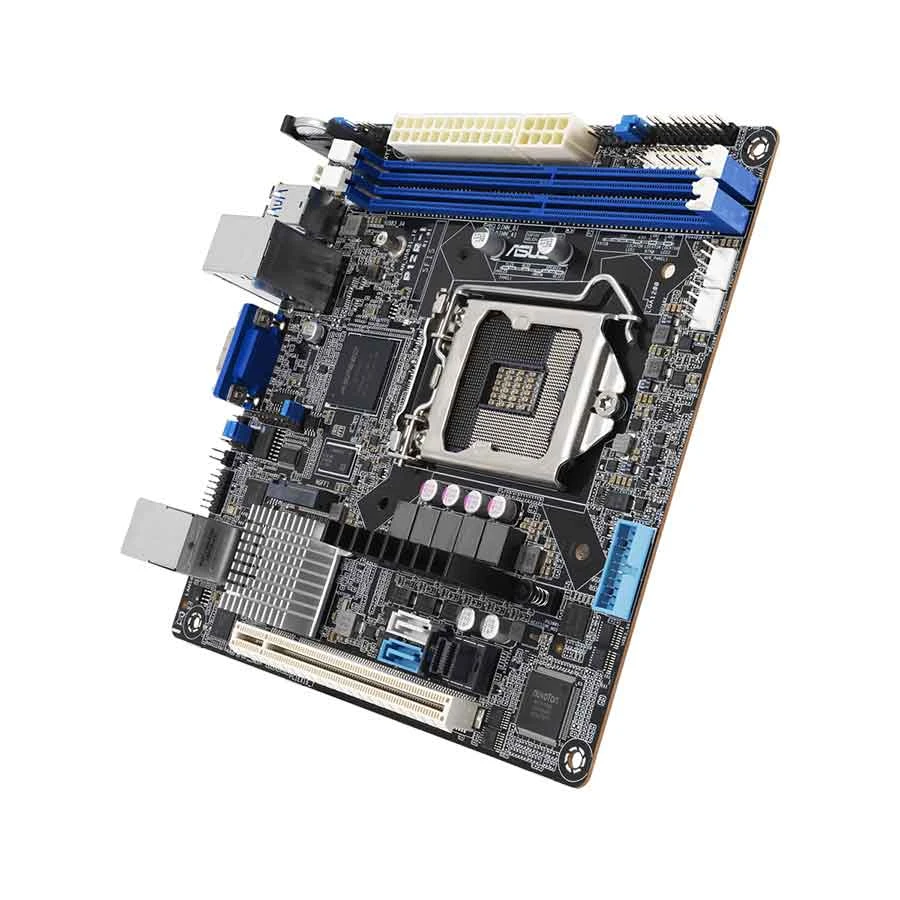

ASUS P12R-I DDR4 C252 Chipset Intel Xeon E 2300 Motherboard for Server Board (Included ASMB10)
Windows Server 2019 64 bit, Windows Server 2022 64 bit, Ubuntu 18.04 LTS/20.04 LTS x86 64, VMware ESXi 7.0 Update 3
Body Color
Black
Warranty
3 Year Replacement
General
Brand
Asus
Model
Asus P12R-I
Body Color
Black
CPU
Chipset Brand
Intel
Chipset
Intel C252
Sockets Supported
LGA1200 - Server
Built-in Processor
No
Supported CPU
Intel Pentium Processors Intel Xeon E processors
Generation
Not Applicable
Memory Support
Memory Type
DDR4 Server RAM
Memory MHz
3200/ 2933/ 2666MHz
Memory Channel
Dual
Memory Slot
1
Memory Max.
64GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
1
M.2/SSD Expansion Slot Details
1 x M.2 (2280) support Gen4 x2
M.2/SSD Slot Gen
Up to Gen 4
Graphics
Graphics
Integrated
Graphics Chipset
Aspeed AST2600 with 64MB VRAM Support
Multi-GPU Support
No
PCI Express Slot
1 x PCI-E x16
Network & Connectivity
LAN Chipset
Intel I210
LAN Speed (Mbps)
10/100/1000Mbps
WiFi
No
Bluetooth
No

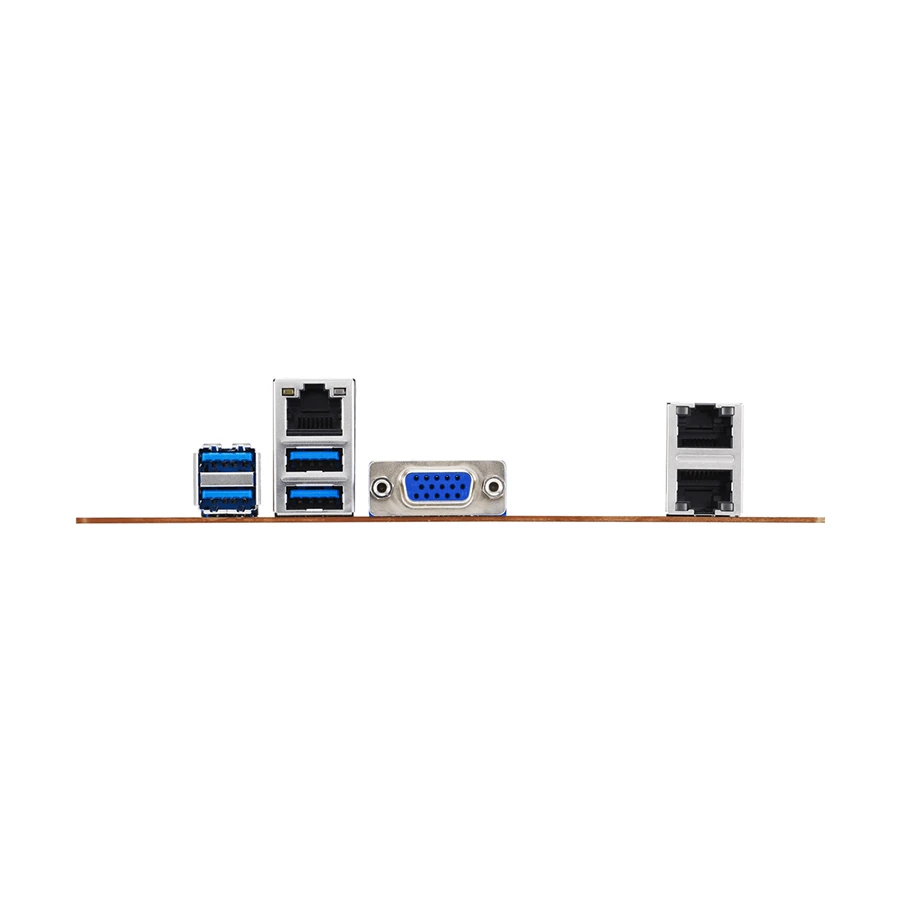

Ports
USB Port
4 x USB 3.2 Gen 1 Type-A
VGA Port
1
DVI Port
No
HDMI Port
No
DisplayPort (DP)
No
IDE Port
No
SATA Port
6 x SATA
Thunderbolt
No
TPM Port
Yes
COM Port
No
Technical Info
Back-Connect Design
No
Cable Management
Front
DirectX Support
No
Heatsink
No
FireWire
No
CrossFire Support
No
Sli Support
No
RGB Support
No
RGB Connector
No
Approx. Power Consumption
30W
Form Factor
Mini-ITX
Compatibility
Supported Operating System
Windows Server 2019 64 bit, Windows Server 2022 64 bit, Ubuntu 18.04 LTS/20.04 LTS x86 64, VMware ESXi 7.0 Update 3
Warranty
Warranty
3 Year Replacement
Additional Info
Others
SAS Controller: ASUS PIKE II 3008-8i 8-port SAS 12G RAID card ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card, Networking: 2 x Intel I210AT + 1 x Mgmt LAN, On Board I/O: ( 1 x TPM header 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector) 2 x Fan Header , 4pin 1 x Chassis Intruder 2 x Front LAN LED 1 x Serial Port Header 1 x M.2 Connector 1 x VGA Header), Operation temperature: 10 - 50 degree C, Non operation temperature: -40 -70 degree C, Non operation humidity: 20% - 90% ( Non condensing).
Country Of Origin
Taiwan
Made in/ Assemble
China
