ASUS Prime AP201 Mini Tower White Micro-ATX Desktop Case

Item: ASUS Prime AP201 Mini Tower White Micro-ATX Desktop Case
Rating: 5
Author: Verified Buyer

Product Id: 07.02.006.17

Out Of Stock

See similar model

Quick Overview

Case Type - Mini Tower
Supported Motherboard Type (Max.) - Up to Micro-ATX
Optical Drive Bay - No
Cooling Fan (Built-In) - 1
Lighting Fan - No
Power Supply (Built-In) - No
Back-Connect Supported - No
Color - White

Color variations

White
Tk 0

Payment Method Shipping & Charge Order Procedure

Brand

Asus

Model

Asus Prime AP201

Series

Prime

Case Type

Mini Tower

Supported Motherboard Type (Max.)

Up to Micro-ATX

Front/Top USB port

2 x USB 3.2 Gen1, 1 x USB 3.2 Gen2 Type C

Front/Top Audio Port

1 x Headphone, 1 x Microphone

Expansion Slots

Optical Drive Bay

Cooling Fan (Built-In)

Additional Fan Slot

Power Supply (Built-In)

Back-Connect Supported

Transparent Side Window

Yes

Number of Buttons

Dust Cover

Bottom

Color

White

Dimensions

205 x 350 x 460mm

Weight (Kg)

6.3 Kg

Warranty

No warranty

General

Brand

Asus

Model

Asus Prime AP201

Series

Prime

Case Type

Mini Tower

Technical Info

Supported Motherboard Type

Micro-ATX, Mini-ITX

Supported LED Strip

Fan / Light Controller

Back-Connect Supported

Graphics-Card Length

338mm

Supported CPU Cooler

Air Cooler or Liquid Cooler

CPU Cooler Height

170mm

PSU Length

140-180mm

Cable Management Depth

32mm

Ports & Slots

Front/Top USB port

2 x USB 3.2 Gen1, 1 x USB 3.2 Gen2 Type C

Front/Top Audio Port

1 x Headphone, 1 x Microphone

3.5 Inch Drive Bay

2.5 Inch Drive Bay

Expansion Slots

Optical Drive Bay

Memory Card Slot

Fan & Radiator Details

Cooling Fan (Built-In)

Additional Fan Slot

Pre-Installed Fan Size

120mm

Supported Fan Size

3 x 120 mm/ 2 x 140 mm (Top), 1 x 120 mm (Rear)

Lighting Fan

Radiator Support Front/Top/Rear

120 mm/ 140 mm/ 240 mm/ 280 mm/ 360 mm (Top), 120 mm (Rear)

Radiator Support Max.

Up to 360mm

Power

Power Supply (Built-In)

Approx. Power Consumption

Physical Description

Transparent Side Window

Yes

Case Windowed

Tempered Glass

Buttons

1 x Power Button

Number of Buttons

Dust Cover

Bottom

Color

White

Dimensions

205 x 350 x 460mm

Weight (Kg)

6.3 Kg

Handle

Warranty

No warranty

Additional Info

Others

Go Big. Stay Compact. Tool-free Side Panels Sizeable Cable-management Industry-leading Spatial Efficiency

Specialty

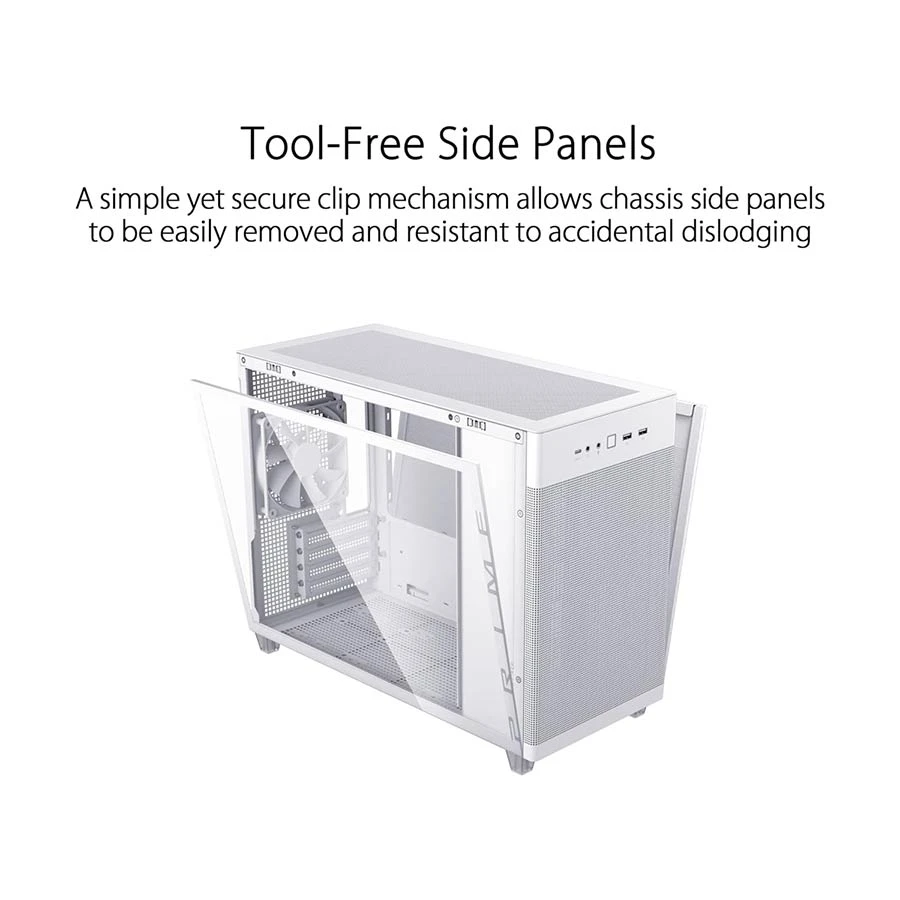

Optimized for Cooling: With support for 280 and 360mm radiators and up to six fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware. Industry-Leading Spatial Efficiency: Despite a 33L footprint, the AP201 supports ATX PSUs up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling, and various storage devices. Tool-Free Side Panels: A simple yet secure clip mechanism allows chassis side panels to be easily removed and resistant to accidental dislodging. Sizeable Cable-Management: The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap to tuck cables out of sight. Front Panel USB Type-C Support: The front panel of the AP201 features a USB 3.2 Gen 2 Type-C port, so users can enjoy transfer speeds of up to 10 Gbps.

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Asus Prime AP201 Casing In Bangladesh

GO BIG. STAY COMPACT.
The ASUS Prime AP201 Tempered Glass Version is a breakthrough in microATX chassis design, delivering a high-performance platform that invites 360 mm AIO coolers and graphics cards up to 338 mm long, all within a compact 33-liter space. Tool-free side panels also provide easy access, and they complete a tasteful, minimalist aesthetic that can be the centerpiece of any DIY PC build.
LOAD UP

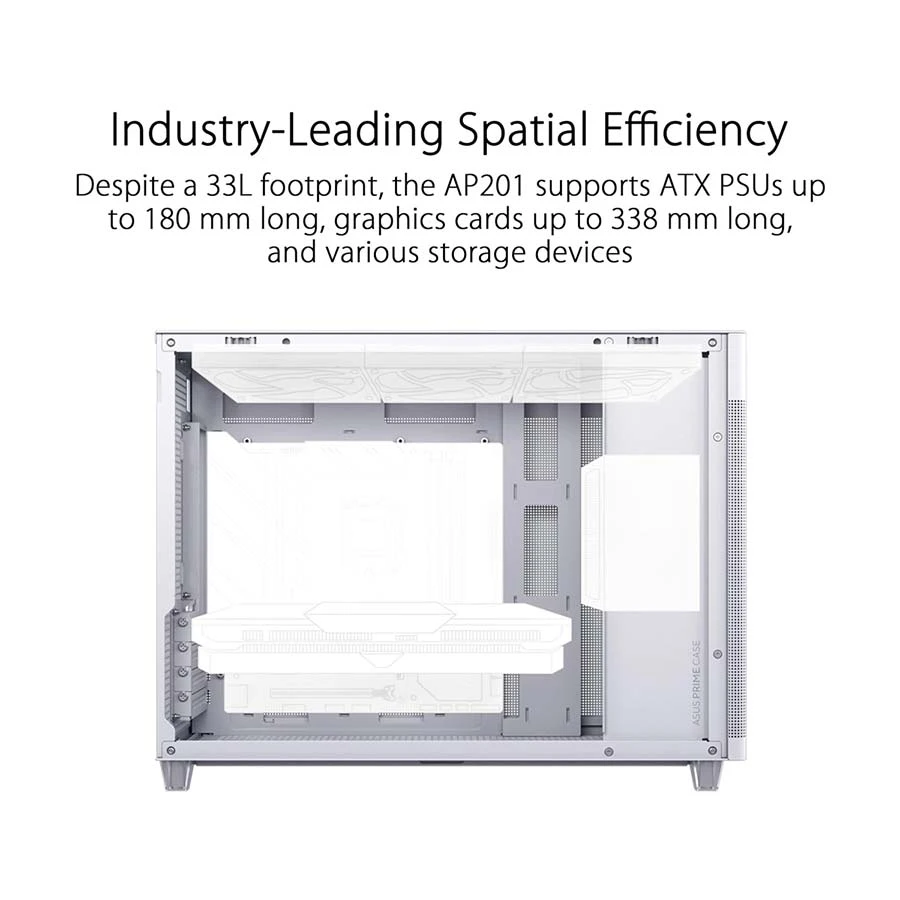

Despite its compact size, the AP201 supports standard ATX power supplies up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling setups, and a spread of storage devices.

Asus Prime AP201

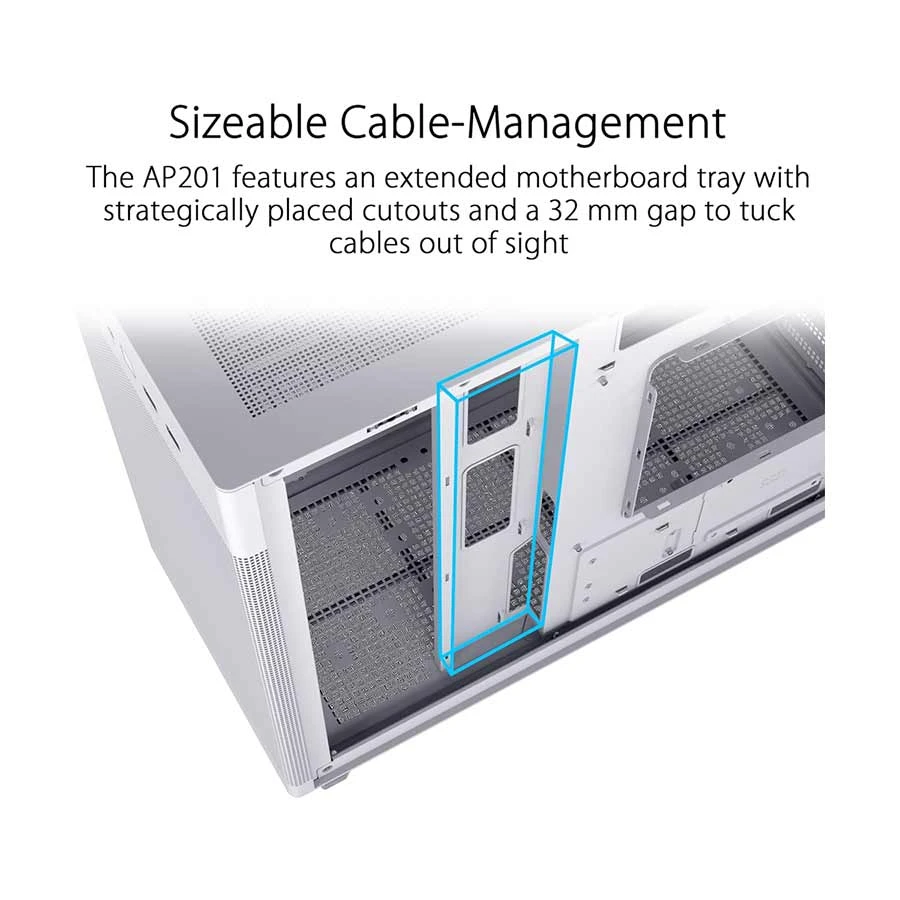

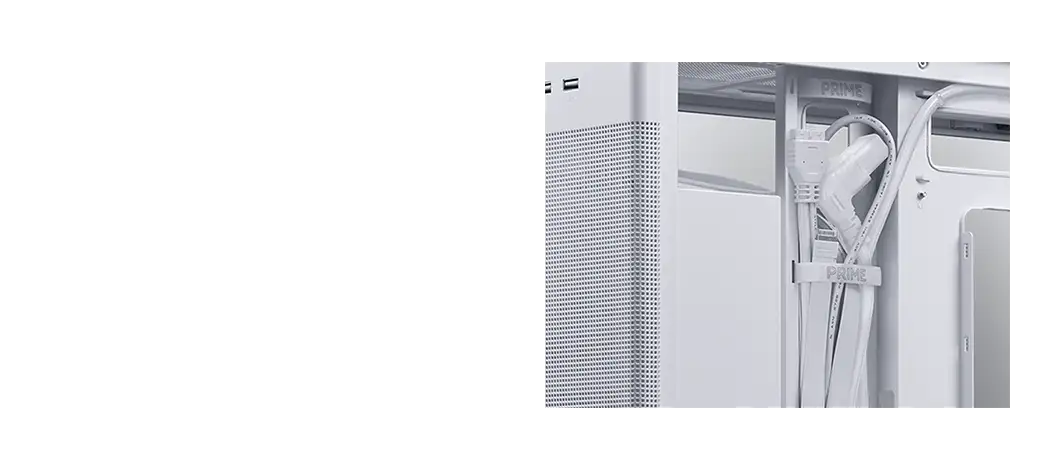

SIZEABLE CABLE-MANAGEMENT
The AP201 features a 32mm-wide compartment behind the power supply mount, giving builders ample room to tuck cables out of sight and create a clean aesthetic for their DIY PC.

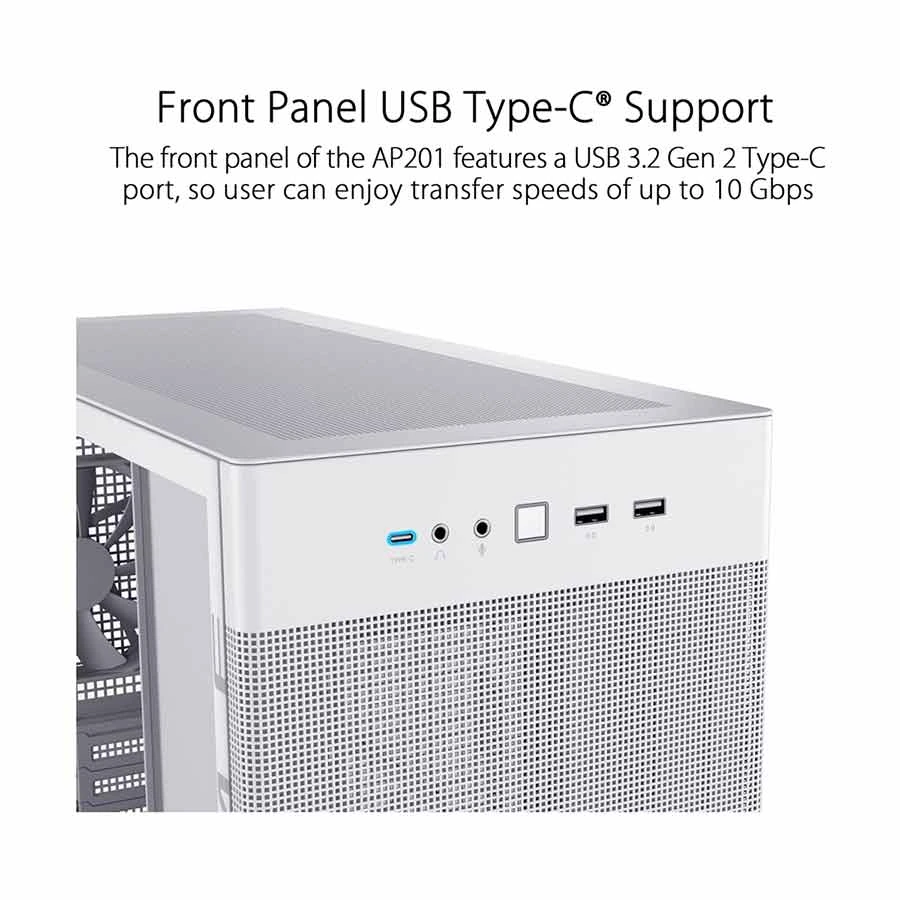

USB TYPE-C® SUPPORT
NIMBLE CONNECTIONS
In addition to two Type-A USB 3.2 Gen 1 ports, the front panel of the AP201 also features a Type-C port that is rated for USB 3.2 Gen 2. Compatible microATX ASUS motherboards such as the TUF GAMING B760M-PLUS or ROG STRIX B760-G can use this port to enjoy transfer speeds of up to 10 Gbps.

What is the price of Asus Prime AP201 Casing In Bangladesh?

The price of Asus Prime AP201 Casing not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Asus Prime AP201 Casing from our website or visit our showrooms nearby.
