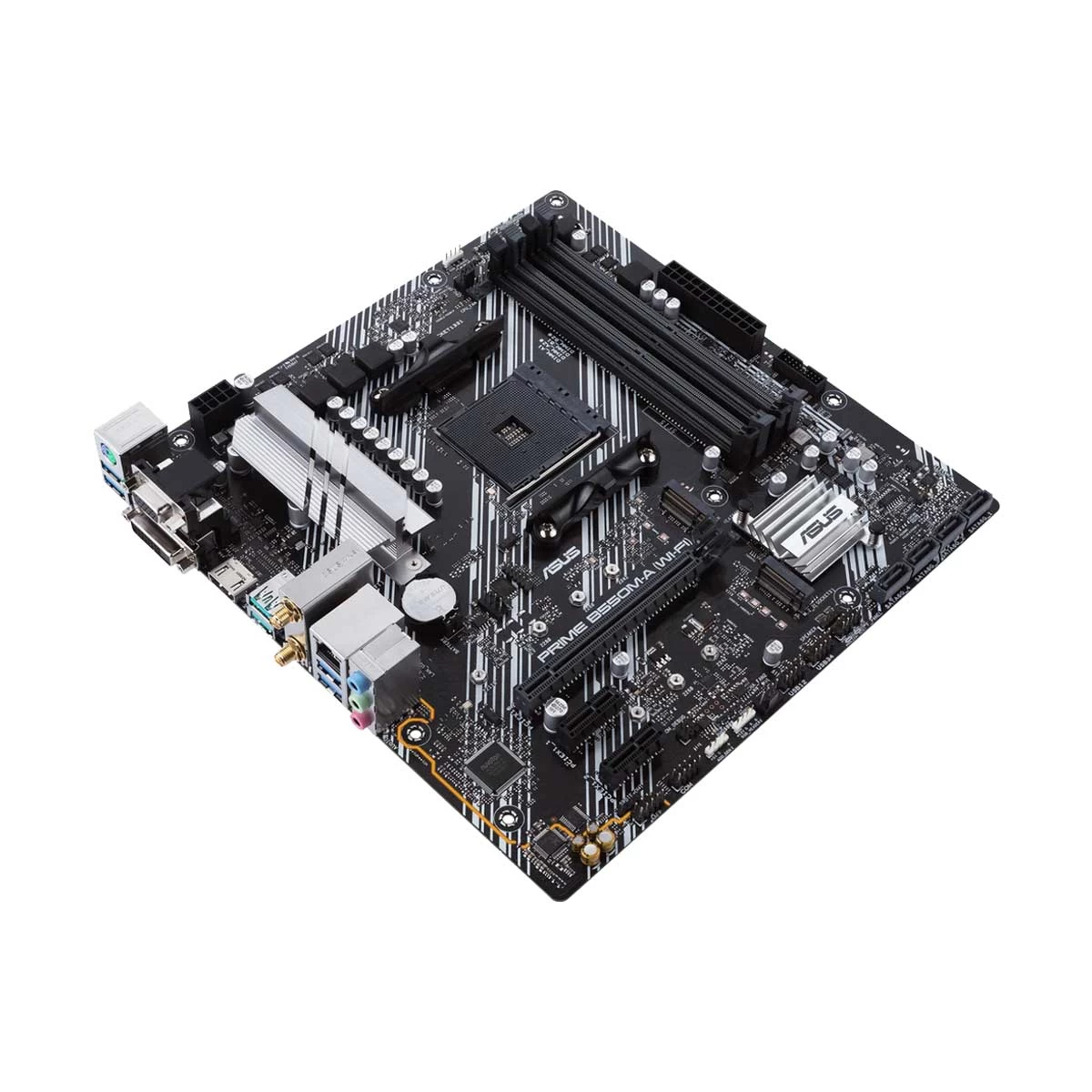

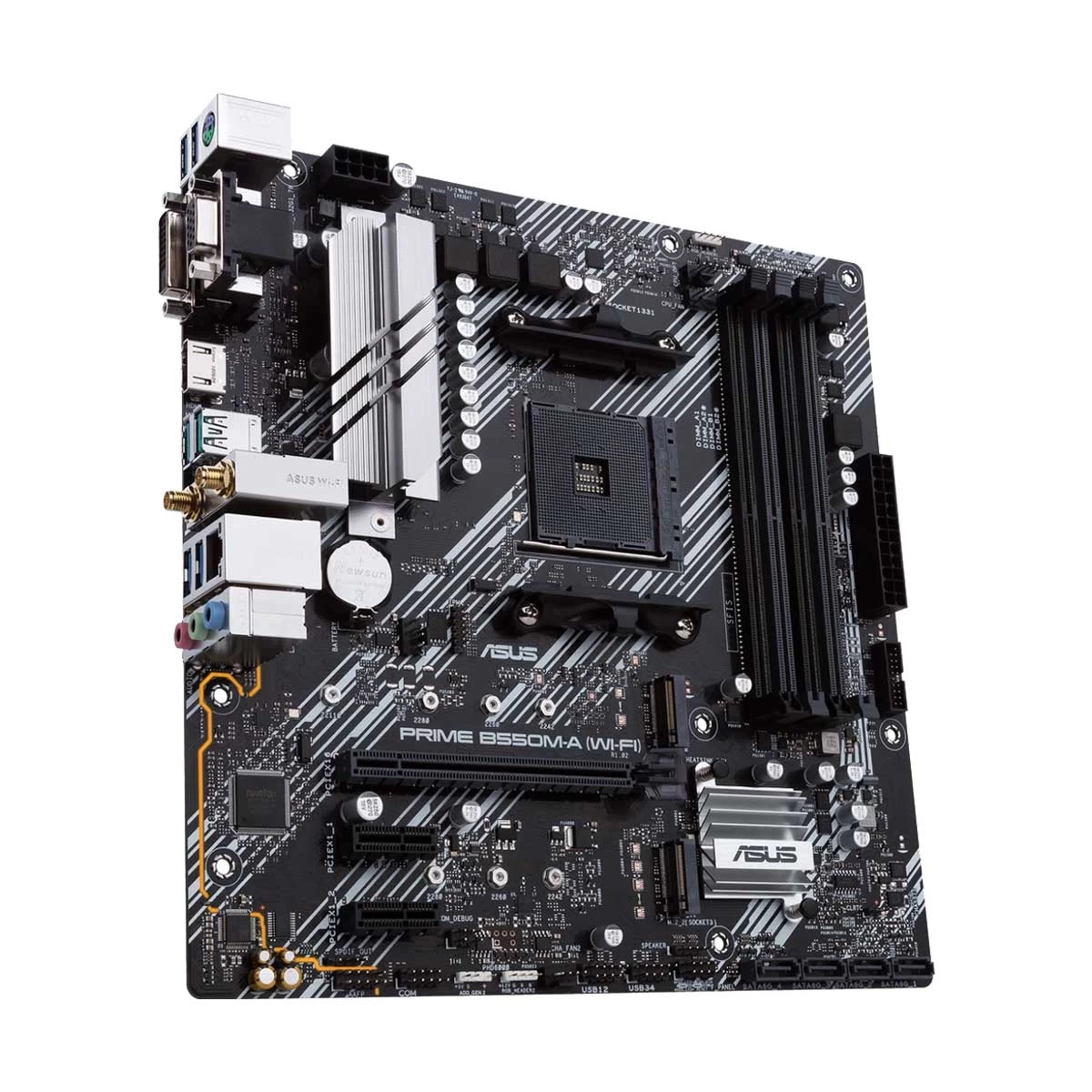

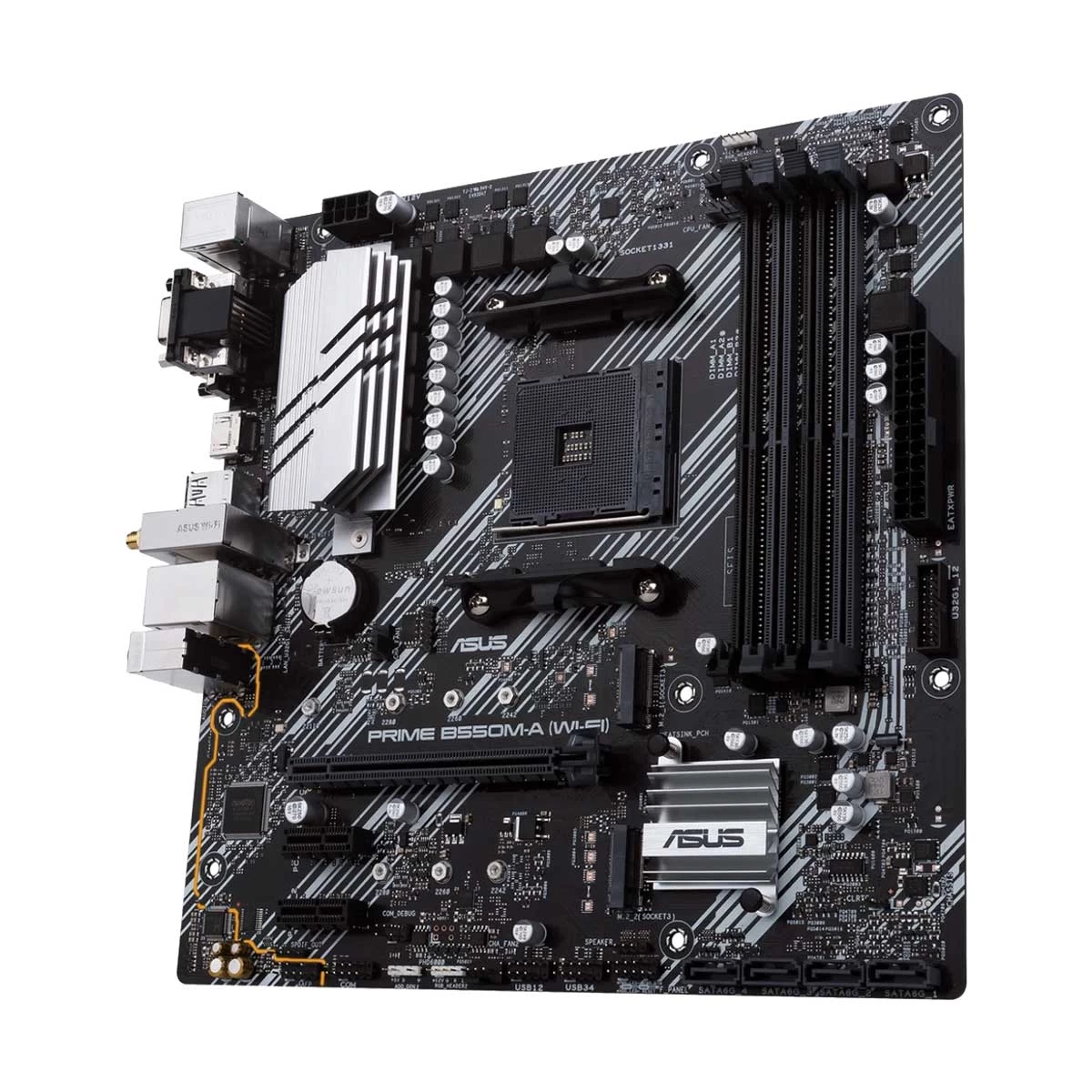

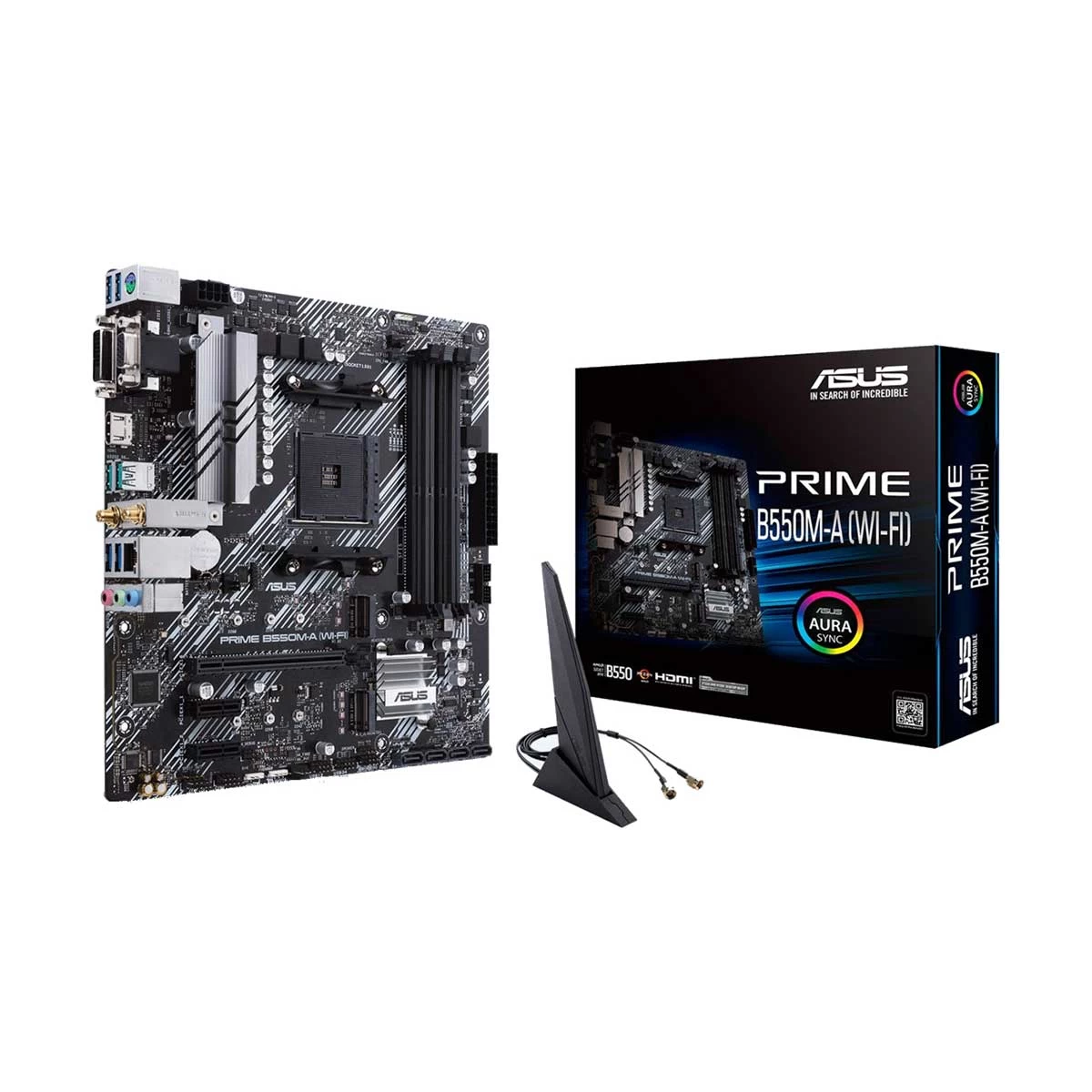

Asus PRIME B550M-A Wi-Fi 6 AMD Motherboard

Item: Asus PRIME B550M-A Wi-Fi 6 AMD Motherboard
Rating: 1
Author: shohan

Product Id: 02.02.006.300

Regular Price

Tk 0

This item is discontinued.

See similar model

Quick Overview

Chipset - AMD B550
Sockets Supported - AM4
Supported CPU - AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Generation - Not Applicable
Memory Slot - 4
Memory Max. - 128GB
Back-Connect Design - No

Payment Method Shipping & Charge Order Procedure

Brand

Asus

Model

Asus PRIME B550M-A (WI-FI)

Chipset

AMD B550

Sockets Supported

AM4

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

128GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Bluetooth 5.1

Form Factor

Micro-ATX

Supported Operating System

Windows 10

Body Color

Black

Warranty Details

3 Years Replacement Warranty

General

Brand

Asus

Model

Asus PRIME B550M-A (WI-FI)

Body Color

Black

CPU

Chipset Brand

AMD

Chipset

AMD B550

Sockets Supported

AM4

Built-in Processor

Supported CPU

AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

Generation

Not Applicable

Memory Support

Memory Type

DDR4

Memory MHz

AMD Ryzen 5000/ 3000 Series (4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133MHz), AMD Ryzen 4000 G-Series (4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133MHz)

Memory Channel

Dual

Memory Slot

Memory Max.

128GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

2 x M.2 Socket 3 (1 x M.2 (M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes)) / 1 x M.2 (M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes)), 1 x M.2 (M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes)))

Graphics

Integrated

Graphics Chipset

Integrated With Processor

PCI Express Slot

1 x PCIe 4.0 x16 (x16 mode), 1 x PCIe 3.0 x16 (x16 mode), 2 x PCIe 3.0 x1

Audio & Video

Audio Chipset

Realtek ALC887

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Realtek RTL8111H

LAN Speed (Mbps)

10/100/1000

WiFi

Yes

WiFi Technology

Intel Wi-Fi 6 AX200, 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO, Supports up to 2.4Gbps max data rate, Supports dual band frequency 2.4/5 GHz, Supports channel bandwidth: HT20/HT40/HT80/HT160, Supports PCIe interface

Bluetooth

Bluetooth 5.1

Ports

USB Port

2 x USB3.2 Gen 2 Type-A, 5 x USB3.2 Gen 1 Type-A, 2 x USB2.0

VGA Port

DVI Port

HDMI Port

SATA Port

4 x SATA

Thunderbolt

TPM Port

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

CrossFire Support

Sli Support

Raid Support

0, 1, 10

RGB Support

RGB

RGB Sync

Aura Sync

RGB Connector

2 x Aura RGB Strip Headers

Approx. Power Consumption

65W

Form Factor

Micro-ATX

Bios Information

BIOS Type

256 Mb Flash ROM

BIOS Model

UEFI AMI BIOS

BIOS Version

0, 1, 10

Compatibility

Supported Operating System

Windows 10

Warranty

Warranty Details

3 Years Replacement Warranty

Additional Info

Feature

ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, AURA Sync, ASUS Lighting Control, LED-illuminated design, Audio Shielding, Dedicated audio PCB layers, AMD B550 (Ryzen AM4) micro ATX motherboard with dual M.2, PCIe 4.0, Intel WiFi 6, 1 Gb Ethernet, HDMI/D-Sub/DVI, SATA 6 Gbps, USB 3.2 Gen 2 Type-A, and Aura Sync RGB headers support, Comprehensive cooling- VRM heatsink, PCH heatsink, and Fan Xpert 2+, Ultrafast connectivity, Aura Sync RGB- Onboard addressable Gen 2 header for RGB LED strips, easily synced with Aura Sync-capable hardware

Others

1 x CPU Fan connector(s), 2 x Chassis Fan connector(s), 2 x Aura RGB Strip Headers, 1 x Addressable Gen 2 header(s), 1 x SPI TPM header, 1 x Speaker connector, 1 x System panel connector, 1 x Clear CMOS jumper(s), 1 x ASUS Wi-Fi Module, 3 x Audio jack(s)

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Asus PRIME B550M-A (WI-FI) Motherboard In Bangladesh

Asus PRIME B550M-A Wi-Fi 6 AMD Motherboard in Bangladesh

Asus PRIME B550M-A (WI-FI) motherboard is a renowned motherboard in Bangladesh. The Asus PRIME B550M-A Wi-Fi 6 AMD Motherboard is an AMD mainboard. The motherboard used an AMD B550 chipset. AM4 Sockets Supported. In this motherboard, you can use an AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors. The Asus PRIME B550M-A (WI-FI) mainboard has a Dual memory channel and 4 memory slot. It supports DDR4 AMD Ryzen 5000, 3000 Series (4600(O.C), 4400(O.C), 4266(O.C.), 4133(O.C.), 4000(O.C.), 3866(O.C.), 3733(O.C.), 3600(O.C.), 3466(O.C.), 3333(O.C.), 3200, 3000, 2800, 2666, 2400, 2133MHz), AMD Ryzen 4000 G-Series (4800(O.C.), 4600(O.C), 4466(O.C.), 4400(O.C), 4266(O.C.), 4133(O.C.), 4000(O.C.), 3866(O.C.), 3733(O.C.), 3600(O.C.), 3466(O.C.), 3333(O.C.), 3200, 3000, 2800, 2666, 2400, 2133MHz) ram. Maximum ram supports 128GB. Also, you can use 2 M.2/SSD Expansion Slot. Storage Interface is 6.0Gb/s. Asus PRIME B550M-A Wi-Fi 6 AMD Motherboard comes with Integrated Graphics. PCI Express Slot are 1 x PCIe 4.0 x16 (x16 mode), 1 x PCIe 3.0 x16 (x16 mode), 2 x PCIe 3.0 x1. The here audio chipset used Realtek ALC887.. Audio Channel available are 7.1, so you can enjoy crystal clear sound. For Network and Connectivity purposes the Asus motherboard offers Realtek RTL8111H lan chipset and it’s speeds 10/100/1000. USB port available 2 x USB3.2 Gen 2 Type-A, 5 x USB3.2 Gen 1 Type-A, 2 x USB2.0. Also, you will get VGA Port, DVI Port,HDMI Port, SATA Port and TPM Port. . It’s a MATX motherboard. Yes it’s a RGB support motherboard, also you can 2 x Aura RGB Strip Headers RGB connector. The Asus PRIME B550M-A Wi-Fi 6 AMD Motherboard supported operating system is Windows 10. You will get a 3 Years Replacement Warranty brand warranty.

What is the Asus PRIME B550M-A (WI-FI) motherboard Price in Bangladesh?

The Asus PRIME B550M-A (WI-FI) motherboard Price in Bangladesh is given upper. Ryans computers offer Asus PRIME B550M-A Wi-Fi 6 AMD Motherboard is the competitive price in BD. You can purchase it from our website or computer shop.

What is the price of Asus PRIME B550M-A (WI-FI) Motherboard In Bangladesh?

The price of Asus PRIME B550M-A (WI-FI) Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Asus PRIME B550M-A (WI-FI) Motherboard from our website or visit our showrooms nearby.
