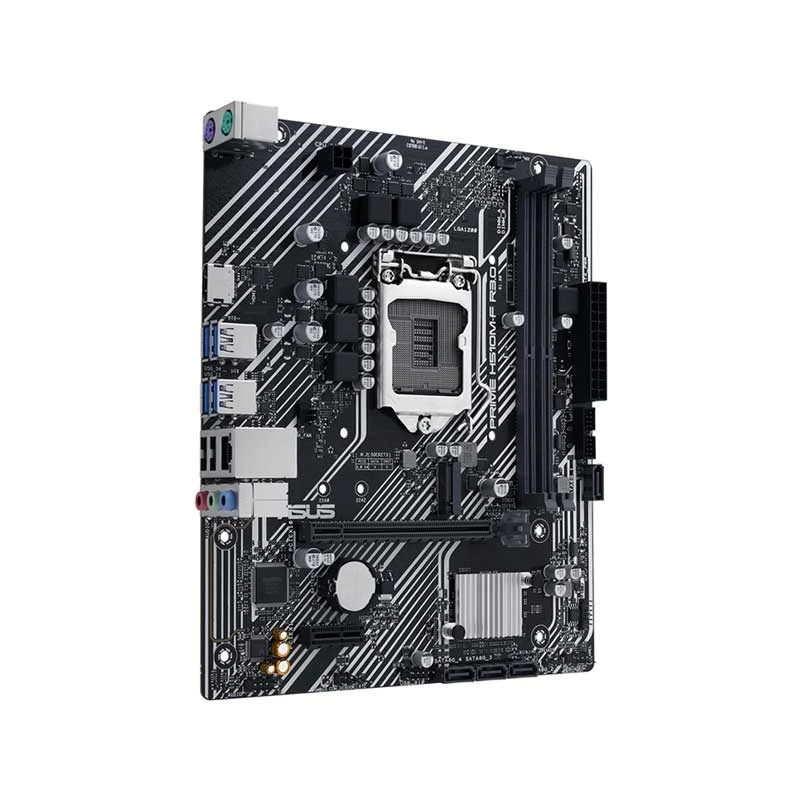

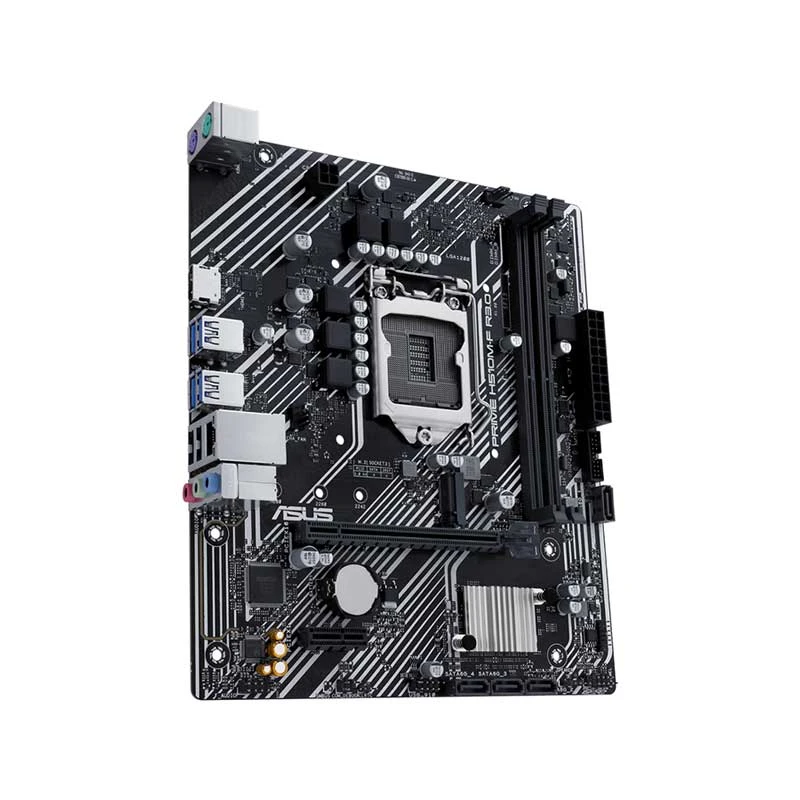

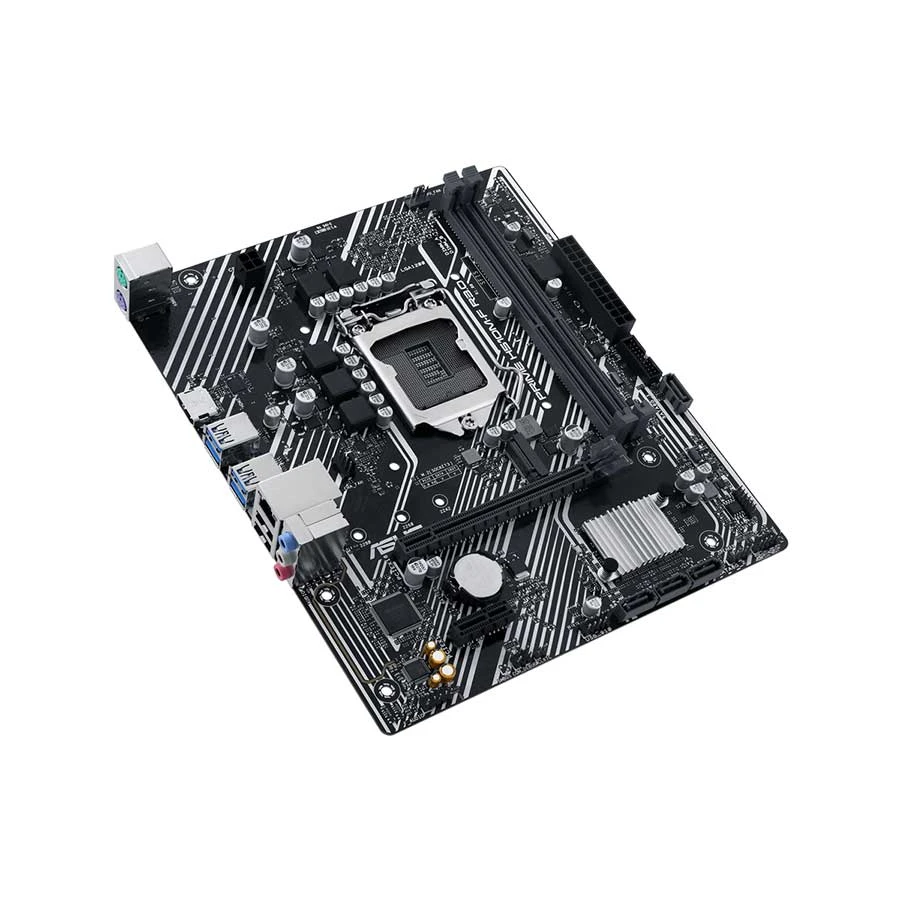

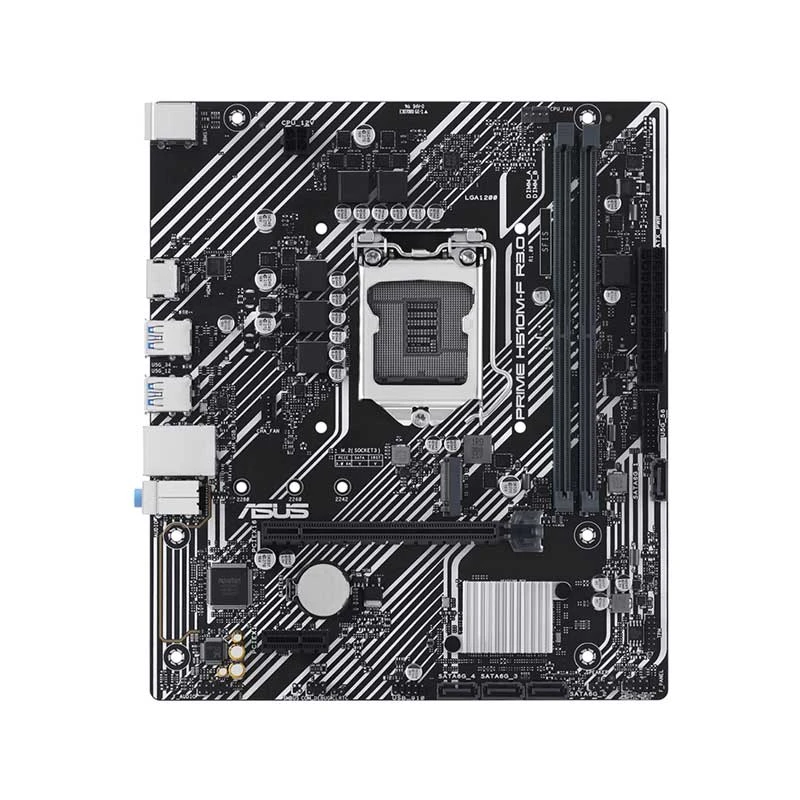

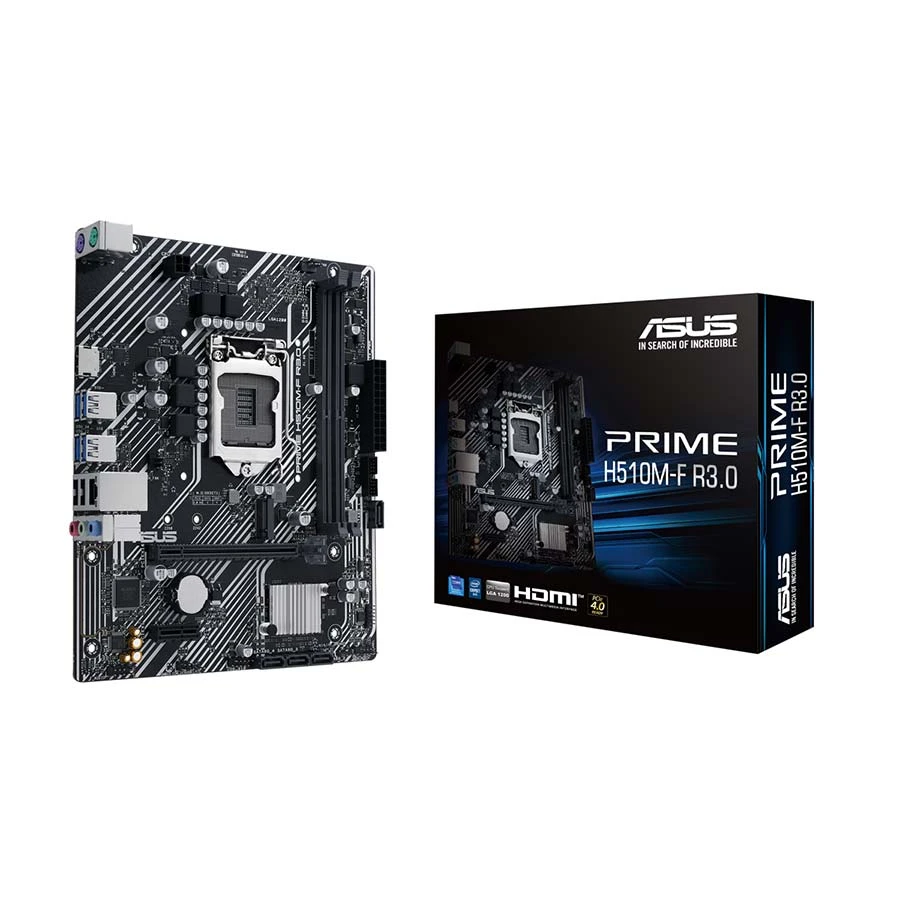

Asus PRIME H510M-F R3.0 H470 Chipset DDR4 Intel Motherboard

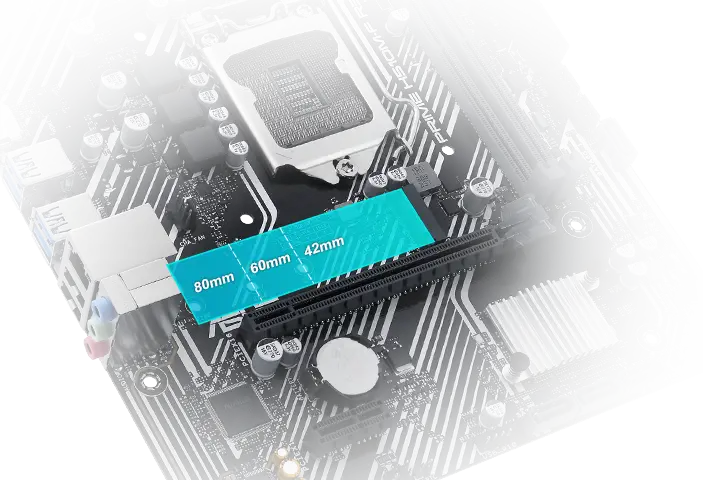

1 x M.2, type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot

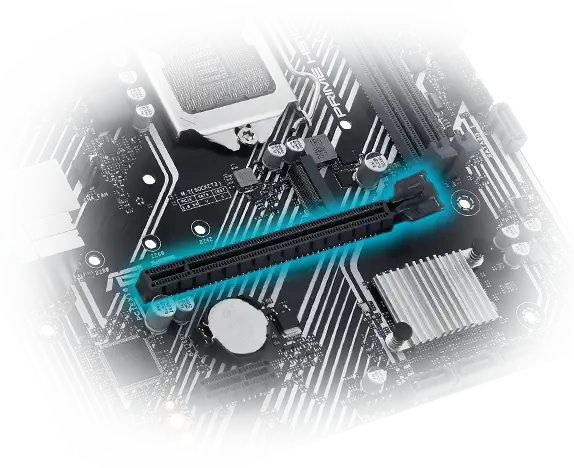

1 x PCIe 4.0/3.0 x16 slot, 1 x PCIe 3.0 x1 slot
Audio & Video
Audio Chipset
Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Realtek 1Gb Ethernet
LAN Speed (Mbps)
10/100/1000Mbps
WiFi
No
Bluetooth
No
Ports
USB Port
4 x USB 5Gbps ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A)
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
No
SATA Port
4
Thunderbolt
No
TPM Port
1
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
No
FireWire
No
CrossFire Support
No
Sli Support
No
RGB Support
No
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Bios Information
BIOS Type
128 Mb Flash ROM
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 10
Compatible Products
Intel Socket LGA1200 for 11th Gen Intel Core & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Warranty
Warranty Details
3 Year Replacement
Additional Info
Feature
Intel LGA 1200 socket: Ready for 11th and 10th Gen Intel Processors, Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, 1Gb Ethernet and USB 5Gbps, Comprehensive cooling: PCH heatsink, 5X Protection III: Multiple hardware safeguards for all-round protection
Others
Accessories: Cables, 2 x SATA 6Gb/s cables, Miscellaneous: 1 x I/O Shield, 1 x M.2 Anchor, Documentation: 1 x Quick start guide
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
Details
QUESTION & ANSWER
Customer Questions
Q:
Nvme supported??
By Shahjalal
A:
Dear Customer, Yes, NVMe M.2 SSDs are supported. Thank you.
By Ryans Computers Ltd.
, 09 Apr 2025
Q:
Asus 510 এর প্রাইজ একটু বেশি মনে হচ্ছে।
By Palash Chandra Roy
A:
প্রিয় গ্রাহক, আমাদের সকল প্রোডাক্ট অথেন্টিক এবং আফটার সার্ভিস ভালো তার জন্য প্রোডাক্টের প্রাইস একটু বেশী হয়ে থাকে কিন্তু আমরা ডিসকাউন্ট দিয়ে থাকি । আমাদের সাথে যোগাযোগ করতে আমাদের হটলাইন নাম্বার:16 810, 09609016810 এবং হোয়াটসঅ্যাপ নাম্বারে:01755513900 (Message only) যোগাযোগ করতে পারেন। ধন্যবাদ।
By Ryans Computers Ltd.
, 13 Jan 2025
