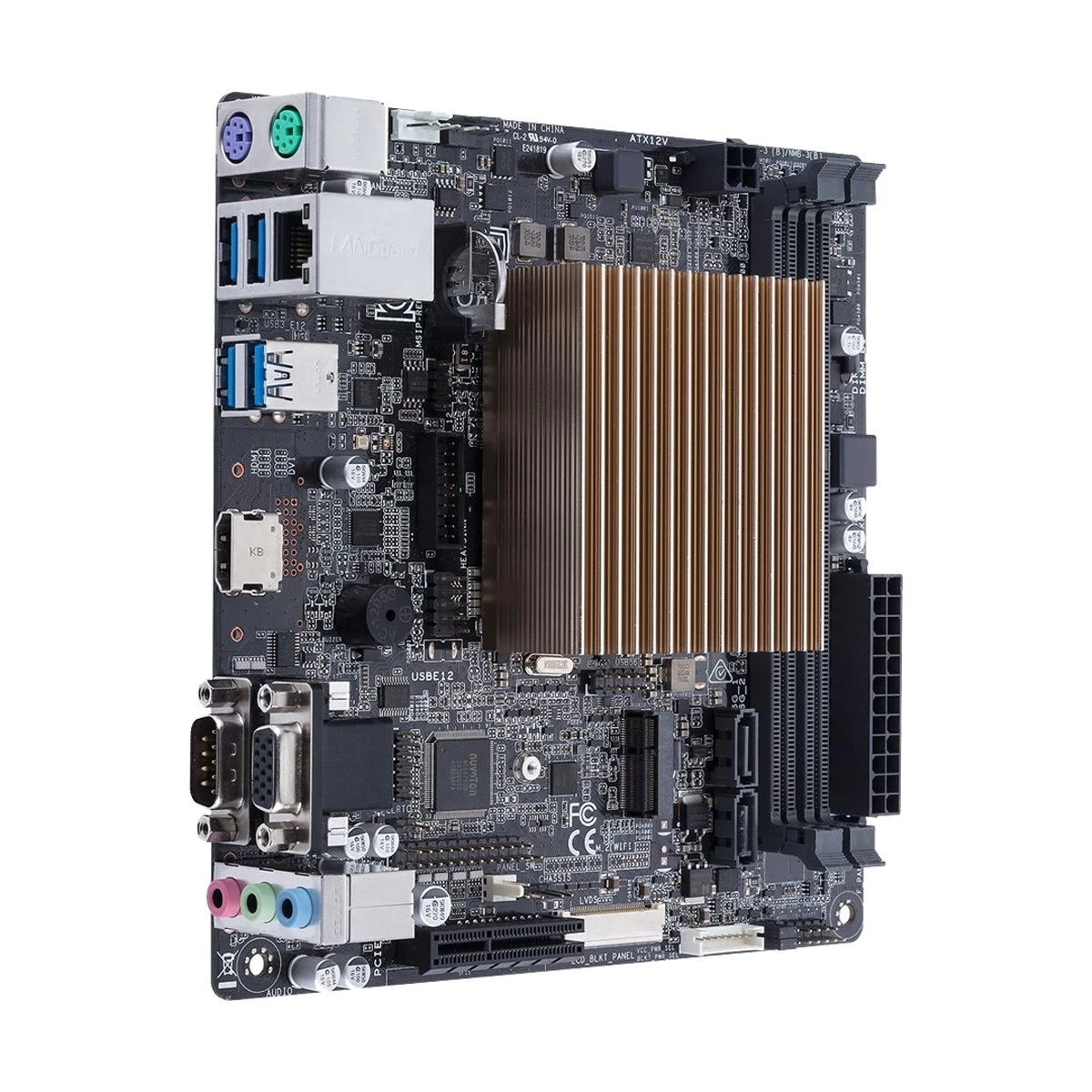

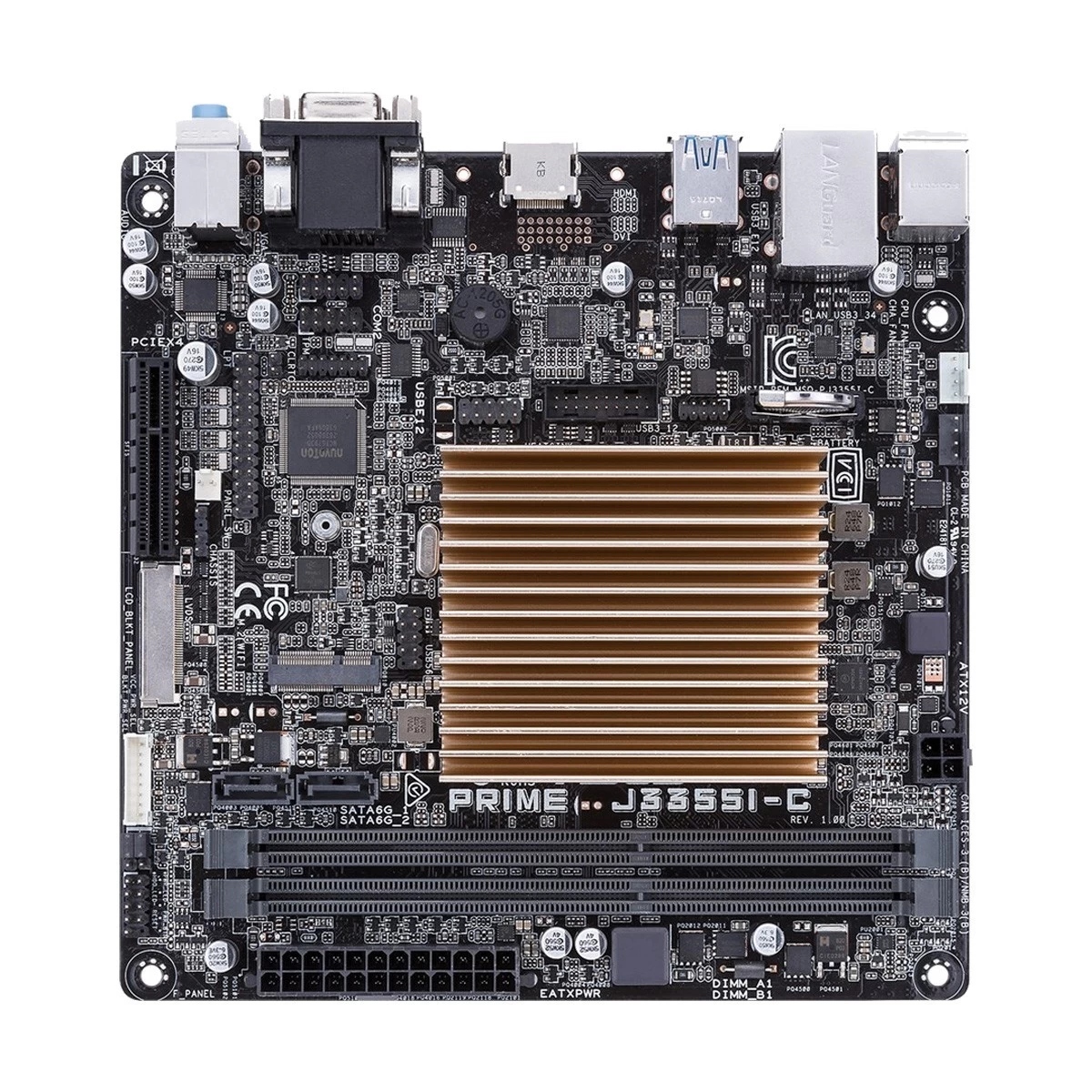

Built with an integrated 2.0 GHz Intel Celeron J3355 Dual-Core processor, the Prime J3355I-C BGA 1296 Mini-ITX Motherboard from ASUS contains features such as 5X Protection II, Fan Xpert, the UEFI BIOS and EZ Mode, plus compatibility with over 1000 devices. This motherboard supports Windows 10 (64-bit), will fit into cases that support a Mini-ITX form factor, and the included CPU is installed in the BGA 1296 socket.
The Prime J3355I-C can support 16GB of non-ECC and unbuffered DDR3 RAM, or 8GB in each of the two DIMM slots. Supported memory speeds include 1866, 1600, and 1333 MHz. It also has a total of 2 x SATA III 6 Gb/s ports for internal storage devices. There are also four USB 3.0 Type-A ports at the back panel, plus two USB 3.0 ports and four USB 2.0 ports located mid-board. For those looking to expand their system using PCIe, there is one PCIe 2.0 x4 slot that runs in x1 mode.
For delivering sharp, clear graphics, the built-in processor supports integrated Intel HD Graphics 500 and the motherboard is equipped with one HDMI port that supports a maximum resolution of 3840 x 2160 @ 30 Hz, plus one VGA port and one LVDS port, each of which supports a maximum resolution of 1920 x 1200 @ 60 Hz. The integrated graphics can access up to 512MB of shared memory and up to two displays are simultaneously supported.
Using the Realtek ALC887-VD2 8-Channel HD audio codec, this motherboard can support 8-channel HD audio using its three audio jacks. The motherboard is also equipped with features such as Gigabit Ethernet, LANGuard, overvoltage protection, DRAM overcurrent protection, ESD guards, 8000+ validation hours, and more. Included is an I/O shield, two SATA III 6 Gb/s cables, and an M.2 screw package. Protection is provided by a limited 3-year warranty.
5X Protection II employs exacting standards to help guarantee quality and long-term durability of your motherboard with all-round protection. For you, that means stability for your build.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and anti-EMI surface-mounted capacitors to help ensure a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.
A circuit design with built-in voltage regulators to help protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's longer than ordinary panels.
ASUS ESD Guards help prevent damage from electrostatic discharge, up to ±10kV for air discharge and ±6kV for contact discharge, arranged in an active-protective-circuit design that helps prolong the life of components. ESD guards help protect the LAN port, USB connects, VGA connectors, and keyboard/mouse connectors
Tested to be compatible with 1000+ CPUs, DDR4 memory modules, graphics cards, sounds cards, optical drives, and more.
ASUS motherboards have superb endurance. They verify this by subjecting every board to more than 8000 hours of stringent tests. A barrage of burn-in, environmental, compatibility, software, and safety tests confirm that their motherboards are robust.
Ensures components withstand extreme conditions.
Ensures that the system remains cool and stable under the heaviest loads.
Every port and connector is put through repeated installation cycles.
Up to 48-hour aging test ensures reliability.
Checked for energy efficiency.
Ensures that the motherboard is capable of coping with voltage fluctuations caused by varying temperatures.
Helps ensures the ability to survive temperature changes during transportation, ranging from -40 to 185°F / -40 to 85°C.
Built to withstand jolts that may occur during shipping.
Every component is checked to ensure operation in most environments.
Connector placement is double-checked to help ensure a user-friendly installation.
Drop tests from various heights help ensure durability.
Tested for I/O reliability, prolonged lifespan, and rust-resistance.
Fan Xpert helps ensure every fan achieves a good balance of cooling performance and low noise. With Prime 200 series boards and their hardware-level 4-pin/3-pin PWM/DC mode for case fans, a simple BIOS adjustment lets you run your case fan in PWM/DC. Fan Xpert even includes Auto-Tuning mode to scan and detect all fan characteristics for single-click customization.
ASUS has put two 5 Gb/s USB 3.0 ports on the front panel, enabling faster data transfer speeds and plug-and-play connectivity.
Fitting your ASUS motherboard is now safer than before. The comprehensive component-free "safe zones" around every case-mounting hole helps minimize the risk of damage and short circuits caused by contact.
Even if you work with a smaller case, just push down on the one-sided clip and push or pull RAM modules in or out.
The mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, EZ and Advanced modes help you find your way, quickly and easily.
EZ Flash 3
Update the BIOS via the Internet, without leaving the BIOS interface.
S.M.A.R.T.
Check your storage device Self-Monitoring, Analysis, and Reporting Technology logs to gauge reliability and possibly to determine potential failures.
Q-Fan Control
You can configure the fan's operating speed manually, or use the easy pre-configured fan profiles to select Standard, Silent, Turbo, or Full Speed modes.
My Favorite
Quickly find tuning options and add preferred tools to the list.
Intuitive Graphical Fan Control
Fine-tune individual fans simply by dragging a curve with the mouse.
EZ XMP
Improve DRAM performance with a click.
SATA Information
Display SATA port details for device identification.
Fast Clock Adjustment
Use mouse controls to quickly change time and date settings.
Last Modified Log
Track last change and save preferred profiles onto a USB drive.
SATA Port Renaming
Rename SATA ports for easy identification.
ASUS AI Suite 3 offers a user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages, and more. This all-in-one app offers easy-to-use functionality, with no need to switch back and forth between different utilities.
This motherboard features an integrated 2.0 GHz Intel Celeron J3355 Dual-Core processor and integrated Intel HD Graphics 500. This 14nm low voltage SoC (System On a Chip) combines processing power and HD graphics support in one small, energy efficient design. Despite minimal power requirements, it still has the processing power to display DirectX 11.1 HD graphics. It features support for 4K/UHD resolutions of up to 3840 x 2160, and also has integrated USB 3.0 support.
The price of Asus PRIME J3355I-C Motherboard not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy Asus PRIME J3355I-C Motherboard from our website or visit our showrooms nearby.
