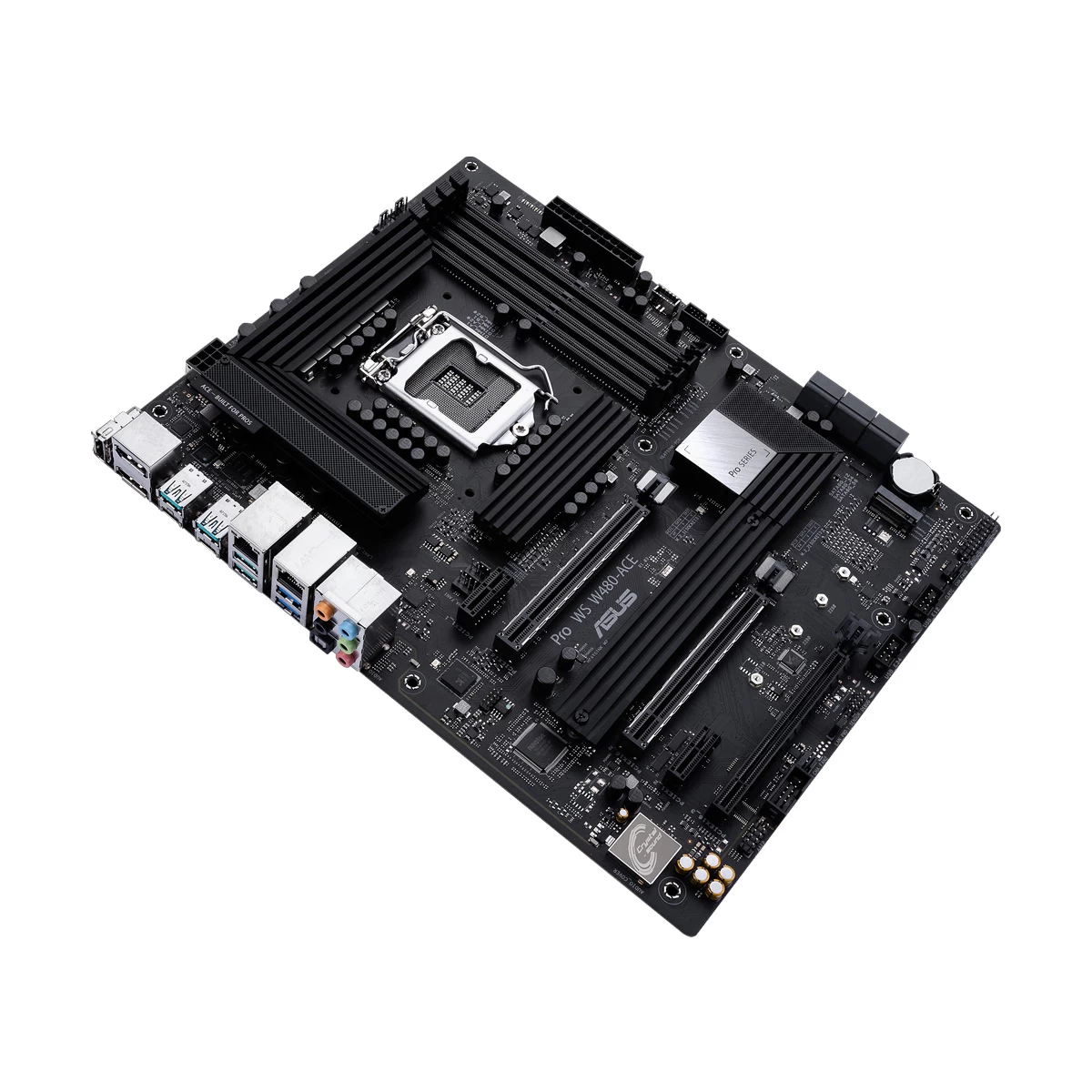

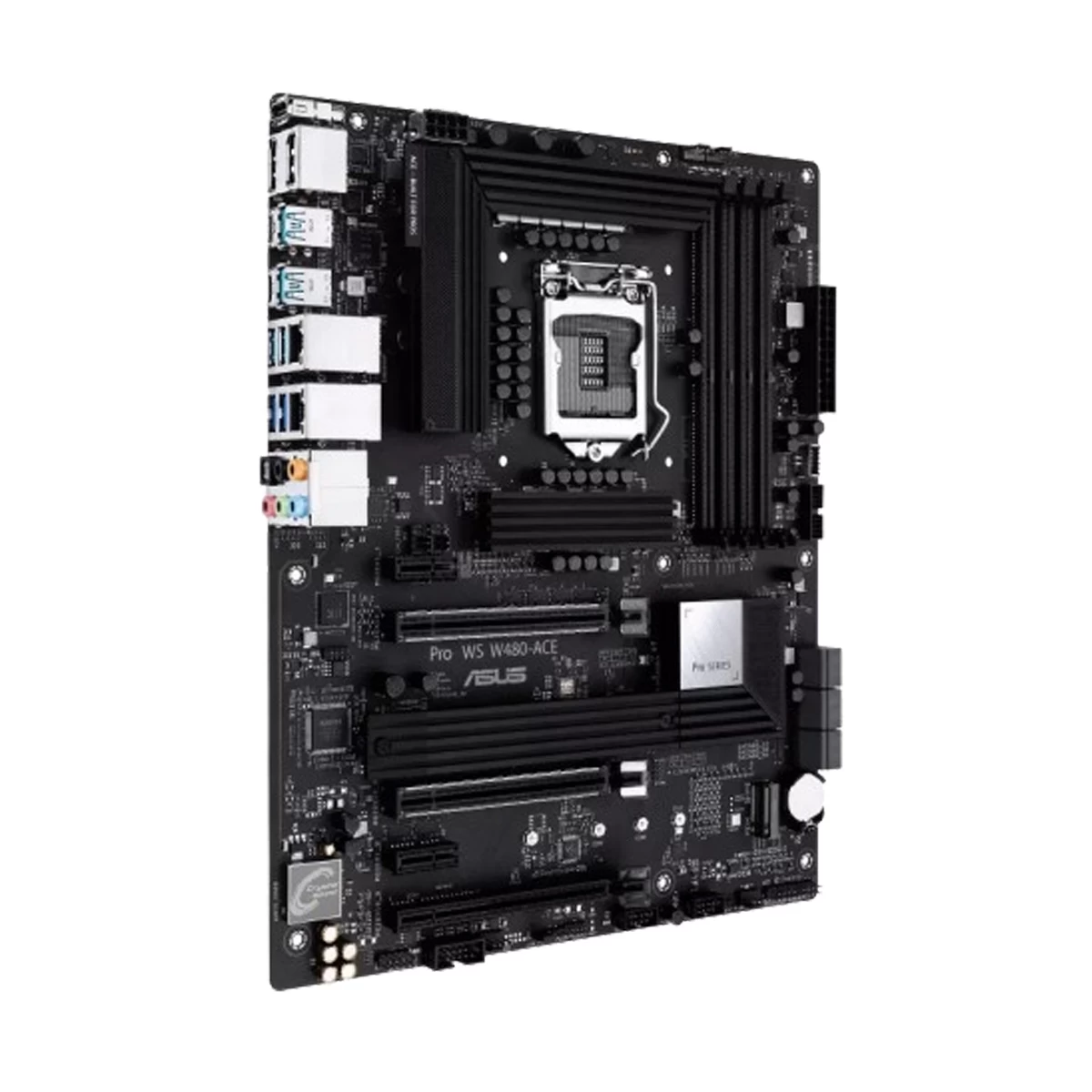

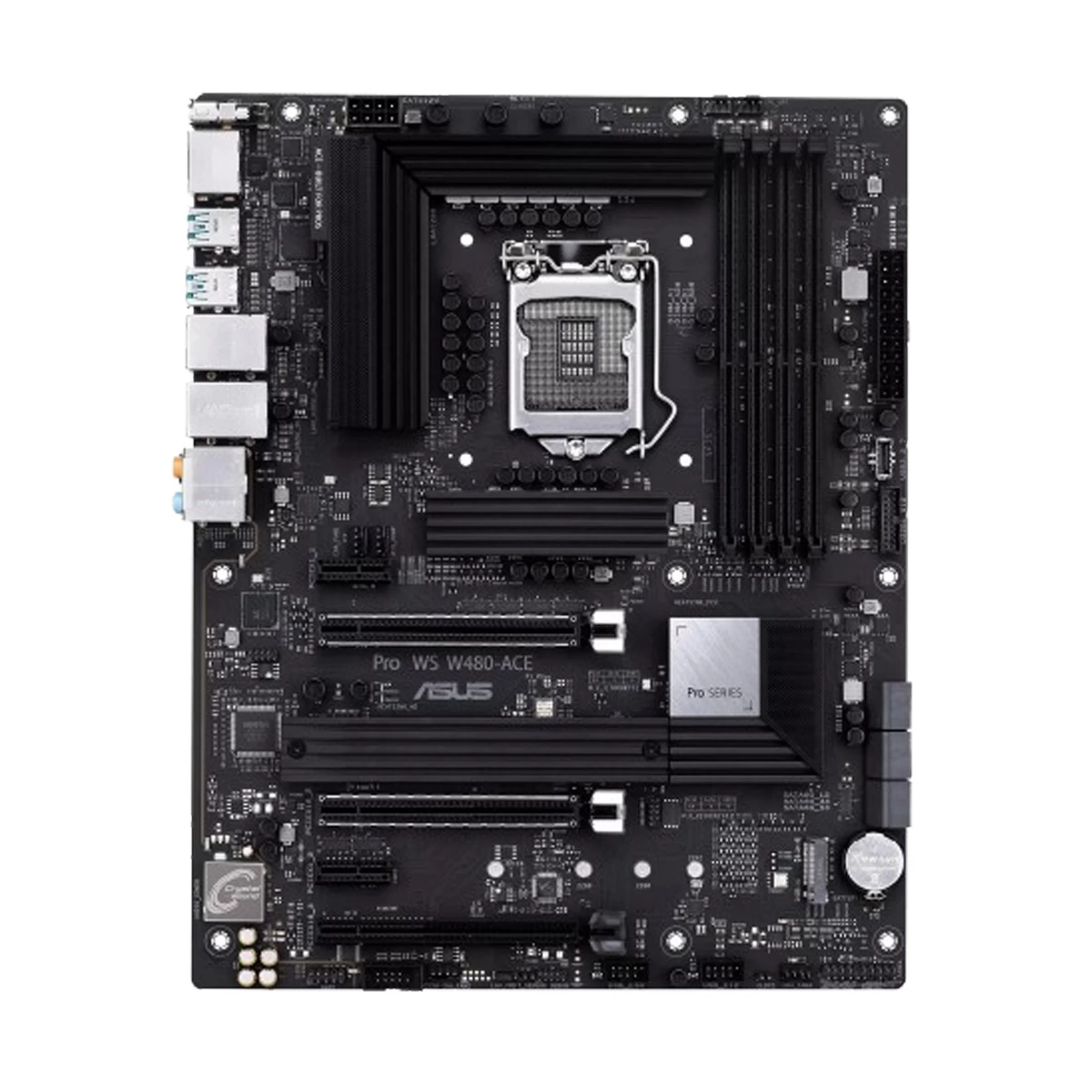

Asus Pro WS W480-ACE DDR4 10th Gen Intel LGA1200 Socket Workstation Motherboard

Product Id: 02.01.006.370

Brand Asus

Regular Price Tk 0
Special Price Tk 0

This item is discontinued.

See similar model

Quick Overview

  • Chipset - Intel W480
  • Sockets Supported - LGA1200
  • Supported CPU - Intel 10th Gen Intel Xeon Core, Pentium Gold and Celeron Processors, Supports Intel 14 nm CPU
  • Generation - 10th/11th
  • Memory Slot - 4
  • Memory Max. - 128GB
General
Brand
Asus

Model
Asus Pro WS W480-ACE

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel W480

Sockets Supported
LGA1200

Built-in Processor
No

Supported CPU
Intel 10th Gen Intel Xeon Core, Pentium Gold and Celeron Processors, Supports Intel 14 nm CPU

Generation
10th/11th


Memory Support
Memory Type
DDR4

Memory MHz
4800(O.C.)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133MHz Non-ECC, Un-buffered Memory

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DDR4 DIMM

Memory Max.
128GB

Optane Memory Support
Yes


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
2

M.2/SSD Expansion Slot Details
2 x M.2 (2 x M.2 type 2242/2260/2280/22110 support SATA & PCIE 3.0 x 4 mode)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated with Processor

Multi-GPU Support
Supports AMD 3-Way CrossFireX Technology

PCI Express Slot
2 x PCIe 3.0 x16 (x16 or dual x8), 1 x PCIe 3.0 x16 (x4 mode), 2 x PCIe 3.0 x1


Audio & Video
Audio Chipset
Realtek ALC S1220A HD Audio CODEC

Audio Channel
8


Network & Connectivity
LAN Chipset
Intel I225-LM 2.5Gb Ethernet & Realtek RTL8117

LAN Speed (Mbps)
10/100/1000/2500Mbps

WiFi
No

WiFi Technology
Not Applicable

Bluetooth
No


Ports
USB Port
2 x USB 3.2 Gen 2 Type-C, 4 x USB 3.2 Gen 2 port Type-A, 2 x USB 3.2 Gen 1 ports Type-A

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
6

Thunderbolt
2

TPM Port
No

COM Port
Yes


Technical Info
DirectX Support
No

FireWire
No

CrossFire Support
Yes

Sli Support
No

Raid Support
0, 1, 5, 10

RGB Support
No

RGB Sync
Not Applicable

RGB Connector
Not Applicable

Approx. Power Consumption
70W

Form Factor
ATX


Bios Information
BIOS Type
128 Mb Flash ROM

BIOS Model
UEFI AMI BIOS


Compatibility
Supported Operating System
Windows 10

Compatible Products
LGA1200 Socket 10th & 11th Gen Intel Processor


Warranty
Warranty Details
3 year


Additional Info
Feature
ASUS Exclusive Software, Performance And Power Saving Utility, IT Management software supported, ASUS Turbo LAN, ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Ultrafast USB Connectivity, Robust Power Design, AI Cooling, CPU Temperature Detection, Automated Optimization

Others
Manageability: WOL by PME, PXE, Internal I/O Ports: (1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 3 x Chassis Fan connector(s), 1 x AIO PUMP connector, 1 x 24-pin EATX Power connector(s), 1 x 8-pin EATX 12V Power connectors, 1 x Front panel audio connector(s) (AAFP), 1 x System panel(s) (Chassis intrusion header is inbuilt) x With flexkey function, 1 x Thermal sensor connector(s), 1 x Clear CMOS jumper(s), 1 x COM port header)

Country Of Origin
Taiwan

Made in/ Assemble
China
