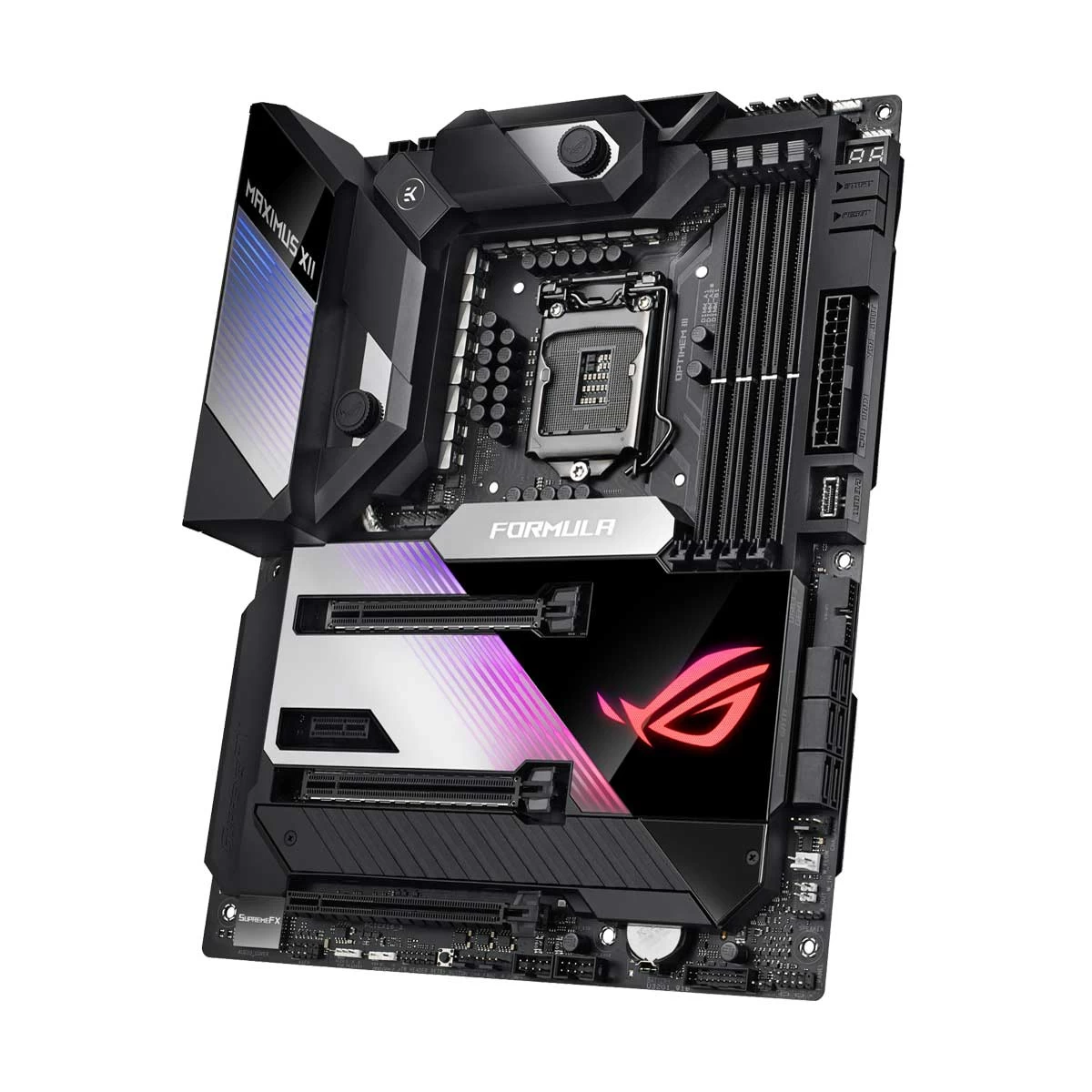

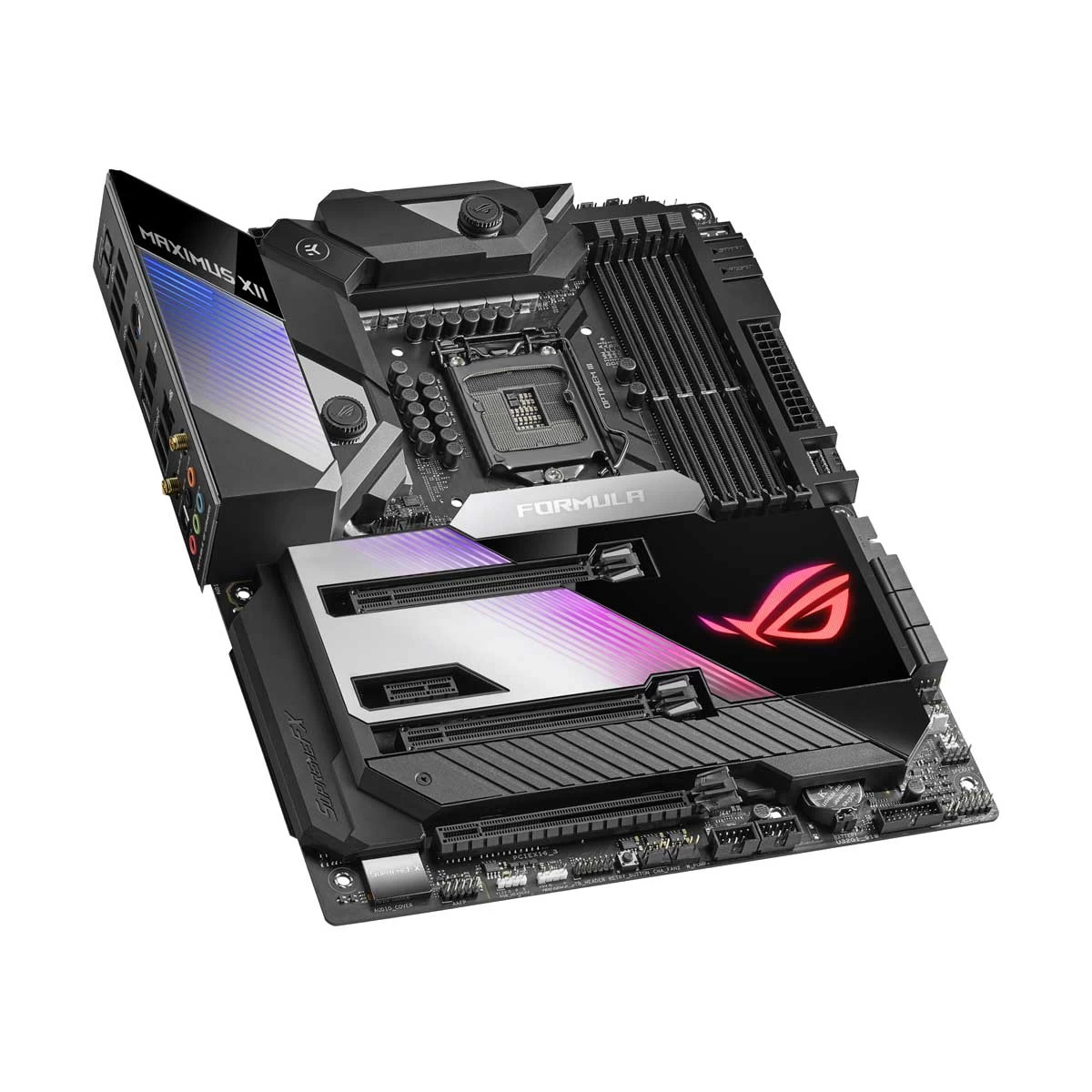

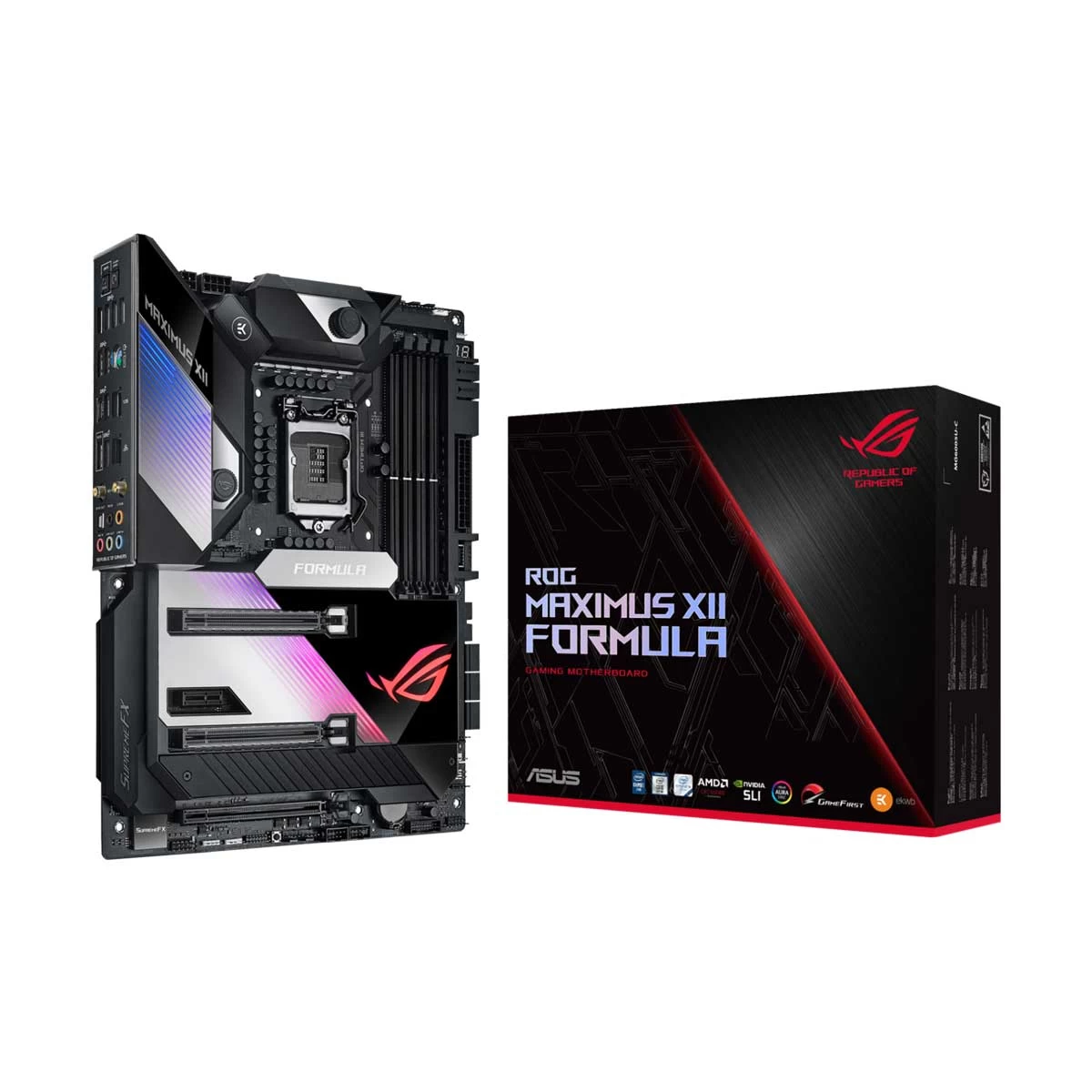

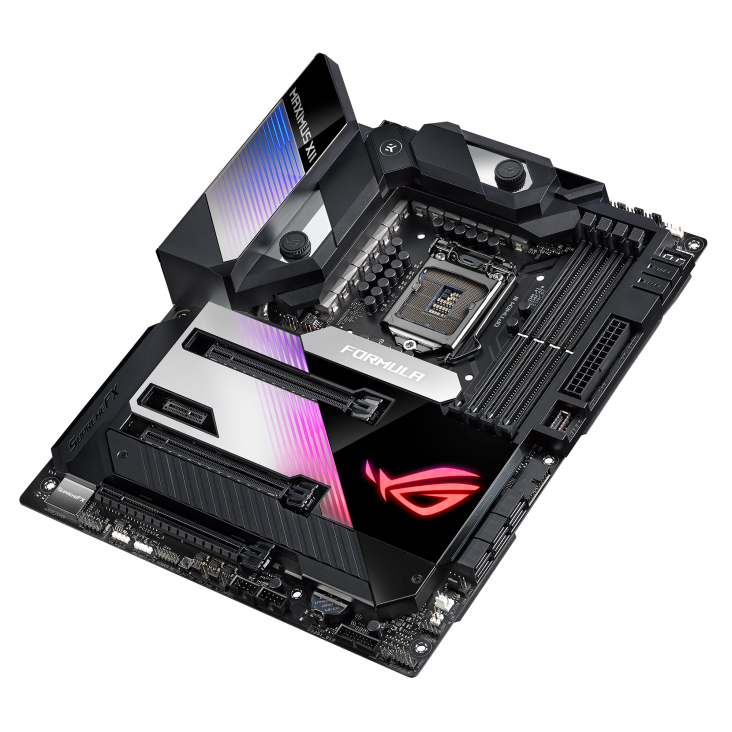

Asus ROG MAXIMUS XII FORMULA Wi-Fi 6 Gaming Motherboard

Product Id: 02.01.006.288

Brand Asus

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

Quick Overview

  • Chipset - Intel Z490
  • Sockets Supported - LGA1200
  • Supported CPU - 10th Generation Intel Core i9 / i7 / i5 / i3 / Pentium Gold / Celeron Processors
  • Generation - 10th/11th
  • Memory Slot - 4
  • Memory Max. - 128GB
General
Brand
Asus

Model
Asus ROG MAXIMUS XII FORMULA

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel Z490

Sockets Supported
LGA1200

Built-in Processor
No

Supported CPU
10th Generation Intel Core i9 / i7 / i5 / i3 / Pentium Gold / Celeron Processors

Generation
10th/11th


Memory Support
Memory Type
DDR4

Memory MHz
4800(O.C.)/ 4700(O.C)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133MHz

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DDR4 DIMM

Memory Max.
128GB

Optane Memory Support
Yes


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
3

M.2/SSD Expansion Slot Details
3 x M.2 Socket 3 (1 x M.2 socket 3 (M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)), 1 x M.2 socket 3 (M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)), 1 x M.2 socket 3 (M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)))


Graphics
Graphics
Integrated

Graphics Chipset
Integrated with Processor

Multi-GPU Support
2-Way NVIDIA SLI, 3-Way AMD CrossFireX

PCI Express Slot
2 x PCIe 3.0 x16 (x16 or dual x8), 1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 3.0 x1


Audio & Video
Audio Chipset
ROG SupremeFX

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Marvell AQtion AQC107 & Intel I225-V

LAN Speed (Mbps)
10Gbps, 2.5Gbps

WiFi
Yes

WiFi Technology
Intel Wi-Fi 6 AX201

Bluetooth
Bluetooth 5.1


Ports

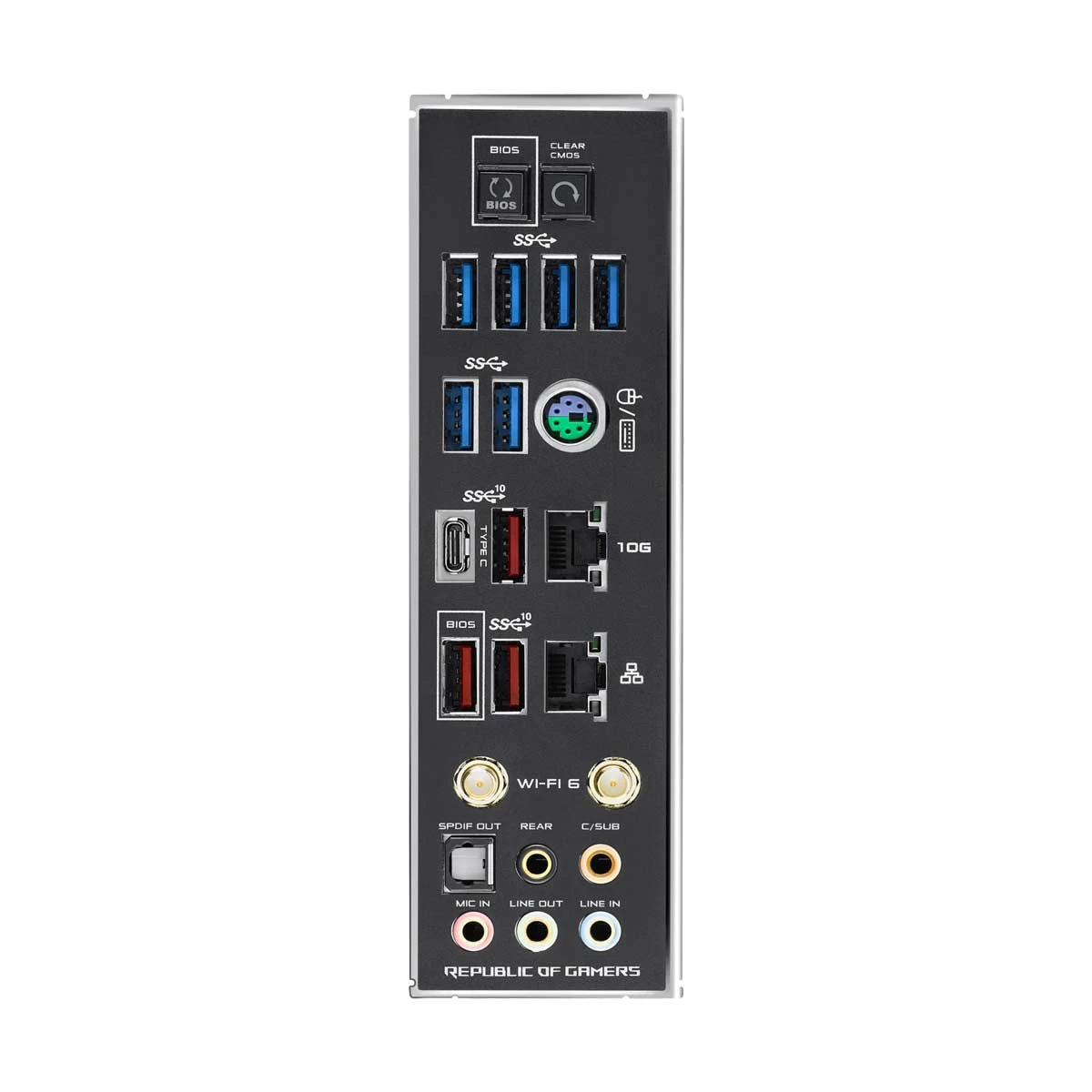

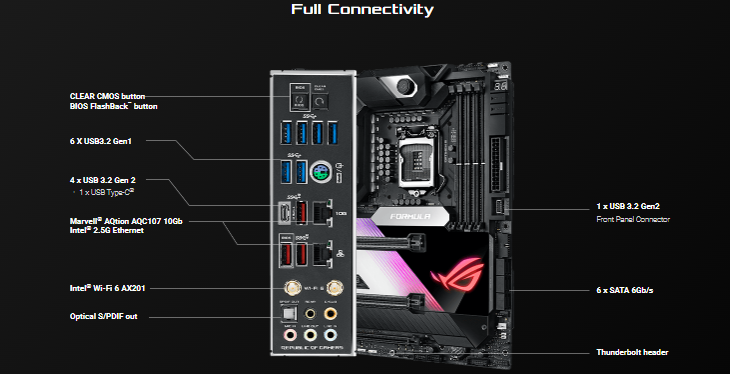

USB Port
1 x USB3.2 Gen 2 Type-C, 4 x USB3.2 Gen 2 Type-A, 10 x USB3.2 Gen 1 Type-A, 4 x USB2.0

VGA Port
No

DVI Port
No

HDMI Port
No

DisplayPort (DP)
No

IDE Port
No

SATA Port
6 x SATA

Thunderbolt
1

TPM Port
No

COM Port
No


Technical Info
DirectX Support
No

FireWire
No

CrossFire Support
Yes

Sli Support
Yes

Raid Support
0, 1, 5, 10

RGB Support
RGB

RGB Sync
Aura Sync

RGB Connector
2 x Aura RGB Strip Headers

Approx. Power Consumption
70W

Form Factor
ATX


Bios Information
BIOS Type
256 Mb Flash ROM

BIOS Model
UEFI AMI BIOS


Compatibility
Supported Operating System
Windows 10

Compatible Products
LGA1200 Socket 10th & 11th Gen Intel Processor


Warranty
Warranty Details
3 Years Replacement Warranty


Additional Info
Feature

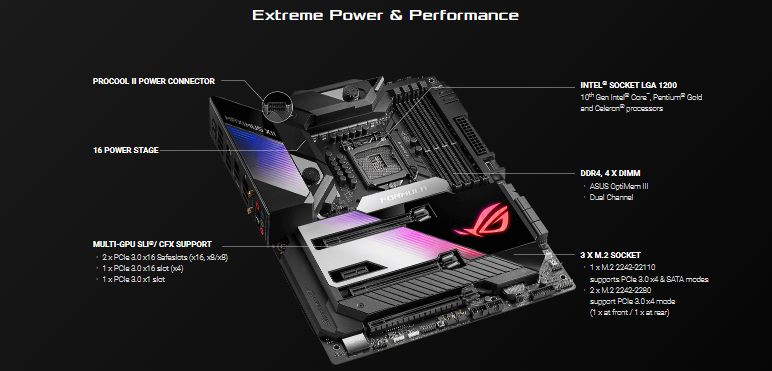

LGA 1200 socket for 10th-gen Intel Core desktop processors, AI Feature, AI Overclocking, AI Cooling and AI Networking (GameFirst VI), Robust power delivery, Optimized power solution with 16 power stages, ProCool II power connectors, MicroFine Alloy chokes and 10K capacitors, Cooling & Performance, OptiMem III, CrossChill EK III, 16 teamed power stages with extended heatsink, high conductive thermal pad, ROG water cooling zone, M.2 heatsink and backplate, Intel Wi-Fi 6, 10 Gb Ethernet and Intel 2.5 Gb Ethernet, triple M.2 slots, ATX motherboard for 10th Gen Intel Processor with 16 power stages, EK CrossChill III, OptiMem III, triple M.2, on-board Wi-Fi 6 (AX201), 10 Gb Ethernet and 2.5 Gb Ethernet, USB 3.2 Gen 2, Aura Sync RGB lighting

Others
Wireless Data Network: Intel Wi-Fi 6 AX201, Bluetooth 5.1, 1 x CPU Fan connector(s), 1 x AAFP connector, 2 x Aura RGB Strip Headers, 2 x Addressable Gen 2 header(s), 1 x Thunderbolt header(s), 1 x Thermal sensor connector(s), 1 x System panel connector, 1 x Speaker connector, 1 x Start button, 1 x FlexKey button, 1 x Clear CMOS button(s), 1 x USB BIOS FlashBack Button(s), 1 x ASUS Wi-Fi Module, 5 x Gold-plated audio jacks, 1 x Aquantia AQC-107 10G LAN port

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
