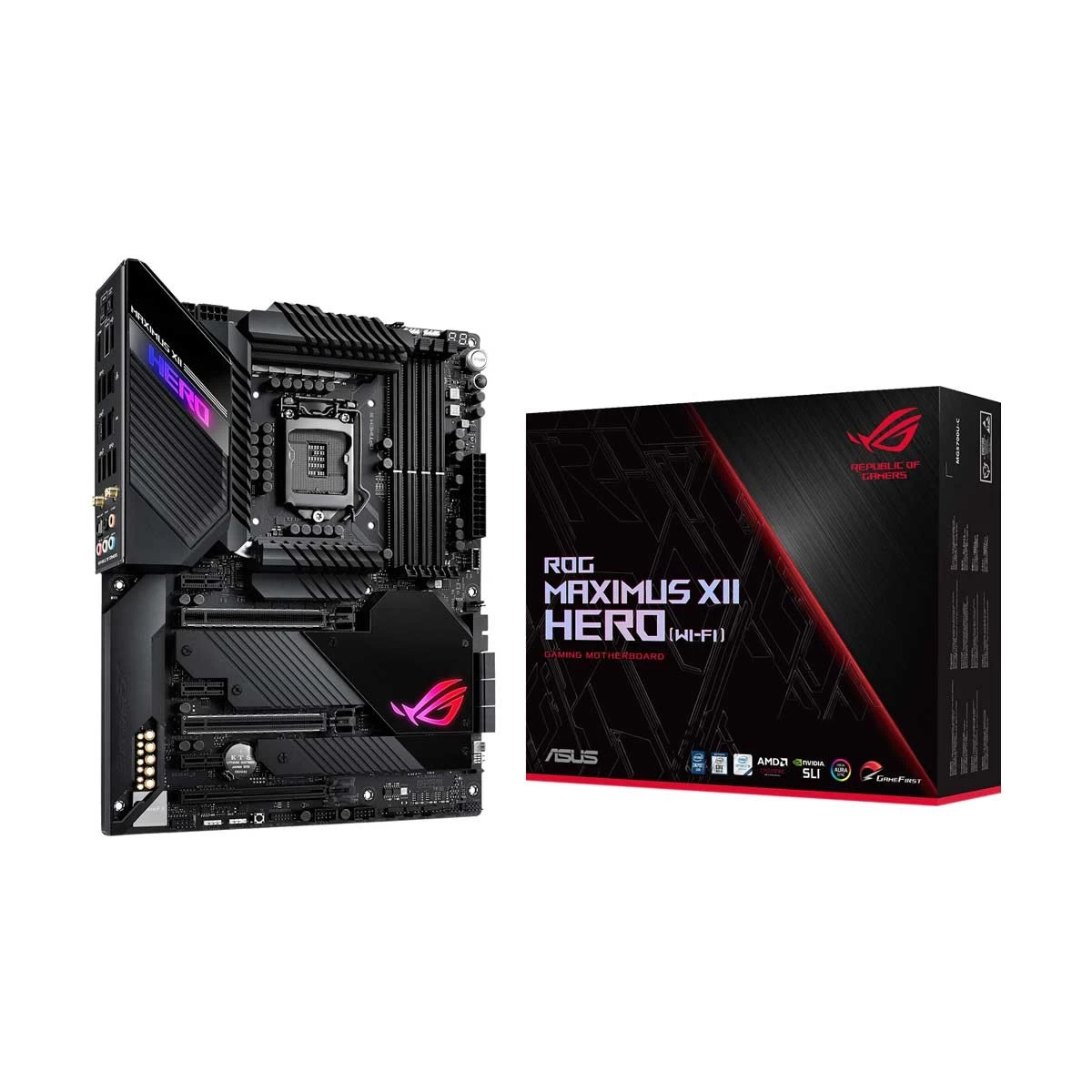

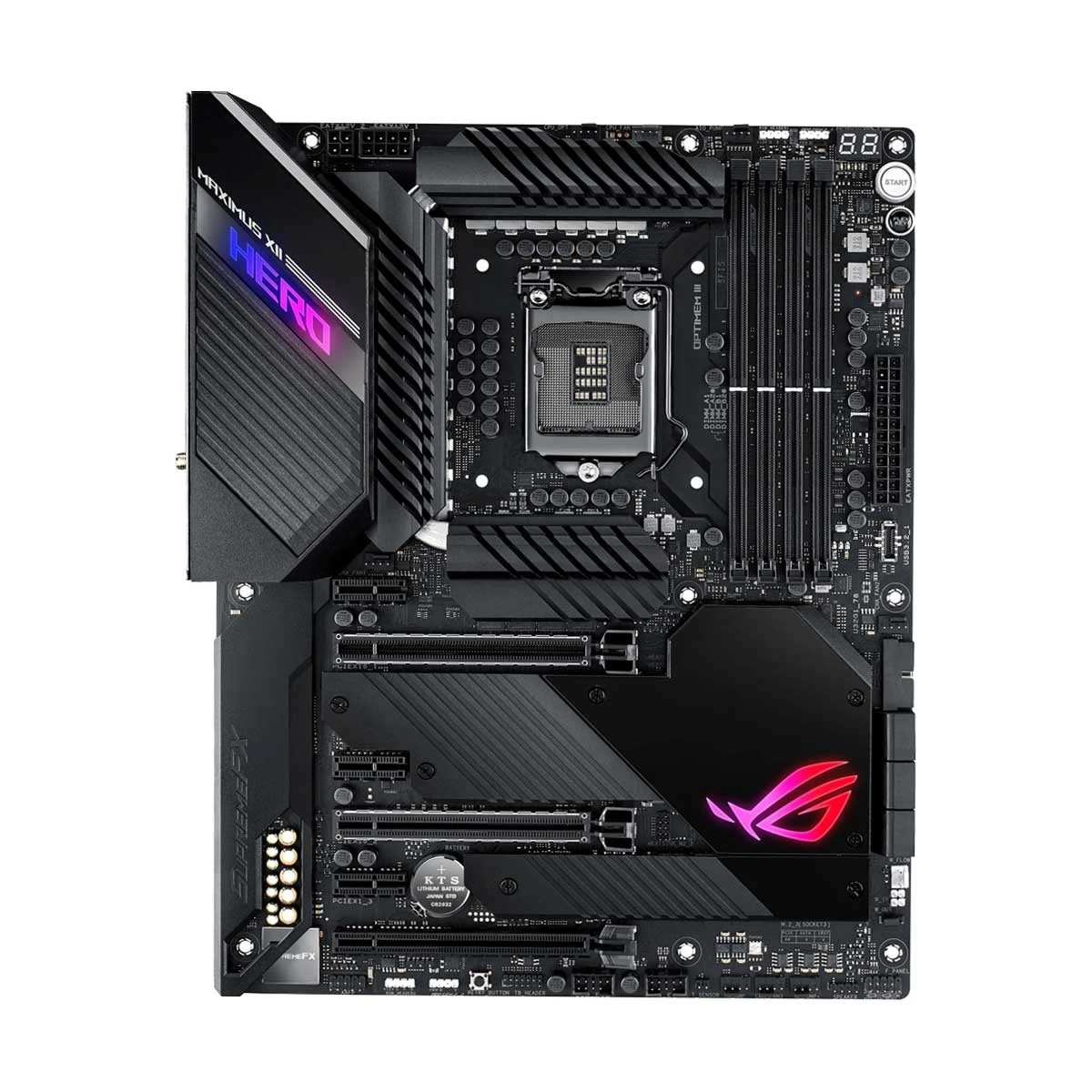

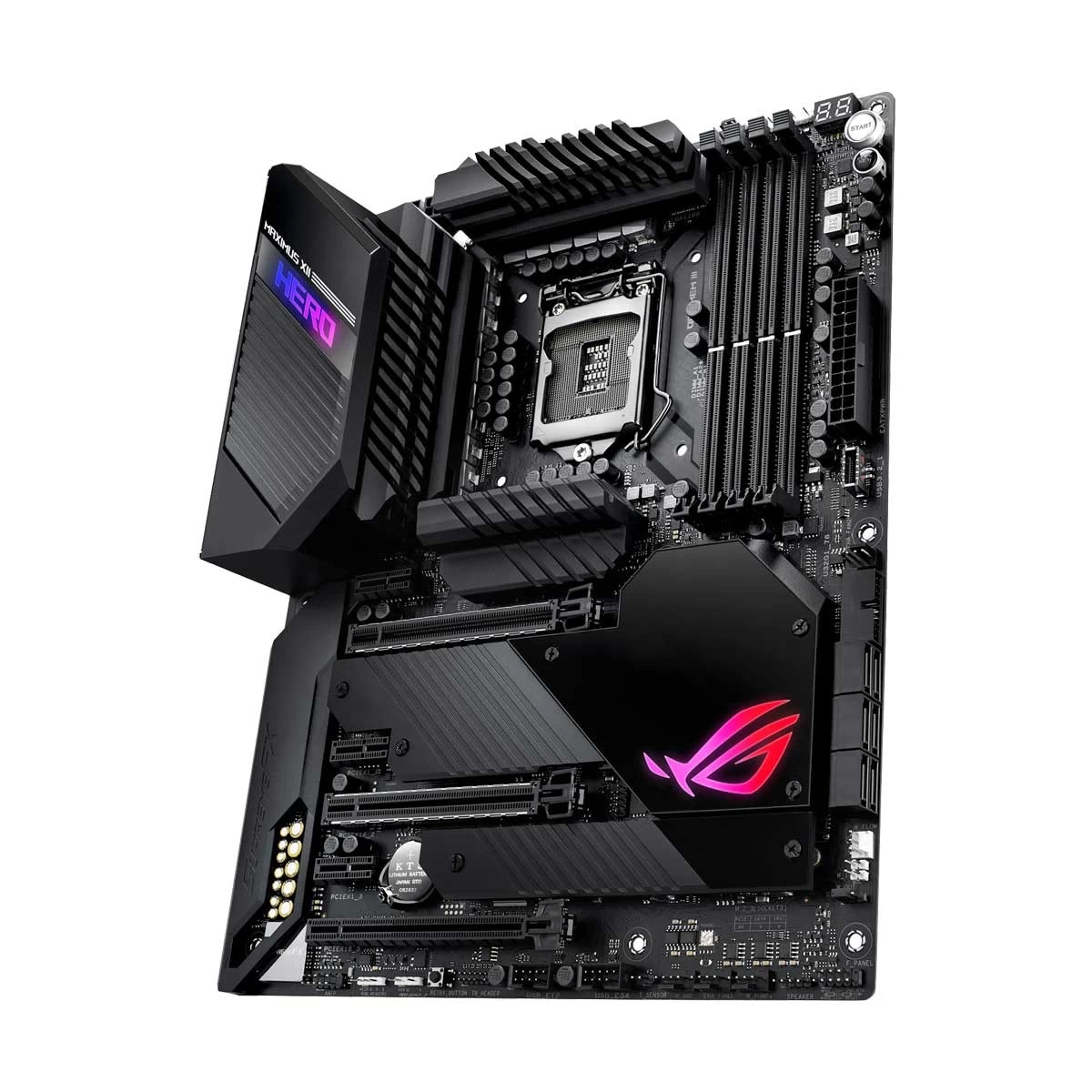

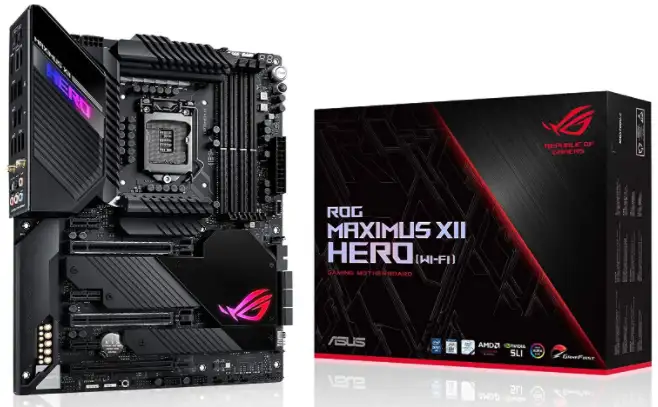

Asus ROG MAXIMUS XII HERO Wi-Fi 6 Z490 Chipset Intel Gaming Motherboard
Product Id: 02.01.006.284
Brand
Asus
Regular Price
Tk 0
This item is discontinued.
Quick Overview
- Chipset - Intel Z490
- Sockets Supported - LGA1200
- Supported CPU - 10th Generation Intel Core i9 / i7 / i5 / i3 / Pentium Gold / Celeron Processors
- Generation - 10th
- Memory Slot - 4
- Memory Max. - 128GB
- Back-Connect Design - No
Brand
Asus
Model
Asus ROG MAXIMUS XII HERO
Chipset
Intel Z490
Sockets Supported
LGA1200
Built-in Processor
No
Generation
10th
Back-Connect Design
No
Memory Type
DDR4
Memory Slot
4
Memory Max.
128GB
Optane Memory Support
Yes
Graphics
Integrated
Graphics Chipset
Integrated with Processor
M.2/SSD Expansion Slot
3
WiFi
Yes
Bluetooth
Bluetooth 5.1
Form Factor
ATX
Supported Operating System
Windows 10
Body Color
Black
Warranty Details
3 Years Replacement Warranty
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Asus ROG MAXIMUS XII HERO Motherboard In Bangladesh
Asus ROG MAXIMUS XII HERO
Powered exclusively by 10th Generation Intel Core, Pentium Gold, and Celeron processors, the Republic of Gamers Maximus XII Hero LGA 1200 ATX Motherboard (Wi-Fi) from ASUS packs enhanced memory pathways across different PCB layers, boasts a robust power design with 14+2 power stages with a ProCool II power connector, smart cooling, and faster memory support with ASUS OptiMem III. It has been designed with ROG features that include AI overclocking, AI cooling, and Aura Sync illumination. This motherboard will fit in ATX sized cases, supports the LGA 1200 socket, the Intel Z490 chipset, and is compatible with Windows 10 (64-bit).
The ATX form factor of the ROG Maximus XII Hero can support up to 128GB of DDR4 RAM over four dual-channel slots, or 32GB per slot at speeds of 4700+ (OC), 4600 (OC), 4500 (OC), 4400 (OC), 4266 (OC) 4133 (OC), 4000 (OC), 3866 (OC), 3733 (OC), 3600 (OC), 3466 (OC), 3400 (OC), 3333 (OC), 3200 (OC), 3000 (OC), 2933 (OC), 2800 (OC), 2666, 2400, and 2133 MHz non-ECC unbuffered memory. For storage, there are six SATA III 6 Gb/s ports and three M.2 Key M sockets, two of which support type 2242, 2260, 2280, and 22110 SATA and PCIe 3.0 x4 SSDs, while the other supports type 2242, 2260, and 2280 SATA and PCIe 3.0 x4 SSDs. The ROG Maximus XII Hero supports Intel Optane Memory and allows its storage to be configured as RAID 0, 1, 5, and 10.

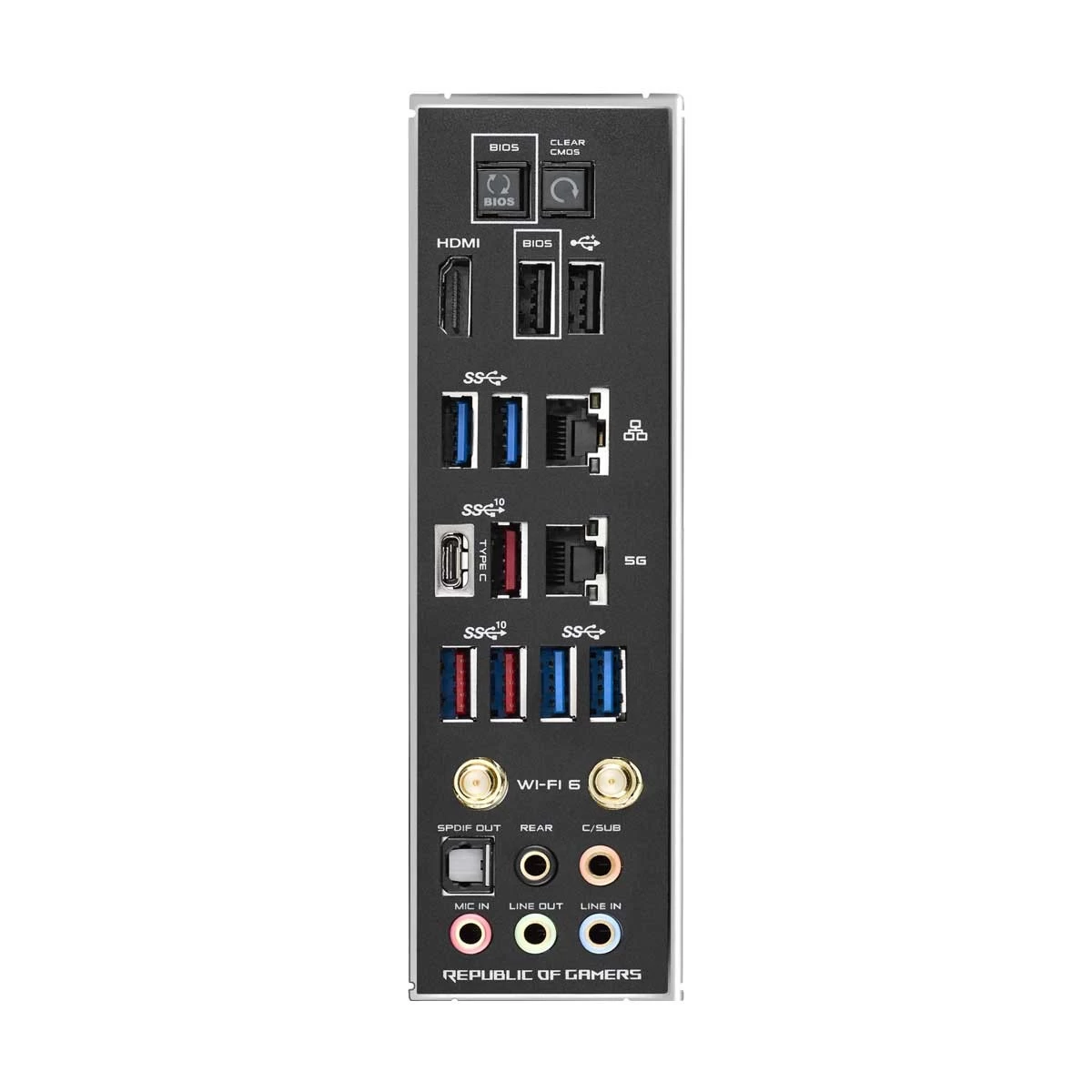

There is one USB 3.2 Gen 2 Type-C port (rear panel), three USB 3.2 Gen 2 Type-A ports (rear panel), four USB 3.2 Gen 1 Type-A ports (rear panel), two USB 2.0 Type-A ports (rear panel), and more internal USB headers that support USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1, and USB 2.0. For those looking to expand their system using PCIe, there are two PCIe 3.0 x16 slots that support x16 or x8/x8, one PCIe 3.0 x16 slot that supports x4, and three PCIe 3.0 x1 slots. Network connectivity is achieved using a Marvell AQtion AQC111C 5Gb Ethernet port or an Intel I219V Gigabit Ethernet port, while wireless connectivity is provided by Wi-Fi 6 (802.11ax) and Bluetooth 5.1.
For delivering sharp, clear graphics, this motherboard has an HDMI 1.4b port, though graphics specs vary between CPU types. For users looking to take advantage of multiple GPUs, the ROG Maximus XII Hero supports AMD 3-Way/2-Way CrossFireX and NVIDIA 2-Way SLI technologies.
Using the ROG SupremeFX S1220 8-Channel HD audio codec, the ROG Maximus XII Hero can support audio with higher fidelity than standard controllers. Audio can also be output using the integrated five 3.5mm audio outputs or optical S/PDIF output. Protection is provided by a limited 3-year warranty.
General Features
Intel LGA 1200 Socket
The ASUS Republic of Gamers Maximus XII Hero LGA 1200 ATX Motherboard (Wi-Fi) is designed to unleash the maximum performance of 10th Gen Intel Core processors.
Enhanced Power Solution
This motherboard features 14+2 power stages with a ProCool II power connector, high-quality alloy chokes, and durable capacitors to provide reliable power even when the CPU is pushed to its limit.
Optimized Thermal Design
Expect comprehensive heatsink, heatpipe, and fan headers with low-noise AI cooling to balance thermals and acoustics by reducing fan speeds and maintaining a 41°F / 5°C delta.
Fast Connectivity
This motherboard features 5Gb and Gigabit Ethernet, LANGuard, three M.2 slots, USB 3.2 Gen 2, and Intel Wi-Fi 6 (802.11ax).
Gaming Audio
High-fidelity audio with the SupremeFX S1220A codec, DTS Sound Unbound, and Sonic Studio III draws you deeper into the game action.
Personalization
This motherboard features ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers.
DIY Friendly Design
A pre-mounted I/O shield, BIOS Flashback, Q-Code, and FlexKey help make your build DIY friendly.
What is the price of Asus ROG MAXIMUS XII HERO Motherboard In Bangladesh?
The price of Asus ROG MAXIMUS XII HERO Motherboard not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy Asus ROG MAXIMUS XII HERO Motherboard from our website or visit our showrooms nearby.
