ASUS ROG STRIX B550-F GAMING DDR4 AMD Motherboard

Features of Asus ROG STRIX B550-F GAMING Motherboard In Bangladesh

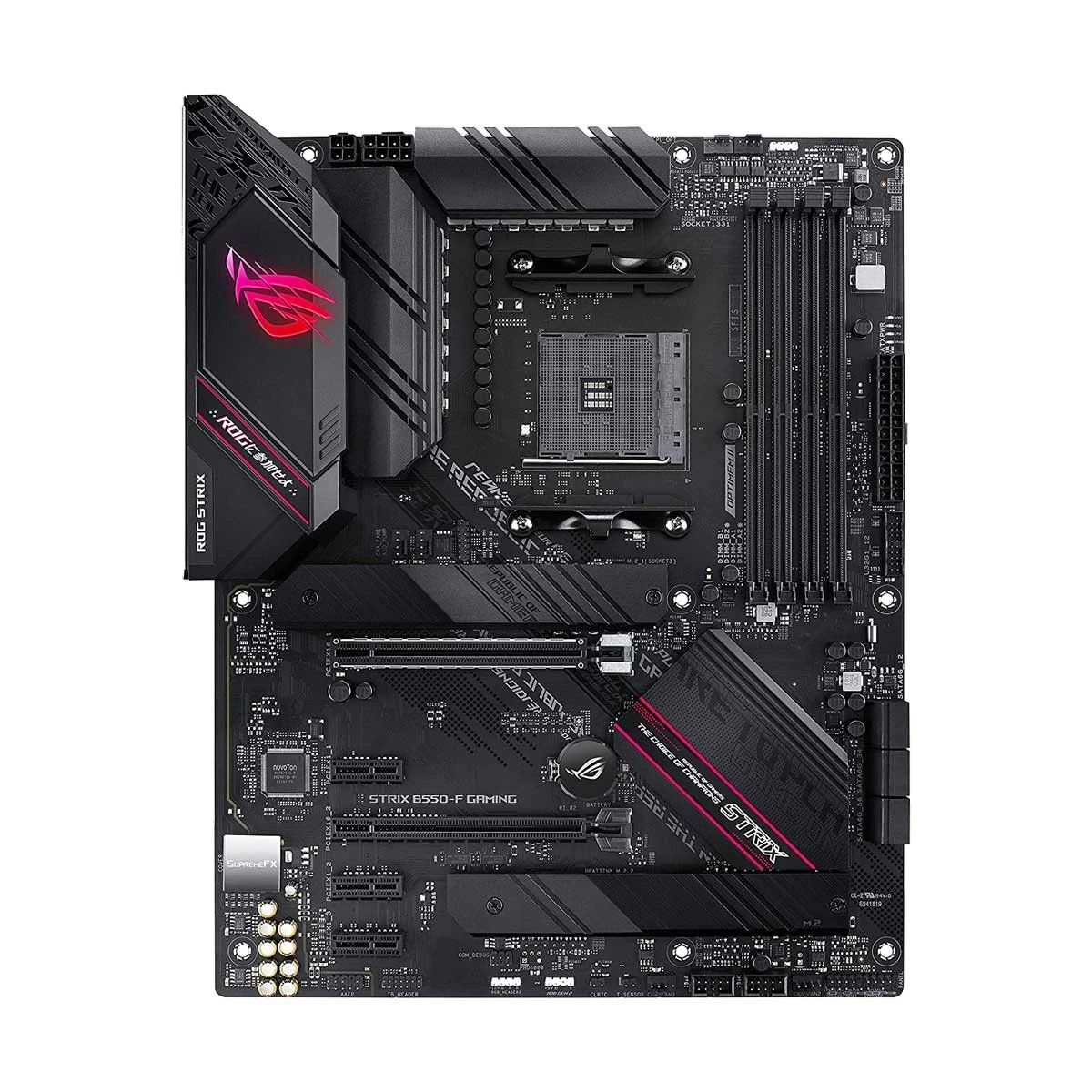

Asus ROG STRIX B550-F GAMING

Take your gaming experience to the next level with the ASUS ROG STRIX B550-F Gaming AM4 ATX Motherboard. Powered by the AMD B550 chipset, this motherboard supports third-generation AMD Ryzen processors with the AM4 socket for high-end video games and content creation. The chipset takes full advantage of the large PCIe 4.0 data bandwidth to handle demanding tasks such as 4K live streaming, video editing, and gaming at high settings. Up to 128GB of dual-channel ECC DDR4 RAM, reaching 4400 MHz when overclocked, can be installed across four memory slots to improve the system's multitasking capabilities and speed. The ATX motherboard also features advanced cooling and supports up to two M.2 SSDs and six SATA III storage drives, which can be put into RAID 0, 1, or 10 configurations. Its PCIe 4.0 x16 and PCIe 3.0 x16 slots can accommodate a 2-way AMD CrossFireX configuration to maximize your system's frame rates at high resolutions. Three additional PCIe 3.0 x1 slots are available alongside a Thunderbolt 3 expansion card header. You can take advantage of AMD Ryzen processors with integrated graphics by connecting monitors to the motherboard's DisplayPort 1.2 and HDMI 2.1 ports.

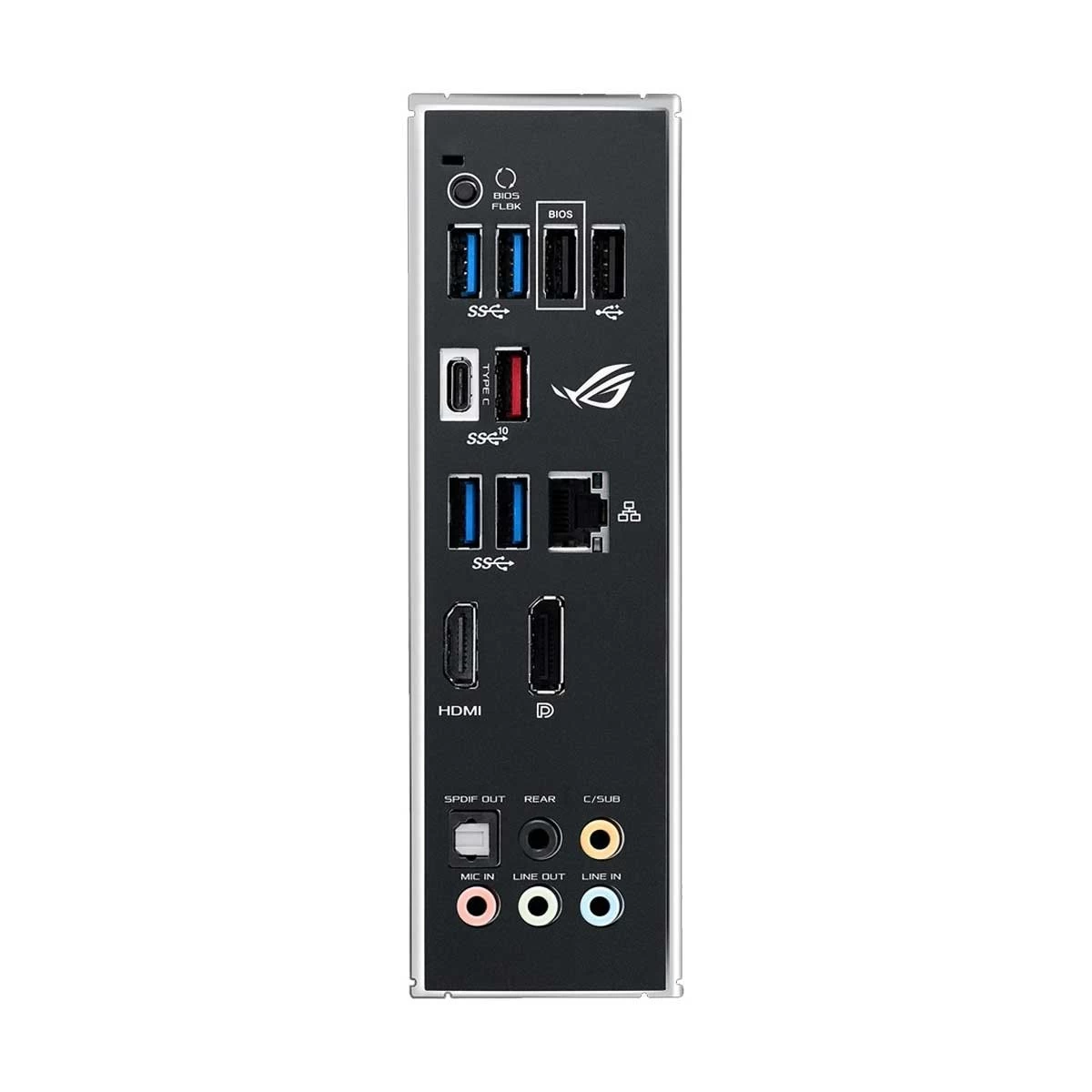

Connect peripherals such as mice and keyboards to the USB 2.0 Type-A ports while reserving the USB 3.2 Gen 2 Type-A and Type-C ports for transferring data from compatible devices at up to 10 Gb/s. The ROG STRIX B550-F Gaming also features a fast 2.5 Gigabit Ethernet port, providing you with the bandwidth needed for online games, 4K video streaming, and live stream broadcasts when paired with compatible devices. Other features include addressable Gen 2 Aura Sync RGB lighting headers and SupremeFX S1220A 7.1-channel audio. Windows 10 64-bit is required to take advantage of all the motherboard's features.

General Features

PCIe 4.0 Bandwidth

The ASUS STRIX B550-F Gaming pairs third-generation AMD Ryzen processors with high PCIe 4.0 memory bandwidth through the B550 chipset for maximum performance.

Enhanced Cooling

The motherboard features fanless VRM and chipset heatsinks using the ASUS Stack Cool 3+ design to enhance passive cooling and maintain optimal temperatures for critical components. Aluminum M.2 heatsinks are also included to quickly dissipate heat from installed SSDs to help avoid heat throttling.

Storage and Memory

• Two M.2 slots are available, supporting up to type 22110 NVMe PCIe and SATA SSDs.
• Six SATA III ports are available for hard drives and 2.5" SSDs.
• Supports RAID 0, 1, and 10.
• Up to 128GB of dual-channel ECC DDR4-4400 (OC) memory can be installed across four slots.
• ASUS OptiMem II trace layout technology allows memory kits to operate and high frequencies and low voltages to maximize performance.
• The RAMCache III utility can automatically caches all your storage devices so that games and apps load faster.

Electrical Performance

The motherboard has 12+2 DrMOS power stages and uses high-quality alloy chokes alongside durable capacitors deliver power to critical components such as the CPU.

Fast Network Connectivity

The STRIX B550-F Gaming includes a 2.5 Gigabit Ethernet port for high-speed network connections with compatible devices. The Ethernet port uses LANGuard technology to protect it against surges and to provide a cleaner data signal while reducing the chance of errors without taking up CPU resources.

AMD CrossFireX Support

Installing multiple graphics cards will enhance the computer's performance for demanding tasks such as gaming, video editing, and more. This motherboard supports a 2-way AMD CrossFireX configuration.

Integrated Graphics

The DisplayPort 1.2 and HDMI 1.2 ports support 4K monitors, which allow you to take advantage of AMD Ryzen CPUs that have integrated graphics.

SupremeFX Audio

• The integrated SupremeFX S1220A audio technology is designed to deliver detailed sound with 7.1-channel playback.
• 32-bit / 192 kHz playback support.
• 120 dB stereo output signal-to-noise ratio.
• 113 dB input signal-to-noise ratio.
• Two onboard amplifiers push sound out to your headphones or speakers.
• Integrated microphone noise cancelling technology.
• The Sonic Studio III software allows you to customize EQ profiles across different audio devices and applications.
• The DTS: Sound Unbound app works with Windows Sonic technology to deliver spatial sound to headsets, immersing you into virtual environments and entertainment.

Aura Sync RGB Lighting

Aura Sync technology allows you to connect, customize, and control lighting equipment such as RGB LEDs and light strips on the onboard RGB headers. You can choose from a variety of lighting presets that include Static, Strobing, and Color Cycle. These presets can be synchronized with Aura-capable peripherals such as keyboards, mice, monitors, and more. The addressable Gen 2 RGB headers can detect the number of LEDs on a compatible device to further tailor the lighting effects.

Armoury Crate

ASUS Armoury Crate is a suite of management software for system customization. It includes ASUS Aura Sync RGB lighting control, keyboard and mouse preferences, fan speed control, and more.

Additional Software Features

• TPU Insight: The TurboV Processing Unit (TPU) is an onboard micro-controller that helps to provide a variety of system-tuning features. It can be used to fine-tune voltages, monitor system stats, and adjust overclocking parameters.
• EPU Guidance: The Energy Processing Unit (EPU) optimizes power consumption to maximize savings in Away mode, which shuts down I/O controllers.
• Digi+ VRM Control: The Digi+ voltage-regulator module (VRM) allows direct control over voltages, the switching frequency, and power-efficiency settings to fine-tune the CPU voltage regulation for stability and performance.
• Fan Xpert 4: Manually or automatically control the speed of your fans to find a balance of cooling performance and noise. Extreme Quiet mode reduces fan speeds to below the default minimum to keep your system quiet during light tasks.
• Turbo App: A utility that allows you to customize the computer system's performance for individual applications.

Upgrade Features

• Pre-Mounted I/O Shield: A design feature that streamlines the motherboard installation process.
• BIOS FlashBack: The BIOS can be updated by copying the BIOS file onto a FAT32-formatted USB stick, inserting it into the designated port, and pressing the FlashBack button. Updates may be performed without a CPU or memory installed.
• SafeSlot: These strong PCIe slots increase retention force and shearing resistance when installing components.
• FlexKey: With this feature, the front panel reset button can be customized to perform different functions. They include accessing Aura lighting controls, booting into Windows safe mode, and more.
• Q-LED: Onboard LED lights indicate the power status and problems with the CPU, memory, graphics card, or boot device.
• Q-Slot: A side lock that allows you to quickly install and secure a graphics card.
• Q-DIMM: One-sided locks for quickly securing or removing memory modules.

What is the price of Asus ROG STRIX B550-F GAMING Motherboard In Bangladesh?

The price of Asus ROG STRIX B550-F GAMING Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Asus ROG STRIX B550-F GAMING Motherboard from our website or visit our showrooms nearby.
