ASUS ROG STRIX B760-I GAMING (Wi-Fi 6E) DDR5 Motherboard

Item: ASUS ROG STRIX B760-I GAMING (Wi-Fi 6E) DDR5 Motherboard
Rating: 5
Author: Verified Buyer

20 reviews

Product Id: 02.01.006.461

Out Of Stock

See similar model

Quick Overview

Form Factor - Mini-ITX
Chipset - Intel B760
Sockets Supported - LGA1700
Supported CPU - 12th / 13th / 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors
Generation - 12th/13th/14th
Memory Slot - 2
Memory Max. - 96GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Asus

Model

Asus ROG STRIX B760-I GAMING (Wi-Fi 6E)

Chipset

Intel B760

Sockets Supported

LGA1700

Built-in Processor

Generation

12th/13th/14th

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

96GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Bluetooth 5.3

Form Factor

Mini-ITX

Supported Operating System

Windows 10 / 11

Body Color

Black

Warranty

3 Years Replacement Warranty

General

Brand

Asus

Model

Asus ROG STRIX B760-I GAMING (Wi-Fi 6E)

Body Color

Black

CPU

Chipset Brand

Intel

Chipset

Intel B760

Sockets Supported

LGA1700

Built-in Processor

Supported CPU

12th / 13th / 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors

Generation

12th/13th/14th

Memory Support

Memory Type

DDR5

Memory MHz

7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory

Memory Channel

Dual

Memory Slot

Memory Slot (Additional Info)

2 x DIMM

Memory Max.

96GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

2 x M.2 slots ( 1 x M.2 slot (Key M), type 2260/2280 supports PCIe 4.0 x4 mode, 1 x M.2 slot (Key M), type 2242/2260/2280 supports PCIe 4.0 x4 mode)

M.2/SSD Slot Gen

Up to Gen 4

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

1 x PCIe 5.0 x16 slot

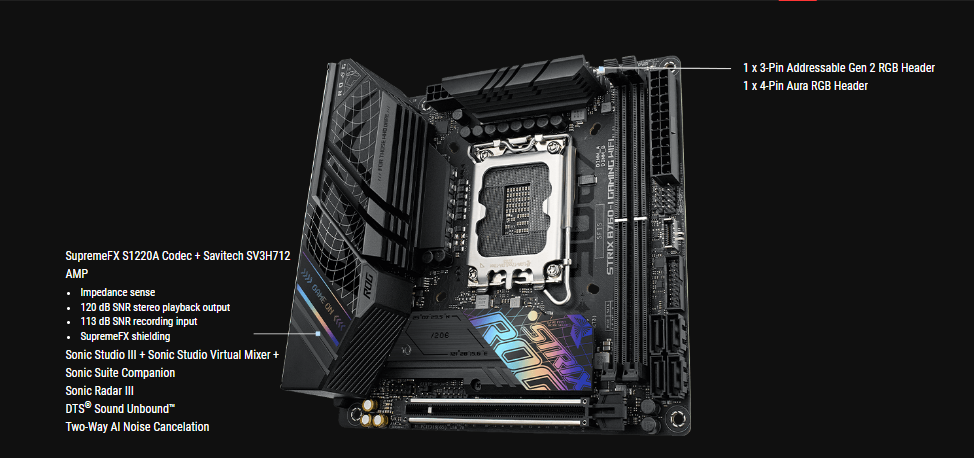

Audio & Video

Audio Chipset

ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A

Audio Channel

7.1

Network & Connectivity

LAN Chipset

1 x Intel 2.5Gb Ethernet

LAN Speed (Mbps)

10/100/1000/2500 Mbps

WiFi

Yes

WiFi Technology

Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band

Bluetooth

Bluetooth 5.3

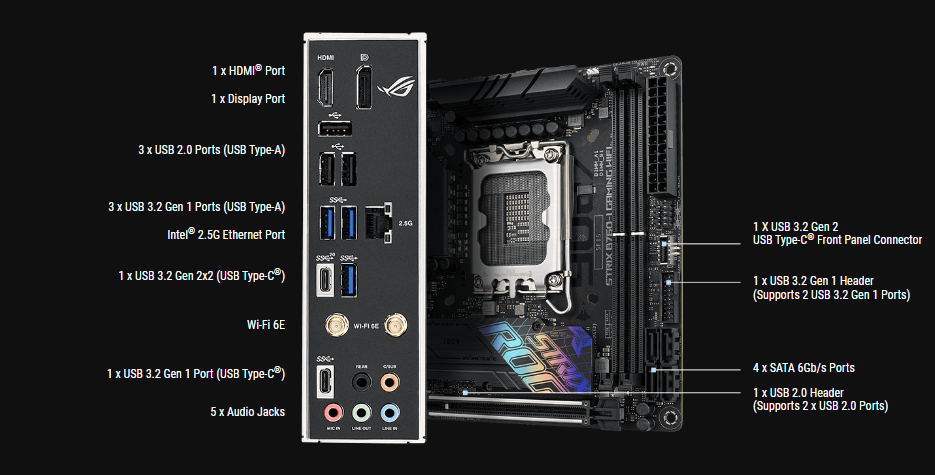

Ports

USB Port

1 x USB 3.2 Gen 2x2 Type-C, 1 x USB 3.2 Gen 1 Type-C, 3 x USB 3.2 Gen 1 Type-A, 3 x USB 2.0 Type-A

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

IDE Port

SATA Port

4 x SATA

Thunderbolt

TPM Port

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

DirectX Support

Heatsink

Yes

FireWire

CrossFire Support

Sli Support

Raid Support

0/1/5/10

RGB Support

RGB

RGB Sync

AURA Sync

RGB Connector

1 x Aura RGB header

Approx. Power Consumption

60W

Form Factor

Mini-ITX

Bios Information

BIOS Type

128 Mb Flash ROM

BIOS Model

UEFI AMI BIOS

Compatibility

Supported Operating System

Windows 10 / 11

Compatible Products

LGA1700 Socket 12th, 13th Gen & 14th Gen Intel Processor

Warranty

3 Years Replacement Warranty

Additional Info

Feature

GameFirst VI, ROG CPU-Z, Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion, Sonic Radar III DTS Sound Unbound, AURA Creator, AURA Sync, Fan Xpert 4, Two-Way AI Noise Cancelation, Power Saving, PC Cleaner, DIGI+ VRM, 5K Black Metallic Capacitors, CPU Socket lever protector, ProCool, Pre-mounted I/O shield, SafeSlot)

Others

Internal I/O Connectors: (1 x 4-pin CPU Fan header 1 x 4-pin Chasis Fan header 1 x 4-pin AIO Pump header 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header 1 x Thermal Sensor header)

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Asus ROG STRIX B760-I GAMING (Wi-Fi 6E) Motherboard In Bangladesh

ROG STRIX B760-I GAMING WIFI

Let your rig run wild with the ROG Strix B760-I, a feisty foundation for your next SFF build. Boasting hyperfast DDR5 memory, low-latency WiFi 6E networking, and a future-ready PCIe 5.0 slot, it sets you up for savage speeds, all while giving you incredible 14th Gen,13th Gen & 12th Gen support thanks to its powerful VRM and thermal solution.

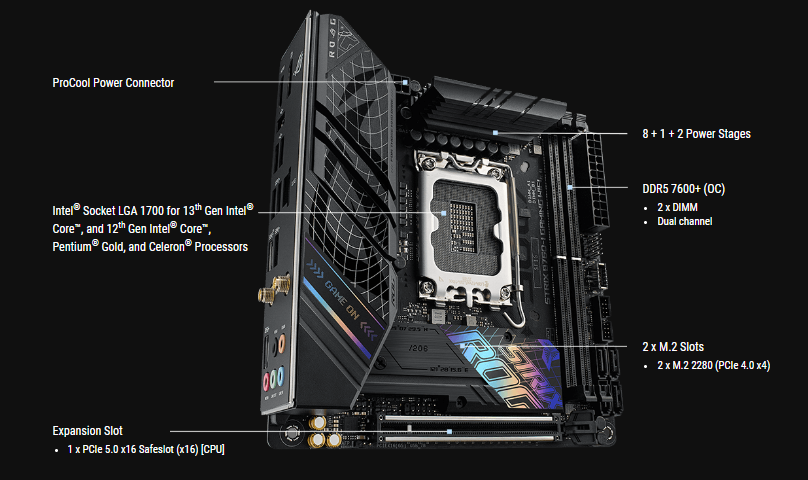

POWER ARCHITECTURE

8 + 1 power stages each rated to 80A deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.

ALLOY CHOKES AND DURABLE CAPACITORS

High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

EIGHT-LAYER PCB

A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.

PERFORMANCE

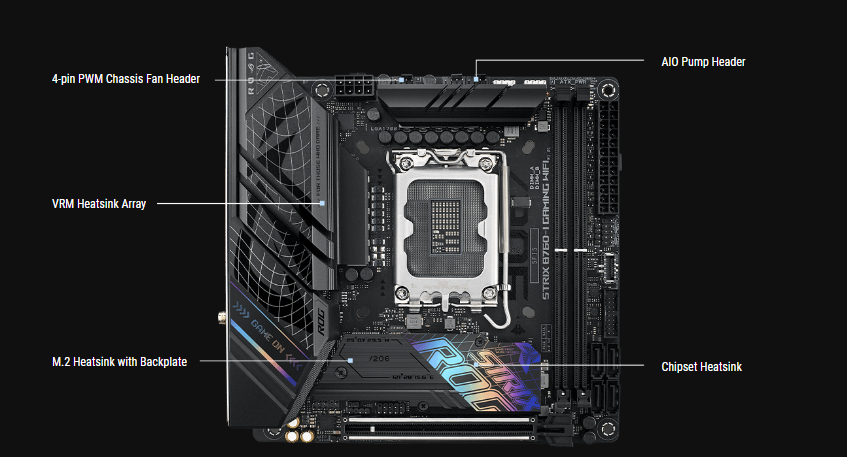

COOLING

GAMING IMMERSION

CONNECTIVITY

UNDENIABLY ROG STRIX

In compact builds with a vertically-mounted graphics card, the ROG Strix B760-I keeps a low profile, as only the top of a wavy grid decal is likely to peek through. But if the build has a bit more space, a pair of bold pastel insignias give some colorful flair amid the otherwise stealthy fascia.
