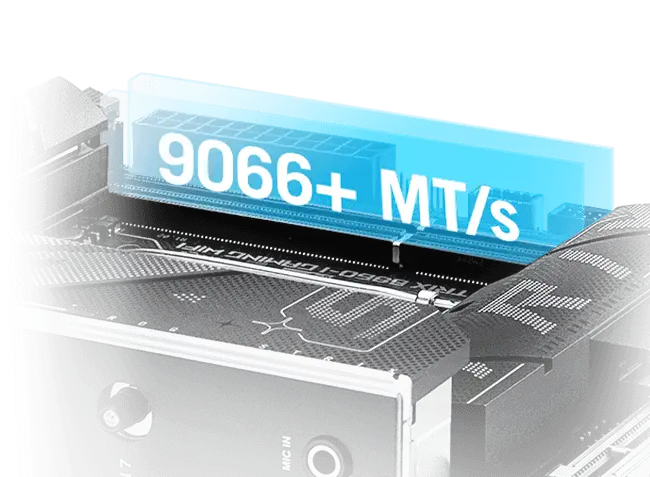

Up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
Memory Channel
Dual
Memory Slot
2
Memory Slot (Additional Info)
2 x DIMM Slot
Memory Max.
128GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
2
M.2/SSD Expansion Slot Details
2 x M.2 Slot (1 x M.2 2280 (PCIe 5.0 x4), 1 x M.2 2280 (PCIe 4.0 x4))
M.2/SSD Slot Gen
Up to Gen 5
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
PCI Express Slot
1 x PCIe 5.0 x16 slot
Network & Connectivity
LAN Speed (Mbps)
10/100/1000/2500Mbps
WiFi
Yes
WiFi Technology
Wi-Fi 7: 2x2 802.11be, 2.4/5/6GHz Frequency Band, 160MHz Bandwidth, Up To 2.9Gbps Transfer Rate.
Bluetooth
Bluetooth 5.4
Ports
USB Port
1 x Thunderbolt 4 port (1 x USB Type-C), 1 x USB 20Gbps port (1 x USB Type-C), 1 x USB 10Gbps ports (1 x Type-A), 3 x USB 5Gbps ports (3 x Type-A), 2 x USB 2.0 ports (2 x Type-A).
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
SATA Port
4
Thunderbolt
1
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
CrossFire Support
No
Sli Support
No
Raid Support
RAID 0/1/5/10
RGB Support
ARGB
RGB Sync
Aura Sync
RGB Connector
2 x Addressable Gen2 headers
Approx. Power Consumption
20W
Form Factor
Mini-ITX
Bios Information
BIOS Type
256Mb Flash ROM
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 11 (22H2 & later)
Compatible Products
Intel Core Ultra Processors (Series 2)
Warranty
Warranty
3 Year Replacement
Additional Info
Feature
Supports Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, Dual channel memory architecture, DIMM Fit, Supports Intel Extreme Memory Profile. (XMP) memory module. ASUS Enhanced Memory Profile III (AEMP III). Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. SupremeFX Shielding Technology. Savitech SV3H712 AMP. Rear optical S/PDIF out port. Premium audio capacitors. Dedicated audio PCB layers. Extreme Engine Digi+: 5K Black metallic capacitors. ASUS Q-Design: PCIe Slot Q-Release Slim (with PCIe. SafeSlot). M.2 Q-Latch. Q-Antenna. Q-Dashboard. Q-DIMM. Q-LED (CPU [red], DRAM [yellow], VGA. [white], Boot Device [yellow green]). Q-Slot. ASUS Thermal Solution: M.2 heatsink backplate. M.2 heatsink. VRM heatsink design. ASUS EZ DIY: Clear CMOS button. CPU Socket lever protector. ProCool. Pre-mounted I/O shield. SafeSlot. SafeDIMM. Aura Sync: Addressable Gen2 headers.
Others

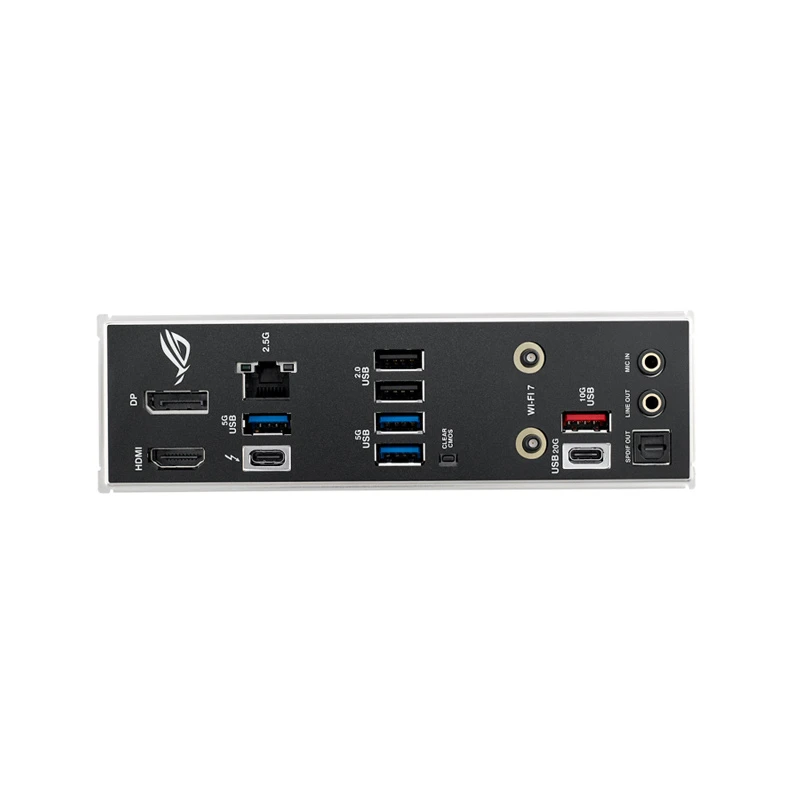

Ethernet: 1 x Intel 2.5Gb Ethernet, ASUS LANGuard. Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC. Impedance sense for front and rear headphone outputs. Internal audio Amplifier to enhance the highest quality sound for headphone and speakers. Supports: Jack-detection. Multi-streaming, Front Panel Jack-retasking. High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in). Supports up to 32-Bit/192 kHz playback. Back Panel I/O Ports: Ports 1 x Thunderbolt 4 port (1 x USB Type-C), 1 x USB 20Gbps port (1 x USB Type-C), 1 x USB 10Gbps ports (1 x Type-A), 3 x USB 5Gbps ports (3 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x DisplayPort, 1 x HDMI port, 1 x Wi-Fi module, 1 x Intel 2.5Gb Ethernet port, 2 x Audio jacks, 1 x Optical S/PDIF out port, 1 x Clear CMOS button. Internal I/O Connectors: Fan and Cooling Related: 1 x 4-pin CPU Fan header. 1 x 4-pin AIO Pump header. 1 x 4-pin Chassis Fan headers. Power Related: 1 x 24-pin Main Power connector. 1 x 8-pin +12V CPU Power connector. Storage Related: 2 x M.2 slots (Key M). 4 x SATA 6Gb/s ports. USB: 1 x USB 10Gbps connector (supports USB Type-C), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 1 x USB 2.0 header supports 2 additional USB 2.0 ports. Miscellaneous: 2 x Addressable Gen2 headers. 1 x Front Panel Audio header (F_AUDIO). 1 x 10-1 pin Front System Panel header. 1 x Thermal Sensor header. Manageability: WOL by PME, UEFI PXE. Accessories: Cables: 2 x SATA 6Gb/s cables, 1 x ROG USB2.0 splitter cable, 1 x Panel cable. Miscellaneous: 1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x M.2 Q-Latch package, 1 x Screw package for M.2 SSD, 1 x M.2 Bracket. 1 x ROG key chain. 1 x ROG Strix stickers. Documentation: 1 x Quick start guide.
