ASUS ROG STRIX TRX40-XE GAMING WiFi 6 AMD Motherboard

Features of Asus ROG STRIX TRX40-XE GAMING Motherboard In Bangladesh

Asus ROG STRIX TRX40-XE GAMING

Take your gaming to the next level with the ASUS ROG Strix TRX40-XE Gaming TRX4 ATX Motherboard. Powered by the AMD TRX40 chipset, this ATX motherboard supports third-generation AMD Ryzen Threadripper processors with the TRX4 socket for high-end video games and content creation. The chipset takes full advantage of the large PCIe 4.0 data bandwidth to handle demanding tasks such as 4K live streaming, video editing, and gaming at high settings. Up to 256GB of quad-channel ECC DDR4 RAM, reaching 4666 MHz when overclocked, can be installed across eight memory slots to improve the system's multitasking capabilities and speed. The motherboard also features advanced cooling and supports up to three M.2 SSDs and eight SATA III storage drives, which can be put into RAID 0, 1, or 10 configuration. Its three PCIe 4.0 x16 slots can accommodate 2-Way NVIDIA SLI or AMD CrossFireX configurations to maximize your system's frame rates at high resolutions while an additional PCIe 4.0 x4 slot is available for compatible devices.

Seven USB 3.2 Gen 2 Type-A ports and one Type-C port is available to transfer data from compatible devices at up to 10 Gb/s. Connect to compatible high-speed networks through the Gigabit Ethernet and 2.5 Gigabit Ethernet ports, or use the built-in 802.11ax Wi-Fi to wirelessly transfer data at up to 1.73 Gb/s. The ROG Strix TRX40-XE delivers deep and immersive 8-channel audio through the SupremeFX S1220 codec, and you can further customize your computing experience by connecting light strips to the addressable Gen 2 Aura Sync RGB lighting headers for dazzling effects. Windows 10 64-bit is required to take advantage of all the motherboard's features.

AMD TRX40 Chipset

Supporting third-generation AMD Ryzen Threadripper processors, the TRX40 chipset is designed for visual effects artists, data scientists, and other professionals who require high-end computing power. The chipset takes advantage of PCIe 4.0 bandwidth for multi-GPU configurations, NVMe storage arrays, and more. Additionally, the platform supports quad-channel DDR4 ECC RAM with unlocked overclocking for even greater speed and power.

Storage and Memory

• Three PCIe 4.0 M.2 slots are available, supporting up to type 22110 SATA and NVMe SSDs.
• Eight SATA III ports are available for hard drives and 2.5" SSDs.
• Supports RAID 0, 1, and 10.
• Up to 256GB of quad-channel DDR4-4666 (OC) memory can be installed across eight slots.
• The RAMCache III utility can automatically caches all your storage devices so that games and apps load faster.

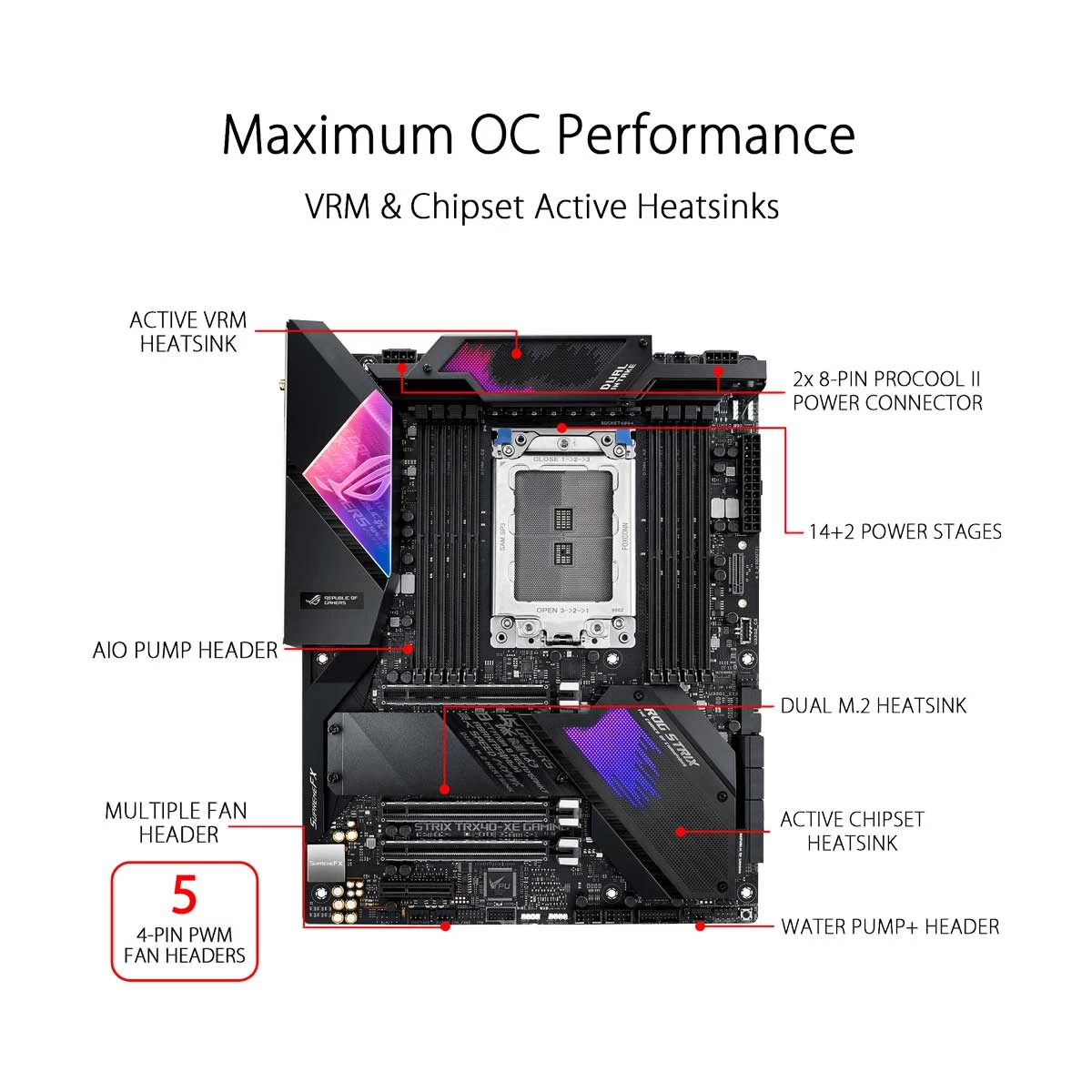

Enhanced Cooling

• The closely packed, multilayered stacked-fin heatsink maximizes surface contact to speed heat dissipation.
• A backplate balances MOSFET temperatures while providing structural reinforcement.
• The thermal pad transfers heat from the inductor and phase array to the heatsink.
• Two of the M.2 slots are covered by a large heatsink to help prevent speed throttling when the SSDs become too hot.
• ProCool II power connectors ensure a strong connection to the power lines and feature a reinforced metal construction for better heat dissipation.
• This motherboard's chokes and caps are engineered to resist extreme temperatures.
• The Active chipset heatsink includes a heatsink and fan combination that helps to cool the chipset and avoid throttling during sustained data transfers.
• A SoC VRM heatsink is located in the pathway of the chipset fan's airflow, which helps keep components cool when the memory is overclocked.
• Fan Xpert 4 provides manual or automatic fan speed control. Extreme Quiet mode reduces fan speeds to below the default minimum to keep your system quiet during light tasks.

NVIDIA SLI and AMD CrossFireX Support

Installing multiple graphics cards will enhance the computer's performance for demanding tasks such as gaming, video editing, and more. This motherboard supports 2-Way NVIDIA SLI and AMD CrossFireX configurations.

Performance Features

• The ROG Strix TRX40-XE Gaming's voltage-regulator module (VRM) has 16 power stages to efficiently deliver power to the AMD Threadripper processor.
• The TurboV Processing Unit (TPU) onboard micro-controller provides a variety of system-tuning features, including fine-tuned voltages, system stat monitoring, and overclocking adjustments.
• An Energy Processing Unit (EPU) optimizes power consumption to maximize savings in Away mode, which shuts down I/O controllers.
• The Digi+ voltage-regulator module (VRM) allows direct control over voltages, the switching frequency, and power-efficiency settings to fine-tune the CPU voltage regulation for stability and performance.
• The Turbo App utility allows you to customize the computer system's performance for individual applications.

Network Performance

• A Gigabit Ethernet port transfers data over wired connections.
• A 2.5 Gigabit Ethernet offers increased bandwidth compared to standard Gigabit connectors using existing cables and a compatible router.
• The built-in 802.11ax Wi-Fi adapter is designed to wirelessly transfer data at up to 1.73 Gb/s.
• LANGuard technology improves the tradition Ethernet port by protecting it against surges, providing a cleaner data signal, and reducing the chance of errors without taking up CPU resources.
• The GameFirst V network customization tool for ROG routers allows you to select the best Wi-Fi channel to optimize data traffic, helping to ensure stability with minimal interference.

SupremeFX Audio

• The integrated SupremeFX S1220 codec is designed to deliver a flat frequency response for detailed audio.
• The onboard audio features 10 DAC channels, simultaneous 7.1-channel playback, and independent 2.0 channel, multi-stream stereo sound to front panel outputs.
• 32-Bit / 192 kHz playback support.
• 120 dB stereo output signal-to-noise ratio.
• 108 dB input signal-to-noise ratio.
• Electromagnetic shielding protects against interference from nearby components for cleaner-sounding audio.
• Two onboard amplifiers push sound out to your headphones or speakers with a 32-600Ω impedance.
• Nichicon capacitors are designed to produce a warm, natural sound with high clarity.
• The Sonic Studio III software allows you to customize EQ profiles across different audio devices and applications.
• The DTS: Sound Unbound app works with Windows Sonic technology to deliver spatial sound to headsets, immersing you into virtual environments and entertainment.

Upgrade-Friendly

• A pre-mounted I/O shield streamlines the motherboard installation process.
• The BIOS can be updated by copying the BIOS file onto a FAT32-formatted USB stick, inserting it into the designated port, and pressing the BIOS FlashBack button. Updates may be performed without a CPU or memory installed.
• Strong PCIe slots increase retention force and shearing resistance when installing components.
• With the FlexKey feature, the front panel reset button can be customized to perform different functions. They include accessing Aura lighting controls, booting into Windows safe mode, and more.
• Electrostatic protection covers the USB, audio, and LAN ports.
• Onboard Q-LED lights indicate the power status and problems with the CPU, memory, graphics card, or boot device.
• A Q-Slot side lock allows you to quickly install and secure graphics cards.
• One-sided Q-DIMM locks allow for fast memory module installation and removal.

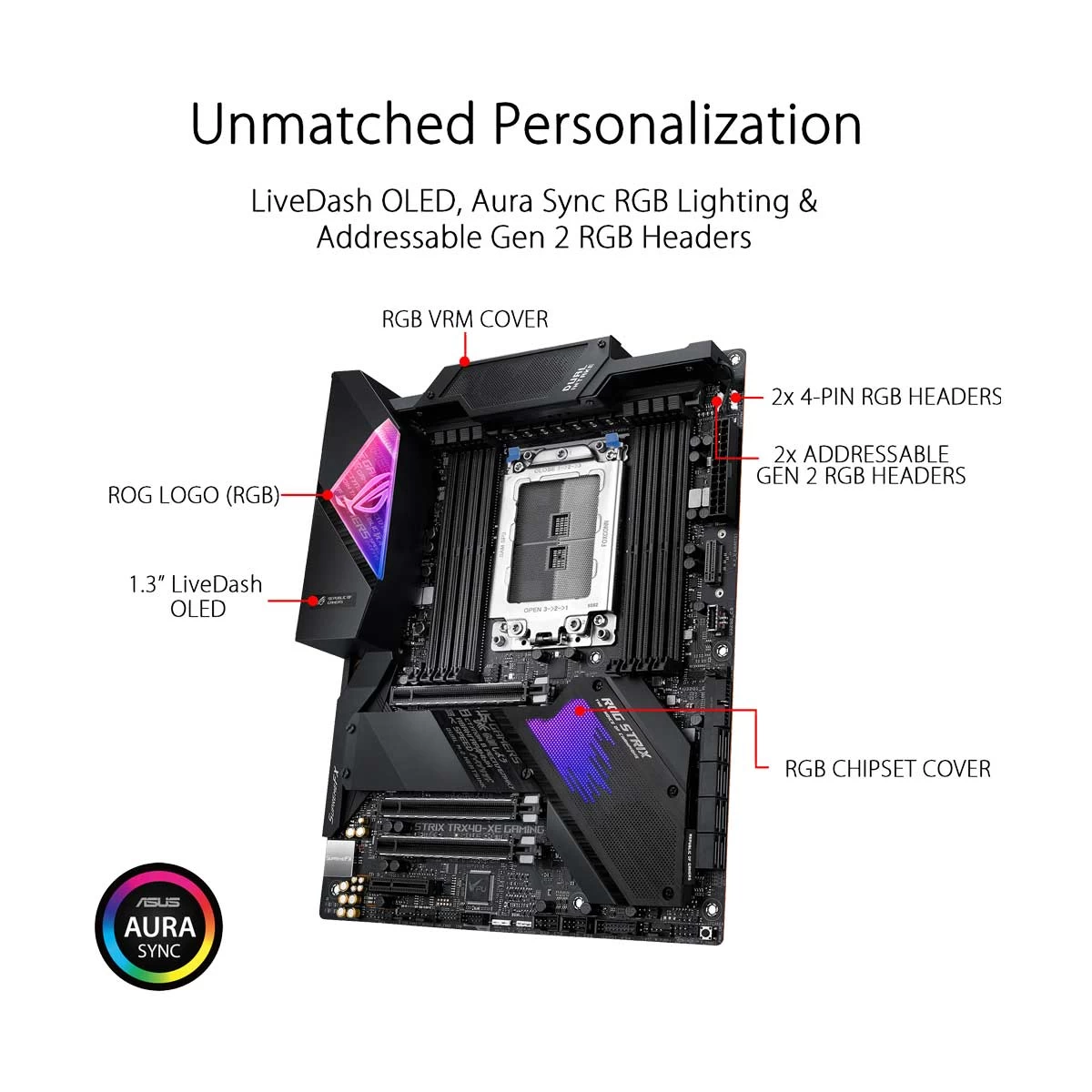

Aura Sync RGB Lighting

Aura Sync technology allows you to connect, customize, and control lighting equipment such as RGB LEDs and light strips on the onboard RGB headers. You can choose from a variety of lighting presets that include Static, Strobing, and Color Cycle. These presets can be synchronized with Aura-capable peripherals such as keyboards, mice, monitors, and more. The addressable Gen 2 RGB headers can detect the number of LEDs on a compatible device to further tailor the lighting effects.

LiveDash OLED

This motherboard is equipped with a 1.3" OLED panel that displays information, including self-test phase progress stats during the system startup. During operation, the panel can show the CPU frequency, device temperatures, fan speeds, water cooling information, or a custom animated graphic.

Armoury Crate

ASUS Armoury Crate is a suite of management software for system customization. It includes ASUS Aura Sync RGB lighting control, keyboard and mouse preferences, fan speed control, and more.

What is the price of Asus ROG STRIX TRX40-XE GAMING Motherboard In Bangladesh?

The price of Asus ROG STRIX TRX40-XE GAMING Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Asus ROG STRIX TRX40-XE GAMING Motherboard from our website or visit our showrooms nearby.
