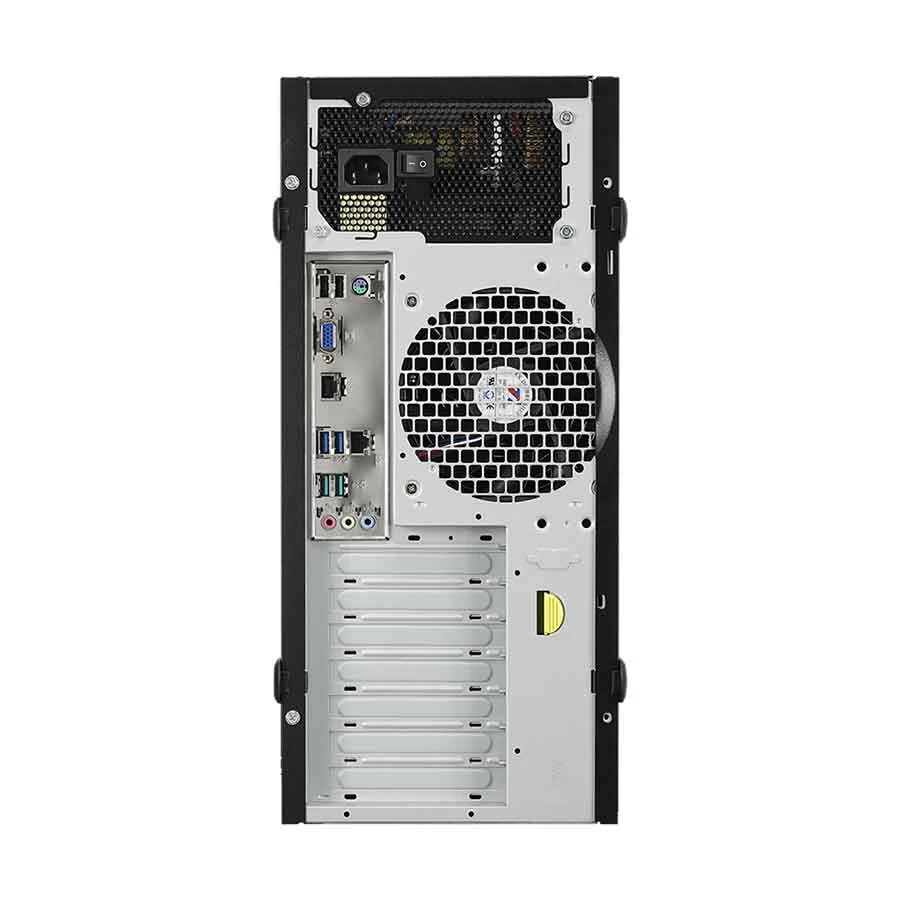

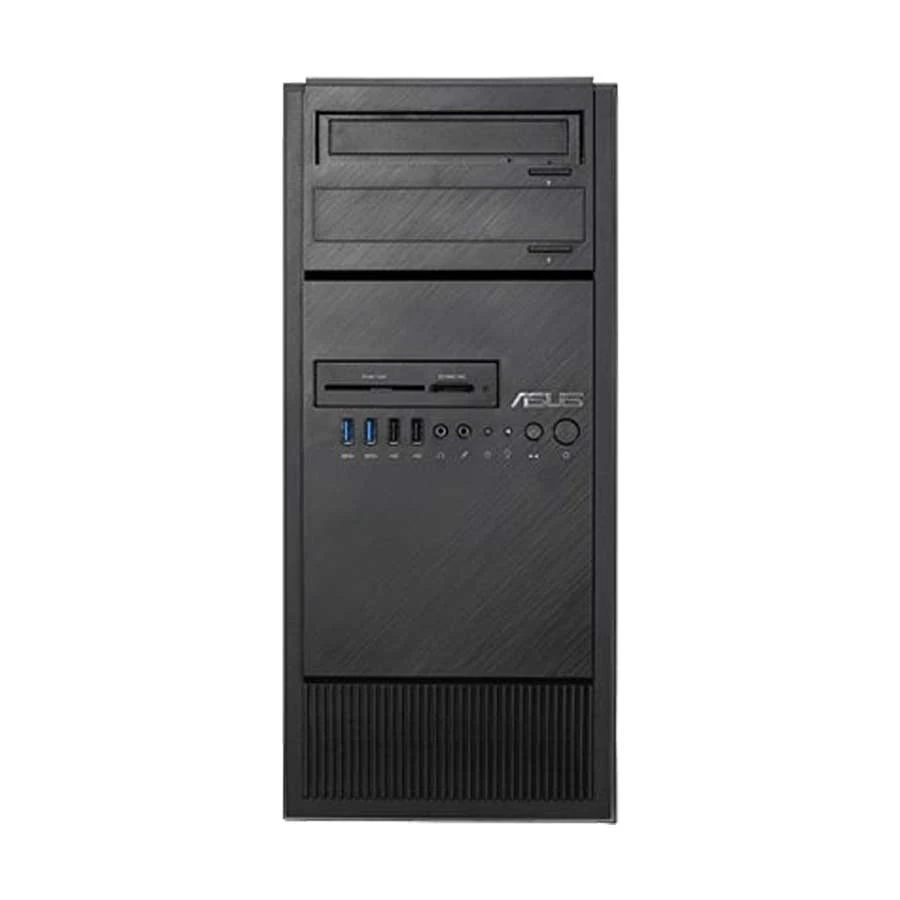

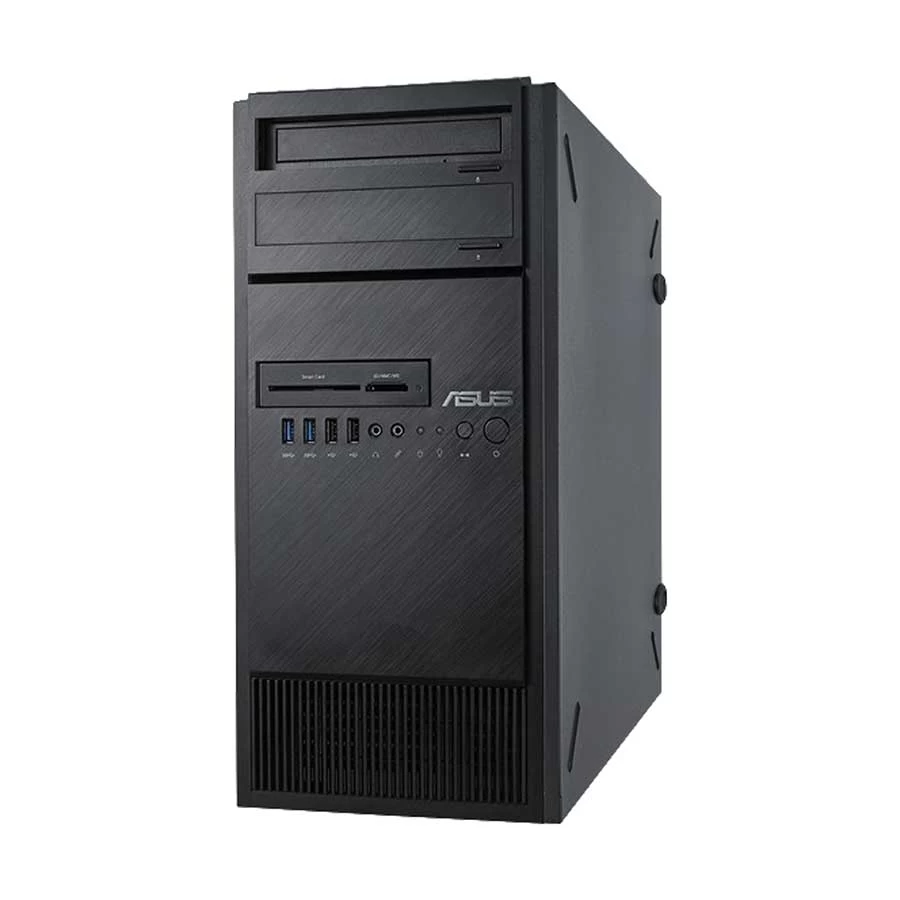

Asus TS100-E10-PI4 Intel Xeon E-2236 2x 1TB Tower Server

Product Id: 85.01.006.12

Brand Asus

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

Quick Overview

  • Processor Model - Intel Xeon E-2236
  • Number of Processor - 1
  • RAM - 16GB
  • Hard Disk Drive (HDD) - 2 x 1TB
  • Installed HDD Type - SATA
  • Solid-State Drive (SSD) - No
General
Brand
Asus

Model
Asus TS100-E10-PI4


Processor
Processor Model
Intel Xeon E-2236

Number of Processor
1

Processor Clock Speed
3.4GHz - 4.8GHz

Processor Base Frequency
3.4GHz

Processor Max Turbo Frequency
4.8GHz

Total Cores
6

Total Threads
12

Processor Cache
12MB

Bus Speed
8 GT/s

TDP
80W

Chipset
Intel C242


Memory
RAM
16GB

Installed RAM Details
1 x 16GB Removable

RAM Type
DDR4

RAM Bus
3200 MHz

RAM Slots
4

Empty/Expansion RAM Slot
3

Max. RAM Support
128GB

DRAM Type
ECC UDIMM

RAM Feature
DDR4 3200MT/s UDIMM ECC (non ECC and ECC Support)


Storage
Hard Disk Drive (HDD)
2 x 1TB

Installed HDD Type
SATA

HDD RPM
7200

HDD Details
7.2K RPM SATA3 ENTERPRISE 6Gbps 3.5in Hard Drive

Solid-State Drive (SSD)
No

Bays
4

M.2/SSD Expansion Slot
2

SSD Details
Not Applicable


Graphics
Integrated Graphics
Yes

Graphics
Aspeed AST2510 with 64MB VRAM Graphics

Graphics Memory Accessibility
Integrated


Audio
Audio Chipset
Realtek ALC887 7.1-Channel High Definition Audio CODEC

Speaker
No


Ports & Slots
Optical Drive
No

I/O Ports & Connectivity
1 x Headphonet, 1 x Microphone, 1 x VGA (onboard Aspeed AST2510), 3 x Audio Jacks (onboard Realtek ALC887-VD2 8-Channel High Definition Audio CODEC), 1 x PS/2 Keyboard/ Mouse Port

USB Ports
Font: 2 x USB 3.0, 2 x USB 2.0, Rear: 2 x USB 3.1, 2 x USB 3.0, 2 x USB 2.0

Expansion Slots
4 x DIMM Slot


Network & Connectivity
LAN Card
1 x Gigabit

Networking Details
1 x Intel I210AT & I219-LM LAN

Remote Management
i219-LM


Software
Operating System
No OS


Physical Description
Body Color
Black

Form Factor
Tower

Density (1u =1.75 Inch)
Unmentioned

Dimensions
423 x 190 x 435mm

Weight (Kg)
12.77 Kg


RAID
Raid Type
Software

Raid Model
Software RAID

Supporting RAID Level
0,1,10,5


Power Supply
Number of PSU
1

PSU Capacity
300W

PSU Type
80 PLUS Bronze


Warranty
Warranty Details
3 year


Additional Info
Monitor
No Monitor

Keyboard
USB Keyboard

Mouse
USB Mouse

Others
SATA3 ENTERPRISE 6Gbps 3.5in Hard Drive (3 x Internal 3.5 inch drive bays, 1 x Internal 2.5 inch Drive Bay), Ubuntu not supported.

Specialty
HT 80W Processor

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
