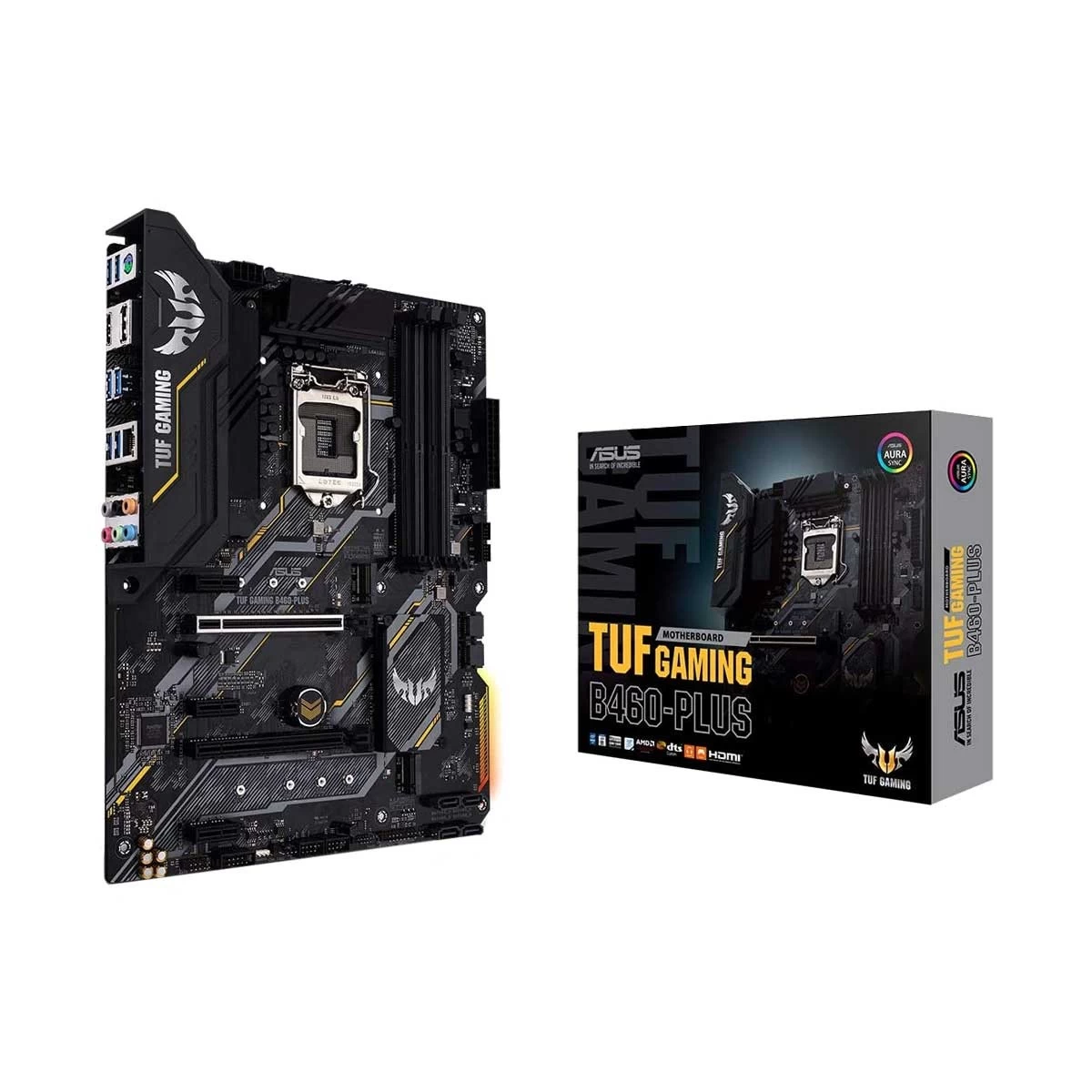

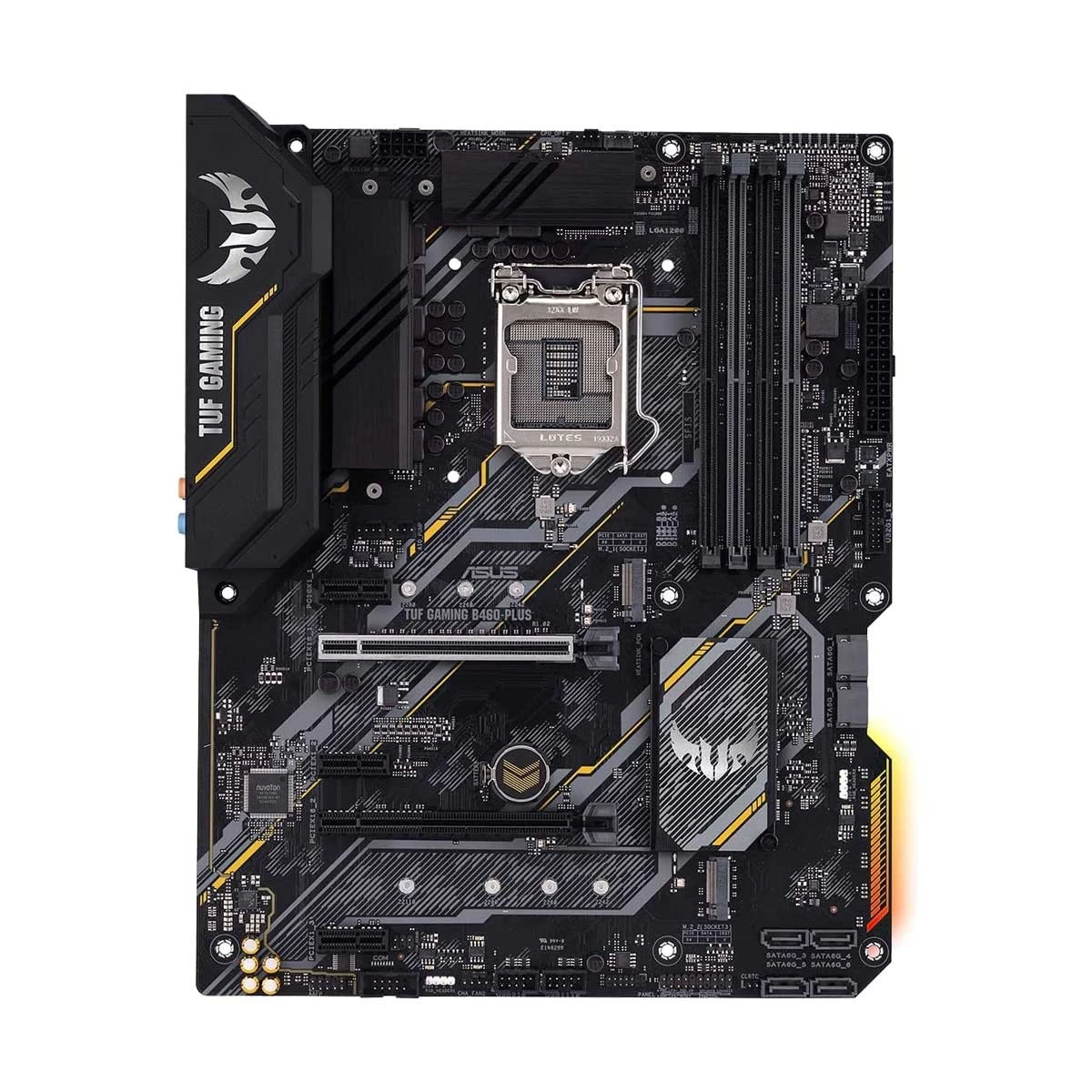

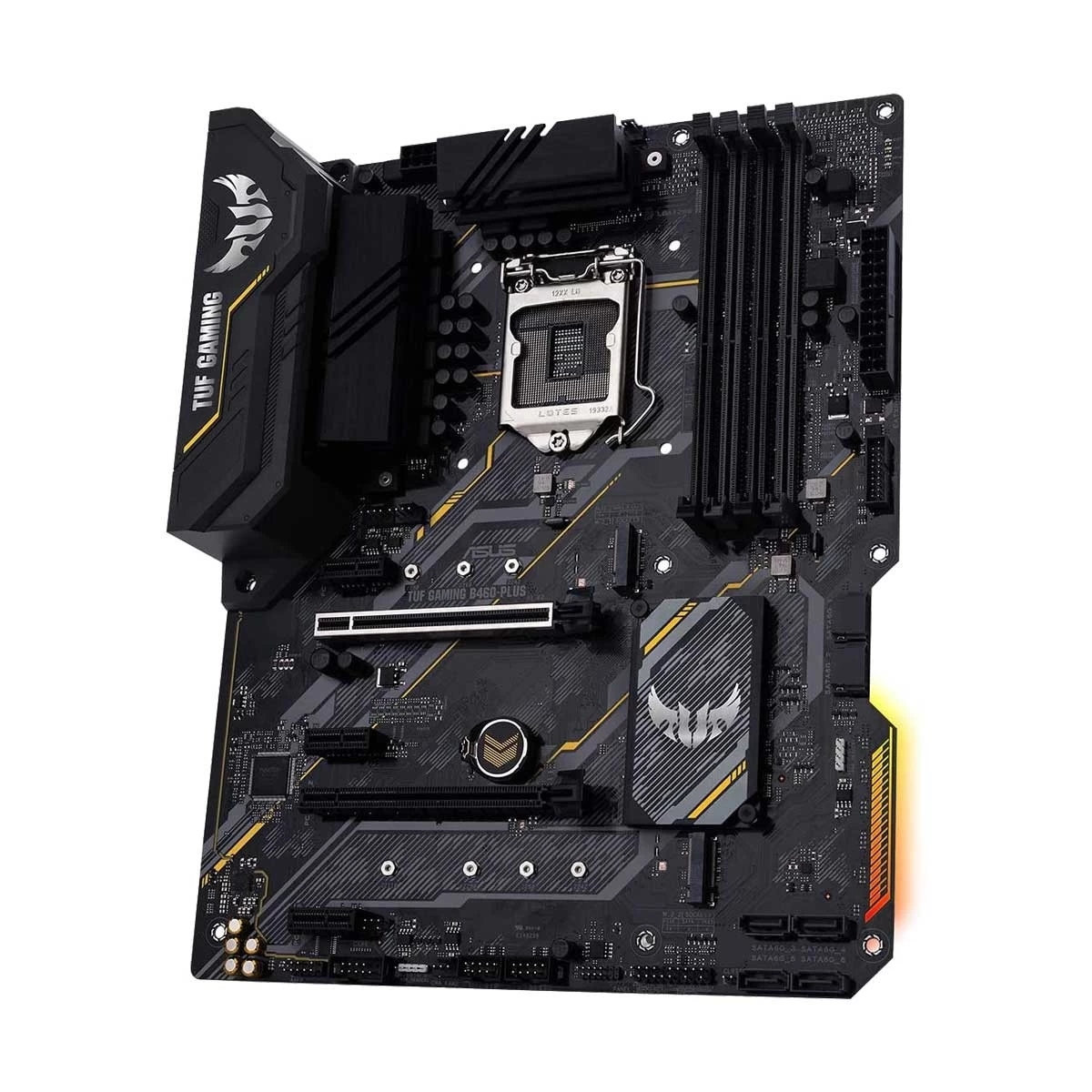

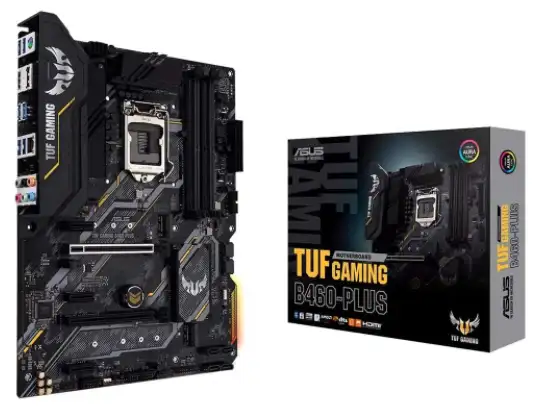

ASUS TUF GAMING B460-PLUS DDR4 10th Gen Intel LGA1200 Socket Motherboard

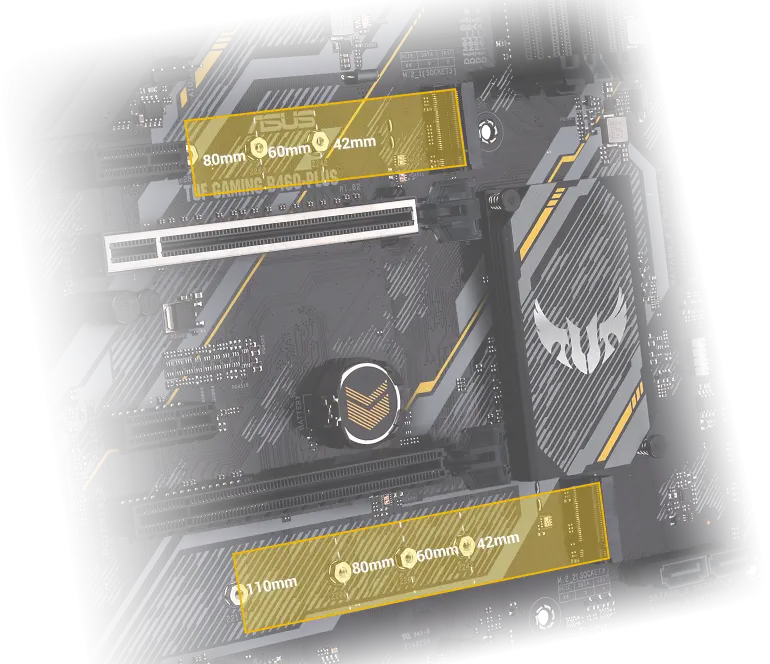

2 x M.2 (1 x M.2 Socket 3 (M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode), (1 x M.2 Socket 3 (M key type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode))
M.2/SSD Slot Gen
Up to Gen 3
Graphics
Graphics
Integrated
Graphics Chipset
Integrated with Processor
Multi-GPU Support
2-Way AMD CrossFireX Technology
PCI Express Slot
1 PCI Express x 16, 3 PCI EXpress x 1
Audio & Video
Audio Chipset
Realtek ALC S1200A
Audio Channel
8
Network & Connectivity
LAN Chipset
Intel I219-V
LAN Speed (Mbps)
10/100/1000
WiFi
No
Bluetooth
No
Ports
USB Port
7 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
No
IDE Port
No
SATA Port
6 x SATA
Thunderbolt
No
TPM Port
No
COM Port
Yes
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
FireWire
No
CrossFire Support
Yes
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
RGB
RGB Sync
Aura Sync
RGB Connector
2 x Aura RGB Strip Headers
Approx. Power Consumption
70W
Form Factor
ATX
Bios Information
BIOS Type
128 Mb Flash
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 10
Warranty
Warranty
3 Years Replacement Warranty
Additional Info
Feature

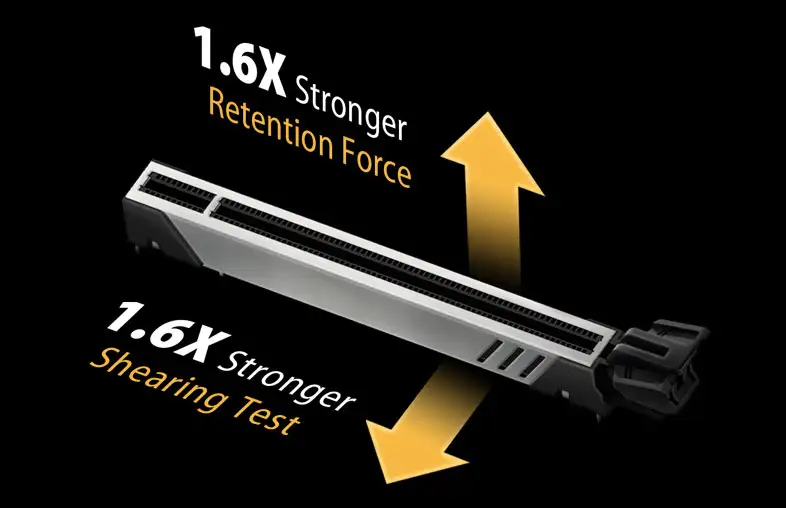

Intel B460 (LGA 1200) ATX gaming motherboard with dual M.2, 8 power stages, HDMI, DisplayPort, SATA 6Gbps, USB 3.2 Gen 1 port, and Aura Sync RGB Lighting, ASUS TUF PROTECTION - ASUS DIGI+ VRM - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core+ - ASUS Stainless-Steel Back I/O, ASUS Q-Design: - ASUS Q-DIMM - ASUS Q-Slot - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), ASUS Thermal Solution: - Aluminum heatsink design, ASUS EZ DIY - Box Headers, AURA Sync - Standard RGB headers
Others

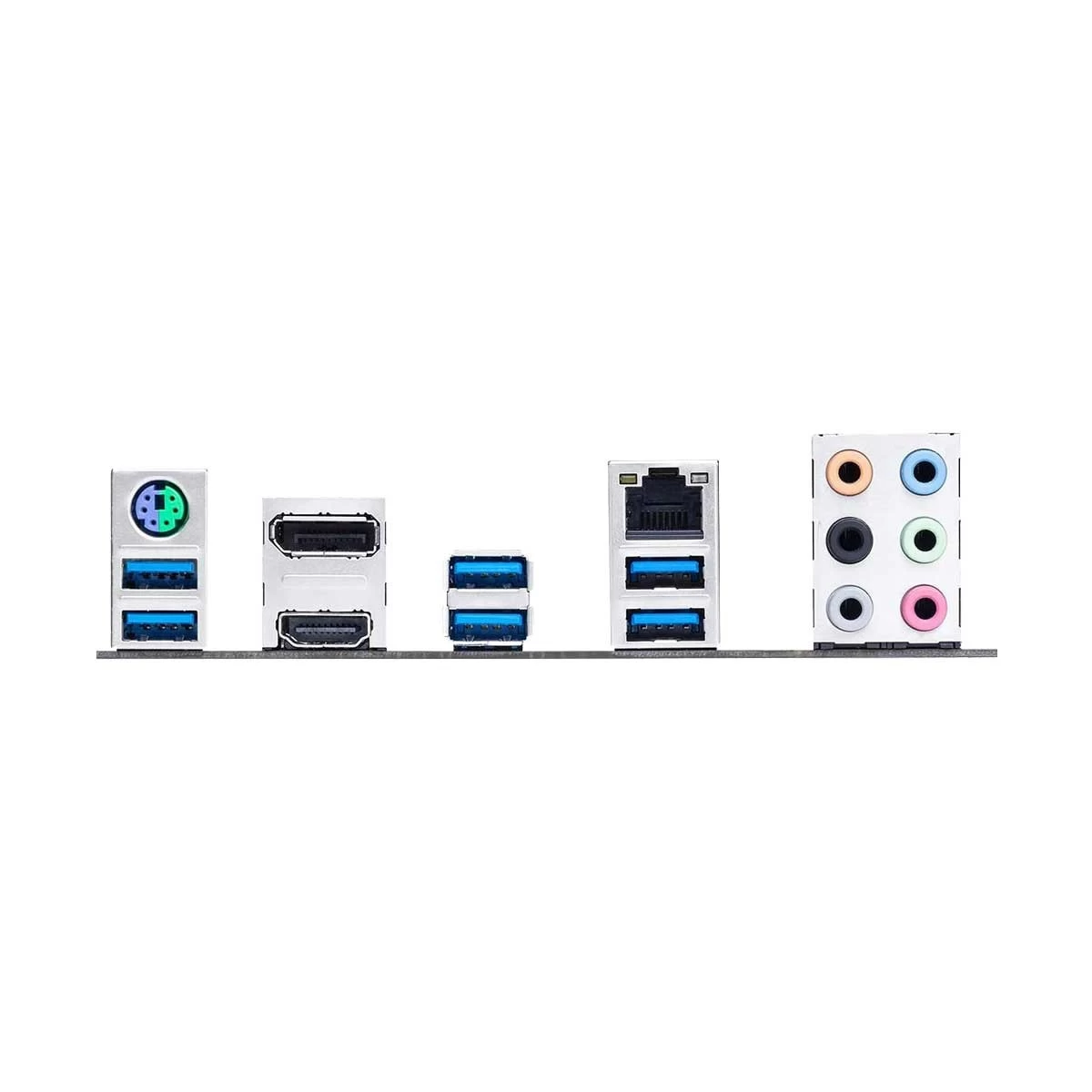

1 x PS/2 keyboard/mouse combo port(s), 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45) port(s), 6 x USB 3.2 Gen 1 Type-A, 6 x Audio jack(s), 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 2 x Chassis Fan connector(s), 1 x AIO_PUMP connector, 2 x Aura RGB Strip Headers, 1 x 24-pin EATX Power connector(s), 1 x 8-pin EATX 12V Power connectors, 1 x Front panel audio connector(s) (AAFP), 1 x Clear CMOS jumper(s), 1 x System panel connector, 1 x COM port header
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
