Asus TUF GAMING B760M-PLUS D4 (Wi-Fi 6) DDR4 Intel Motherboard

Product Id: 02.01.006.434

Brand Asus

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Chipset - Intel B760
  • Sockets Supported - LGA1700
  • Supported CPU - 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors.
  • Generation - 12th/13th
  • Memory Slot - 4
  • Memory Max. - 128GB
General
Brand
Asus

Model
Asus TUF GAMING B760M-PLUS D4 (Wi-Fi 6)

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel B760

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors.

Generation
12th/13th


Memory Support
Memory Type
DDR4

Memory MHz
5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC) / 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DIMM

Memory Max.
128GB

Memory Max. (Additional Info)
Max. 128GB DDR4

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
2

M.2/SSD Expansion Slot Details
2 x M.2, type 2242/2260/2280 (supports PCIe 4.0 x4 mode)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot
1 x PCIe 4.0 x16 (supports x4 mode), 1 x PCIe 4.0 x1 slot


Audio & Video
Audio Chipset
Realtek High Definition Audio CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek 2.5GbE

LAN Speed (Mbps)
10/ 100/ 1000/ 2500Mbps

WiFi
Yes

WiFi Technology
Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Bluetooth
Bluetooth 5.2


Ports
USB Port
1 x USB 3.2 Gen 2x2, 4 x USB 3.2 Gen 2, 1 x USB 3.2 Gen 1 ,2 x USB 2.0

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
4

Thunderbolt
1

TPM Port
No

COM Port
No


Technical Info
DirectX Support
No

FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0, 1, 5, 10

RGB Support
RGB

RGB Sync
AURA RGB

RGB Connector
1 x AURA RGB header

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Bios Information
BIOS Type
128 Mb Flash ROM

BIOS Model
UEFI AMI BIOS


Compatibility
Supported Operating System
Windows 10 / 11

Compatible Products
Intel Core, Pentium Gold and Celeron Processors.


Warranty
Warranty Details
3 Years Replacement Warranty


Additional Info
Feature

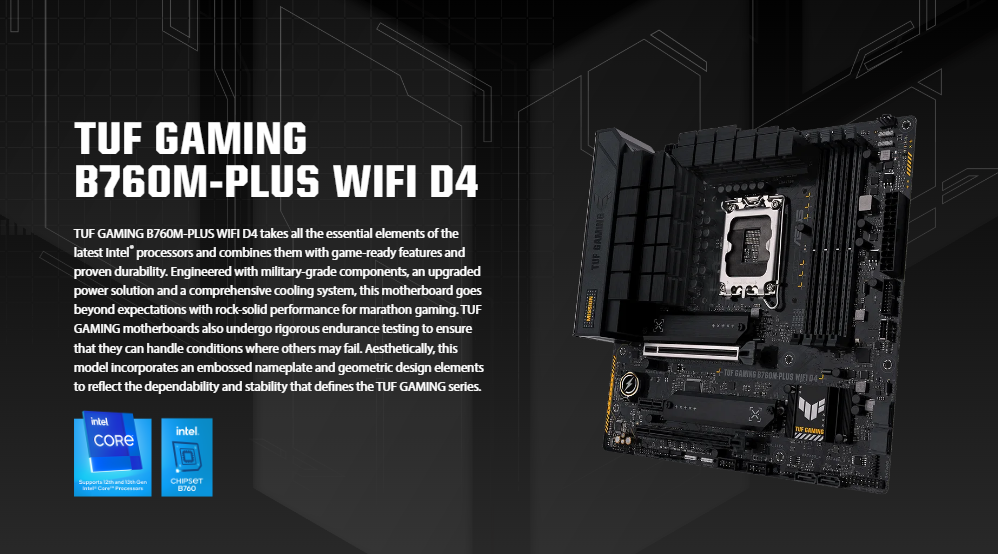

TUF GAMING B760M-PLUS WIFI D4 takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming.

Others
TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
