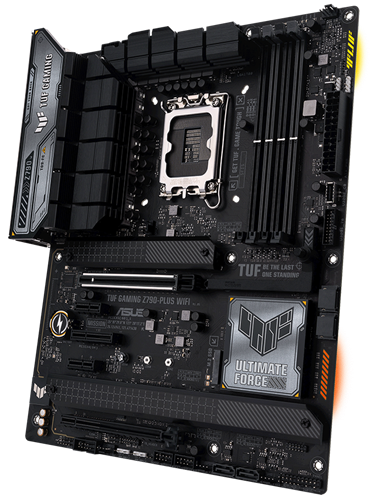

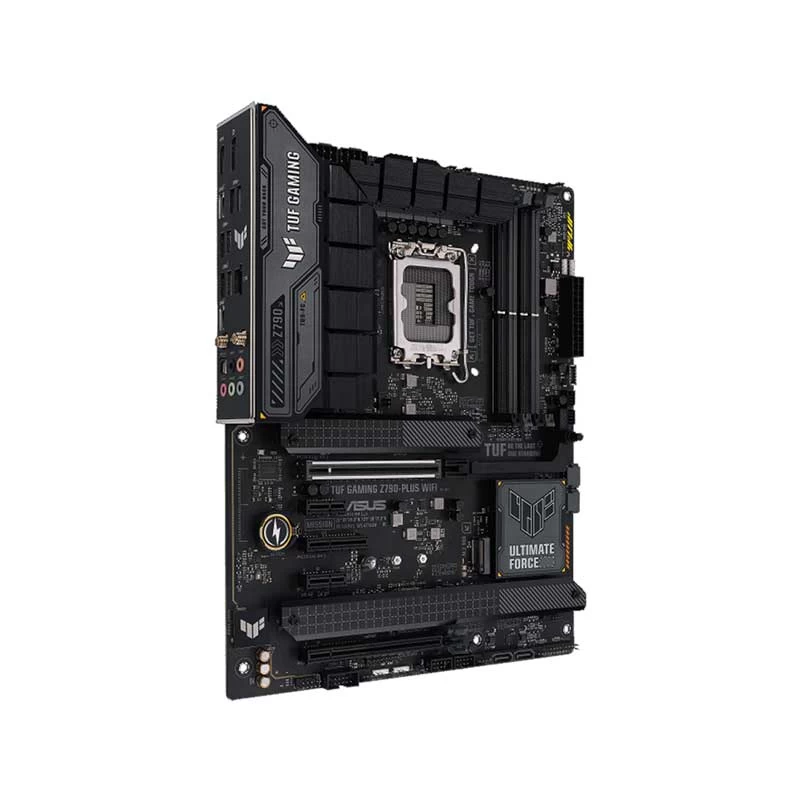

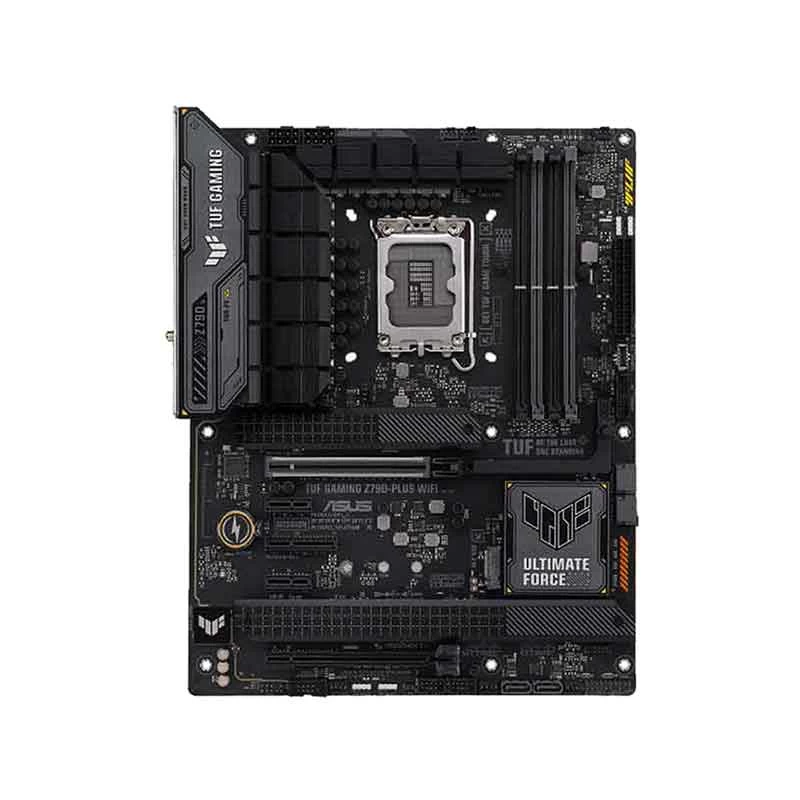

Bring speed and connectivity to your build with the TUF GAMING Z-790 PLUS WIFI LGA 1700 ATX Motherboard from ASUS. Utilizing the Intel Z790 chipset and LGA 1700 socket, this motherboard is compatible with 13th/14th Gen Intel processors. Install up to 128GB of DDR5 RAM across four memory slots. Four M.2 and four SATA III interfaces allow for ample storage, while PCIe 5.0 x16, 4.0 x16, 4.0 x4, and two 3.0 x1 slots accommodate adapter cards.

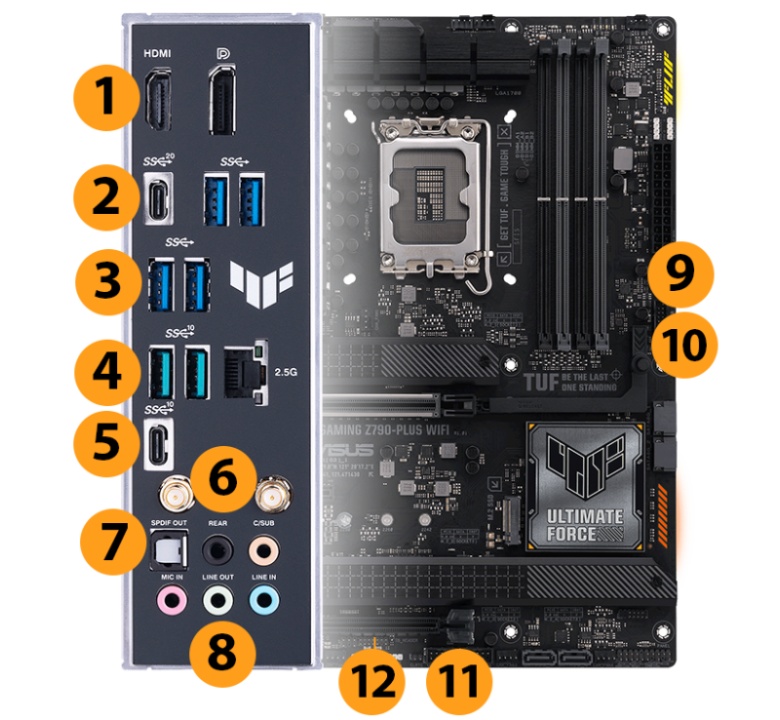

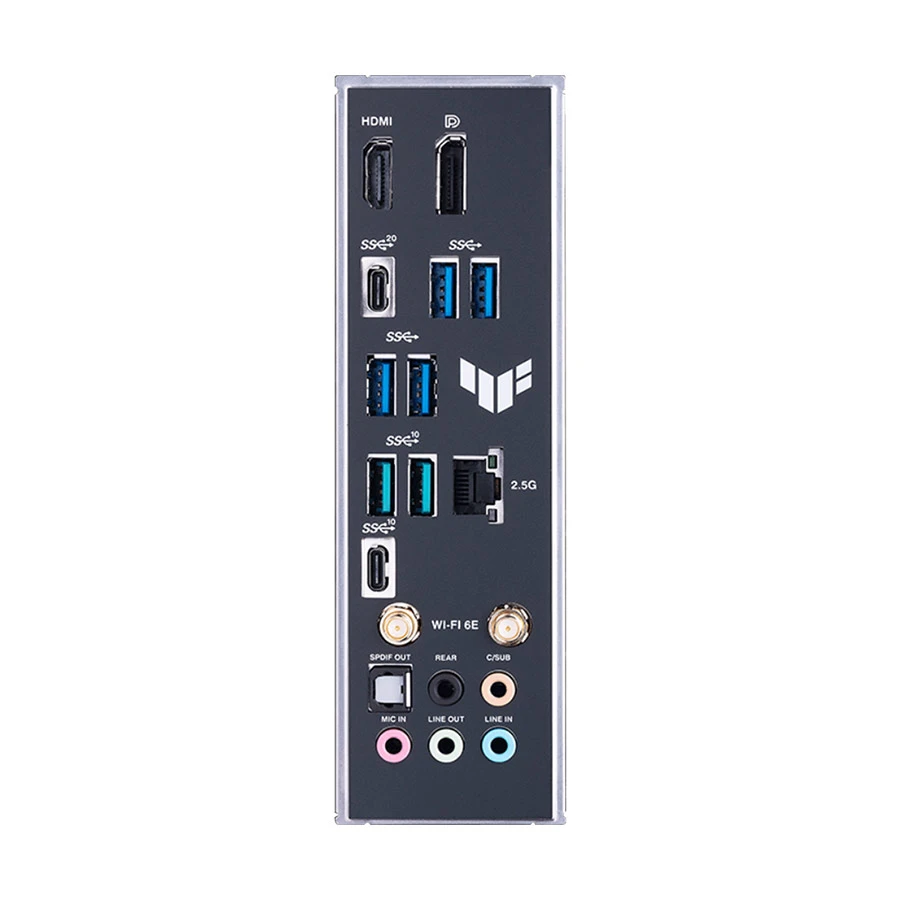

Connect to wired peripherals via USB-C 3.2 Gen 2x2 and 3.2 Gen 2 ports, or via two USB-A 3.2 Gen 2 and four 3.2 Gen 1 ports. Output video via DisplayPort 1.4 or HDMI 2.1 interfaces. An RJ45 port supports 2.5 Gigabit Ethernet, and the included antenna allows for Wi-Fi 6E connectivity. The rear I/O panel also sports five 1/8" audio jacks and a S/PDIF output for digital audio. Internal headers provide support for fans, Clear CMOS, Thunderbolt 4, RGB lighting, and front-panel USB-C 3.2 Gen 2 and USB-A 3.2 Gen 1 and 2.0 ports.
Intel LGA 1700 Socket
The Intel LGA 1700 socket is compatible with 13th/14th Gen Intel Core processors.
Z790 Chipset
Compatible with 13th/14th Gen or Raptor Lake CPUs, this chipset is optimized for overclocking support and fast performance.
Enhanced Power Solution

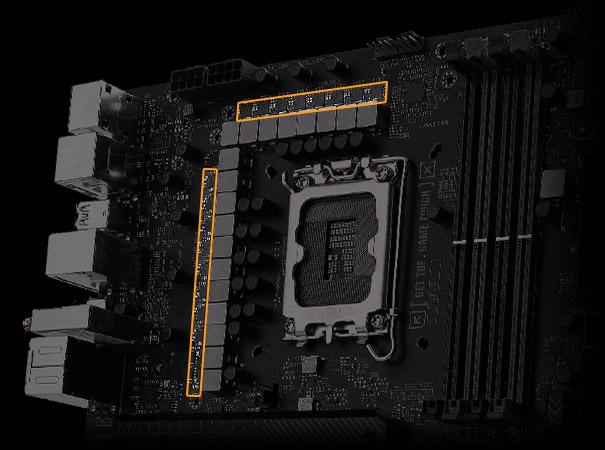

A 16+1 Phase Power DrMOS, six-layer PCB, ProCool sockets, alloy chokes, and durable capacitors allow for stable power delivery.
Connectivity to the Core
Connect to fast internals and accessories using PCIe 5.0 and Thunderbolt 4 headers, plus support for a front-panel USB-C 3.2 Gen 2x2 port.
Made for Online Gaming
Hop online and keep abreast of the action with Wi-Fi 6E and Intel 2.5 Gigabit Ethernet. Plus, a TUF LANGuard design ensures optimized surge tolerance for greater protection.
Two-Way AI Noise Cancelation
Reduce background noise for crystal-clear communication in games or video conferences.
Cool by Design

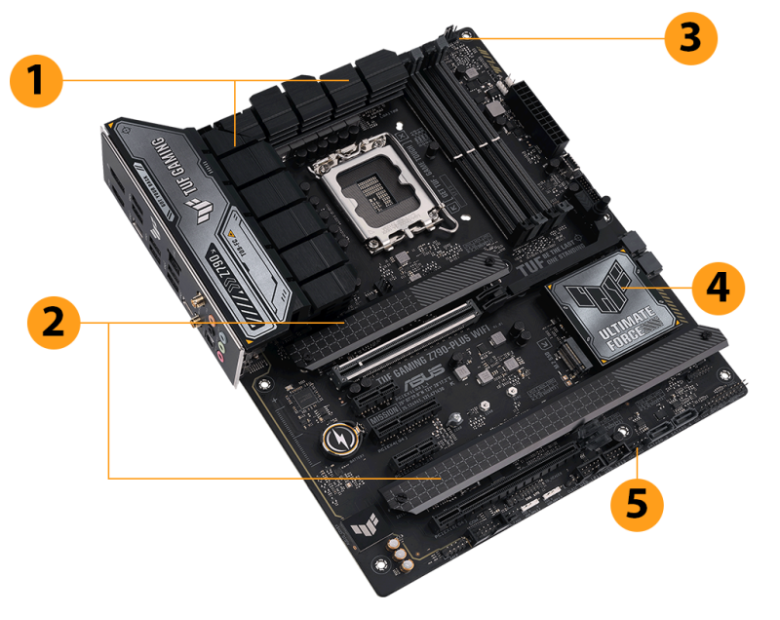

Use AI Cooling II to balance thermals and acoustics of any build with a single click. Enlarged VRM, PCH, and M.2 heat sinks, hybrid fan headers, and Fan Xpert 4 utility via Armoury Crate allow for comprehensive cooling.
Aura Sync RGB Effects
An edge lighting design, addressable RGB headers, and RGB strip header support let you set the mood for your favorite games.
DIY Design
A PCIe slot Q-release, M.2 Q-latch, Q-LED, and SafeSlot allow for easy installation of components, meaning you can get up and running fast.
USB 3.2 Gen 2
Doubling the speed of its predecessor, USB 3.2 Gen 2 features a maximum throughput of 10 Gb/s when used with compatible devices and is synonymous with USB 3.1 Gen 2.
Six-Layer PCB Design

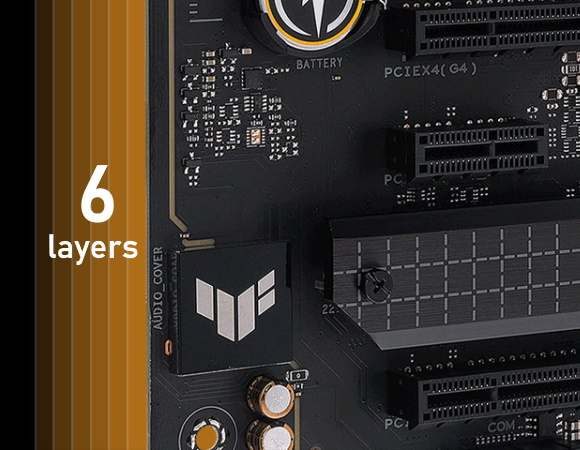

The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
The price of Asus TUF GAMING Z790-PLUS (Wi-Fi 6E) Motherboard not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy Asus TUF GAMING Z790-PLUS (Wi-Fi 6E) Motherboard from our website or visit our showrooms nearby.
