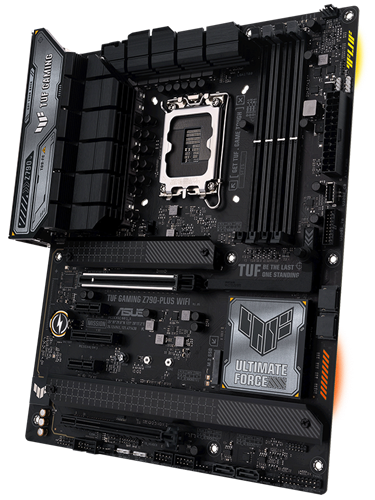

Asus TUF GAMING Z790-PLUS (Wi-Fi 6E) DDR5 Intel Motherboard

Product Id: 02.01.006.440

Brand Asus

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Chipset - Intel Z790
  • Sockets Supported - LGA1700
  • Supported CPU - 12th/13th/14th Gen Intel Core, Pentium Gold and Celeron Processors
  • Generation - 12th/13th/14th
  • Memory Slot - 4
  • Memory Max. - 128GB
General
Brand
Asus

Model
Asus TUF GAMING Z790-PLUS (Wi-Fi 6E)

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel Z790

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
12th/13th/14th Gen Intel Core, Pentium Gold and Celeron Processors

Generation
12th/13th/14th


Memory Support
Memory Type
DDR5

Memory MHz
7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory

Memory Channel
Dual

Memory Slot
4

Memory Max.
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
4

M.2/SSD Expansion Slot Details
4 x M.2 (2 x M.2 (Key M), type 2242/2260/2280/22110, 2 x M.2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode))


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot
1 x PCIe 5.0 x16 (Intel 13th & 12th), 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x4, 2 x PCIe 3.0 x1 (Intel Z790)


Audio & Video
Audio Chipset
Realtek S1220AAudio CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Intel 2.5Gb Ethernet

LAN Speed (Mbps)
10/100/1000/2500 Mbps

WiFi
Yes

WiFi Technology
Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Bluetooth
Bluetooth 5.3


Ports
USB Port
4 x USB 3.2 Gen 1 Type-A, 2 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 2 Type-C

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
2 x SATA

Thunderbolt
1

TPM Port
No

COM Port
1


Technical Info
FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0, 1, 5, 10

RGB Support
RGB

RGB Sync
Aura RGB

RGB Connector
1 x Aura RGB header

Approx. Power Consumption
70W

Form Factor
ATX


Bios Information
BIOS Type
192 (128+64) Mb Flash ROM

BIOS Model
UEFI AMI BIOS


Compatibility
Supported Operating System
Windows 11, 10

Compatible Products
LGA1700 Socket 12th, 13th & 14th Gen Intel Processor


Warranty
Warranty
3 Year

Warranty Details
3 Years Replacement Warranty


Additional Info
Feature

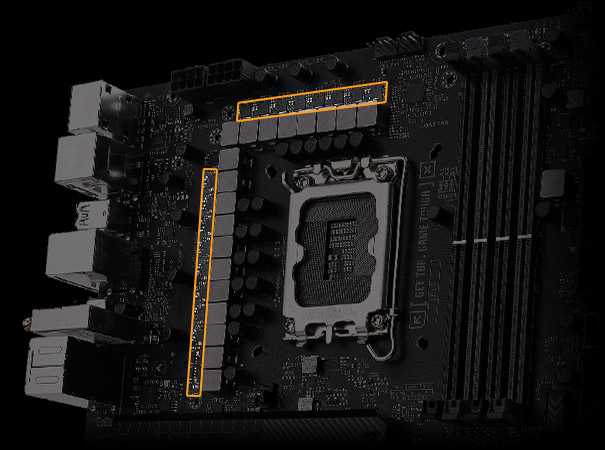

Special Features: ASUS TUF PROTECTION, DIGI+ VRM (- Digital power design with DrMOS), ESD Guards, TUF LANGuard, Overvoltage Protection, Safeslot, Stainless-Steel Back I/O ASUS Q-Design, M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot ASUS Thermal Solution, M.2 heatsink, VRM heatsink design ASUS EZ DIY, CPU Socket lever protector, ProCool, Pre-mounted I/O shield, SafeDIMM, Software Features: ASUS Exclusive Software Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 4 (with AI Cooling II), Two-Way AI Noise Cancelation, Power Saving, UEFI BIOS.

Others

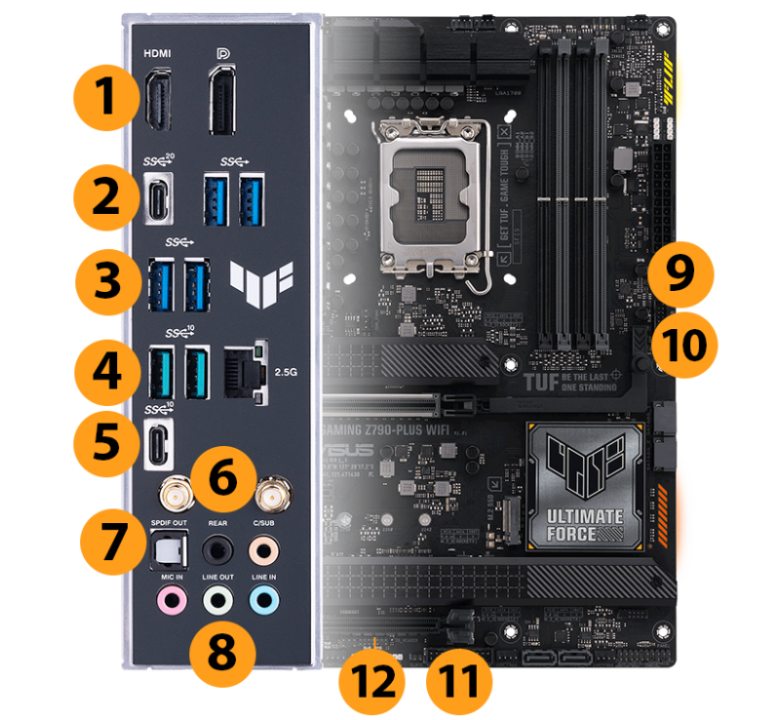

Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers, Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related, Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function. Back Panel I/O Ports: 1 x Wi-Fi Module, 5 x Audio jacks, 1 x Optical S/PDIF out port

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
