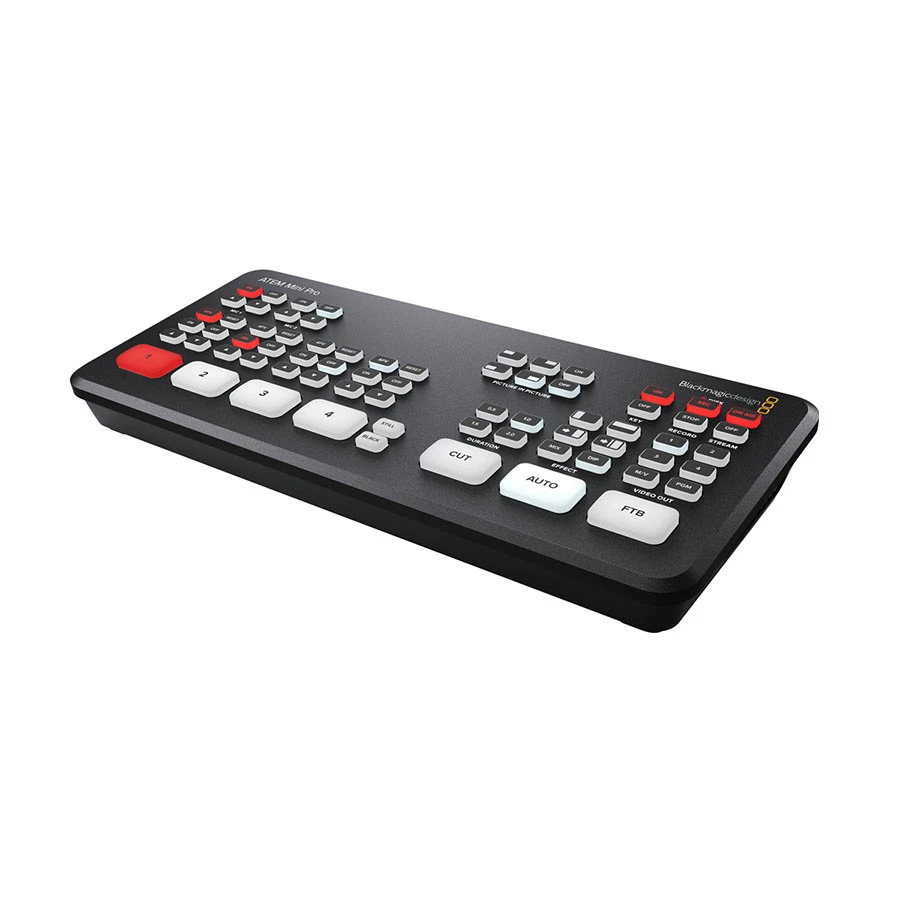

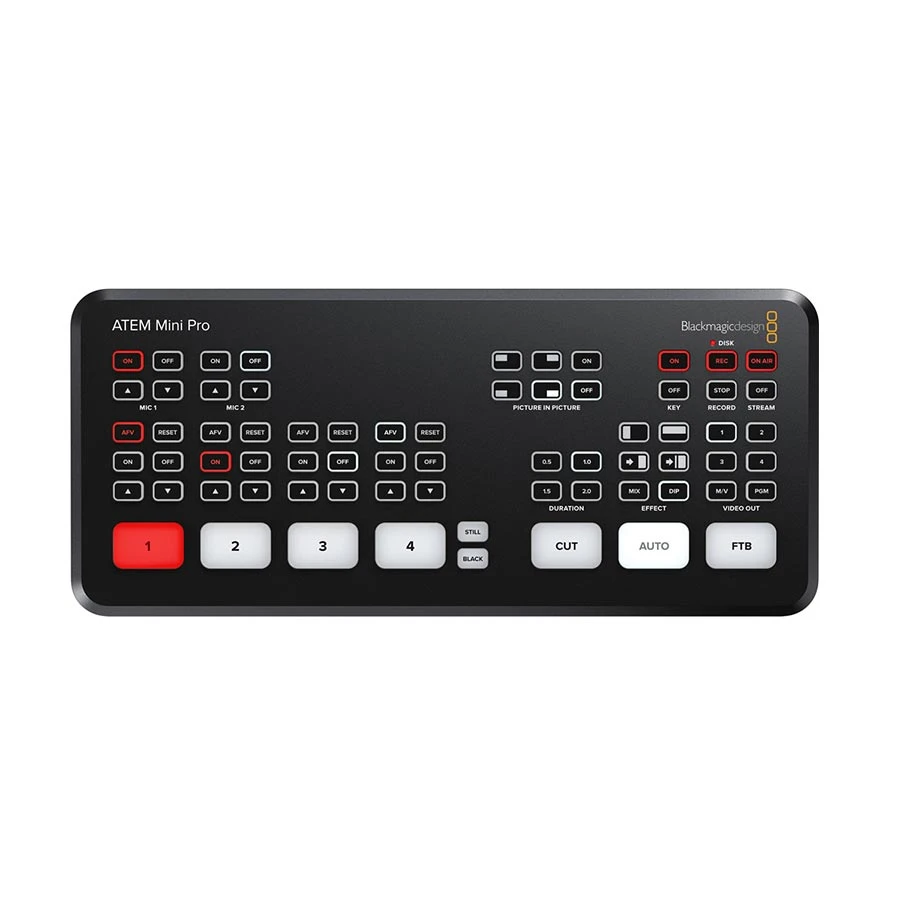

Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher

Item: Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher
Rating: 5
Author: Verified Buyer

Product Id: 143.03.888.01

Coming Soon

Quick Overview

Capture Resolution (Pixel) - 1080p
Interface(s) - USB, HDMI, Audio
HDMI Ports - 4 x HDMI
USB Ports - 1 x USB 3.1 Gen 1 Type-C
Color - Black

Payment Method Shipping & Charge Order Procedure

General

Brand

Blackmagic Design

Model

Blackmagic Design ATEM Mini Pro

Type

Stream Switcher

Technical Info

Capture Resolution (Pixel)

1080p

Supported Resolutions (Video Input)

1080p

Video Inputs

HDMI

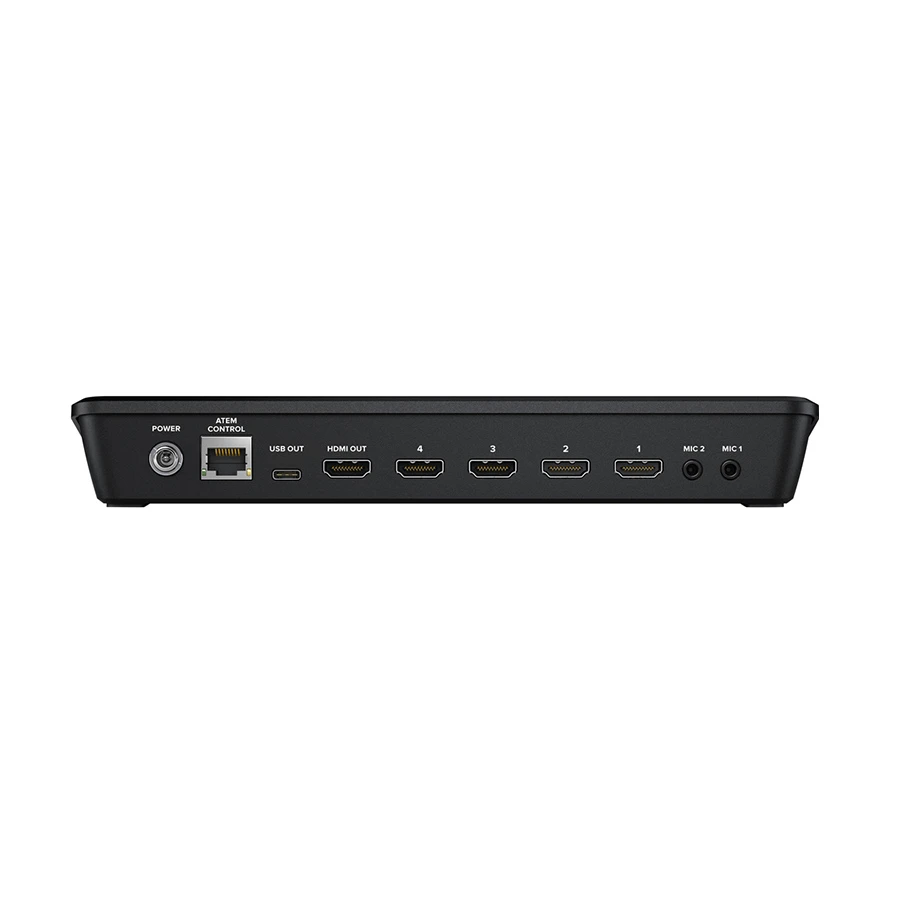

Inputs

4x HDMI Female

Video Outputs

HDMI

Output Format

1x HDMI

Audio Input

2x 1/8 Inch / 3.5 mm TRS Stereo Analog Female

Audio Output

2-Channel (per Output) HDMI

Connectivity

Interface(s)

USB, HDMI, Audio

HDMI Ports

4 x HDMI

USB Ports

1 x USB 3.1 Gen 1 Type-C

USB Type

USB 3.1

Main Features

OS Supported

Windows 10 or later/ 11. macOS 10.14 or later.

Physical Description

Dimension

237.5 x 103.4 x 35.1mm

Weight (gm)

550 gm

Color

Black

Packet Contents

Blackmagic Design ATEM Mini Pro HDMI Live Stream Switcher, 12V Power Supply with International Adapters

Warranty

No warranty

Additional Info

Others

Available M/E Layers: 5 M/E, Effect Types: 1x DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key, Downstream Keys: 1x Chroma, DVE, 2x Luma, Audio Mixing: 2-Channel Mixing, Switching Type: Pushbutton, Number of Video Input Sources: 4, Input Video Format: HDMI (10-Bit 4:2:2 YUV)- 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps, 1080i 50/59.94/60 fps, 720p 50/59.94/60 fps, Video Output Channels: 1, Output Video Format: HDMI / RJ45 (10-Bit 4:2:2 YUV)- 1080p at 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60 fps, Multiview Output: Yes, Monitor Output: 1x HDMI, Other I/O: 1x RJ45 Control, Firmware, LAN, Sync, Tally, Timecode Input/Output, 1x USB-C Control, Firmware Input/Output, Power I/O: 1x Barrel (12 VDC ) Input, Power Consumption: 36 W

Specialty

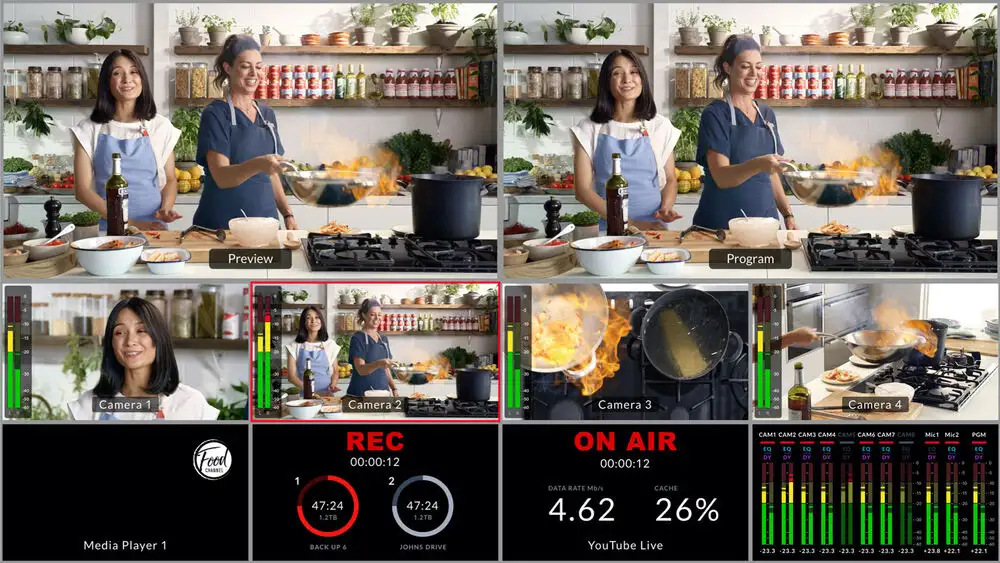

4-Channel Live Stream HDMI Switcher, Control up to Four BMPCC 6K/4K Cameras, Live Tally, Stream and Record Status, Record Button, Channel Preview Multiview, 2-Channel Digital Audio Mixer per Source, HDMI Output, Ethernet ATEM Control, Media Player, Computer Input Support, Upstream and Downstream Keyers, Color and Pattern Generators, DVE Transition, Chroma/Luma Keyers

Details

Features of Blackmagic Design ATEM Mini Pro Game Streaming/Capture Card In Bangladesh

What is the price of Blackmagic Design ATEM Mini Pro Game Streaming/Capture Card In Bangladesh?

The price of Blackmagic Design ATEM Mini Pro Game Streaming/Capture Card not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Blackmagic Design ATEM Mini Pro Game Streaming/Capture Card from our website or visit our showrooms nearby.
