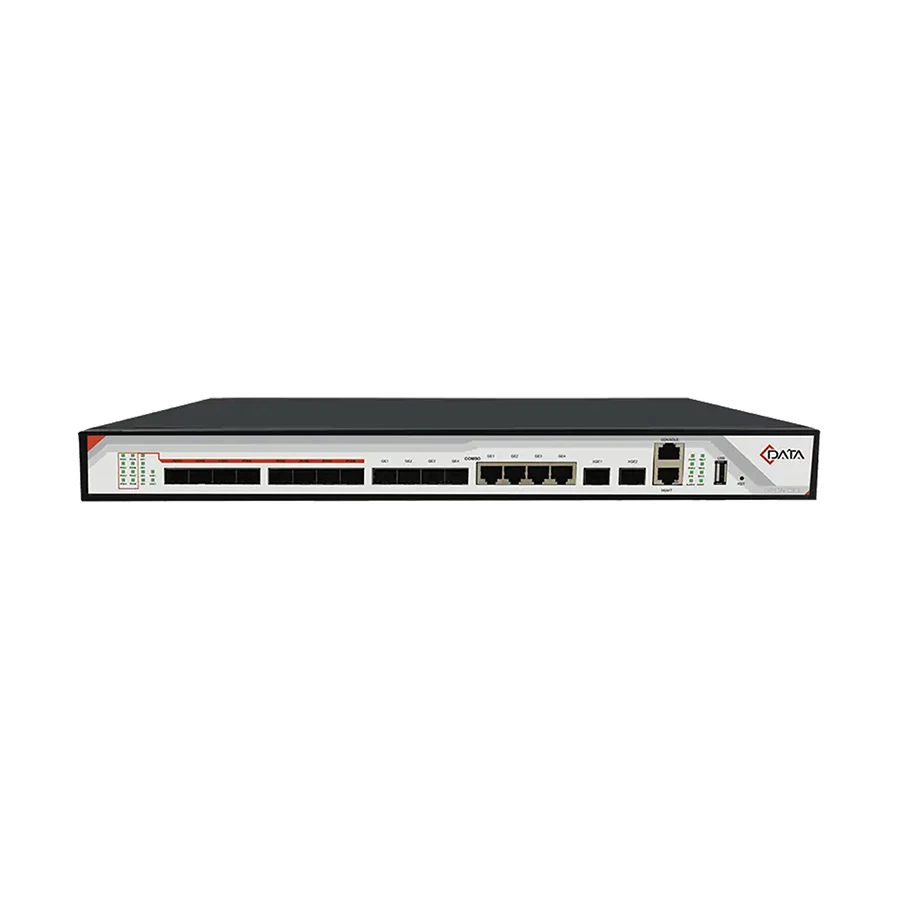

C-Data FD1608S-B0 8 Port G-PON OLT

Item: C-Data FD1608S-B0 8 Port G-PON OLT
Rating: 5
Author: Adnan

1 reviews

Product Id: 29.11.798.20

Regular Price

Tk 0

This item is discontinued.

See similar model

Quick Overview

Management Rack Type - 1U
Uplink COMBO Port - 4 x 10/100/1000M auto-negotiation Ethernet ports (4 SFP interfaces)
USB Port - 1

Payment Method Shipping & Charge Order Procedure

Brand

C-Data

Model

C-Data FD1608S-B0

Management Rack Type

Uplink 10-Gigabit Port

2 SFP+ interfaces

Uplink Port Quantity

Unmentioned

PON Port Quantity

PON Port Interface Type

ITU-TG.984.2 Class B+/Class C+

PON Port Interface Type/Connector

SC/UPC

Management Port

1 x 100/1000BASE-Tx out-band Ethernet port, 1 x CONSOLE local management port

USB Port

Maximum Power

58W

Dimension

440 x 272.6 x 44mm (L x W x H)

Weight (Kg)

4.50kg

Warranty Details

2 year

General

Brand

C-Data

Model

C-Data FD1608S-B0

Management Rack Type

Uplink Info

Uplink COMBO Port

4 x 10/100/1000M auto-negotiation Ethernet ports (4 SFP interfaces)

Uplink 10-Gigabit Port

2 SFP+ interfaces

Uplink Port Quantity

Unmentioned

PON Info

PON Type

GPON

PON Port Quantity

PON Port Physical Interface

SFP slot

PON Port Interface Type

ITU-TG.984.2 Class B+/Class C+

PON Port Max. Splitting Ratio

1:128

PON Port Transmission Distance

20KM

PON Port Rate

Downstream: 2.5Gbps, Upstream: 1.25Gbps

PON Port Wavelength

Forwarding: 1490nm, Receiving: 1310nm

PON Port Interface Type/Connector

SC/UPC

PON Port Fiber Type

9/125m SMF (Single Mode Fiber)

PON Port Light Transmission Power

Class B+ +1.5- +5dBm, Class C+ +3 - +7dBm

PON Port Receiving Sensitivity

Class B+ -28dBm, Class C+ -30dBm

PON Port Saturation Power

Class B+ -8dBm, Class C+ -12dBm

Technical Info

Management Port

1 x 100/1000BASE-Tx out-band Ethernet port, 1 x CONSOLE local management port

USB Port

Network Management Method

Support CLI, SNMP, TELNET, SSH, WEB

Backplane Bandwidth

78G

Layer-Two Switch

Unmentioned

Power Info

Power Supply

AC: 100V - 240V, 47/63Hz, DC:-36V - -72V, BBU - AC: 11V - 14V

Maximum Power

58W

Working Temperature

-15 - 50 Degree C

Storing/Storage Temperature

-40 - 85 Degree C

Relative Humidity

5 - 90% (Non-condensing)

Physical Description

Dimension

440 x 272.6 x 44mm (L x W x H)

Weight (Kg)

4.50kg

Warranty

Warranty Details

2 year

Additional Info

Others

1U 19-inch standard box

Details

Features of C-Data FD1608S-B0 Optical Line Termination (OLT) In Bangladesh

Brand - C-Data, Model - C-Data FD1608S-B0, Management Rack Type - 1U 19-inch standard box, Uplink COMBO Port - 4 x 10/100/1000M auto-negotiation Ethernet ports (4 SFP interfaces), Uplink 10-Gigabit Port - 2 SFP+ interfaces, PON Type - GPON, PON Port Quantity - 8, PON Port Physical Interface - SFP slot, PON Port Interface Type - ITU-TG.984.2 Class B+/Class C+, PON Port Max Splitting Ratio - 1:128, PON Port Transmission Distance - 20KM, PON Port Rate - Downstream: 2.5Gbps, Upstream: 1.25Gbps, PON Port Wavelength - Forwarding: 1490nm, Receiving: 1310nm, PON Port Interface Type/Connector - SC/UPC, PON Port Fiber Type - 9/125m SMF (Single Mode Fiber), PON Port Light Transmission Power - Class B+ +1.5- +5dBm, Class C+ +3 - +7dBm, PON Port Receiving Sensitivity - Class B+ -28dBm, Class C+ -30dBm, PON Port Saturation Power - Class B+ -8dBm, Class C+ -12dBm, Management Port - 1 x 100/1000BASE-Tx out-band Ethernet port, 1 x CONSOLE local management port, USB Port - 1, Network Management Method - Support CLI, SNMP, TELNET, SSH, WEB, Backplane Bandwidth - 78G, Power Supply - AC: 100V - 240V, 47/63Hz, DC:-36V - -72V, BBU - AC: 11V - 14V, Maximum Power - 58W, Working Temperature - -15 - 50 Degree C, Storage Temperature - -40 - 85 Degree C, Relative Humidity - 5 - 90% (Non-condensing), Dimension - 440 x 272.6 x 44mm (L x W x H), Weight (Kg) - 4.50kg, Warranty - 2 Year

What is the price of C-Data FD1608S-B0 Optical Line Termination (OLT) In Bangladesh?

The price of C-Data FD1608S-B0 Optical Line Termination (OLT) not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy C-Data FD1608S-B0 Optical Line Termination (OLT) from our website or visit our showrooms nearby.
