C-Data FD1616S-B0-NDA0 16 Port G-PON OLT

Features of C-Data FD1616S-B0-NDA0 Optical Line Termination (OLT) In Bangladesh

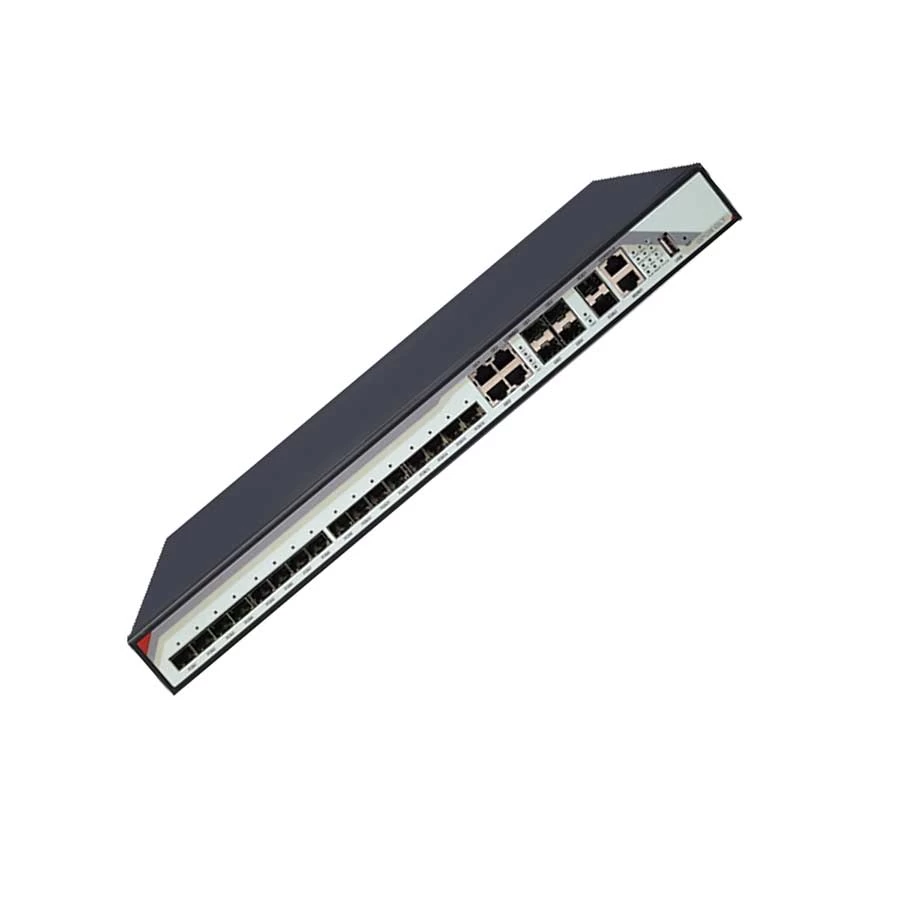

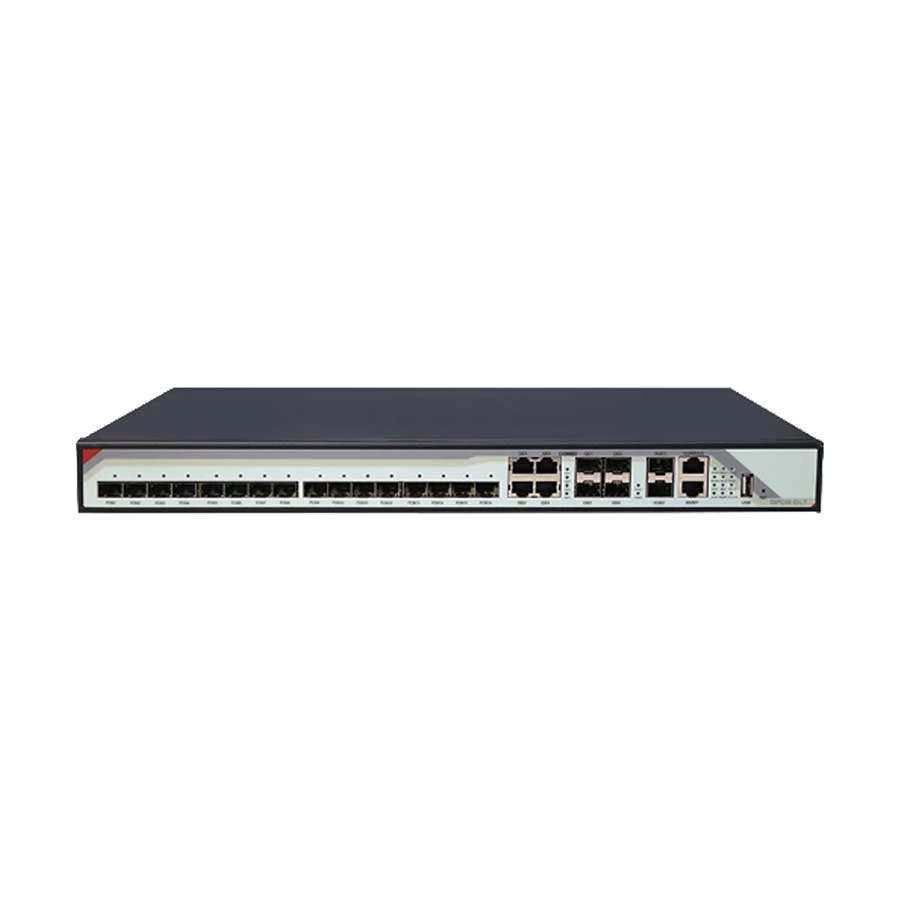

GPON OLT FD1616S-B0 completely meet relative standard of ITU G.984.x and FSAN, which is 1U rack-mounted device with1 USB interface, 4 uplink GE ports, 4 uplink SFP ports, 2 10-gigabit uplink ports and 16 GPON ports, each GPON port supports the splitting ratio of 1:128 and provides downstream bandwidth of 2.5Gbps and upstream bandwidth of 1.25Gbps, system support 2048 GPON terminals accessing in for the most.
This product meets the requirements in device performance and size of compact server room as the product has high performance and compact size, is convenient and flexible to use, and is easy to deploy as well. Moreover, the product meets the requirements of promoting network performance, improving reliability and reducing power consumption in the perspective of access network and enterprise network and is applicable to three-in-one broadcast television network, FTTP (Fiber to the premise), video monitoring network, enterprise LAN (Local Area Network), internet of things and other network applications with a very high price/performance ratio.

Brand - C-Data, Model - C-Data FD1616S-B0-NDA0, Management Rack Type - 1U, Uplink COMBO Port - 2 x 10/100/1000/100000 Ethernet ports (4 SFP interfaces), Uplink 10-Gigabit Port - 2, Uplink Port Quantity - 10, Uplink Port Copper - 10/100/1000/100000, Uplink Port Optical Interface - 4 GE, 10Gb Uplink Interface - 2 x 10Gb, PON Port Quantity - 16, PON Port Physical Interface - Not Specified, PON Port Interface Type - Not Specified, PON Port Max Splitting Ratio - 1:128, PON Port Transmission Distance - Not Specified, PON Port Rate - Not Specified, PON Port Wavelength - Not Specified, PON Port Interface Type/Connector - Not Specified, PON Port Fiber Type - Not Specified, PON Port Light Transmission Power - Not Specified, PON Port Receiving Sensitivity - Not Specified, PON Port Saturation Power - Not Specified, PON Port Connector Type - Not Specified, PON Port Speed - Not Specified, PON Port TX Power - Not Specified, PON Port Rx Sensitivity - Not Specified, PON Port Saturation Optical Power - Not Specified, 10Gb SFP+ Port Transmission Distance - No, 10Gb SFP+ PON Port Speed - No, 10Gb SFP+ Port Wavelength - No, 10Gb SFP+ Port Connector - No, 10Gb SFP+ Port Fiber Type - No, 10Gb SFP+ Port TX Power - No, 10Gb SFP+ Port Rx Sensitivity - No, Management Port - Not Specified, USB Port - 1, USB Type - Type-C, Network Management Method - Not Specified, Backplane Bandwidth - 78G, Management Function - Not Specified, Layer-Two Switch - Not Specified, EPON Function - Not Specified, Layer-Three Route - Not Specified, Power Supply - 220VAC, 90V-240V, 47/63Hz, Maximum Power - Not Specified, Power Consumption - 100W, Working Temperature - Not Specified, Storage Temperature - Not Specified, Relative Humidity - Not Specified, Body Material - Not Specified, Dimension - 440 x 288 x 44mm, Weight (Kg) - 5kg, Features - Fiber Transceiver. Certification: CE, ISO, RoHS., Specialty - GPON OLT FD1616S-B0 completely meet relative standard of ITU G.984.x and FSAN, which is 1U rack-mounted device with1 USB interface, 4 uplink GE ports, 4 uplink SFP ports, 2 10-gigabit uplink ports and 16 GPON ports, each GPON port supports the splitting ratio of 1:128 and provides downstream bandwidth of 2.5Gbps and upstream bandwidth of 1.25Gbps, system support 2048 GPON terminals accessing in for the most., Others - his product meets the requirements in device performance and size of compact server room as the product has high performance and compact size, is convenient and flexible to use, and is easy to deploy as well. Moreover, the product meets the requirements of promoting network performance, improving reliability and reducing power consumption in the perspective of access network and enterprise network and is applicable to three-in-one broadcast television network, FTTP (Fiber to the premise), video monitoring network, enterprise LAN (Local Area Network), internet of things and other network applications with a very high price/performance ratio., Part/Model Number - FD1616S-B0-NDA0, Warranty - 2 Year, Country of Origin - Not Specified, Made in/ Assemble - Not Specified

What is the price of C-Data FD1616S-B0-NDA0 Optical Line Termination (OLT) In Bangladesh?

The price of C-Data FD1616S-B0-NDA0 Optical Line Termination (OLT) not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy C-Data FD1616S-B0-NDA0 Optical Line Termination (OLT) from our website or visit our showrooms nearby.
