N.B. Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch.

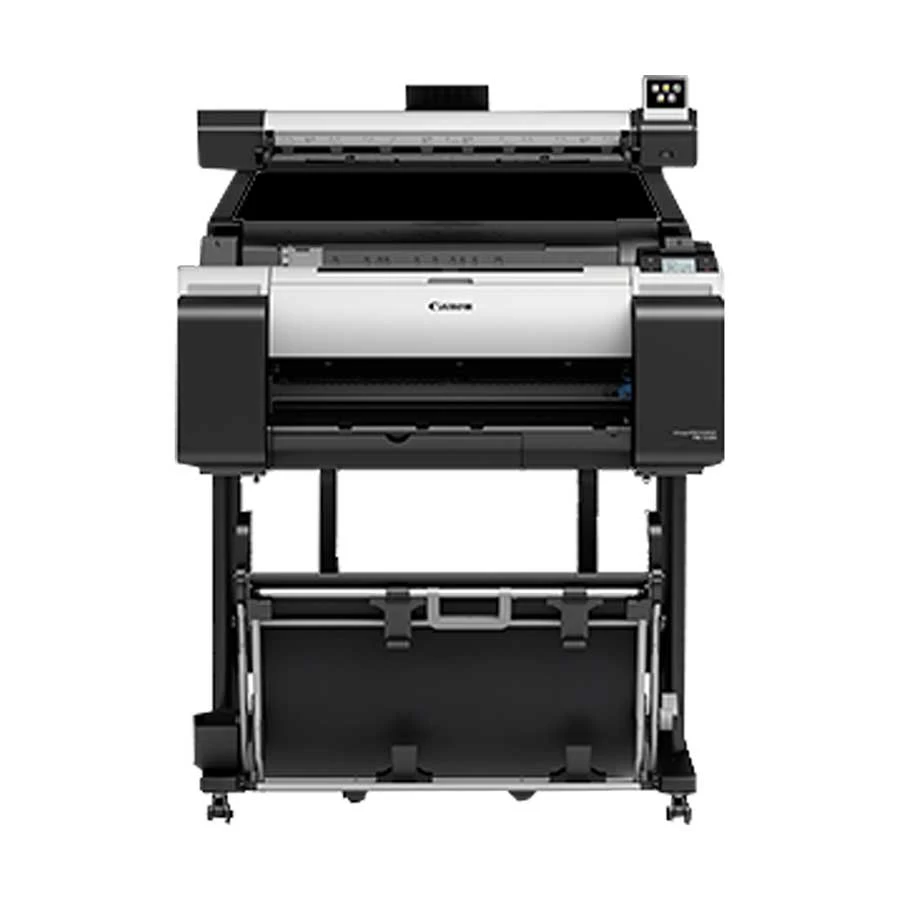

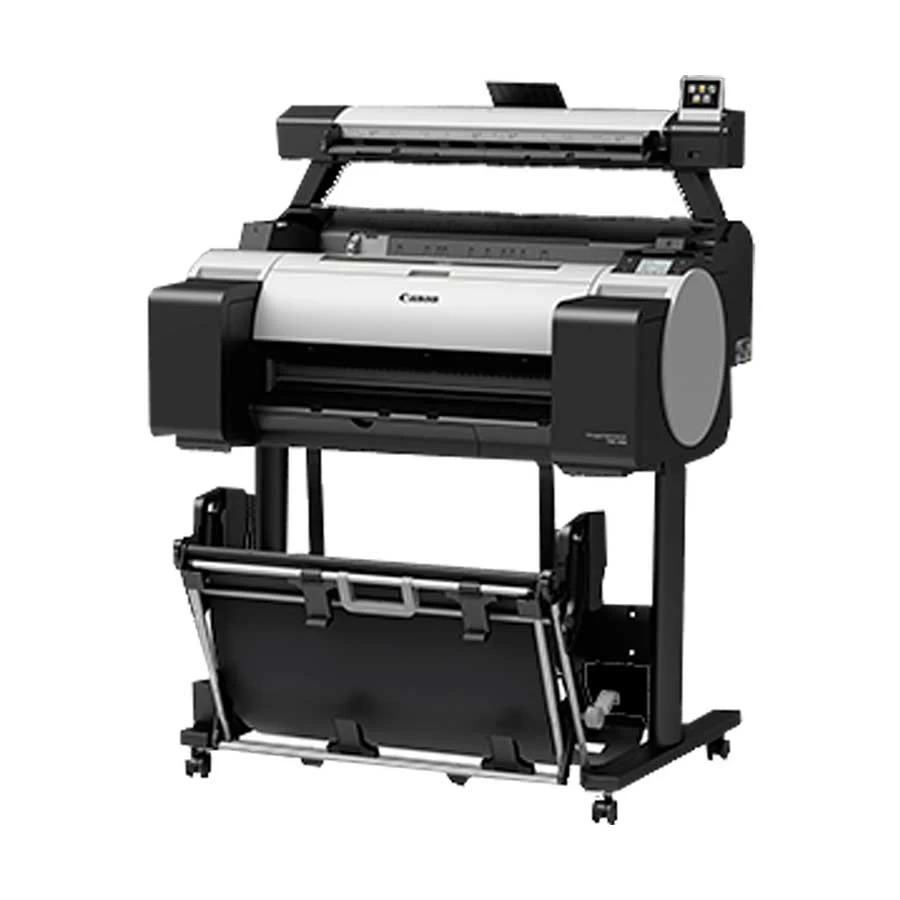

Canon imagePROGRAF TM-5200 24-in Multifunction Large Format Printer with L24ei Scanner

Product Id: 12.07.010.127

Brand Canon

Regular Price Tk 354,800 (Estimated) Monthly EMI Tk 29,567
Special Price Tk 330,000 (Estimated)

Delivery in 60 days

Quick Overview

  • Functions - Print, Scan, Copy
  • Output Color - Color
  • Print Speed (Black) - 24 sec (Fast Economy Mode, CAD Drawing - Plain Paper A1)
  • Print Speed (Color) - 24 sec (Fast Economy Mode, CAD Drawing - Plain Paper A1)
  • Interface (Built-in) - USB, LAN
General
Brand
Canon

Model
Canon imagePROGRAF TM-5200

Series
imagePROGRAF

Type
Ink Cartidge

Functions
Print, Scan, Copy

Output Color
Color


Print Info
Print Speed (Black)
24 sec (Fast Economy Mode, CAD Drawing - Plain Paper A1)

Print Speed (Color)
24 sec (Fast Economy Mode, CAD Drawing - Plain Paper A1)

Print Resolution (Pixel)
2400 x 1200 dpi

Standard Print Languages
SG Raster (Swift Graphic Raster), HP-GL/2, HP RTL, JPEG (Ver. JFIF 1.02)


Scanner Info
Scanner Type
Single Sensor with multiple LED illumination

Scan Speed
1 ips Draft (300/300 dpi), 3 ips (mono)

Scan Resolution (Pixel)
600 dpi

Scan Features
Scan to USB: RGB/Greyscale/BW, JPG, PDF, PDF/A, M-PDF (ScanApp Lei available). Scan to PC: RGB/Greyscale/BW, Tiff, JPEG, PDF, PDF/A, TiffG4, M-PDF.


Paper Info
Max. Paper Size Custom
203.2 - 610mm

Paper Handling
Media Feed Method (Single Roll): Roll Paper: Upper Load, Front Output Cut Sheet: Upper Load, Front Output (Manual feed using media locking lever). Media Output (SD-23): Standard Position: 1 sheet Folding Position: 20 sheets on A1 portrait Flat Position: 20 sheets on A2 landscape.


Memory & Storage
Printer Memory
2GB

Storage (MB/GB/TB)
No


Connectivity
Interface (Built-in)
USB, LAN


Performance
Borderless Printing
Yes


Power
Power Source/ Power Consumption
Power Supply: AC 100 - 240 V, 50 - 60 Hz. Power Consumption - Operation: 69 W or less, Sleep Mode: 3.6 W or less, Power Off: 0.3 W or less


Software
Software Included
ScanApp Lei Software


Physical Description
Dimensions
982 x 887 x 1060mm

Weight (Kg)
52 Kg


Warranty
Warranty Details
1 Year Service (Without Adapter) (Box Mandatory While Claiming)


Additional Info
Others
Printer Type: 5-Colour, 24 Inch / 610 mm. Number of Nozzles: 15,360 nozzles (MBK: 5120 nozzles; BK, C, M, Y: 2560 nozzles each). Nozzle Pitch: 1200 dpi (2 lines), Line Accuracy: + - 0.1% or less, Minimum Ink Droplet Size: 5pl, Ink Capacity: Sales Ink: 130 ml / 300 ml (MBK, BK, C, M, Y) Bundled Starter Ink: 130 ml (MBK) / 90 ml (BK, C, M, Y), Ink Type: Pigment Ink: Matte Black, Black, Cyan, Magenta, Yellow. Standard Interfaces (Built-in) - USB B Port: Hi-Speed USB, Full Speed (12 Mb/sec), High Speed (480 Mb/sec), Bulk Transfer, Series B (4 pins). Printing Speed - CAD Drawing - Plain Paper (A1): 24 sec (Fast Economy Mode), 27 sec (Fast), 42 sec (Standard). CAD Drawing - Heavyweight Coated Paper HG (A1): 29 sec (Fast Economy Mode), 40 sec (Fast), 1 min 17 sec (Standard). Poster - Plain Paper (A1): 25 sec (Fast Economy Mode), 25 sec (Fast), 44 sec (Standard). Poster - Heavyweight Coated Paper HG (A1): 55 sec (Fast), 1 min 22 sec (Standard). Media Width (Roll / Cut Sheet): 203.2 - 610 mm, Media Thickness (Roll / Cut Sheet): 0.07 - 0.8 mm, Minimum Printable Length: Roll Paper: 203.2 mm Cut Sheet: 279.4 mm. Maximum Printable Length: Roll Paper: 18 m (varies according to the OS and application) Cut Sheet: 1.6 m. Maximum Outer Roll Diameter: 150 mm or less. Copy - RGB/Greyscale/BW, Copy & Save: Copy and scan to PC concurrently. Scan Width: 24 Inch / 609.6 mm, Minimum Scan Width: 6.2 Inch / 160 mm, Maximum Scan Length: 109 Inch / 2768 mm

Specialty
The TM-5200 allows you to enjoy high-speed, accurate printing complete with vivid colours, high security, ease of use, all in silence. 5-colour pigment ink, Ultra quiet operation, 24 Inch/610mm, Compact footprint, Perfect for high quality CAD/GIS and posters

Country Of Origin
Japan

Made in/ Assemble
Vietnam / Thailand (or Country may vary by Shipment)


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
