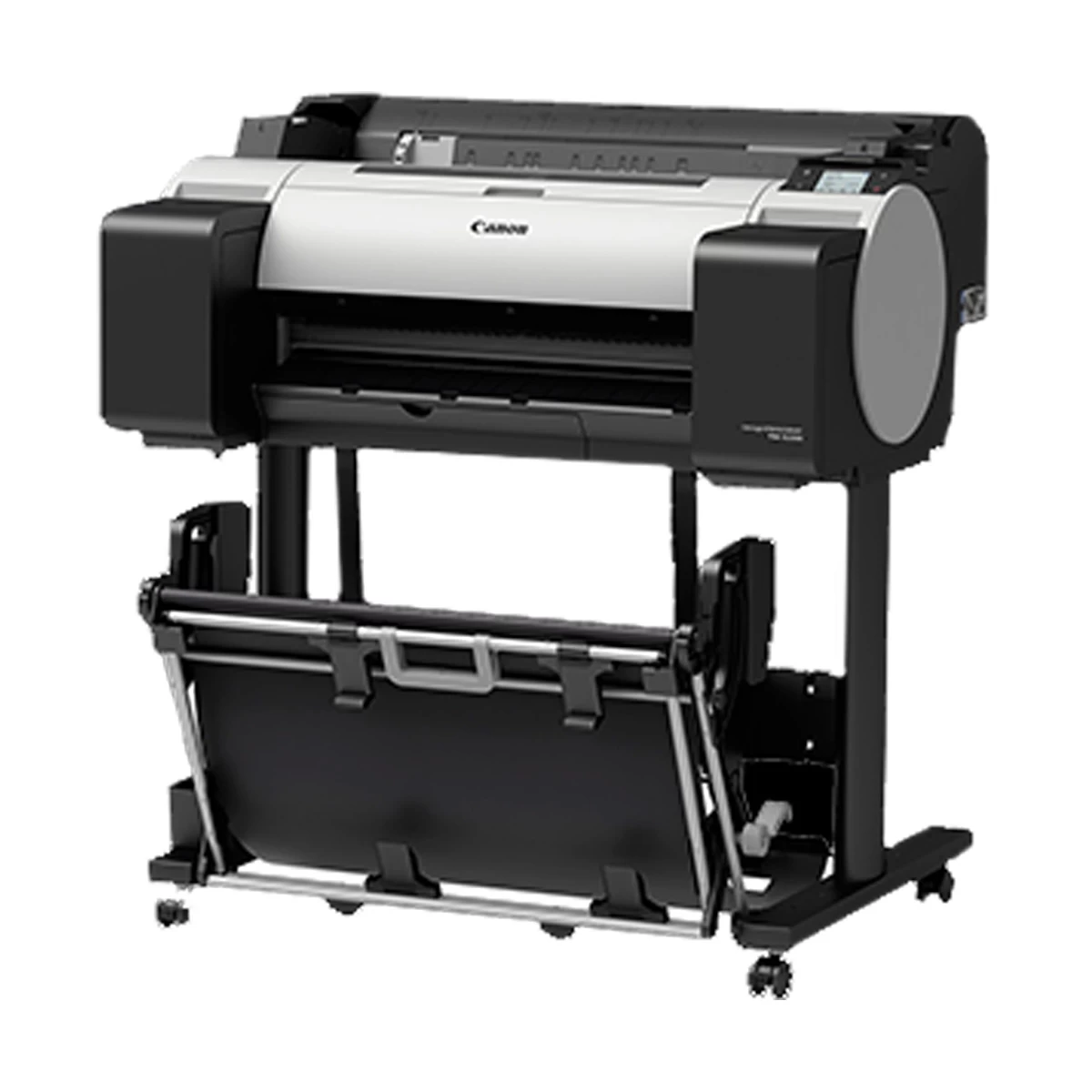

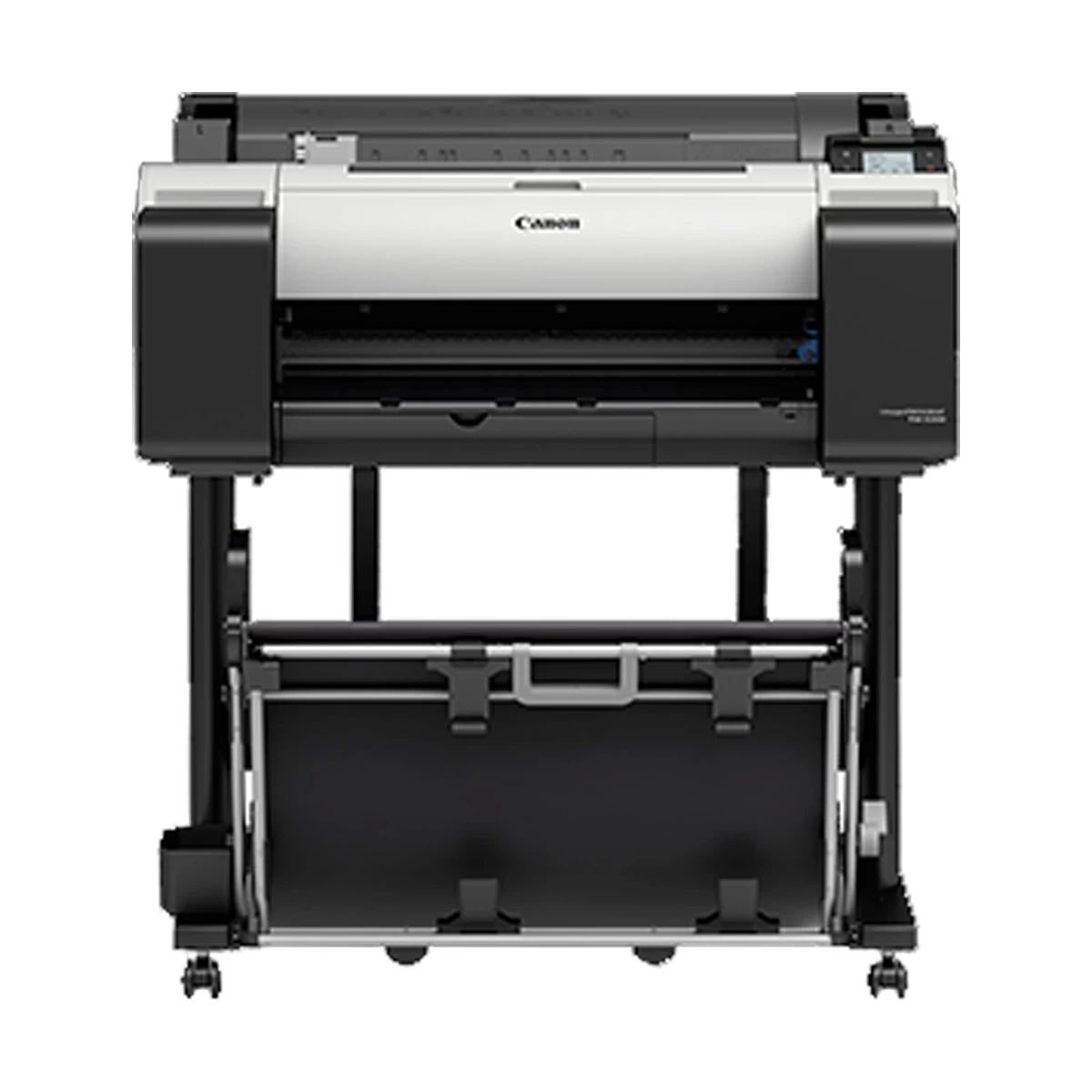

Canon imagePROGRAF TM-5200 24-in Single Function Large Format Printer Without Stand, Basket & Pallet

Item: Canon imagePROGRAF TM-5200 24-in Single Function Large Format Printer Without Stand, Basket & Pallet
Rating: 5
Author: Verified Buyer

1 reviews

Product Id: 12.07.010.123

Out Of Stock

See similar model

Quick Overview

Functions - Print Only
Output Color - Color
Print Speed (Black) - 1.42ppm/ 42 sec, CAD Drawing - Plain Paper (A1)(Standard)
Print Speed (Color) - 1.42ppm/ 42 sec, CAD Drawing - Plain Paper (A1)(Standard)
Printer Resolution (Color) - 2400 x 1200dpi
Print Paper Size Max. - A1
Interface (Built-in) - USB, LAN, WiFi
Body Color - White

Payment Method Shipping & Charge Order Procedure

Brand

Canon

Model

Canon imagePROGRAF TM-5200

Series

imagePROGRAF

Type

Ink Cartidge

Functions

Print Only

Output Color

Color

Print Speed (Black)

1.42ppm/ 42 sec, CAD Drawing - Plain Paper (A1)(Standard)

Print Speed (Color)

1.42ppm/ 42 sec, CAD Drawing - Plain Paper (A1)(Standard)

Printer Resolution (Color)

2400 x 1200dpi

Duplex Print

Manual

Scan Speed

Scan Resolution (Pixel)

Scan Paper Size

Duplex Scan

Copy Speed

Copier Resolution (Black)

Copier Resolution (Color)

Fax (Transmission) Speed (kbps)

Fax Resolution (Pixel)

Print Paper Size

A1, A2, A3, A4

Print Paper Size Max. (Inch)

23.4 x 33.1

Printer Memory

2GB RAM

Interface (Built-in)

USB, LAN, WiFi

Borderless Printing

Yes

Consumable

Canon PFI-8120M 130ml, Canon PFI-8120MBK 130ml, Canon PFI-8120Y 130ml, Canon PFI-8120Y 90ml, Canon PFI-8120M 90ml, Canon PFI-8120C 90ml, Canon PFI-8120BK 90ml, Canon PFI-8120BK 130ml, Canon PFI-8120C 130ml.

Ink Tank

Yes

Body Color

White

Power Source/ Power Consumption

AC 100 - 240 V, 50 - 60 Hz, Power Consumption: (Operation: 69 W or less, Sleep Mode: 3.6 W or less, Power Off: 0.3 W or less)

Dimensions

1152 x 913 x 705mm (Main Unit + Pallet)

Weight (Kg)

69 kg (Main Unit + Pallet)

Warranty

1 Year Service (Without Adapter) (Box Mandatory While Claiming)

General

Brand

Canon

Model

Canon imagePROGRAF TM-5200

Series

imagePROGRAF

Type

Ink Cartidge

Functions

Print Only

Printer Type

Single Function Large Format Printer

Output Color

Color

Print Info

Print Technology

Ink

Print Speed (Black)

1.42ppm/ 42 sec, CAD Drawing - Plain Paper (A1)(Standard)

Print Speed (Color)

1.42ppm/ 42 sec, CAD Drawing - Plain Paper (A1)(Standard)

Print Resolution (Pixel)

2400 x 1200 dpi

Printer Resolution (Color)

2400 x 1200dpi

Duplex Print

Manual

Standard Print Languages

SG Raster (Swift Graphic Raster), HP-GL/2 , HP RTL, JPEG (Ver. JFIF 1.02),

Photo Printing

Yes

Print Paper Size Minimum

Print Paper Size Max.

Print Paper Size Max. (Inch)

23.4 x 33.1

Max. Paper Size Custom

203.2 - 610mm

Print Paper Size

A1, A2, A3, A4

Scanner Info

Scanner Type

Scan Speed

Scan Resolution (Pixel)

Scan Paper Size

Max. Scan Paper Size ADF

Min. Scan Paper Size ADF

Color Scanning

Duplex Scan

Scan Compatibility

Wide Format Scanning

Scan Features

Copier Info

Copy Speed

Copy Resolution (Pixel)

Copier Resolution (Black)

Copier Resolution (Color)

Copy Size

Fax Info

Fax (Transmission) Speed (kbps)

Fax Resolution (Pixel)

Paper Info

Paper Thickness

Roll Paper/Cut Sheet: 0.07- 0.8mm

Paper Width

Roll Paper/Cut Sheet: 203.2 - 610mm

Paper Handling

Media Feed Method (Single Roll): Roll Paper: Upper Load, Front Output Cut Sheet: Upper Load, Front Output. Media Output (SD-23):Standard Position: 1 sheet Folding Position: 20 sheets on A1 portrait, Flat Position: 20 sheets on A2 landscape

Technical Info

Display

Memory & Storage

Printer Memory

2GB RAM

Memory Card Slot

Connectivity

Interface (Built-in)

USB, LAN, WiFi

Performance

Borderless Printing

Yes

Main Features

Portable

Consumable

Ink Tank

Yes

Power

Power Source/ Power Consumption

AC 100 - 240 V, 50 - 60 Hz, Power Consumption: (Operation: 69 W or less, Sleep Mode: 3.6 W or less, Power Off: 0.3 W or less)

Software

Printer Driver Language

SG Raster (Swift Graphic Raster), HP-GL/2, HP RTL, JPEG (Ver. JFIF 1.02)

Software Included

ScanApp Lei Software

Physical Description

Body Color

White

Dimensions

1152 x 913 x 705mm (Main Unit + Pallet)

Weight (Kg)

69 kg (Main Unit + Pallet)

Included Components

Canon imagePROGRAF TM-5200 Printer, User Manual

Warranty

1 Year Service (Without Adapter) (Box Mandatory While Claiming)

Additional Info

Others

Number of Nozzles: 15,360 nozzles, Nozzle Pitch: 1200 dpi (2 lines), Line Accuracy: +/- 0.1% or less, Minimum Ink Droplet Size: 5 pl, Ink Capacity: Sales Ink: 130 ml / 300 ml (MBK, BK, C, M, Y) Bundled Starter Ink: 130 ml (MBK) / 90 ml (BK, C, M, Y), Ink Type: (Pigment Ink: Matte Black, Black, Cyan, Magenta, Yellow), Printing Speed: ( CAD Drawing - Plain Paper (A1): 24 sec (Fast Economy Mode) 27 sec (Fast) 42 sec (Standard) (CAD Drawing - Heavyweight Coated Paper HG (A1) 29 sec (Fast Economy Mode) 40 sec (Fast) 1 min 17 sec (Standard) (Poster - Plain Paper (A1) 25 sec (Fast Economy Mode) 25 sec (Fast) 44 sec (Standard) ( Poster - Heavyweight Coated Paper HG (A1) 55 sec (Fast) 1 min 22 sec (Standard), Media Feed Method: (Single Roll) Roll Paper: Upper Load, Front Output Cut Sheet: Upper Load, Front Output (Manual feed using media locking lever), Media Output (SD-23): ((Standard Position: 1 sheet Folding Position: 20 sheets on A1 portrait Flat Position: 20 sheets on A2 landscape)), Minimum Printable Length: (Roll Paper: 203.2 mm Cut Sheet: 279.4 mm), Maximum Printable Length: (Roll Paper: 18 m (varies according to the OS and application) Cut Sheet: 1.6 m), Maximum Outer Roll Diameter: 150 mm or less, Borderless Printing Width (Roll Only): Recommended: 515 mm (B2), 594 mm (A1), 10 inch, 14 inch, 17 inch, 24 inch, Printable: 257 mm (B4), 297 mm (A3), 329 mm (A3+), 420 mm (A2), 8 inch, 12 inch, 16 inch, 20 inch, 300 mm, 500 mm, 600 mm), Printing Speed: CAD Drawing - Plain Paper (A1)- 24 sec (Fast Economy Mode), 27 sec (Fast),42 sec (Standard); CAD Drawing - Heavyweight Coated Paper HG (A1)- 29 sec (Fast Economy Mode), 40 sec (Fast),1 min 17 sec (Standard); Poster - Plain Paper (A1)- 25 sec (Fast Economy Mode), 25 sec (Fast), 44 sec (Standard); Poster - Heavyweight Coated Paper HG (A1)- 55 sec (Fast), 1 min 22 sec (Standard)

Specialty

Direct Printing, Software Applications for Workflow Management,

Country Of Origin

Japan

Made in/ Assemble

Vietnam / Thailand (or Country may vary by Shipment)

Details

Features of Canon imagePROGRAF TM-5200 Printer In Bangladesh

Printing Speed

CAD Drawing - Plain Paper (A1):
24 sec (Fast Economy Mode)
27 sec (Fast)
42 sec (Standard)

CAD Drawing - Heavyweight Coated Paper HG (A1):
29 sec (Fast Economy Mode)
40 sec (Fast)
1 min 17 sec (Standard)

Poster - Plain Paper (A1):
25 sec (Fast Economy Mode)
25 sec (Fast)
44 sec (Standard)

Poster - Heavyweight Coated Paper HG (A1):
55 sec (Fast)
1 min 22 sec (Standard)

What is the price of Canon imagePROGRAF TM-5200 Printer In Bangladesh?

The price of Canon imagePROGRAF TM-5200 Printer not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Canon imagePROGRAF TM-5200 Printer from our website or visit our showrooms nearby.
