Others

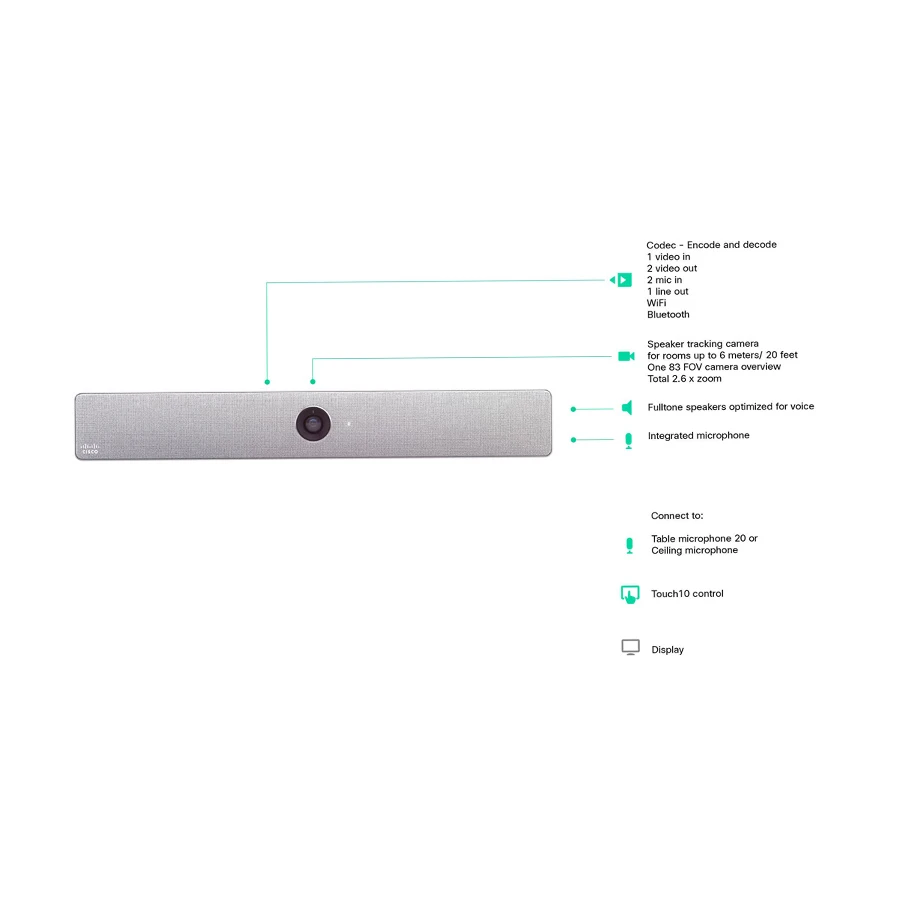

Software compatibility Cisco Collaboration Endpoint Software Version 9.14.5 or later, and Webex Room OS, Bandwidth Up to 6 Mbps point-to-point, Minimum bandwidth for resolution/ frame rate: H.264: 720p30 from 768 kbps, 720p60 from 1152 kbps, 1080p30 from 1472 kbps, 1080p60 from 2560 kbpsw, Firewall traversal Cisco Expressway technology, H.460.18, H.460.19 firewall traversal, Video standards H.264, H.265, Video inputs One HDMI input supports formats up to maximum 4K (3840 x 2160) at 30 fps including HD1080p60, Consumer Electronics Control (CEC) 2.0, Video outputs Two HDMI outputs support formats up to 3840 x 2160p60 (4Kp60), Live video resolutions (encode and decode) up to 1920 x 1080p30 and p60 (HD1080p), Consumer Electronics Control (CEC) 2.0, Audio standards G.711, G.722, G.722.1, G.729, AAC-LD, and Opus Audio features High-quality 20 kHz audio, Prepared for subwoofer (line out), Prepared for inductive loop (line out), Automatic Gain Control (AGC), Automatic noise reduction, Active lip synchronization, Audio inputs Two microphones, 4-pin mini-jack, One audio in from HDMI, Internal microphone, Audio outputs: (external) 1 line out mini-jack (stereo), Speakers: (integrated) High-quality speakers: five speakers in balanced configuration, Frequency response 70 Hz to 20 kHz, Amplifier power: 24W, Max output level SPL 86 dB, Speaker tracking 6-element microphone array for accurate speaker tracking Dual stream H.239 (H.323) dual stream, Binary Floor Control Protocol (BFCP) (SIP) dual stream, Supports resolutions up to 3840 x 2160p5 Wireless sharing Webex app appt (up to 3840 x 2160p5), Cisco Intelligent Proximity client (up to 1920 x 1080p5), Multipoint support 4-way embedded SIP/H.323 conferencing capability with MultiSite option MultiSite features, (embedded multipoint) (optional upgrade) Adaptive SIP/H.323 MultiSite: 3-way resolution up to 1080p30 + content up to 4Kp5, 4-way resolution up to 720p30 + content up to 4Kp5, Full individual audio and video transcoding, H.323/SIP/VoIP in the same conference, Support for presentation (H.239/BFCP) from any participant at resolutions up to 3840 x 2160p5, Best Impression (automatic continuous presence layouts), Encryption and dual stream from any site, Protocols H.323, SIP, Cisco Webex, Embedded encryption, H.323 and SIP point-to-point, Standards-based: H.235 v3 and Advanced Encryption Standard (AES), Automatic key generation and exchange.
