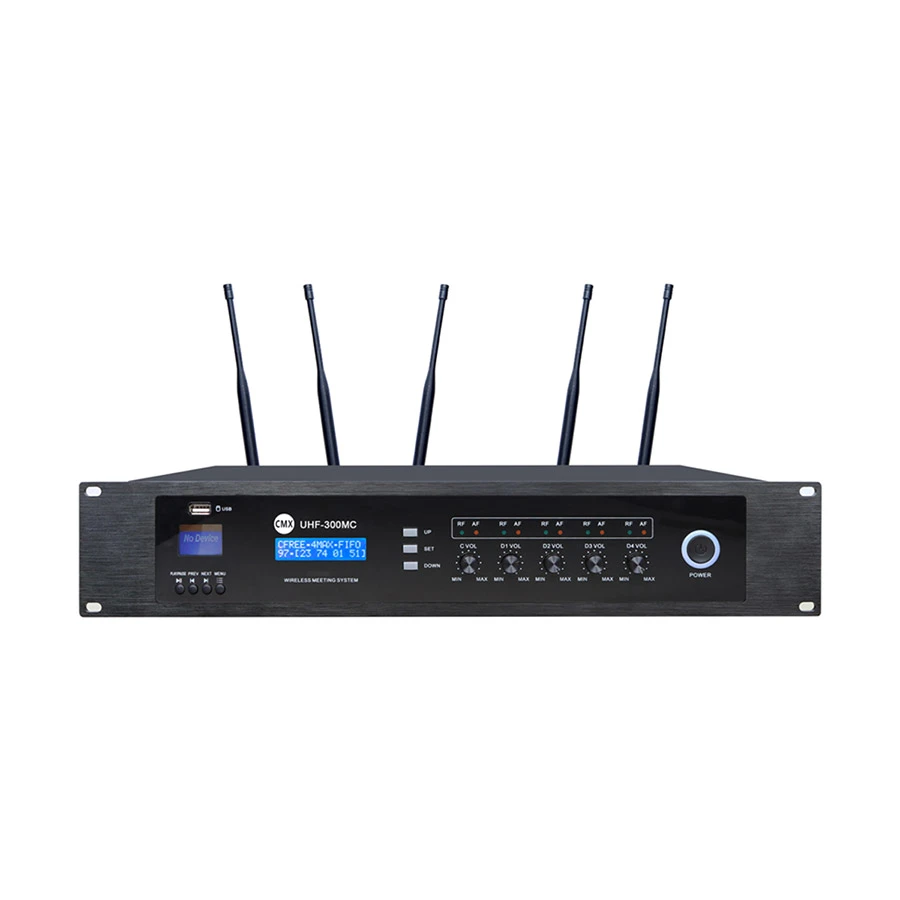

CMX UHF-300MC UHF Wireless Conference System Master Controller
Product Id: 10.03.950.16
Brand
CMX
Coming Soon
Quick Overview
- Channel - Unmentioned
- Connectivity Mode - Wireless
- Memory Card Slot - No
- USB Port - No
- Remote Control - No
- FM Radio - No
- Voice Enabled - No
- Touch Controls - No
General
Brand
CMX
Model
CMX UHF-300MC
Type
Controller
Audio Details
Channel
Unmentioned
RMS/Channel (Watt)
Not Applicable
RMS/Subwoofer (Watt)
Not Applicable
Signal to Noise Ratio (dB)
>105dB
Frequency (Hz - KHz)
60Hz - 16KHz
Sensitivity
-100dBM
Connectivity
Connectivity Mode
Wireless
USB Port
No
Wireless
Wireless Connectivity
Yes
Slots
Memory Card Slot
No
Technical Info
Microphone
No
FM Radio
No
Performance
Lighting Effect
No
Waterproof
No
Dustproof
No
Shockproof
No
Voice Enabled
No
Touch Controls
No
Power
Battery.
Lithium battery
Approximate Battery Life
16 Hours(Working), 60 Hours(Stand By)
Rechargeable Battery
Yes
Operating Range
300 Meter
Power Supply
DC12V-15V, >=1A
Approx. Power Consumption
< 7W
Physical Description
Remote Control
No
Dimensions
485 x 100 x 355mm
Weight (Kg)
7.2 kg
Color
Black
Warranty
Warranty Details
No warranty
Additional Info
Feature
The CMX Audio range UHF Wireless Conference System with high flexibility and reliability, which is an ideal choice for mobile conference systems. It is one simple operation, compact structures, cost-effective range basic discussion conference system. The wireless conference system can be perfectly integrated into any meeting rooms without additional wiring. Its the best UHF wireless conference solutions for small-scale conferences system
Others
Transmission Way: UHF wireless one way transmission by oscillation PLL technology: Channel Qty, 5 channels (one for chairman Mic and four for delegate Mics), Frequency Range: 740MHz-790MHz @ -+10PPM stability, Modulation Mode; FM, THD: <0.5%, Transmission Way : UHF wireless two way transmission , control: Channel Qty 16, Frequency Range: 740MHz-790MHz, Modulation Mode: FSK, Receive Sensitivity: -100dBM, Transmitted Power: +6dBm (adjustable), Frequency Deviation: <0.002, Communication Rate: ,100KBPS, Signal Coverage: 4,000 Square meters, Operation Temperature: -20 Degree C to +55 Degree C
Specialty
Simple operation UHF wireless conference system.Minimum cable wiring to save cable layout cost. Minimum cable connection ideal for rental use or portable conference system. Basic discussion conference system or audio conference system. Economy wireless conference system and meeting system. System capacity of 256 delegate units. Chairman unit with priority over delegate units. Chairman unit and delegate unit built-in rechargeable LIPO battery. Several meeting modes: Limit (1/2/3/4), First in first out (1/2/3/4), Chairman Only and free discussion modes. 5 delegate microphones can be turned on at the same time. Microphones can be operated on the built-in rechargeable lithium battery. Multi-channel high bandwidth and intermediate band frequency selective filtering to avoid any interference.Built-in feedback suppressor to decrease feedback and noise effectively. Built-in noise deletion circuit and TONE-LOCK system to make sure the system has strong anti-jamming function.Separate volume control for 5 channels on master controller front panel. Separate output level meter for each 5 channels for direct visual monitoring. UHF wireless conference system master control UHF-300MC is powered by DC12V. UHF-300MC with unbalanced 6.3mm jack output and balanced XLR output to sound reinforcement system. Video tracking function needs external equipment of UHF-300VT and cameras.
Country Of Origin
China
Made in/ Assemble
China
