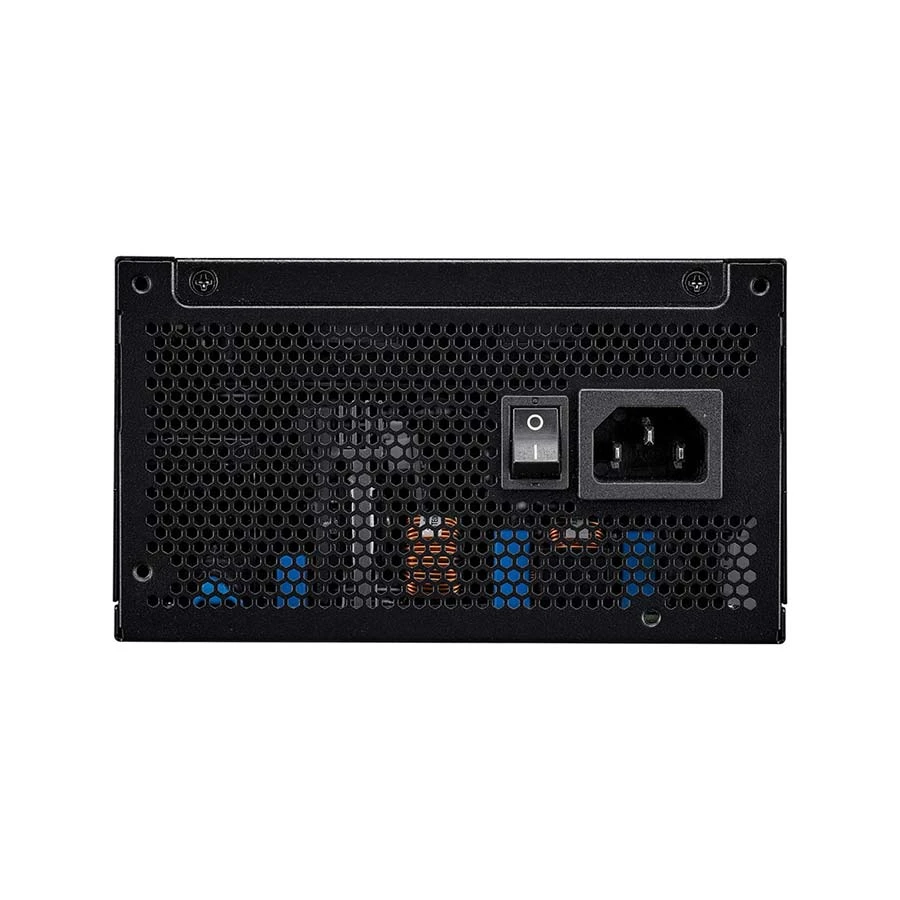

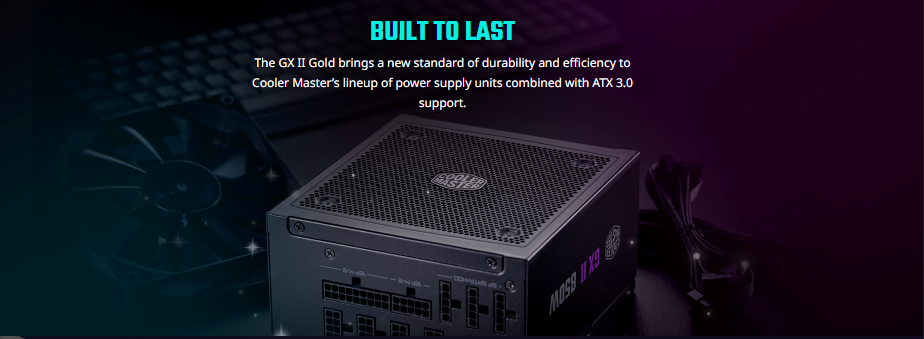

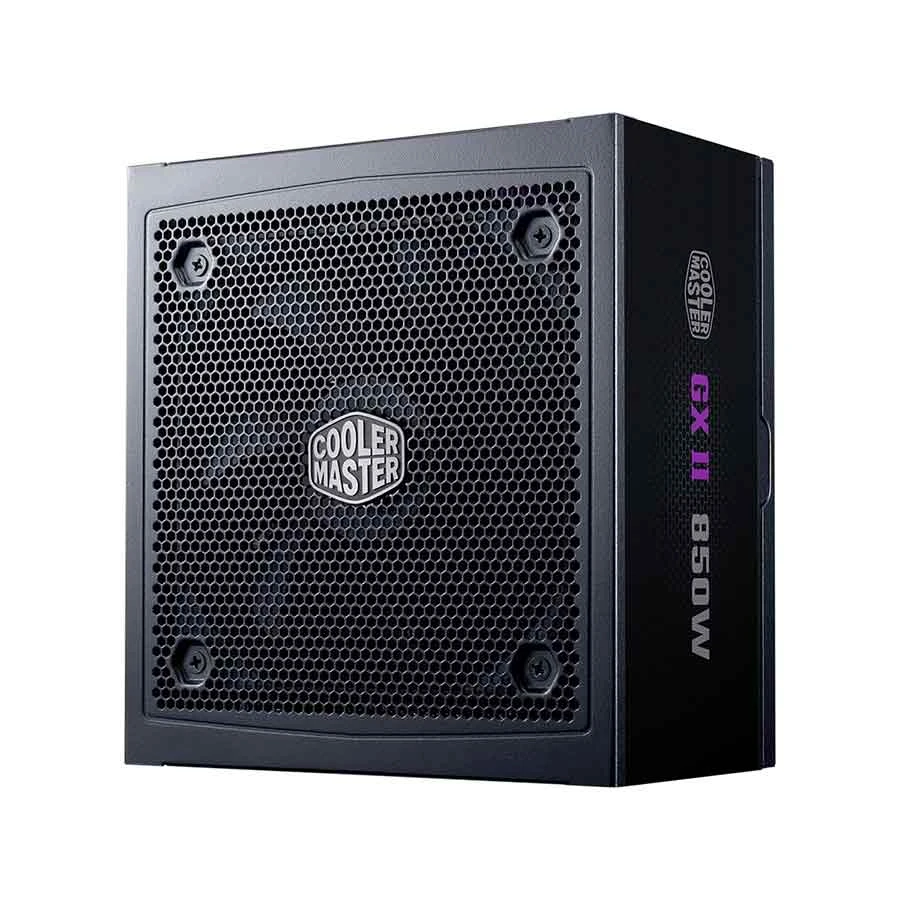

Cooler Master GX II Gold 850W Fully Modular 80 Plus Gold Certified Power Supply #MPX-8503-AFAG-2BEU

Product Id: 55.01.460.170

Brand Cooler Master

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • PSU Category - Full Modular
  • Type - ATX 12V Ver. 3.0
  • Maximum Power - 850 Watt
  • Fan Speed - 2500 RPM

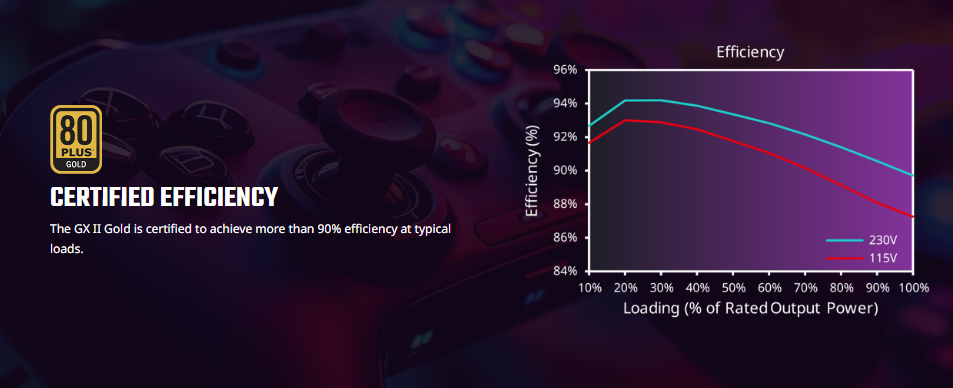

  • Efficiency - 90% Efficiency
  • Efficiency Rating - 80 Plus Gold
  • Protection - OPP, OVP, OTP, OCP, SCP, UVP
General
Brand
Cooler Master

Model
Cooler Master GX II Gold 850W

Series
GX

PSU Category
Full Modular

Type
ATX 12V Ver. 3.0

Part No
MPX-8503-AFAG-2BEU


Cooling & Lighting
Fan Size
120mm

Lighting Effect
No

Zero RPM Fan Mode
Yes

Fan Bearing
HDB

Fan Speed
2500 RPM


Performance
Efficiency
90% Efficiency

Efficiency Rating
80 Plus Gold

PFC (Power Factor Correction)
Active PFC

Power Good Signal
100 - 150 ms

Hold Up Time
>16ms at 80% Load


Protection
Protection
OPP, OVP, OTP, OCP, SCP, UVP

Over Voltage Protection (OVP)
Yes

Over Power Protection (OPP)
Yes

Over Current Protection (OCP)
Yes

Over Temperature Protection (OTP)
Yes

Short Circuit Protection (SCP)
Yes

Under Voltage Protection (UVP)
Yes

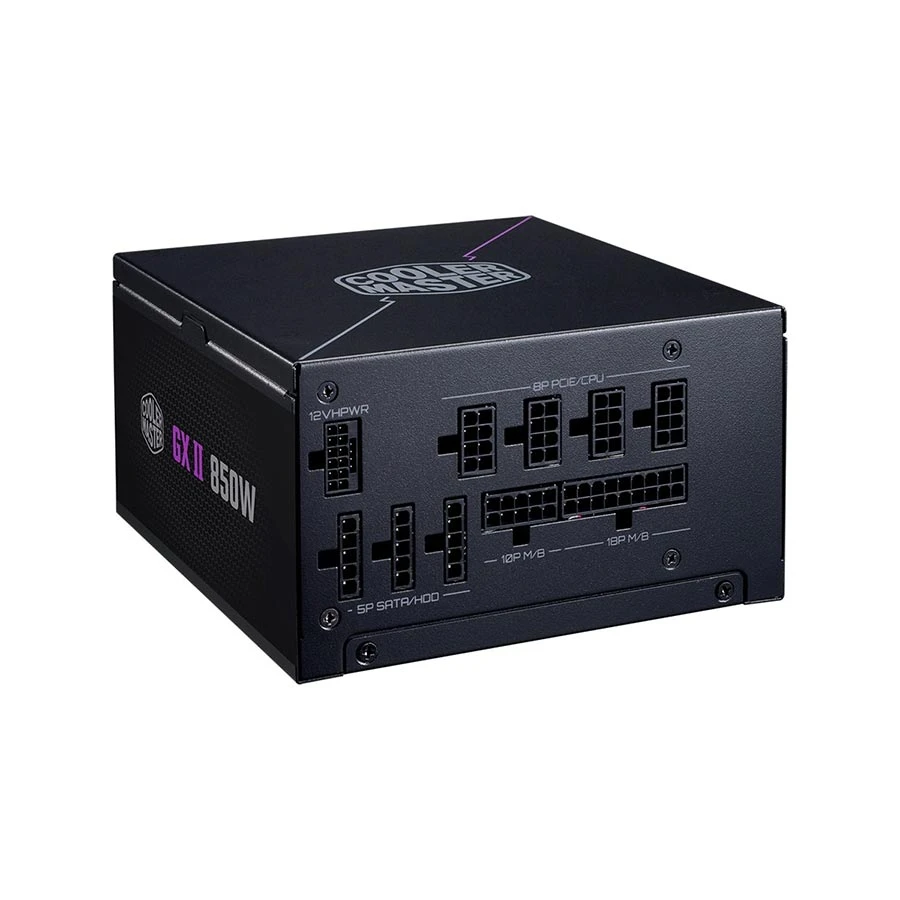

Connectors
ATX Main Connectors
1

EPS Connectors
2

PCIe Connectors
4

SATA Power Connectors
6

4-Pin Peripheral Connectors
2


Power
Min. Power (Approx.)
680 Watt

Maximum Power
850 Watt

Input AC
100-240V

Input Voltage
100-240V

Input Frequency Range
50-60Hz

Input Current
10-5A

Operating Temperature
0 - 40 Degree C


Physical Description
Cable Type
12VHPWR cable

MTBF
>100,000 Hours

Form Factor
ATX

Dimensions
160 x 150 x 86 mm

Weight (Kg)
2.614 kg

Color
Black


Warranty
Warranty Details
10 year


Additional Info
Regulatory / Safety Approval
cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC

Others
ErP 2014 Lot 3: Yes EPS 4+4 Pin Connectors: 1 EPS 8 Pin Connector: 1

Specialty

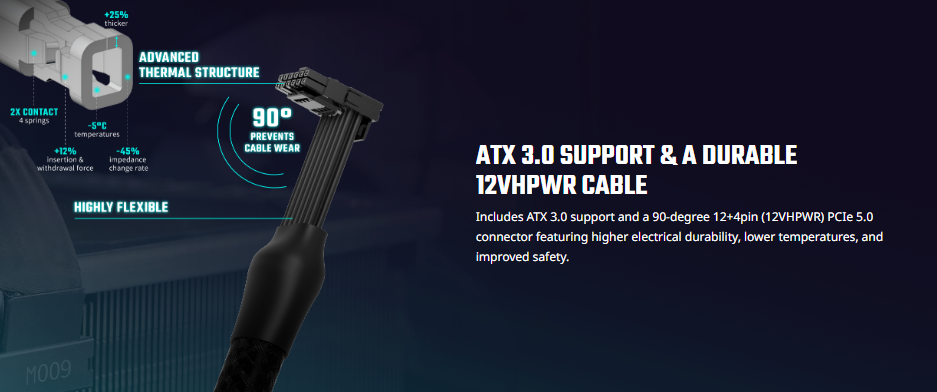

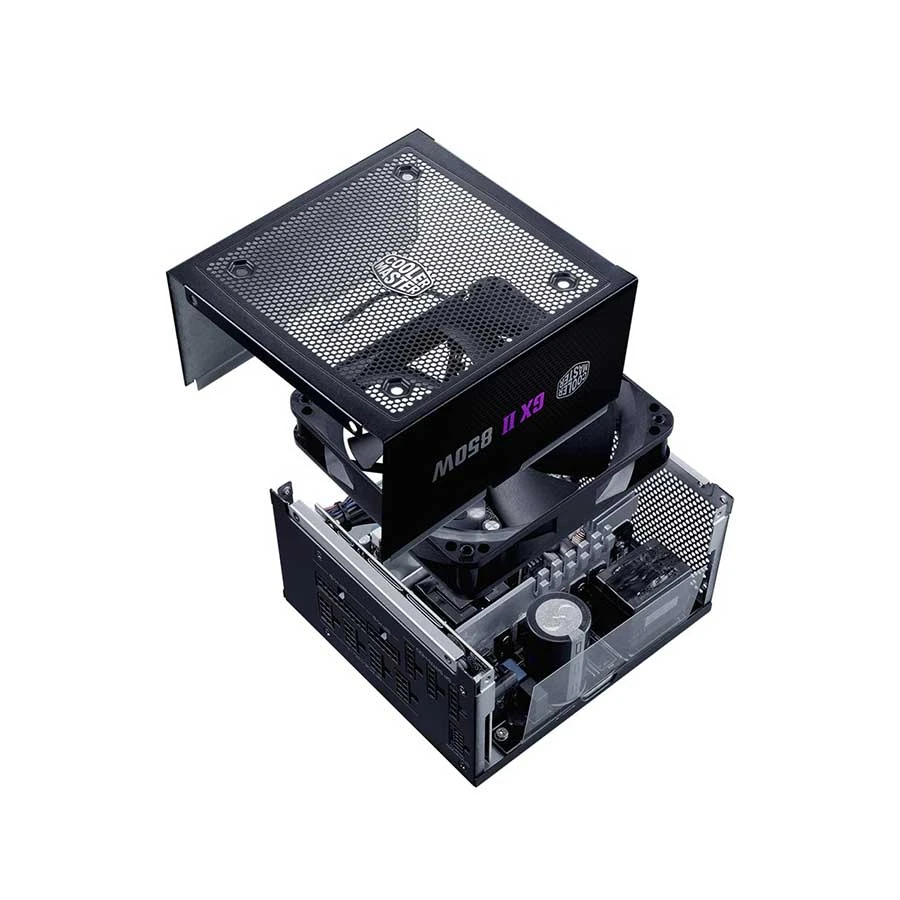

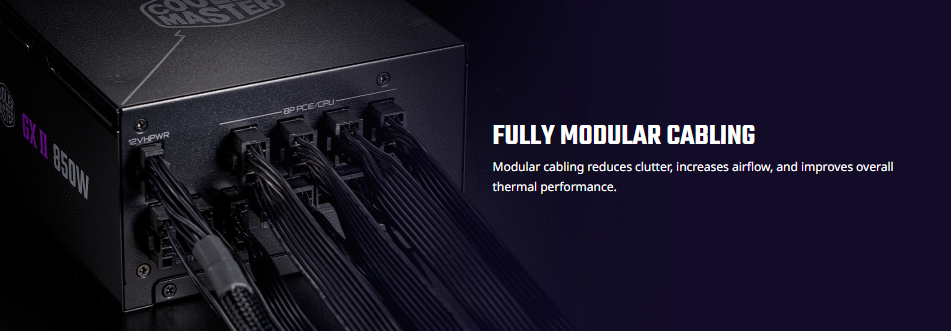

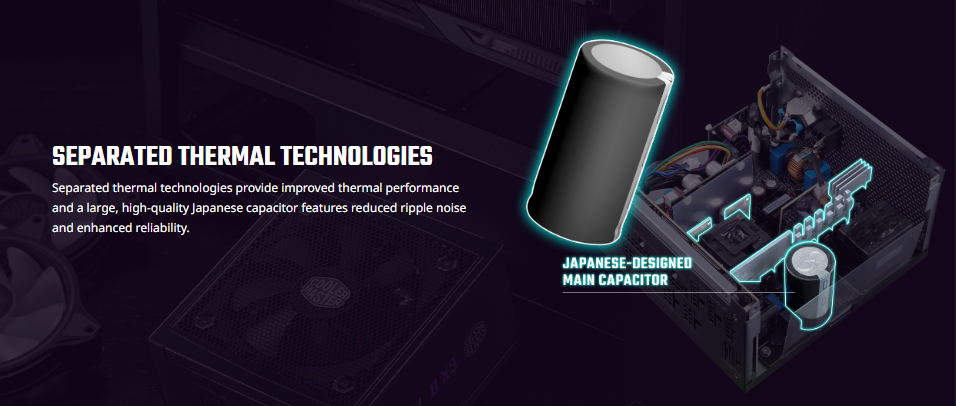

ATX 3.0 support & a durable 12VHPWR cable 80 Plus Gold certified efficiency, Silent fan performance with a zero-RPM mode. Separated thermal technologies. Fully modular cabling. Includes ATX 3.0 support and a 90-degree 12+4pin (12VHPWR) PCIe 5.0 connector featuring higher electrical durability, lower temperatures, and improved safety.A zero-RPM default mode automatically turns the fan on when your PC reaches a specific temperature.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
