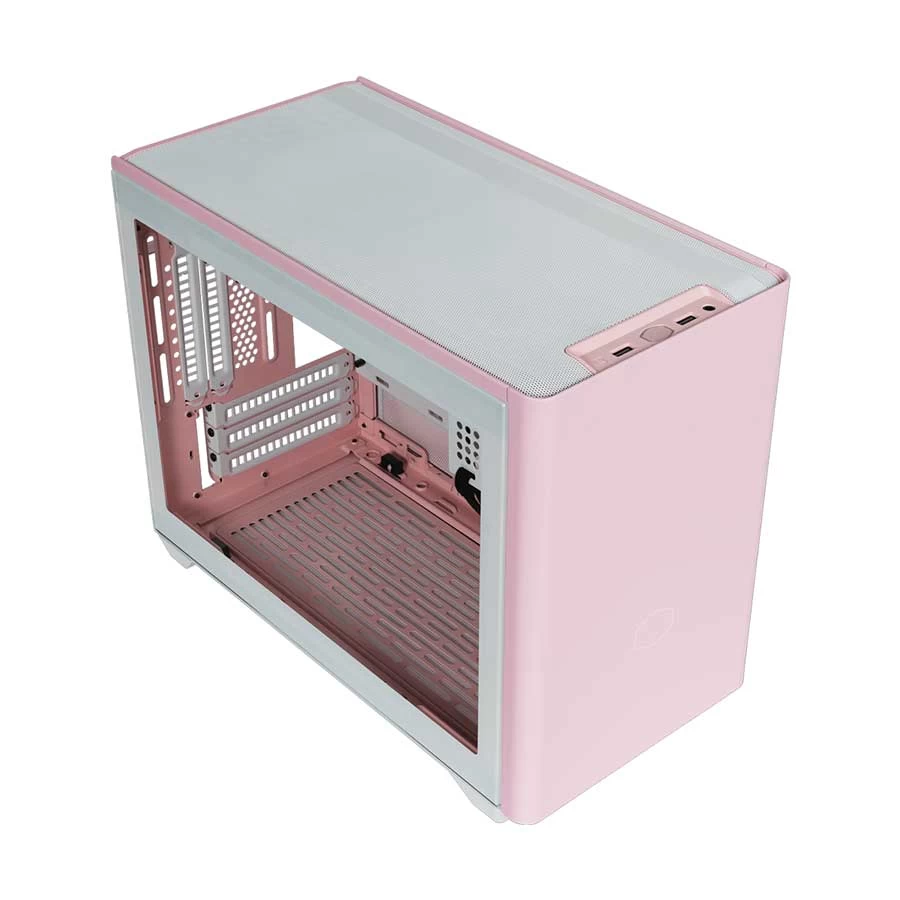

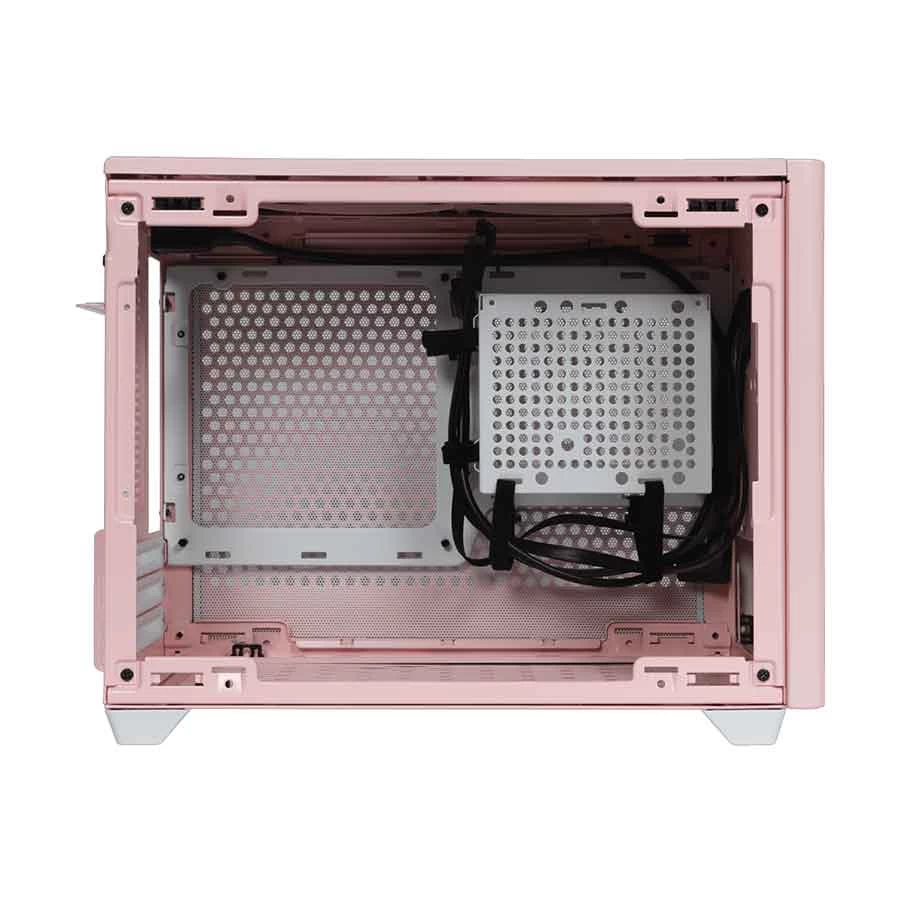

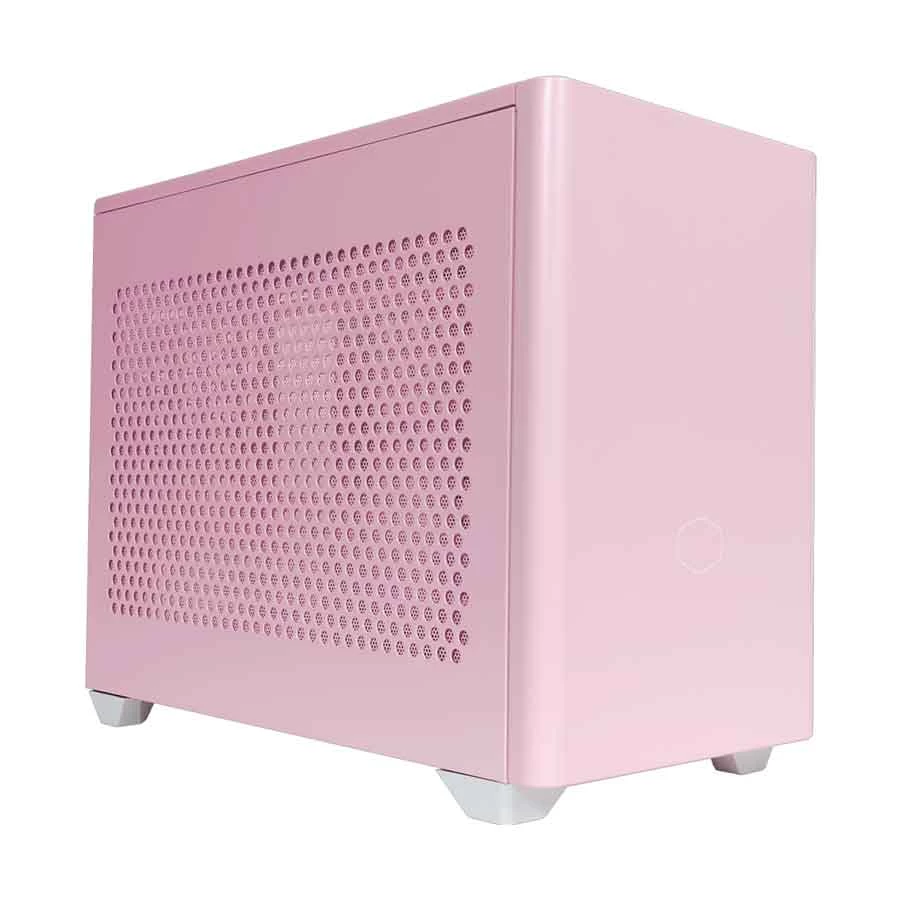

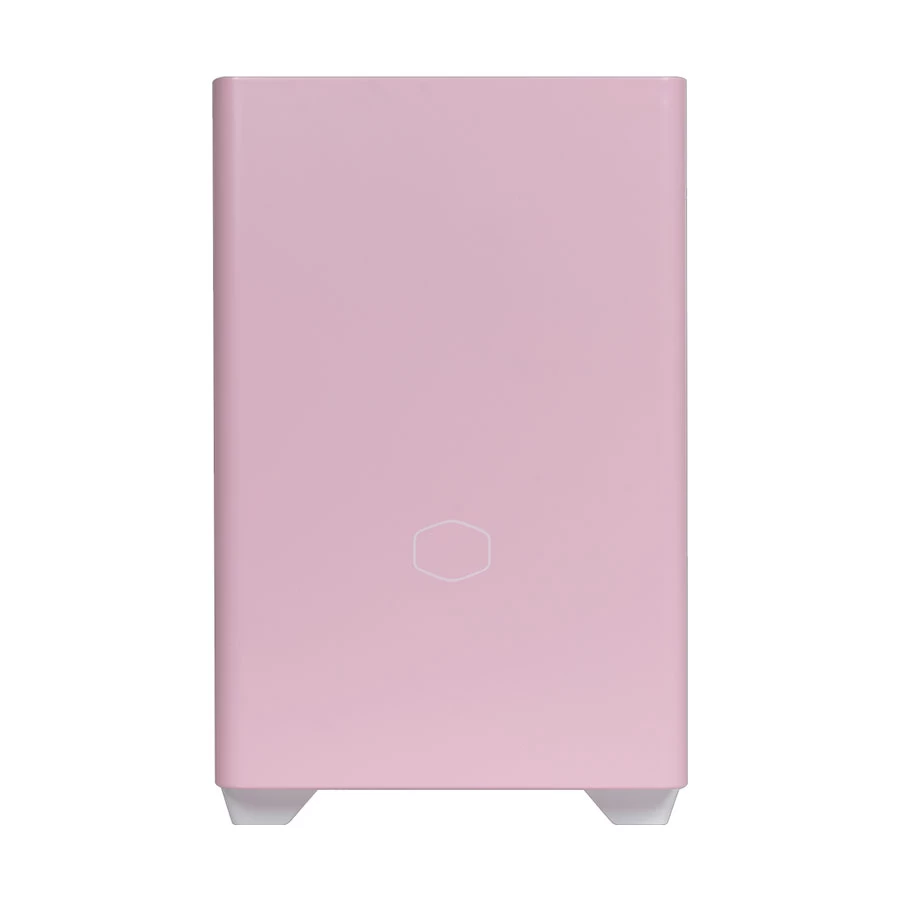

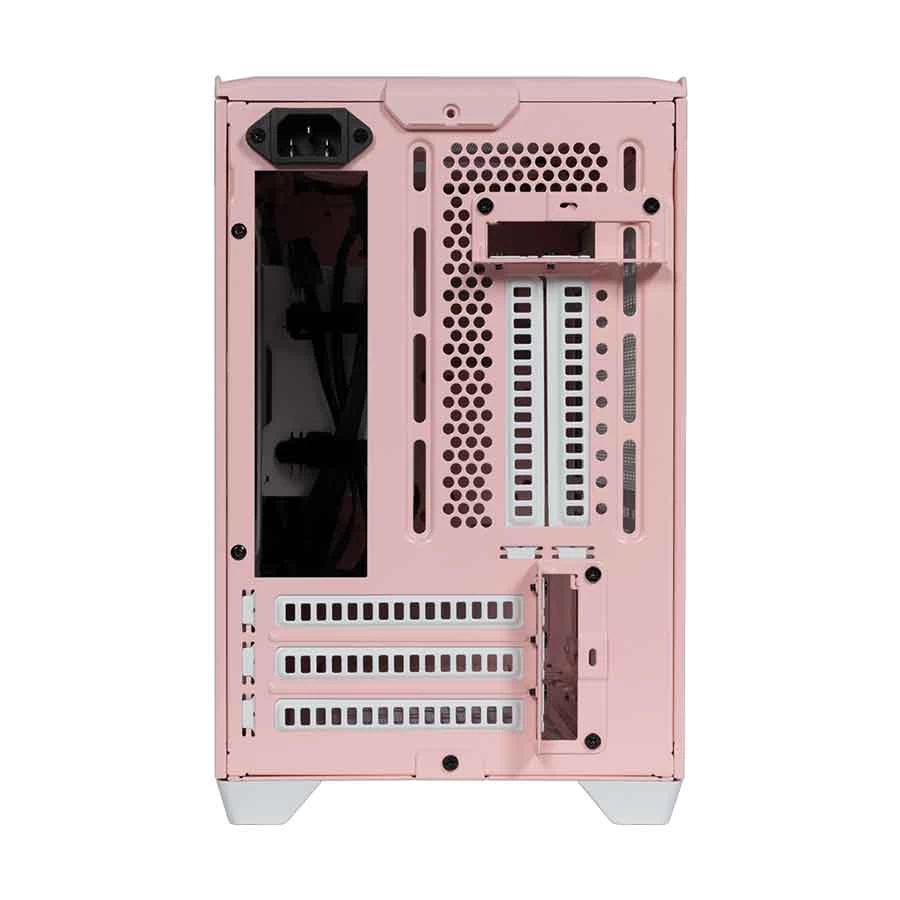

Cooler Master MasterBox NR200P Mini Tower Flamingo Pink Mini DTX Flamingo Desktop Casing #MCB-NR200P-QCNN-S00

Product Id: 07.01.460.138

Brand Cooler Master

Regular Price Tk 10,090 Monthly EMI Tk 841
Special Price Tk 9,300 Ecom Discount Tk 300

Quick Overview

  • Case Type - Mini Tower
  • Cooling Fan (Built-In) - 2
  • Power Supply (Built-In) - No
  • Lighting Fan - No
  • Optical Drive Bay - No
General
Brand
Cooler Master

Model
Cooler Master MasterBox NR200P

Series
MasterBox Series

Case Type
Mini Tower

Part No
MCB-NR200P-QCNN-S00


Technical Info
Supported Motherboard Type
Mini-DTX, Mini-ITX (Max MB size: 244 x 226mm, L x H)

Lighting Support (Front/Top/Side)
No

Supported LED Strip
No

Fan / Light Controller
No

Illumination
Sync with Motherboard

Back-Connect Supported
No

Graphics-Card Length
L: 330mm (incl. power connector), H: 156mm (incl. power connector), W: 60mm (triple slot)

Supported CPU Cooler
Air Cooler or Liquid Cooler

CPU Cooler Height
76mm (GPU in vertical position), 153mm (tempered glass side panel), 155mm (vented steel side panel)

PSU Length
130mm


Ports & Slots
Front/Top USB port
2 x USB 3.2 Gen 1 Type-A

Front/Top Audio Port
1 x Combo

5.25 Inch Drive Bay
No

3.5 Inch Drive Bay
1 (Max. 2)

2.5 Inch Drive Bay
2 (Max. 3)

1.8 Inch Drive Bay
No

Expansion Slots
3

Optical Drive Bay
No

Memory Card Slot
No


Fan & Radiator Details
Cooling Fan (Built-In)
2

Additional Fan Slot
1

Pre-Installed Fan Size
2 x 120mm (Top) 650-1800RPM PWM (SickleFlow)

Supported Fan Size
2 x 120/140mm (Side), 1 x 92mm (Rear), 2 x 120mm (Bottom) (Recommended slim fans for GPUs wider than 2.5 PCI slots)

Lighting Fan
No

Radiator Support Front/Top/Rear
92mm (Rear) (Not Compatible with Vertical GPU Installation), 120mm, 240mm (Bottom), (recommended for custom loops only), 120mm, 140mm, 240mm, 280mm (Side) (not compatible with vertical GPU installation)


Power
Power Supply (Built-In)
No

Power Supply Type
SFX, SFX-L

Power Supply Mounted
Bottom

Approx. Power Consumption
10W


Physical Description
Transparent Side Window
No

Case Windowed
Metal

Buttons
Power

Material
Steel, Plastic, Mesh, Tempered Glass

Dust Cover
Top, Bottom, Left side, Right side

Color
Flamingo Pink

Dimensions
376 x 185 x 292mm

Weight (Kg)
5.93 Kg

Handle
No


Warranty
Warranty Details
No warranty


Additional Info
Others
2.5 / 3.5 Inch Drive Bays (combo): 1, Volume: 18.25L (Exlc. Protrusions), Note: Single slot water-cooler GPUs or vertically mounted GPUs are recommended when using bottom radiator position

Specialty
Ever since Cooler Masters inception as a company, we have celebrated uniqueness alongside a community that dares to embrace their inventive identity. With PC setups as a medium for self-expression. The NR200P boasts larger ATX chassis features while retaining a space-efficient form factor. The NR200P comes with a choice of side panels: vented steel for unrestricted airflow, or crystal-clear tempered glass to reveal the beauty of a computing beast. A PCI Riser is included for vertical GPU installation, ideal for showcasing or feeding it fresh air from the side with the vented panel. The NR200P bears unlimited cooling potential: including two 120mm SickleFlow fans, and capable of holding up to 7 fans in total. The compact structure can efficiently house CPU coolers up to 155mm in height and radiators up to 280mm in length, so even the hottest running hardware cant be held back. Triple slot GPUs supports a maximum length of 330mm and maximum width of 156mm, fitting the largest, high-end graphics cards. A custom-sized riser cable is included to vertically showcase a graphics card, or allow radiator mounting at the bottom of the chassis to keep the system running as cool as it looks. All external panels, including the tempered glass and top mounted fans are secured with pins for easy removal, facilitating quick access to the internals without the use of tools. Every panel and frame part of the NR200P can be dismantled. Screws are used to secure the frame parts to allow advanced disassembly and multiple angles to easily work inside of the chassis. Compatible with Mini-ITX and Mini DTX. The PSU can be front-mounted for extra motherboard clearance with a maximum space of 244 x 226 mm. Two liquid cooling pump locations alongside side and bottom radiator mounting locations allow for powerful, custom water-cooled builds inside a compact enclosure.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
